YUAN SC5A0N1 MC 1-Channel HDV/SDI Mini PCIe Video Capture Card
SC5A0N1 MC
- Model: SC5A0N1 MC SDI
- Max FPS: 1920×1080p@60/50fps in → 1920×1080p@30/25fps out
- Dimension: 30×50.95 ( mm )
- Interface: Minicard ( PCIe×1 )
- Video Input: 1×HDMI, 1×DVI-I, 1×DVI-A, 1×YPbPr or 1×SDI
Details

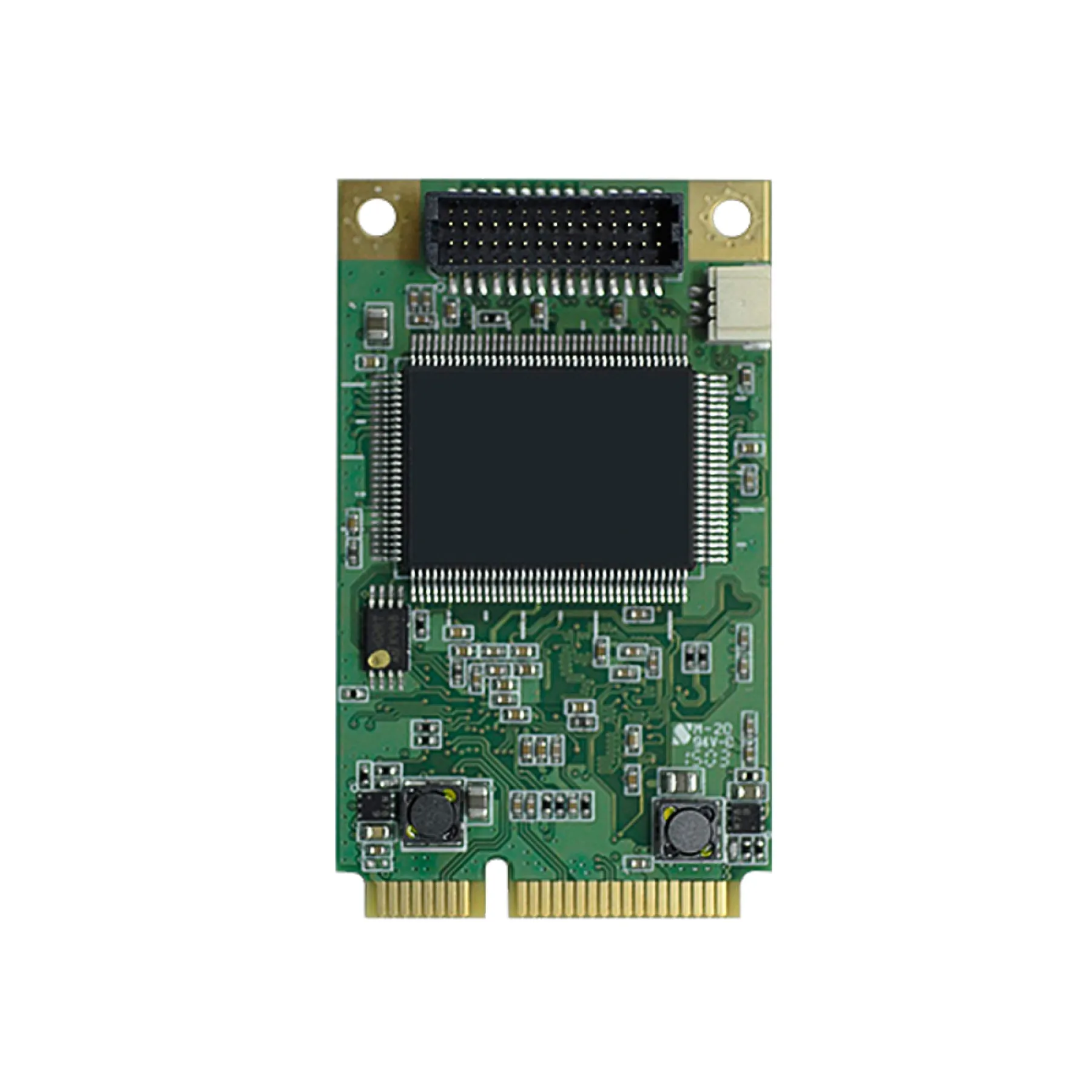

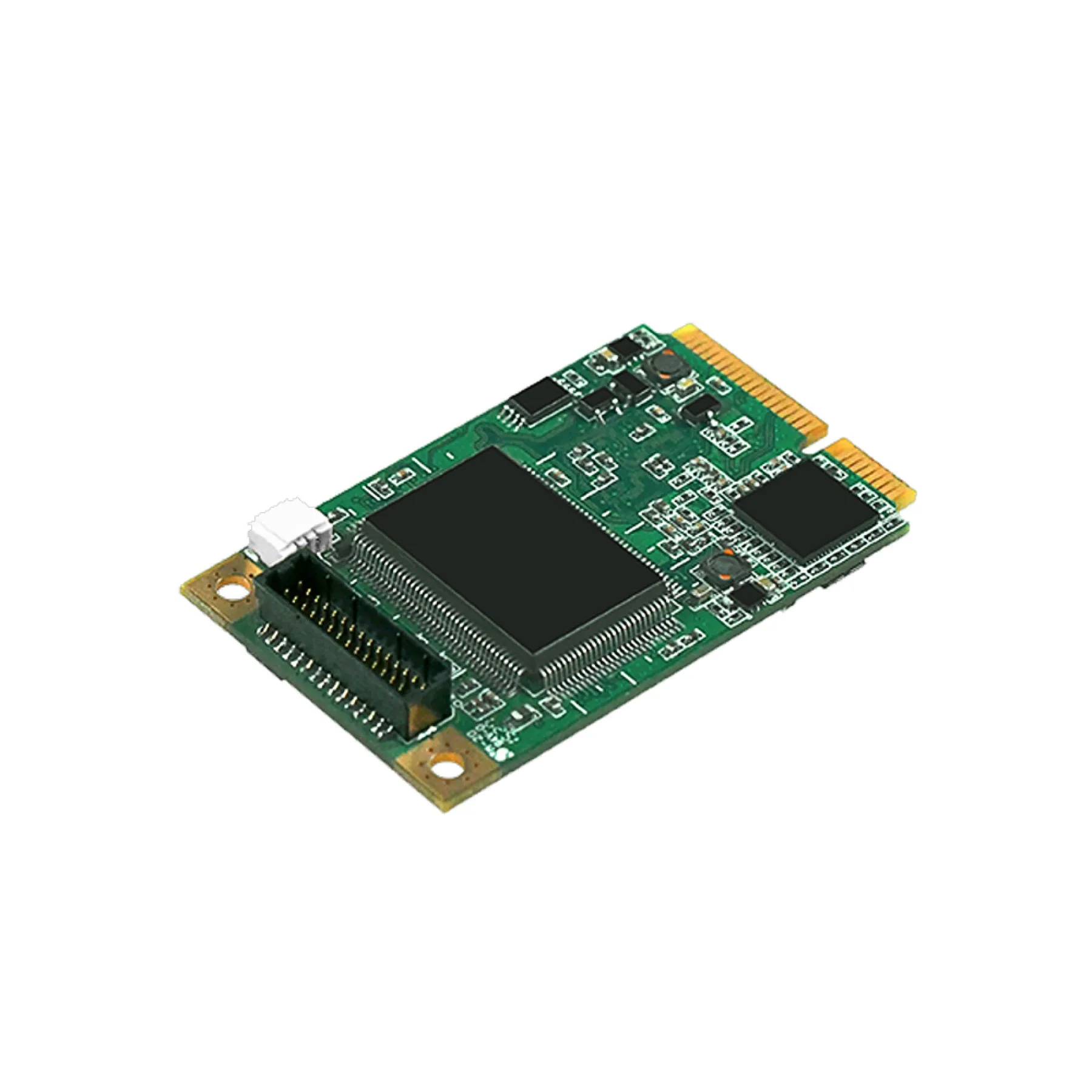

The YUAN SC5A0N1 MC is a 1-Channel Mini PCIe Video Capture Card. With dimensions of 30x50.95mm, the SC5A0N1 MC offers options of either 1×HDMI, 1×DVI-I, 1×DVI-A, 1×YPbPr or 1x SDI for video input.System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Model Name | SC5A0N1 MC HDV | SC5A0N1 MC SDI |
| Max. FPS | 1920×1080p@60/50fps in → 1920×1080p@30/25fps out | 1920×1080p@60/50fps in → 1920×1080p@30/25fps out |
| Recording Mode | Hardware Compression, Real-Time Mode | Hardware Compression, Real-Time Mode |
| Dimension | 30×50.95 ( mm ) | 30×50.95 ( mm ) |
| Interface | Minicard ( PCIe×1 ) | Minicard ( PCIe×1 ) |
| Video Input | 1×HDMI, 1×DVI-I, 1×DVI-A, 1×YPbPr ( Through On-Board Wafer Connection ) | 1×SDI |
| Video Output | 1×SDI ( Loop-Through Output) | 1×SDI ( Loop-Through Output ) |
| Display Video Format | YV12, NV12, YUY2, RGB24, RGB32 | YV12, NV12, YUY2, RGB24, RGB32 |
| Video RAW Data Resolution | 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps | HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI 720×480i@60fps 720×576i@50fps |
| Recording Video Format | H.264 ( Hardware Compression ) | H.264 ( Hardware Compression ) |
| Recording Video Resolution | 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps | HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI 720×480i@60fps 720×576i@50fps |

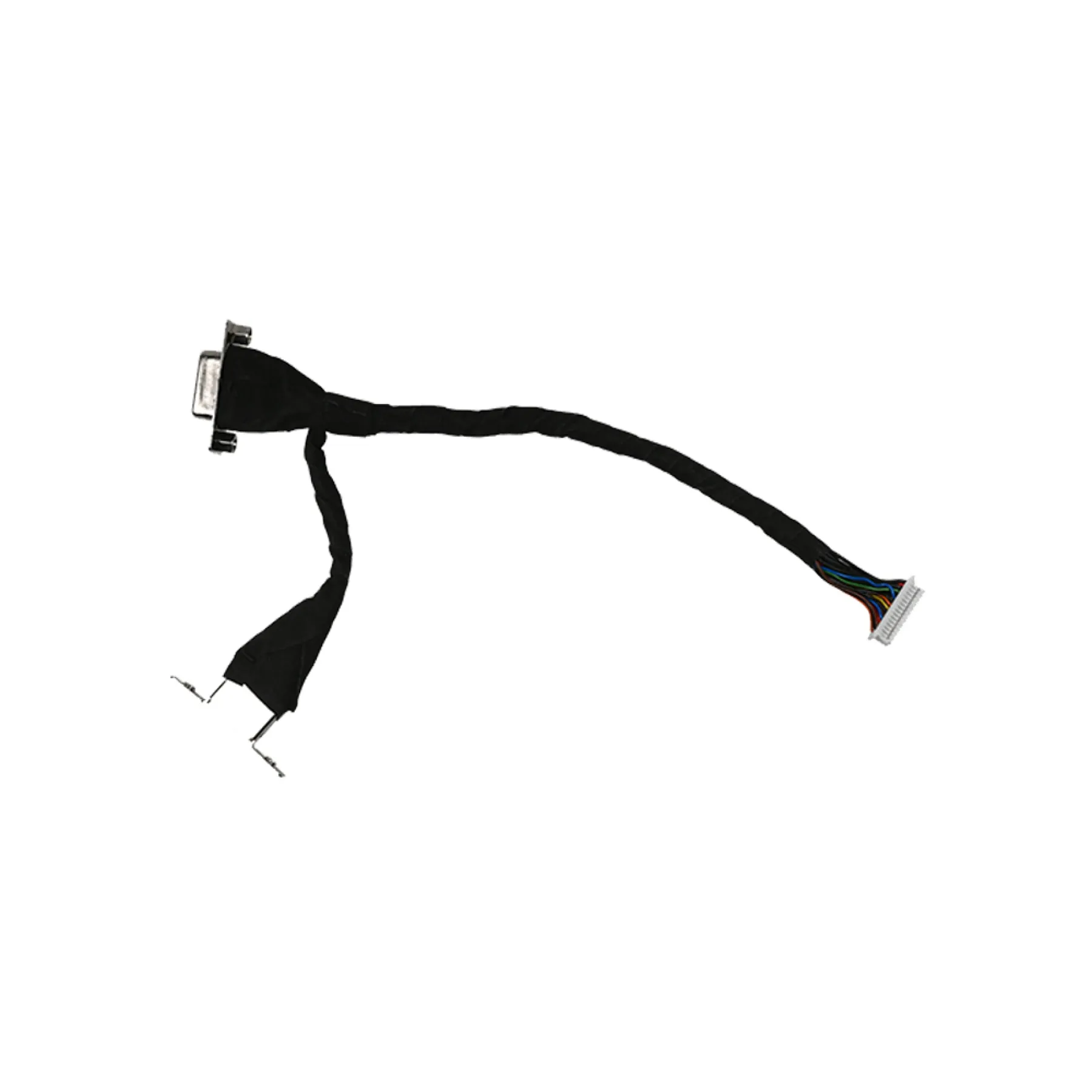

| Audio Input | 1×HDMI Embedded Audio Audio L/R ( 2×RCA Through Wafer Connector to A/V Cable ) | 1×SDI Embedded Audio Audio L/R ( 2×RCA Through Wafer Connector to A/V Cable ) |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz | Stereo / 16-bit / 32000 ~ 48000Hz |
| Multiple Cards | ∞ | ∞ |
| SDK | Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi | Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi |
| OS Support | Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) | Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) |
