YUAN SC550N1 MC 1-Channel SDI/HDMI/HDV/AIO 1080P60 Mini PCIe Video Capture Card
SC550N1 MC
- Model Name: SC550N1 MC AIO/ SC550N1 MC HDV/ SC550N1 MC SDI
- Dimension: 30×50.95 (mm)
- Interface: Minicard (PCIe x1)
- Video Input: 1×HDMI,1×SDI/ 1×HDMI,1×DVI-I,1×YPbPr/ 1x SDI
Details

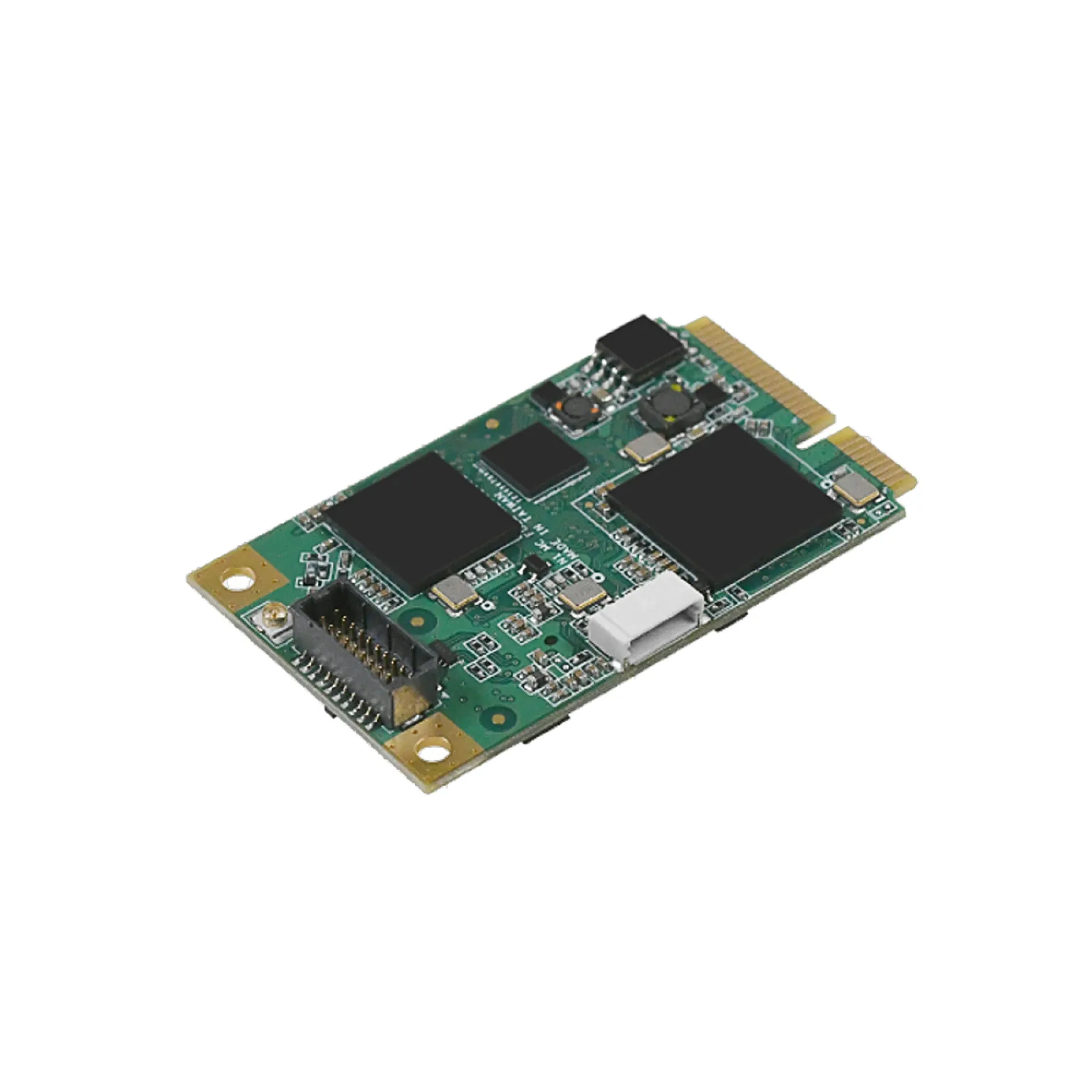

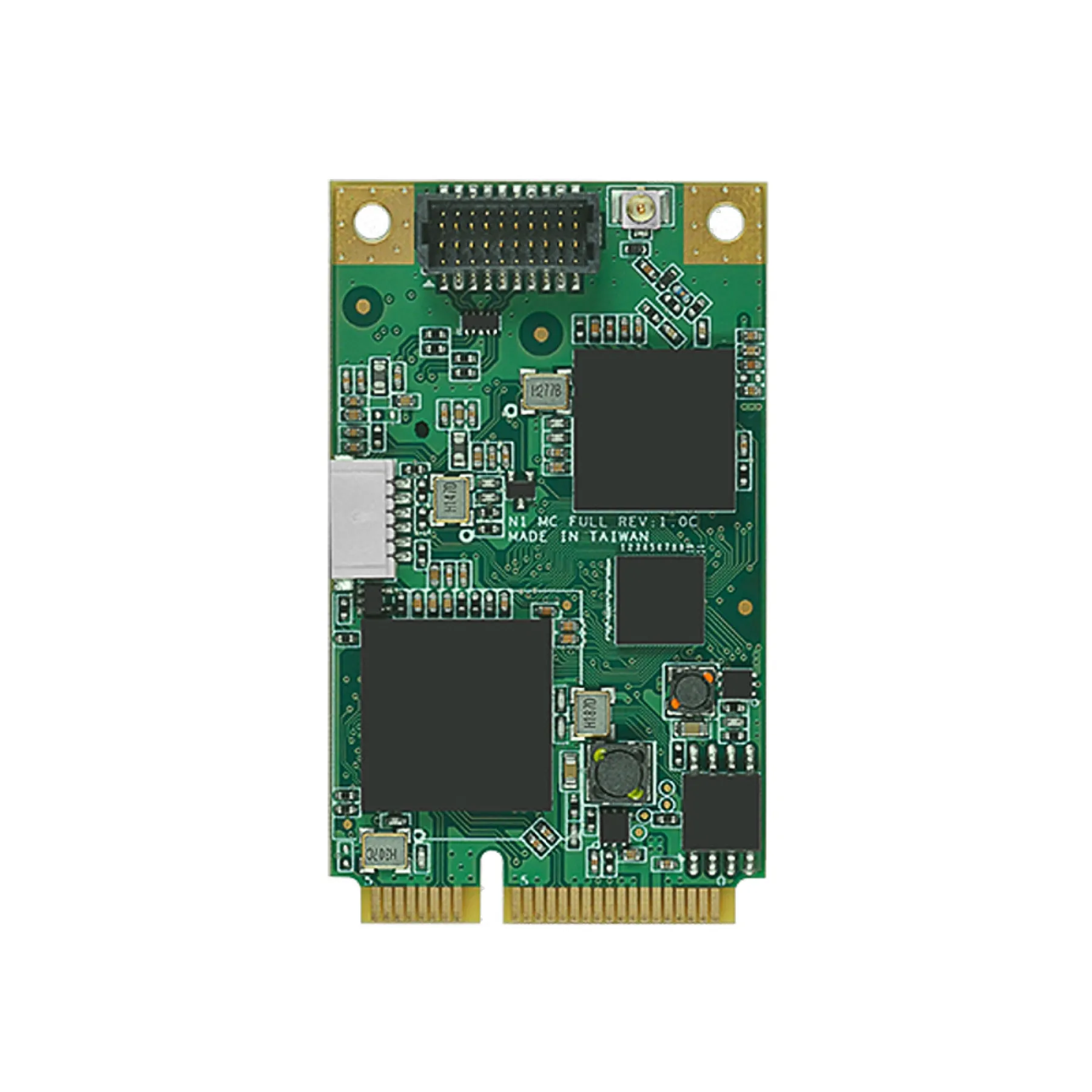

The YUAN SC550N1 MC is a 1-Channel Mini PCIe Video Capture Card. With dimensions of 30x50.95 (mm), the SC550N1 MC contains either 1×HDMI, 1×SDI or 1×HDMI, 1×DVI-I, 1×YPbPr ( Through On-Board Wafer Connection ) or 1×SDI for video input.System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Model Name | SC550N1 MC AIO | SC550N1 MC HDV | SC550N1 MC SDI |
| Max. FPS | 1920×1200p@60/50fps in → 1920×1200p@30/25fps out 1920×1080p@60/50fps in → 1920×1080p@60/50fps out | 1920×1200p@60/50fps in → 1920×1200p@30/25fps out 1920×1080p@60/50fps in → 1920×1080p@60/50fps out | 1920×1080p@60/50fps in → 1920×1080p@60/50fps out |
| Recording Mode | Software Compression, Real-Time Mode | Software Compression, Real-Time Mode | Software Compression, Real-Time Mode |
| Dimension | 30×50.95 ( mm ) | 30×50.95 ( mm ) | 30×50.95 ( mm ) |
| Interface | Minicard ( PCIe×1 ) | Minicard ( PCIe×1 ) | Minicard ( PCIe×1 ) |
| Video Input | 1×HDMI, 1×SDI | 1×HDMI, 1×DVI-I, 1×YPbPr ( Through On-Board Wafer Connection ) | 1×SDI |
| Video Output | 1×SDI ( Loop-Through ) | ||
| Display Video Format | YV12, NV12, YUY2, RGB24, RGB32 | YV12, NV12, YUY2, RGB24, RGB32 | YV12, NV12, YUY2, RGB24, RGB32 |
| Video RAW Data Resolution | 1920×1200p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps | 1920×1200p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps | 3G-SDI 1920×1080p@60/50fpsHD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fpsSD-SDI 720×480i@60fps 720×576i@50fps |
| Recording Video Format | H.264 ( Hardware Compression ) | H.264 ( Software Compression ) | H.264 ( Software Compression ) |
| Recording Video Resolution | 1920×1200p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps | 1920×1200p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps | 3G-SDI 1920×1080p@60/50fpsHD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fpsSD-SDI 720×480i@60fps 720×576i@50fps |
| Audio Input | 1×HDMI Embedded Audio 1×SDI Embedded Audio | 1×HDMI Embedded audio A pair of analog audio connector ( Through On-Board Wafer Connection ) | 1×SDI Embedded Audio |
| Audio Output | 1×SDI Embedded Audio | ||
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz | Stereo / 16-bit / 32000 ~ 48000Hz | Stereo / 16-bit / 32000 ~ 48000Hz |
| Watchdog | V | ||
| Multiple Cards | ∞ | ∞ | ∞ |
| SDK | Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi | Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi | Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi |
| OS Support | Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) | Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) | Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) |
