YUAN SC3C0N8 MC 8-Channel Composite H.264 Mini PCIe Video Capture Card
SC3C0N8 MC
- Model Name: SC3C0N8 MC
- Max. FPS: NTSC – 240fps @ 960/720×480, PAL – 200fps @ 960/720×576

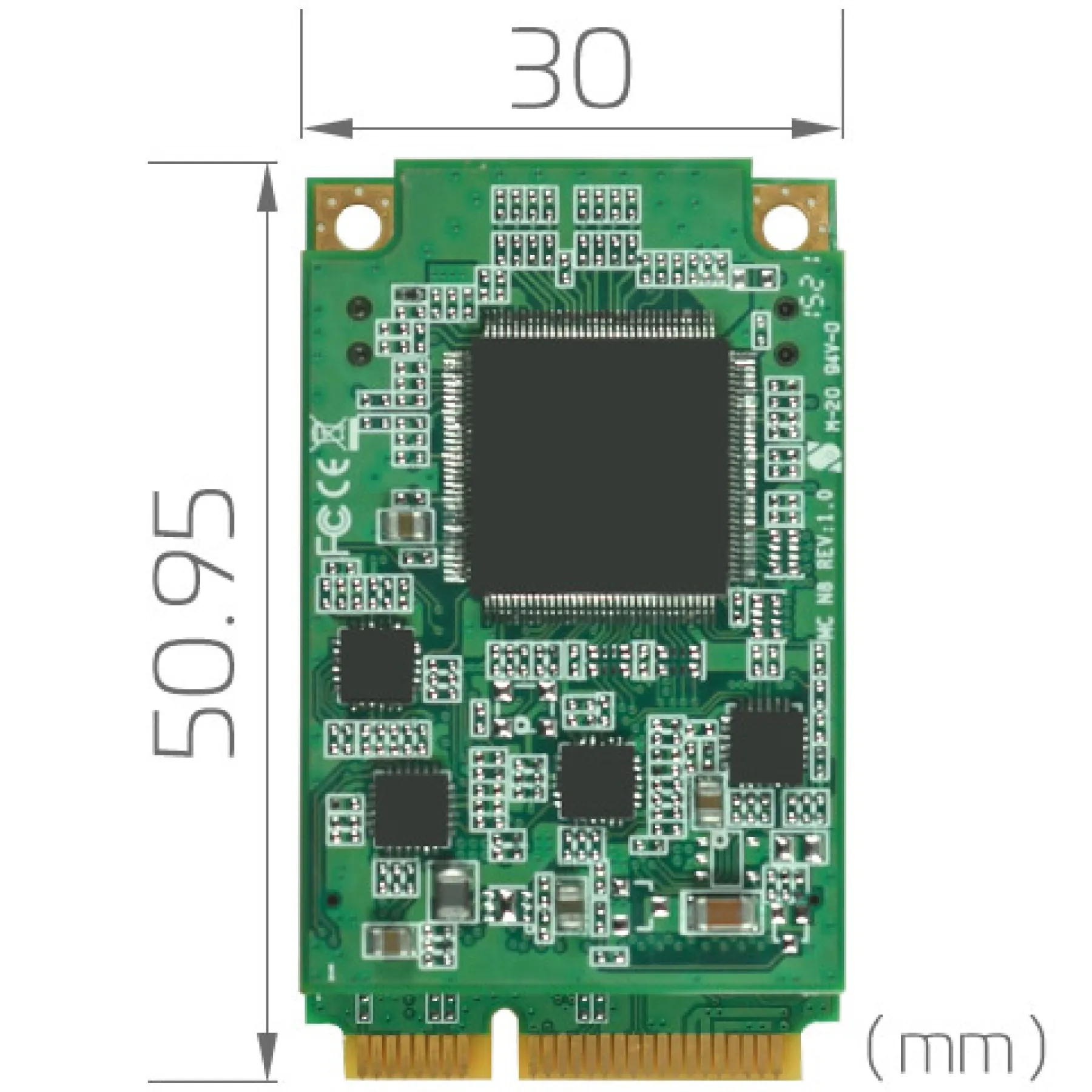

- Dimension: 30×50.95 (mm)
- Interface: Minicard (PCIe x1)
- Video Input: 8x Composite
Details

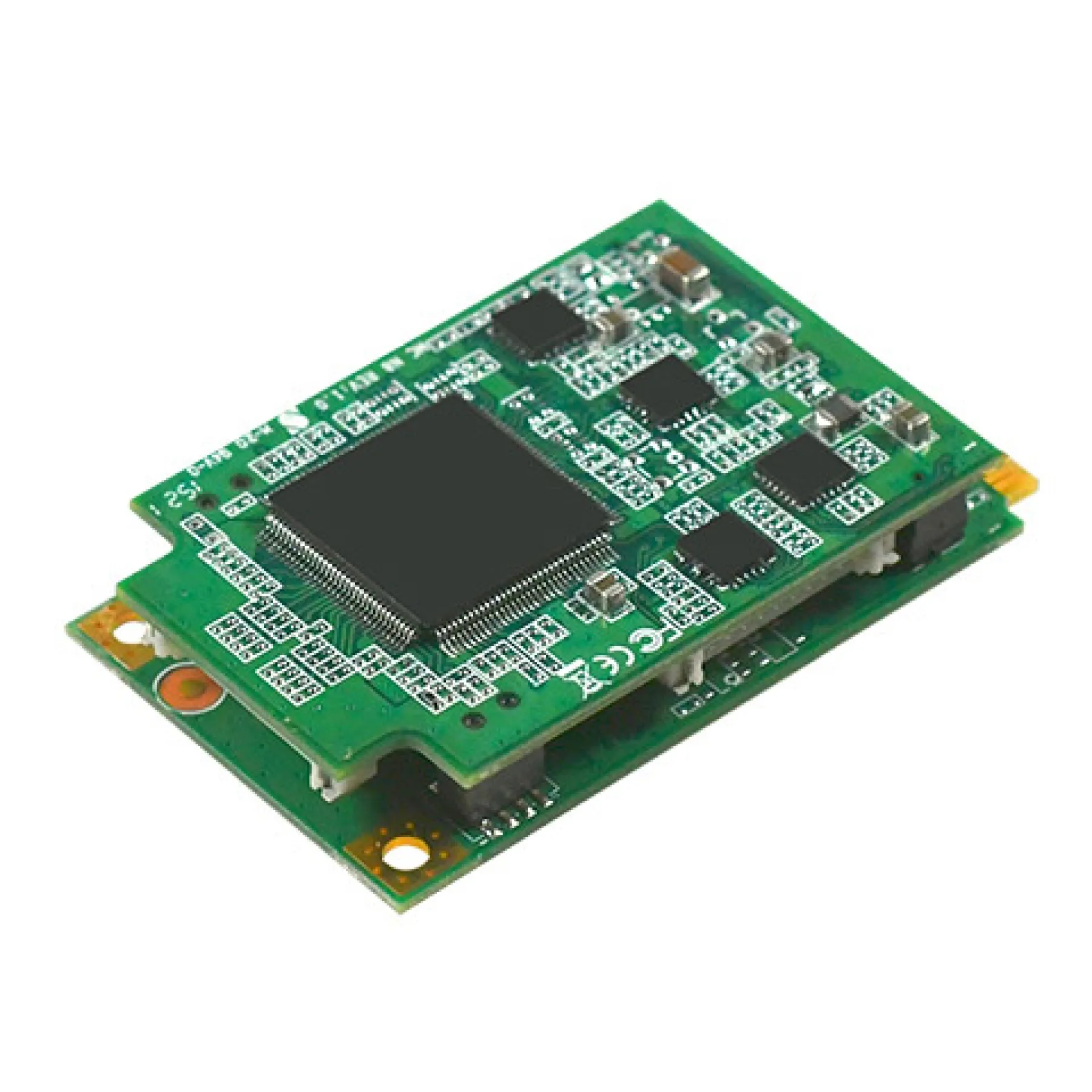

The YUAN SC3C0N8 MC is a 8-Channel Mini PCIe Video Capture Card. With dimensions of 30x50.95 (mm), the SC3C0N8 MC contains 8x Composite video inputs.
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Model Name | SC3C0N8 MC |
| Max. FPS | NTSC240fps@960/720×480 PAL200fps@960/720×576 |
| Recording Mode | Hardware Compression, Real-Time Mode |
| Dimension | 30×50.95 ( mm ) |
| Interface | Minicard ( PCIe×1 ) |
| ADC | 10-Bit |
| Video Input | 8×Composite |
| Display Video Format | YV12, YUV2 |
| Display Video Resolution | NTSC960×480@29.97fps ( WD1 )720×480@29.97fps ( D1 ) PAL960×576@25fps ( WD1 )720×576@25fps ( D1 ) |
| Recording Video Format | H.264 High Profile ( Hardware Compression ) |
| Display Video Resolution | NTSCWith WD1 NTSC Camera960×480@29.97fps720×480@29.97fps704×240@29.97fps480×240@29.97fps352×240@29.97fps240×120@29.97fps176×120@29.97fps
With D1 NTSC Camera720×480@29.97fps704×240@29.97fps480×240@29.97fps352×240@29.97fps240×120@29.97fps176×120@29.97fps PALWith WD1 NTSC Camera960×480@29.97fps720×480@29.97fps704×240@29.97fps480×240@29.97fps352×240@29.97fps240×120@29.97fps176×120@29.97fps With D1 NTSC Camera720×480@29.97fps704×240@29.97fps480×240@29.97fps352×240@29.97fps240×120@29.97fps176×120@29.97fps |
| Audio Input | 8×Pin |
| Audio Format | Mono / 16-Bit / 48000Hz |
| Multiple Cards | ∞ |
| SDK | Support API : DirectShow, V4L2, FFmpeg, GstreamerSupport Language : C++, C#, .NET, Visual Basic, Qt, Delphi |
| OS Support | Windows 7 / Windows 8 / Windows 8.1 / Windows 10Linux 2.6.14 or Higher ( 32-bit and 64-bit ) |
