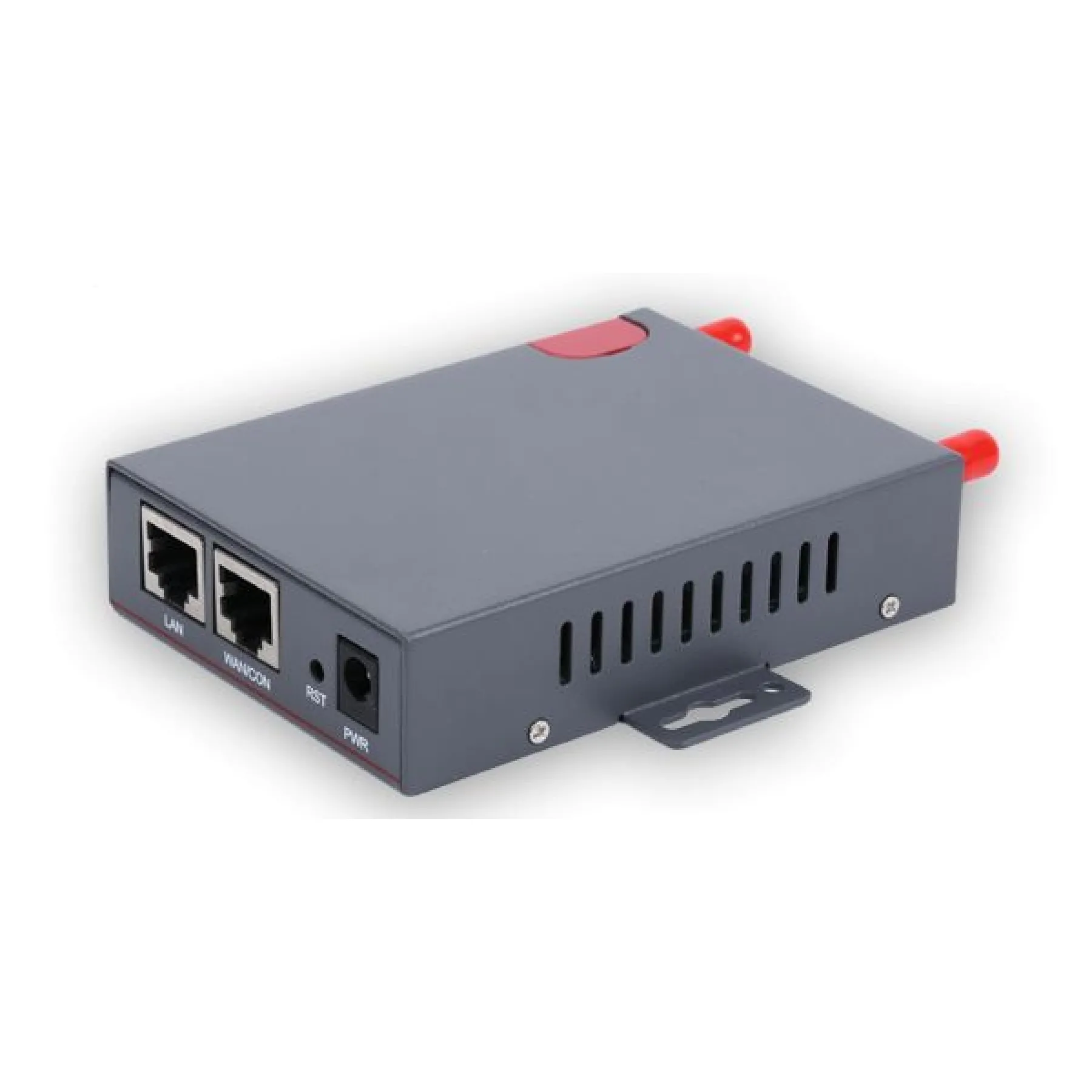

WTI-1200 Failover Router
End of Life
• Industrial robust design and compact metal housing • High data speed via 4G LTE • Strong electromagnetic interference Resistance, heat endurance and radiation ability • Supports multiple VPN (PPTP, L2TP, GPE, IPSec etc.) • Supports multiple network protocol (ICMP, TCP, UDP, Telnet, SSH, HTTP, HTTPS etc.) • Supports multiple functions (DHCP, DNS, DDNS, Firewall, NAT, DMZ host etc.) • Built-in watch dog, Multi-link detection ensures working in stable and secure way • Network failover and failback • 2xLAN or 1xLAN + 1xWAN • WAN port support PPPoE, static IP, DHCP client, 3G/4G. • Always online, automatic reboot if disconnected to ensure continual connection • LCP/ICMP/flow/heartbeat check, to ensure network usability • Web/CLI/SSH/Management platform support, easy to configure • SNMP network management, NTP support • Local & remote management (configuration, status, upgrade firmware, ping, reboot) • Supports Port forwarding and Bridge • Supports timing operation • Supports LED status indication • Shock and vibration resistant • Control by SMS, Email • Schedule reboot
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
WTI-1200
Details
The WTI-1200 series failover router is a fully customizable platform built on an upgradable architecture that is seriously flexible.
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Module: | Telit LE910-NA1 |
| Carrier Approvals: | AT&T, Verizon |
| Regulatory Approvals: | FCC/IC, PTCRB, GCF |
| Frequency Bands: | B2(1900), B4(AWS1700), B13(700) |
| Data Speeds LTE: | DL 10 Mbps/ UL 5 Mbps |
| Router: | |
| VPN: | IPSec, PPTP/L2TP Client, GRE, PPTP Server |
| Protocol: | IPSec, PPTP/L2TP Client, GRE, PPTP Server |
| Management: | Local or remote web browser (IE v8 or above), CLI/Telnet command, Remote management, SSH configure |
| Interface Type: | 2 x 10/100 Mbps port (RJ45) LED: “WLAN”, “WAN”, “LAN”, “NET” 2 x SMA-K antenna interface SIM/UIM: 1.8V/3V Power: “PWR” 5V ~ 30V Reset: “RST” |
| Power Adapter: | Certificate: FCC, UL |
| Power Consumption: | Idle: <45mA@12VDC Data: <300mA@12VDC Average:150mA@12VDC |
| Physical: | Operating Temperature Storage: -40°C to 85°C Working: -30°C to 75°C Humidity: 95% Maximum (Non-condensing) |
| Dimensions: | Item (L x W x H): 4 x 2.9 x 1 Inch Packaging (L x W x H): 8.6 x 4.7 x 3 Inch Weight Item: 0.5 lbs. Packaging: 1.5 lbs. total weight including product |
| Certificate: | FCC, ISO, CE, RoHS |
| Package Content: | WTI 2 Port Router CAT5 Ethernet Cable Power Adapter 2 x Cellular Antenna – Mag Mount |
