OF4204-WH35L0

Winsonic OF4204-WH35L0 | 42″ Open Frame Monitor (1920×1080 Display)

End of Life

350 NITS brightness
3000:1 Contrast
1280 x 800 resolution

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: OF4204-WH35L0

Categories: End of Life Products

Range: Winsonic

Details

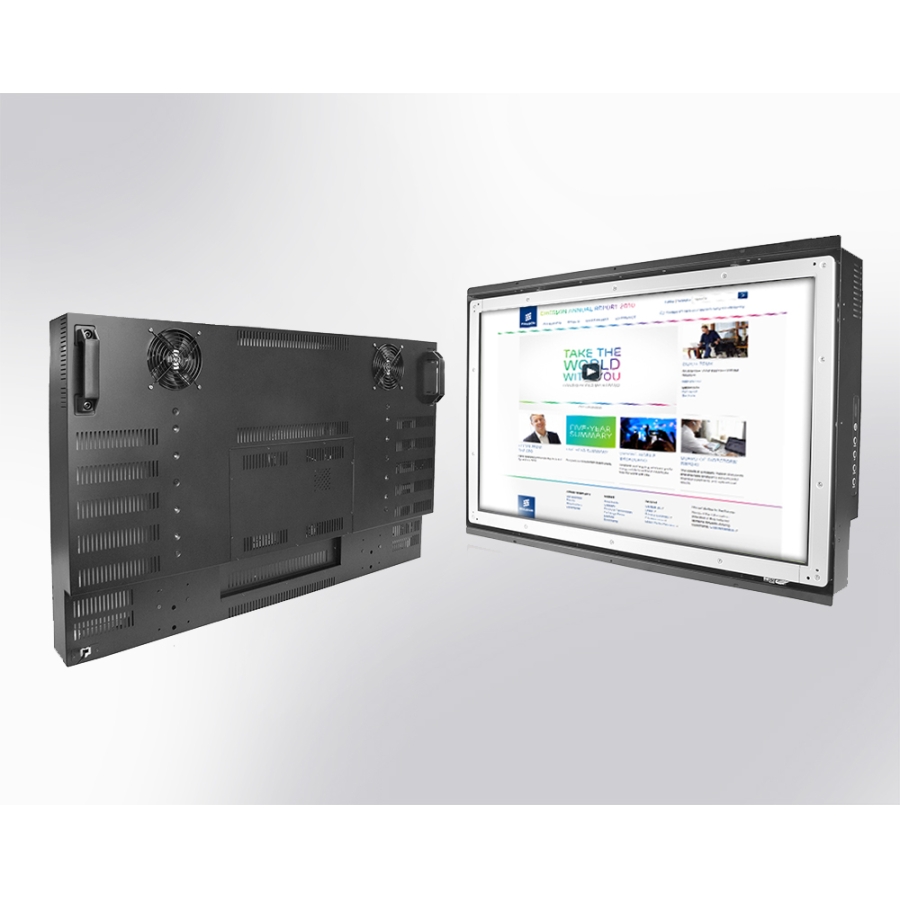

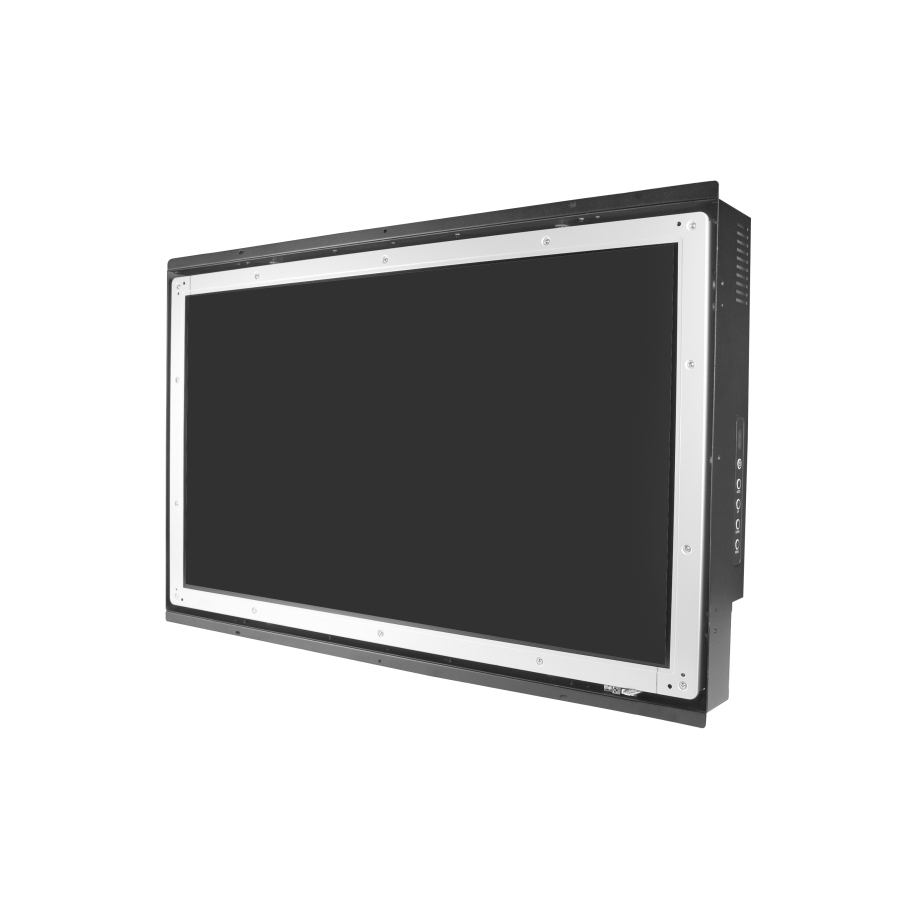

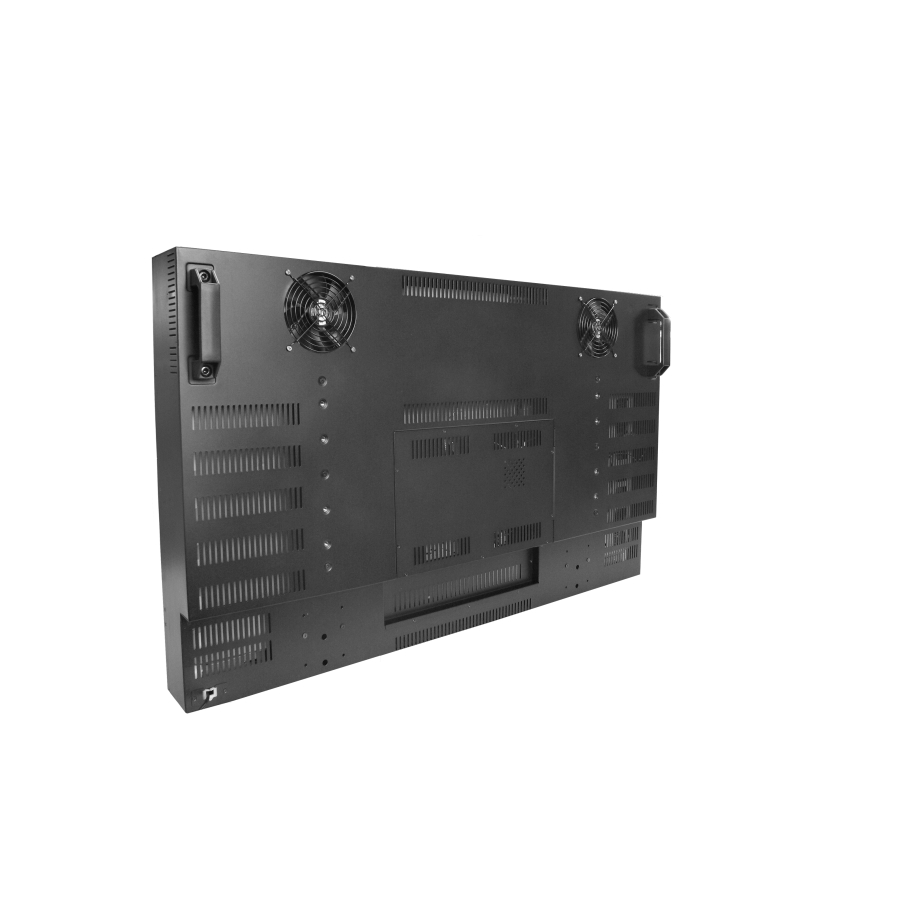

Winsonic OF4204-WH35L0 industrial 42 inch open frame TFT LCD monitors offer long term stable supply with a solid design that allows simple integration into a variety of OEM type applications. By incorporating a 350 NIT LED backlight, it helps to increase the projected lifetime of the screen without compromising the quality or consistency of the image. The product is also available with a DVI / HDMI video input.

Ordering Info

OF4204D: 42″ Widescreen Open Frame LCD Monitor with VGA Input

Downloads

OF4204D Datasheet (PDF)

0.26MB

OF4204D Mechanical Drawing (PDF)

0.13MB

Winsonic OF4204-WH35L0 Datasheet (PDF)

0.51MB

Winsonic OF4204-WH35L0 Mechanical Drawing (PDF)

0.17MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Viewable Image Size: 42″
Resolution: 1920×1080
Ratio: 16:9
Brightness: 450cd/m
Contrast: 4000:1
Viewing Angle: H (-89 +89), V (-89 +89)
Backlight: LED
VGA: 1 x DB15
Video Inputs: S-Video, Composite, HDMI & DVI (On request)
Touchscreen: Optional
Power: AC Auto-Sensing 90-260V through IEC cable, (DC Optional)

Screen Size	41" to 50", 42"
