W24L100-MRA1ID3S

Name: Winmate W24L100-MRA1ID3S 24" Intel Dual Core Atom N2600 Platform Marine Panel PC
SKU: W24L100-MRA1ID3S

Winmate

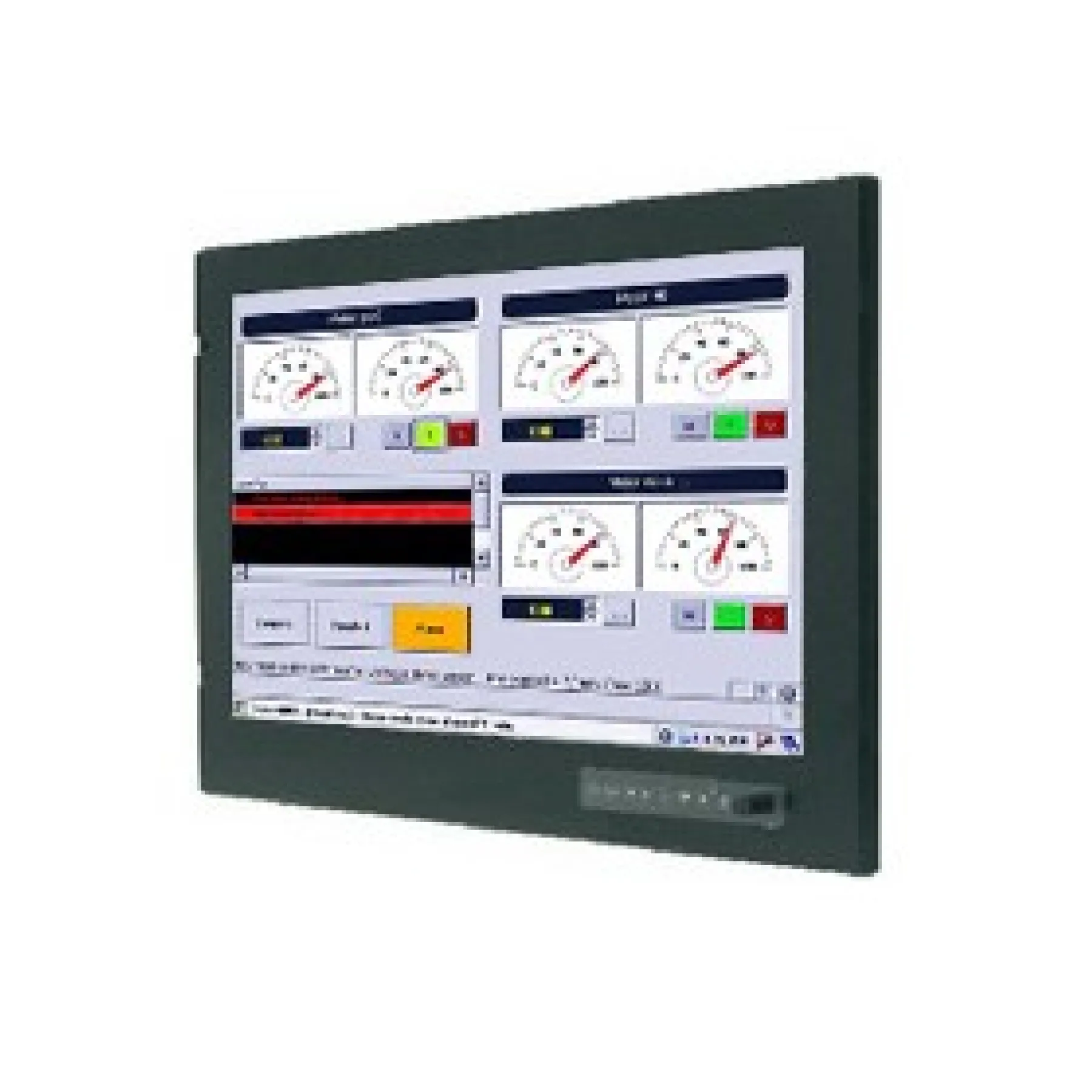

Winmate W24L100-MRA1ID3S 24″ Intel Dual Core Atom N2600 Platform Marine Panel PC

W24L100-MRA1ID3S

Intel Dual Core Atom N2600 Platform, Fanless Design
Dimming knob control backlight brightness from nearly 0% to 100%
High Brightness technology enhance visibility
Panel (flush) mount IP66 aluminum housing with powder coating design (IP54 rear)
9 to 36V DC power input acceptable
High quality touchscreen / AR protection glass for option
Ease of use front panel OSD control
Enhanced shock and vibration resistance

Product Code: W24L100-MRA1ID3S

Categories: Marine Certified Panel PCs, Winmate

Range: Winmate

Details

The Winmate W24L100-MRA1ID3S is a 24" marine grade certified panel PC, powered by the Intel Dual Core Atom N2600 Platform processor. This design features a fanless design incorporating a 5-wire resistive touchscreen, a high resolution display(1920x1080) with a dimming knob control for backlight brightness from 0% to 100% and IP66 aluminium housing with powder coating design (IP54 rear). This Panel PC contains rich I/O including 2x LAN, 5xCOM and 2x USB ports. Additionally, general system features include wide voltage power input, wide operating temperature and both IEC6045 & DNV 2.4 marine certifications.

Ordering Info

Please call our technical sales team on 01785 87 90 50 for advice.

Downloads

Winmate W24L100-MRA1D3S Datasheet (PDF)

0.33MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Size	24″
Resolution	1920×1080
Pixel Pitch (RGB)	0.276 (H) x 0.276 (V) mm
Contrast Ratio	208.334
Panel Brightness	300 nit(typ.)
Viewing Angle	-89 ~ 89(H) ; -89~89(H)
Active Display Area	531.36mm(H)x 298.89mm(V)
Max Colors	16.7M,8bit
Processor	Intel Dual Core Atom N2600 1.6GHz
BIOS	AMI 4Mbit Flash
Chipset	Intel NM10 express chipset
Memory	1 x DDR3 800/1066MHz SODIMM,(Max 4GB)
SATA	1 x SATA2
Ethernet	Dual Broadcom BCM57780 GbE controller
VGA	1x VGA Connector
Audio	Realtek ALC886 HD Audio Codec
USB Port	2 x USB2.0
Serial Port	4 x RS232, 1 x RS232/422/485
Storage	32GB SSD
Expansion slot	4xRS232 or 4xIsolate RS422/485(optional)
Power Supply Options	9 to 36 V DC power supply with terminal block.
Power Consumption	100 W typical, normal operation
Operating Temperature	-15 to 55 deg.C
Operating Humidity	5% to 95% (non condensing)
Anti-Vibration	5Hz~500Hz / 1Grms/3 Axis
Anti Shock	15G, 11ms duration
Ethernet LAN	2 x RJ 45-10/100/1000 Mbps
COM	1 x RS232/422/485
USB	2 x USB Type-A Receptacle
RGB Out	1 x VGA 15P DSUB (female)
Power Input	1 x DC Terminal block
Mechanical Options	Panel (Flush) mount with IP66
Touch Screen Options	5 Wire Resistive
AR Safety Glass Option	3mm Anti-reflective protection glass
VESA Mounting	Yes
Certification	IEC60945, DNV2.4, IACS-E10, CE, FCC
