W24IW3S-SPA269-P1

Name: Winmate W24IW3S-SPA269-P1 23.8" Intel Core i5-8265U IP69K Stainless Panel PC
SKU: W24IW3S-SPA269-P1

Winmate

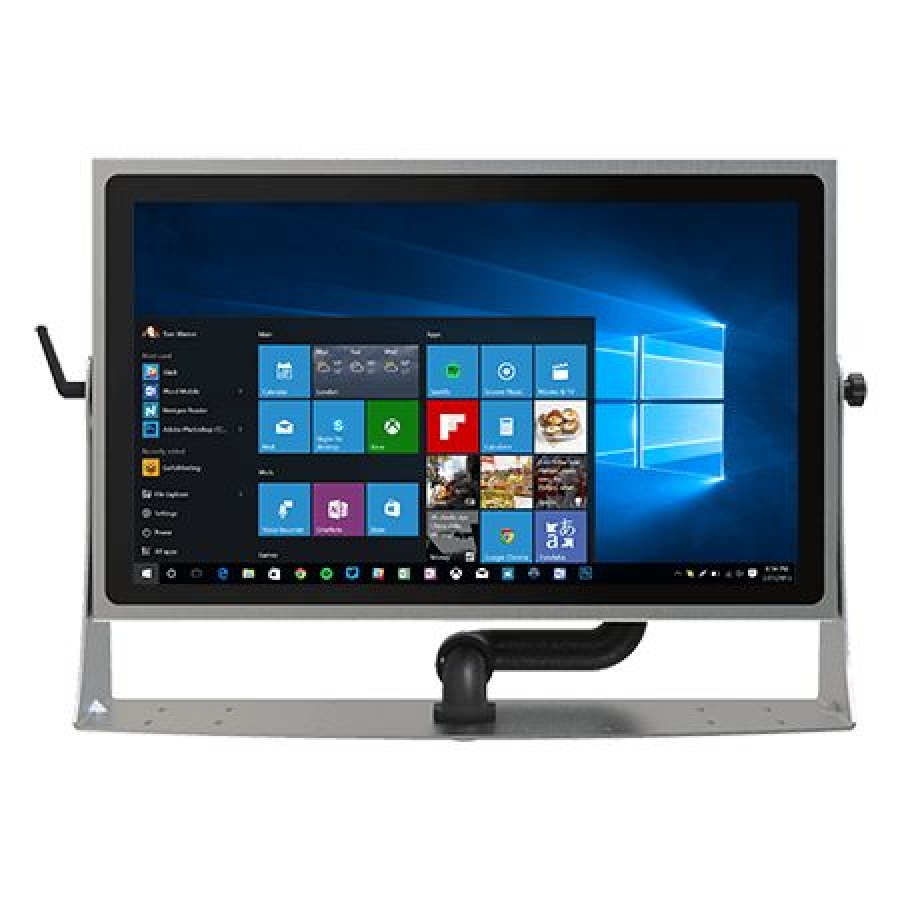

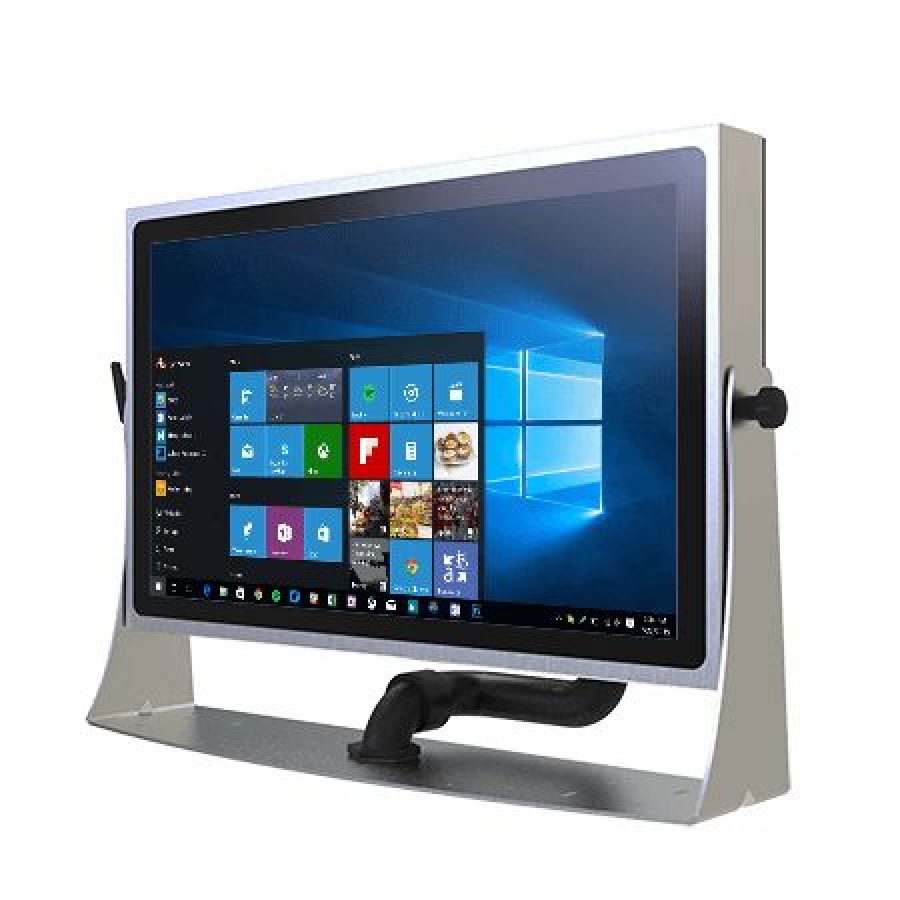

Winmate W24IW3S-SPA269-P1 23.8″ Intel Core i5-8265U IP69K Stainless Panel PC

W24IW3S-SPA269-P1

Intel Core i5-8265U 1.6GHz
Fanless cooling system
SUS 316 / AISI 316 stainless steel for food and chemical industries
Full IP69K waterproof enclosure
A true flat, easy-to-clean front surface with edge-to-edge design
Waterproof sealed conduit pipe for cable protection
Support VESA mount, and optional Yoke mount stand
Support Glove/ Rain mode
Optical bonding (optional)

Product Code: W24IW3S-SPA269-P1

Categories: Winmate

Range: Winmate

Details

With stainless steel housing and IP69K protection for dust and water resistance, the Winmate W24IW3S-SPA269-P1 Panel PC is ready for high-pressure, high-temperature washdowns regularly. The Panel PCs are designed for industries that require stringent disinfection processes and splashing cleanup routines found in Food, Beverage, and Chemical applications. Never worry about exposed cables again. The custom-built waterproof conduit pipe is pre-installed to give an additional layer of protection for any peripheral cables connected to the device. The protection grants increased product longevity to reduce downtime in the production facilities. The highly-sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.

Downloads

Winmate W24IW3S-SPA269-P1 Datasheet (PDF)

0.25MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Display	Size	23.8 inches
	Touch / Glass	Projected Capacitive Multi Touch Screen
	Resolution	1920×1080
	Panel Brightness	250 nits
	Contrast Ratio	3000:1
	View Angles	89,89,89,89
	Active Area	476.64×268.11 mm
SystemSpecification	Processor	Intel Core i5 -8265U (6M Cache, 1.6GHz up to 3.9 GHz)
	Memory	1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional)
	Storage	1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) M.2 2280 M-Key NVME SSD, up to 4TB (Optional)
	Ethernet controller	Intel Ethernet Controller I210-AT + Intel Ethernet Connection I219-LM
	Security	TPM 2.0
	Operating System	Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional) Linux Ubuntu 20.04 (Optional)
	WLAN	Support (Optional)
	BT	Support (Optional)
Mechanical	Dimension	620 x 390 x 56mm
	Mounting	VESA Mount Yoke Mount
	Enclosure	Stainless Housing
	Cooling System	Fanless design
Environment	Operating Humidity	10% to 90% (non-condensing)
	Operating Temperature	0~45°C
	Storage Temperature	-20~60°C
	IP rating	IP69K
Certification	Certification	CE, FCC
IO Ports	USB Port	2 x USB 3.0
	Serial Port	1 x RS232/422/485 (Default RS232) 1 x RS232 (Optional)
	LAN	2 x RJ-45
	Video	1 x HDMI
Control	Button	1 x Power Button
Accessory	Accessory	1 x Waterproof Conduit 1.5m 1 x Waterproof Conduit 0.3m 2 x Elbow for connect the conduit 1 x AC to DC power adapter with power cord 1 x D-sub9(male) to RJ45 adapter 1 x D-sub9(female) to RJ45 adapter 1 x External RJ45 male to male cable Driver CD & Manual VESA screws
Accessory	Optional Accessory	1 x Open wire cable for phoenix connector (Optional) Yoke mount stand kit (Optional)
Power	Power Rating	12V DC input

Certifications	CE/FCC
