W24IT3S-SPA2

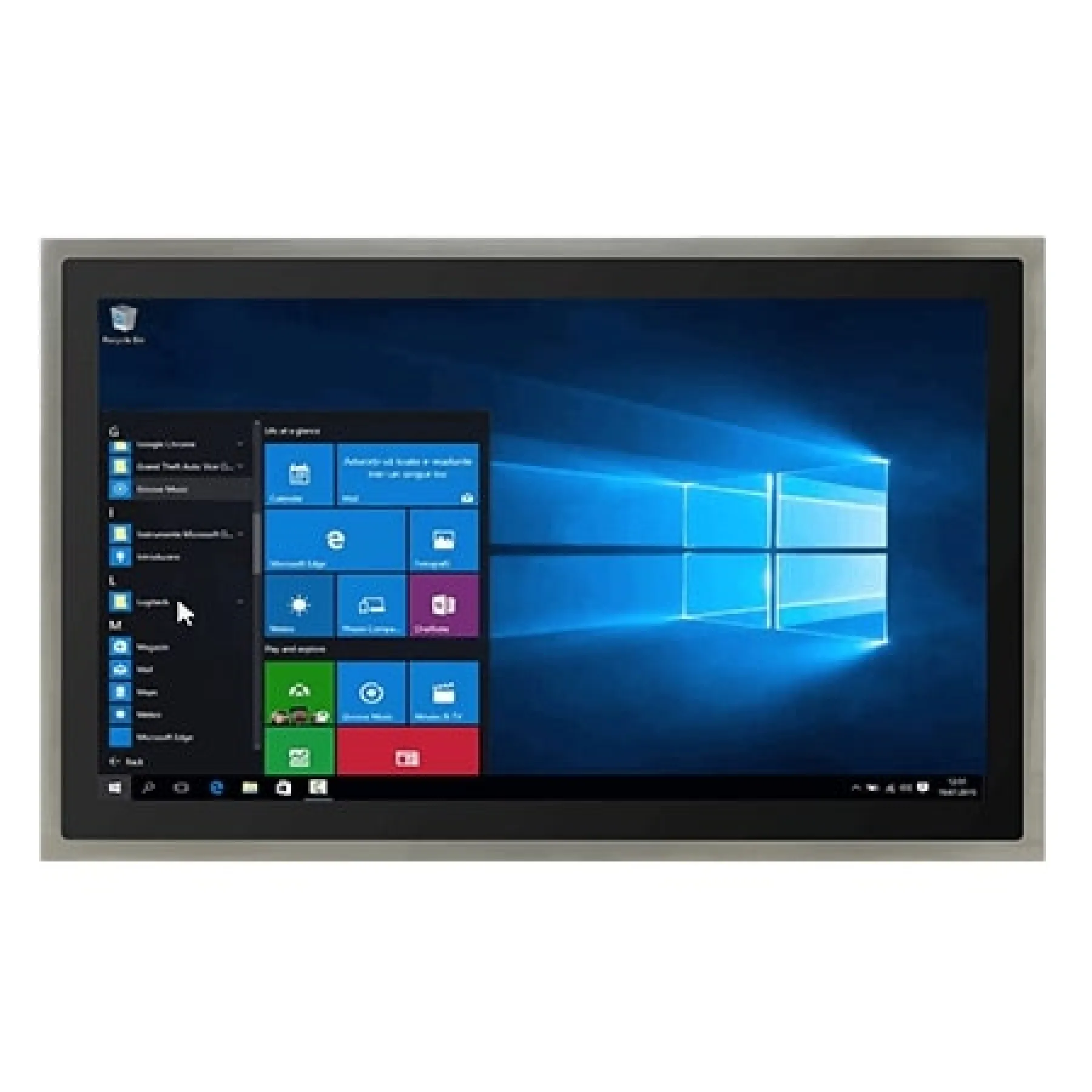

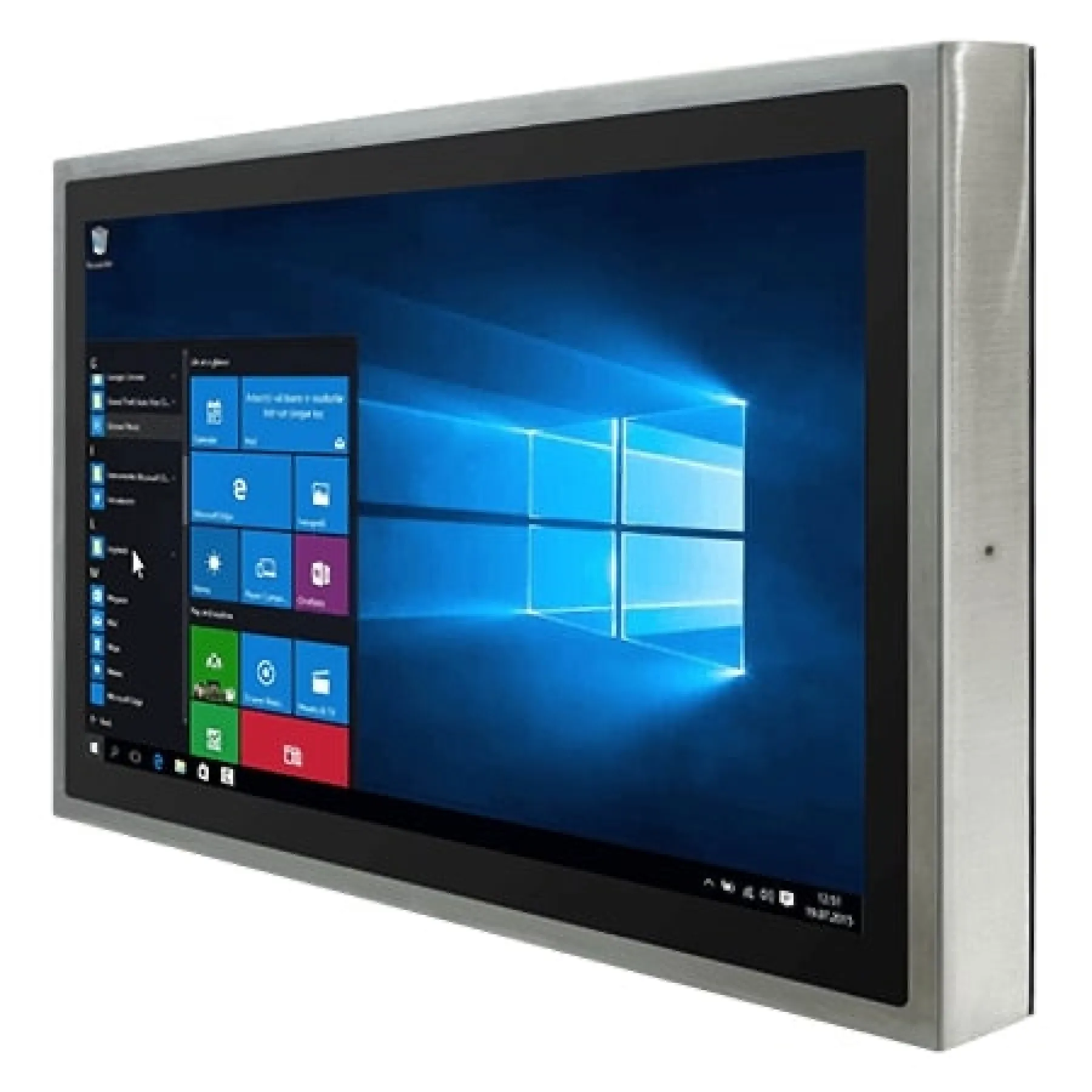

Name: Winmate W24IT3S-SPA2 23.8" Intel Core i5-1135G7 Stainless PCAP Chassis Panel PC with Full IP65
SKU: W24IT3S-SPA2

Winmate

Winmate W24IT3S-SPA2 23.8″ Intel Core i5-1135G7 Stainless PCAP Chassis Panel PC with Full IP65

W24IT3S-SPA2

11th Generation Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
SUS 316/ AISI 316 stainless steel for food and chemical industries
Sealed to IP65 for protection against water and dust
A true flat, easy-to-clean front surface with edge-to-edge design
Flat multi-touch panel pc with superior readability and P-Cap technology
Various mounting solutions, Yoke mount and VESA mount

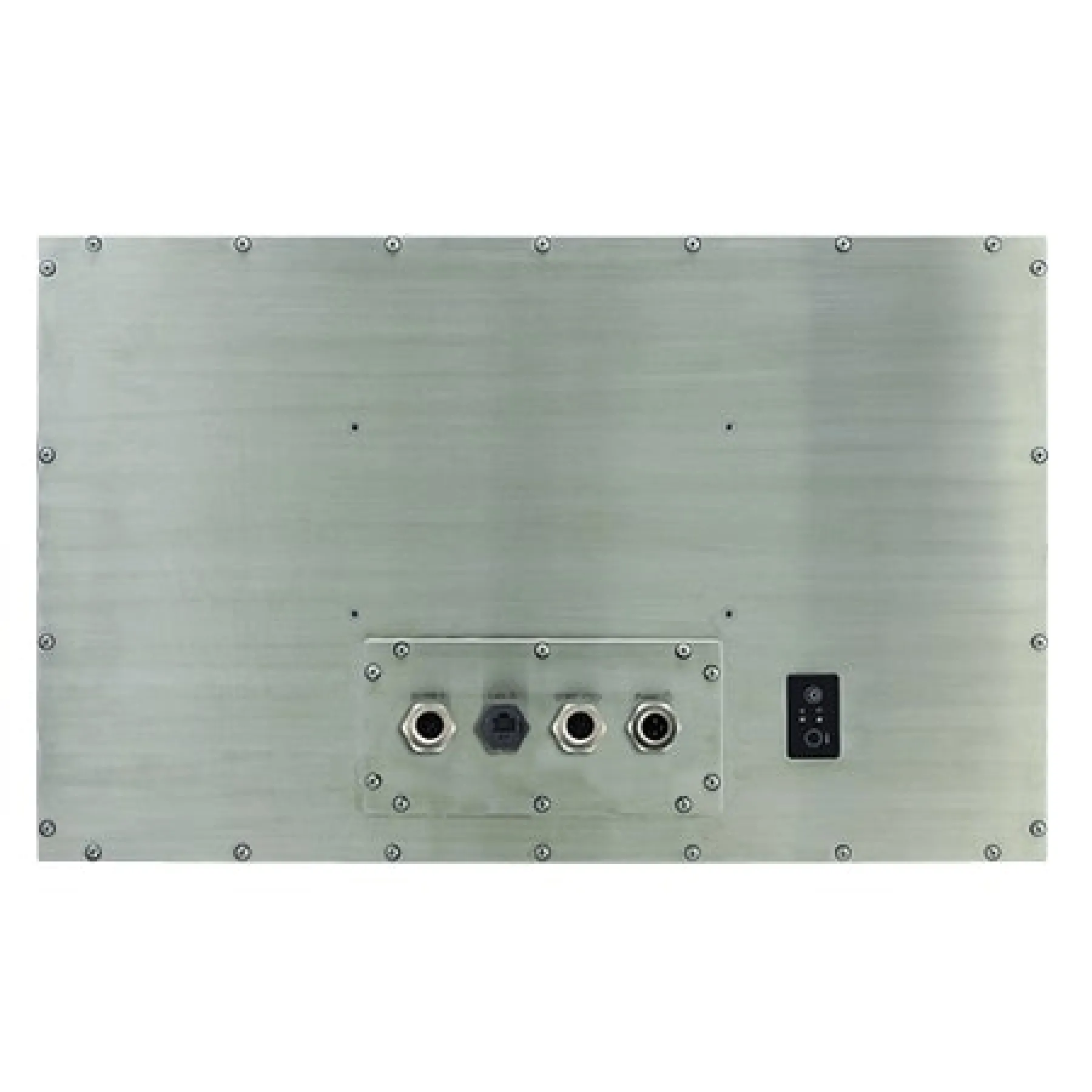

Plenty of I/O s including USB 2.0, RS232 serial port and RJ45-10/100/1000 LAN ports
Waterproof ports with adapter cables for external connectivity
Support Glove / Rain mode
Optical bonding (optional)

Product Code: W24IT3S-SPA2

Categories: Industrial Touchscreen Computers, IP65 Panel PCs, Stainless Steel Panel PCs, Winmate

Range: Winmate - Winmate

Details

The Winmate W24IT3S-SPA2 is a IP65 Stainless PCAP Chassis Panel PC powered by Intel with up to 32GB Memory. The I/O includes 1x COM, 1x LAN and 2x USB ports alongside an operating temperature of 0ºC ~ 45ºC and stores within -20°C – 60°C.

Downloads

Datasheet (W24IT3S-SPA2) (PDF)

0.47MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Touch Technology	Projected Capacitive
Ingress Protection	IP65
Stainless Steel	Yes
Brightness	250nit, Standard
Resolution	1920x1080, FHD
GPU	Integrated GPU
Memory Capacity	Up to 32GB
Cooling Type	Fanless, Yes
Serial Ports (COM)	1 Port, RS-232
USB Ports	2 Ports, 2 Ports, USB 2.0
Ethernet Ports (LAN)	1 Port, 1GB
Storage Type	1, 1, 2, M.2, SATA
Input Voltage	12 VDC
Mounting Options	VESA-mount, Yoke-mount
Operating Temperature	0°C to 45°C, Standard
Certifications	CE/FCC
OS Support	Linux, Windows 11, Windows 11 IoT, Windows 11 Pro
