W24IB3S-MRA1FP

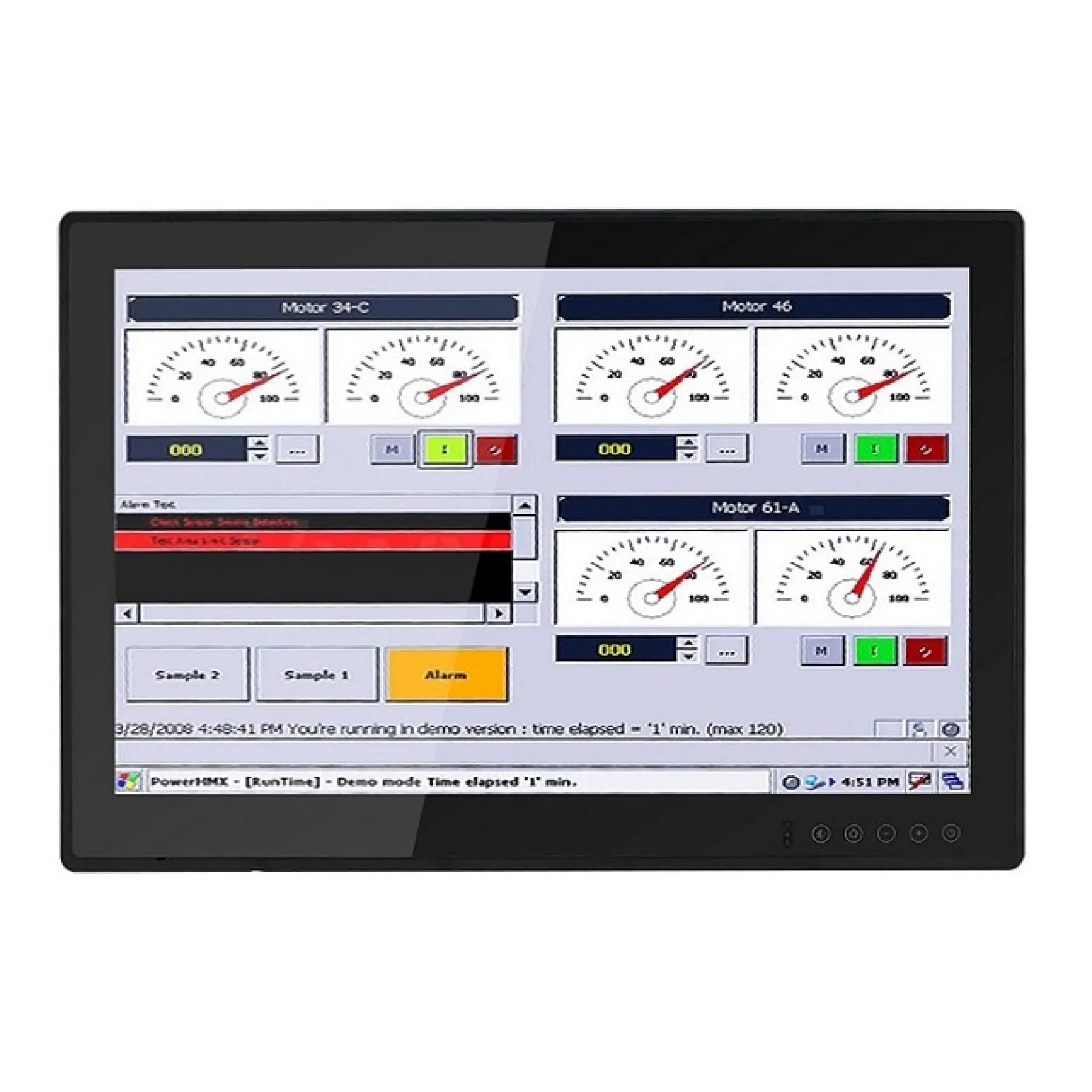

Winmate W24IB3S-MRA1FP 24″ Intel Celeron N2930 Marine Certified Touch Panel PC

W24IB3S-MRA1FP

W24IB3S-MRA1FP is an IEC60945 marine grade certified 24″ panel pc. The fanless product features a multi-touch projected capacitive touchscreen and sleek flat bezel design.

  • Brand: Winmate
  • Intel Quad Core Celeron N2930 2.16GHz CPU
  • Display: 24″ FHD Projected Capacitive touch screen
  • IEC60945, DNV2.4, IACS-E10 compliant
  • Size: 595mm (W) x 63.8mm (D) x 385mm (H)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The Winmate W24IB3S-MRA1FP is a 24" marine grade certified panel computer, powered by the Celeron N2930 quad core processor. The sleek new design features a flat edge to edge bezel incorporating a multi-touch projected capacitive touchscreen, high resolution display (1920x1080) with hyper dimming, IP66 grade protection, and new capactive touch keys for quick and easy display control. General system features include wide voltage power input,  wide operating temperature, and both IEC6045 & DNV 2.4 marine certifications.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Bezel:  Panel Mount IP66, alluminium housing
Display Size: 24″ FHD
Resolution: 1920 x 1080
Brightness:  350 NITS
Touchscreen:  Projected Capacitive, Multi-touch (Optional AR Glass)
CPU:  Intel Quad Core Celeron N2930 2.16GHz
Chipset:  Intel SoC Integrated
Memory:  Default 1 x SODIMM DDR3L 4GB, Max 8GB
Graphics: Intel HD
Audio:  2 x 2W Speaker
Serial:  1 x RS232/422/485, 4 x NMEA 0183 Ports (Optional)
USB:  2 x USB2.0, 1 x USB3.0
Ethernet:  2 x Giga LAN
Storage:  64GB mSATA SSD, (up to 256MB)
OperatingTemperature:  -15 to 55 C
Power Input:  24VDC Isolated (9-36VDC acceptable)
Compliance:  IEC60945, DNV2.4, IACS-E10, CE, FCC
Touch Technology Projected Capacitive
Ingress Protection IP66
Brightness 350nit, Standard
Resolution 1920x1080, FHD
GPU Integrated GPU
Memory Capacity Up to 4GB, Up to 8GB
Cooling Type Fanless, Yes
Serial Ports (COM) 1 Port, RS-232/422/485
USB Ports 1 Port, 2 Ports, 3 Ports, USB 2.0, USB 3.0
Ethernet Ports (LAN) 2 Ports, 2 Ports
Video Ports 1x HDMI
Storage Type 1, mSATA
Input Voltage 24 VDC
Mounting Options Panel-mount, VESA-mount
Operating Temperature -15°C to 55°C, Wide
Certifications CE/FCC, DNV, IEC 60945
OS Support Windows 7, Windows 8, Windows 8.1
