FR R20L100-RKA2ML

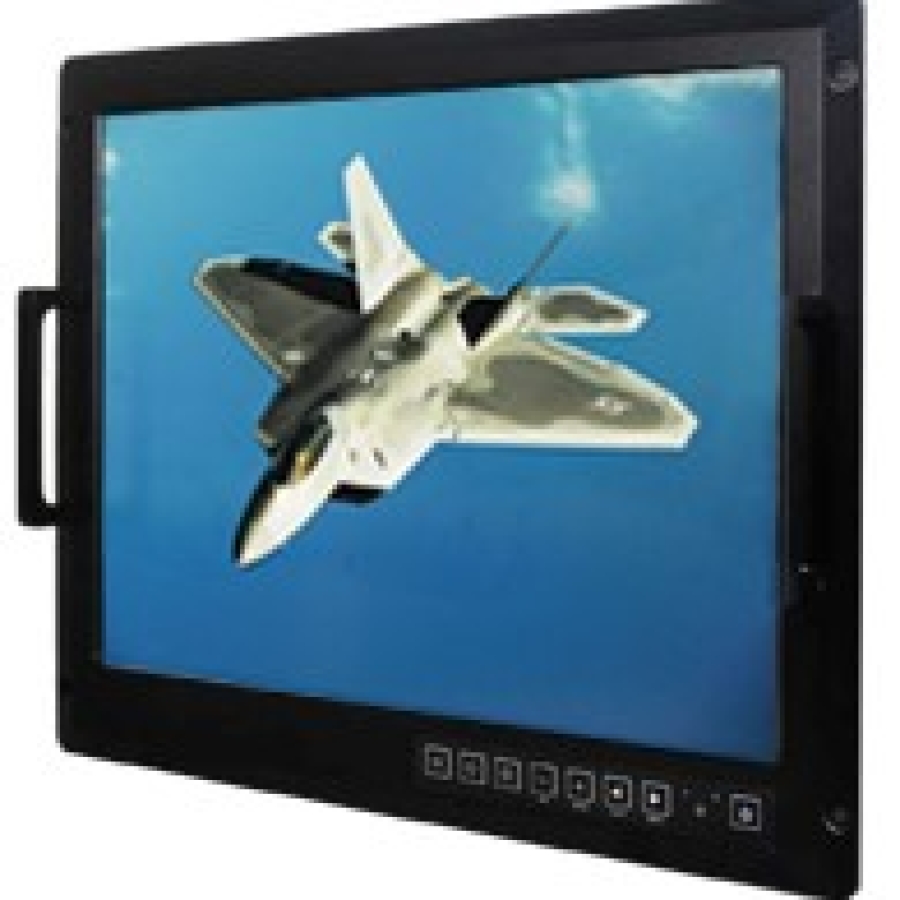

Winmate R20L100-RKA2ML 20.1″ Military Grade Rackmount Display w/ Optional Touch
End of Life
- Certified with MIL-STD 810F/G
- Certified with MIL-STD 461E/F
- High Image Quality Resolution up to 1600 x 1200 pixels
- Wide View Angle Display for ± 89 degrees
- Anti-Corrosion Housing / Fanless
- Standard AR Glass
- EMI ITO Mesh Filter Glass built-in (optional)
- 5 Resistive Touch Sensor with EMI Mesh Coating (optional)
- Flush Rack /Rack Mount Mechanical Design
- Convenient On-Screen Display Controls
- AC Power input/ Isolation Power built-in
- Built-in Light Sensor for auto brightness control
- Military Grade Power Connector (MIL-DTL-38999/1)
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
The Winmate R20L100-RKA2ML is a 20.1" Rackmount Military Grade Display which comes with optional 5-wire resistive touch with EMI Mesh Coating. It consists of a panel brightness of 300 nits and a resolution of 1280 x 1024. This military display operates at a wide temperature of -20°C ~ 60°C or an optional extended temperature of -40°C ~ 70°C.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Model Name | R20L100-RKA2ML |
| Size | 20.1″ |
| Active Display Area | 408mm (H) x 306mm(V) |
| Pixel Pitch | 0.255(H)x0.255(V) |
| Resolution | 1600×1200 |
| Contrast Ratio | 800:1(typ.) |
| Panel Brightness | 300(typ.) |
| Display Color | 16.7 Million(8 bits/colors) |
| Viewing Angle | -89~89 (H); -89~89 (V) |
| Synchronization Range | 31.5~80.0KHz / 60~75Hz |
| Recommended Resolution | 1600×1200@60Hz |
| Glass | Standard Anti-Reflective Glass |
| Touch | 5-wire Resistive Touch with EMI Mesh Filter |
| ITO Glass (Optional) | Transmittance 88% |
| Plug & Play | VESA DDC 1/2B |
| Back Panel I/O Port | 1 x AC Power input (Military grade), 5 x BNCs (R,G,B,H,V), 1 x VGA, 1 x DVI-D, 1 x RS-232 Touch Interface (Optional) |
| Control Button | Menu / Auto-adjust / Brightness Up and Down / LED Adjustment / Power |
| Led indicator | Power On / Off, Sleep |
| Dimensions (W x L x H) | 482.6 mm x 399.4 mm x 85 mm |
| Net Weight (kg) (with touch) | 9.4 |
| Power Input | AC 110~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Power Consumption | 90W typical, normal operation |
| Power Management | VESA DPMS Compliant |
| Panel_Operating Temp | -20 deg. C to 60 deg. C |
| Operation Humidity | 95%RH ±2% |
| Shock* | MIL-STD-810F/G Method 516.6 / Procedure I |
| Vibration* | MIL-STD-810F Method 514.6 / Procedure I |
| Certifications | CE, FCC ClassB, MIL-STD 810F/G and MIL-STD 461E/F Designed & Tested |
| Humidity* | MIL-STD-810F Method 507.5 |
| Transit Drop* | MIL-STD-810F Method 516.6 / Procedure IV |
| Storage Temperature | -10℃ ~ 70℃ |
| Operating Temperature | 0 ~ 60℃, Wide temperature solution by request |
| EMI ITO Glass | Optional, Transmittance 88% |
| Screen Size | 11" to 20", 20.1" |
|---|
