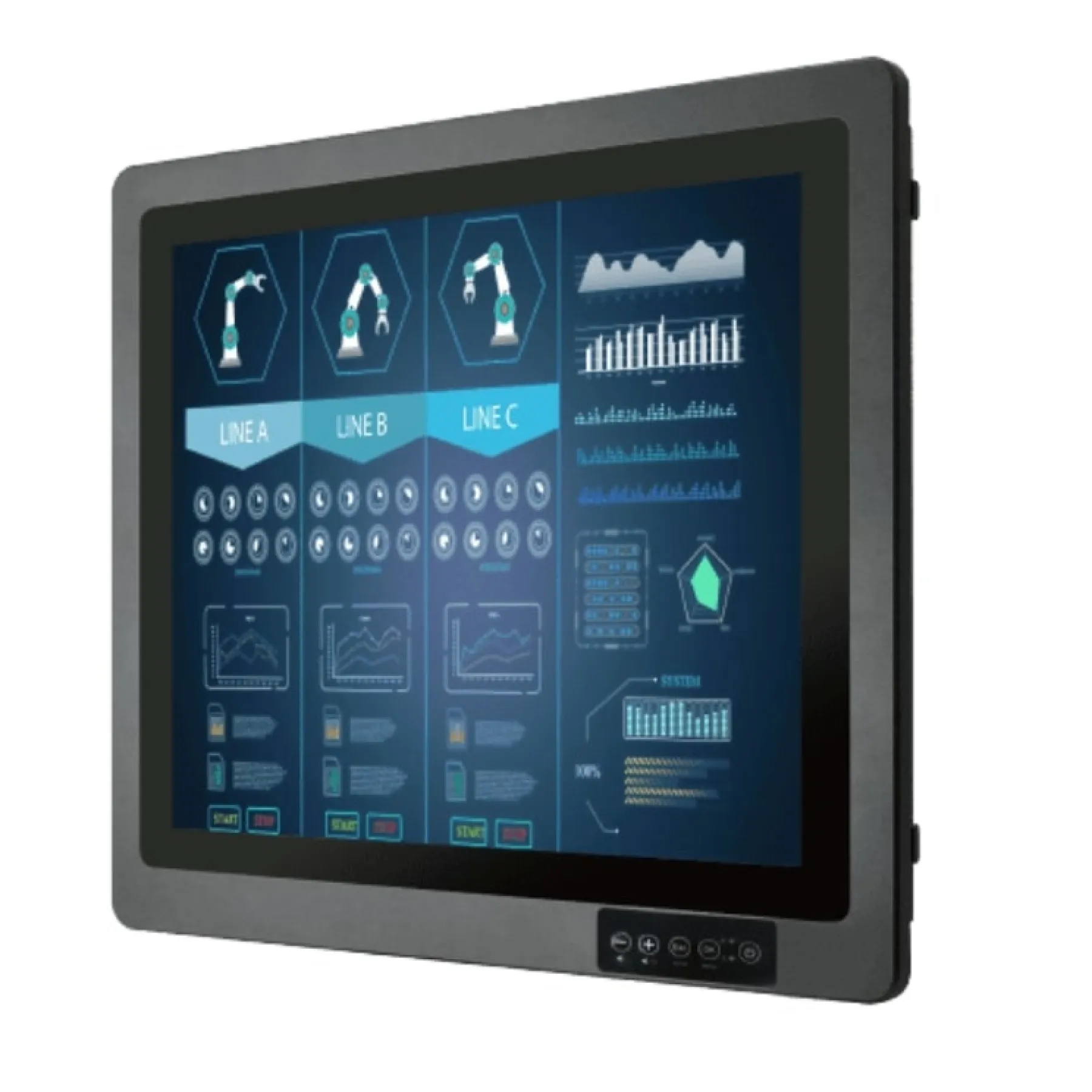

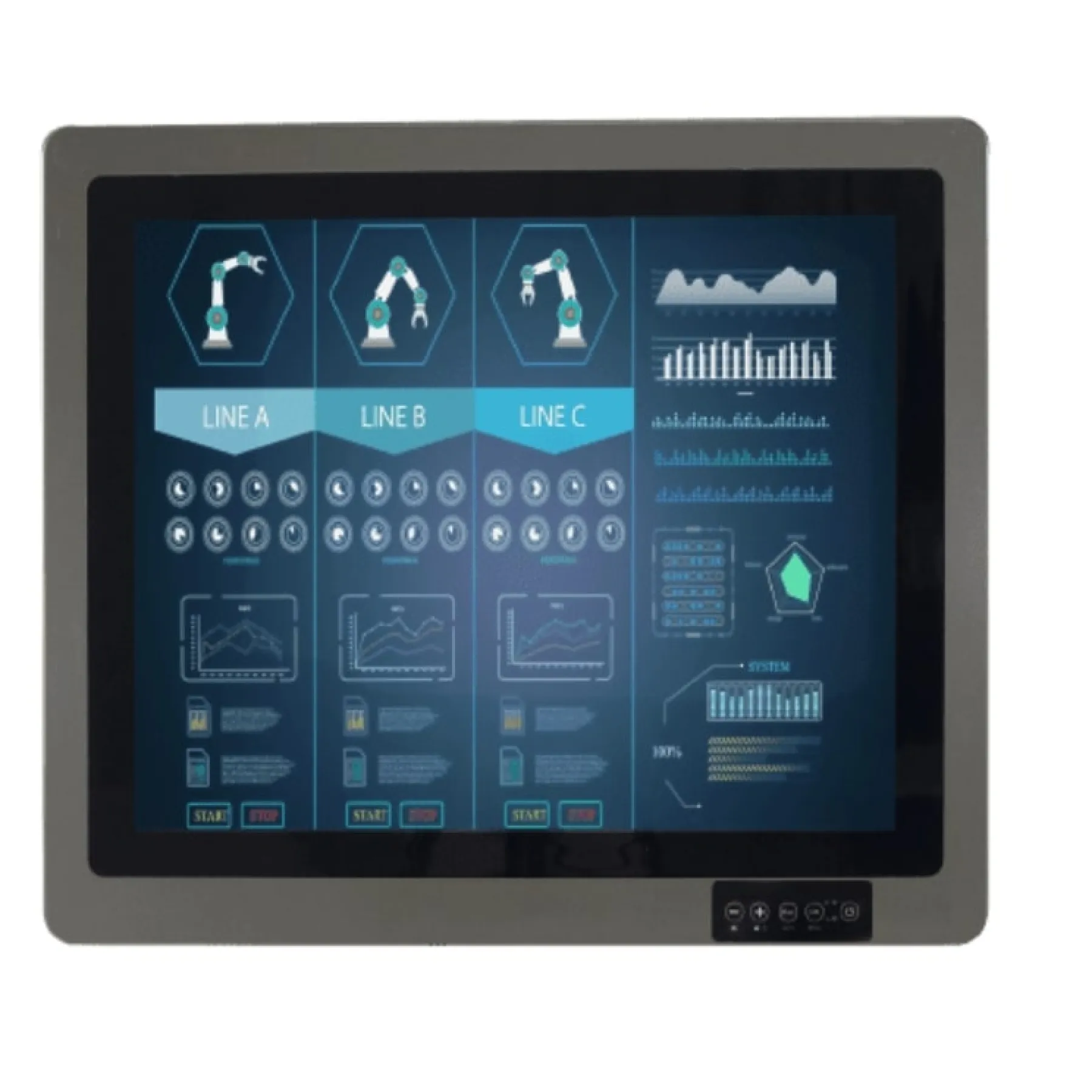

Winmate R19L100-67FTP(HB) 19″ G-WIN IP67 Series 1000nit High Brightness and Wide Temperature Display with PCAP Touch
R19L100-67FTP(HB)
- Totally sealed Full IP67 aluminum compact housing design
- 19-inch 1280 x 1024 panel with Projected Capacitive touch screen
- -10 to 55°C wide operating temperature
- Fanless, streamlined enclosure for highly efficient heat dissipation
- Rugged Front Anti-Impact Design
- Front control membrane keys lockable by software
- Full IP67 male connectors with external female cables
Details
Easy-to-Clean Flat Surface
Winmate's Flat aluminum display goes beyond that of the standard industrial panel computers with its elegant, edge-to-edge design. The display is easy to clean, plus the screen is resistant to water and liquid droplets.Full IP67Â Protection
The dust and waterproof display comply with IP67Â standards. Plus, the M12 connectors are waterproof for varying industrial environments.Fanless Cooling System
The fanless design eliminates dust circulation for improved product longevity – especially in heavy-duty applications where dusty conditions are prevalent.Full Power Input Range
Since panel display and computers were not designed to be carried around, they rely on DC power via conventional external AC adapters. Winmate offers 9 to 36 Volt input power range options to fulfill a wide range of applications.Anti-Shock and Vibration
The G-Win series is as tough as it gets. The displays are compliant with MIL-STD-810G, and the aluminum die-casting is rock solid. Plus, optical bonding technology with anti-moisture treatment and resistive coating ensure the screen and housing are both rugged to the max.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
| Screen Size | 11" to 20", 19" |
|---|---|
| Touch Technology | Projected Capactive |
| Ingress Protection | IP67 |
| Brightness | 1000nit, 300nit, High, Standard |
