FR R19L100-67FTP

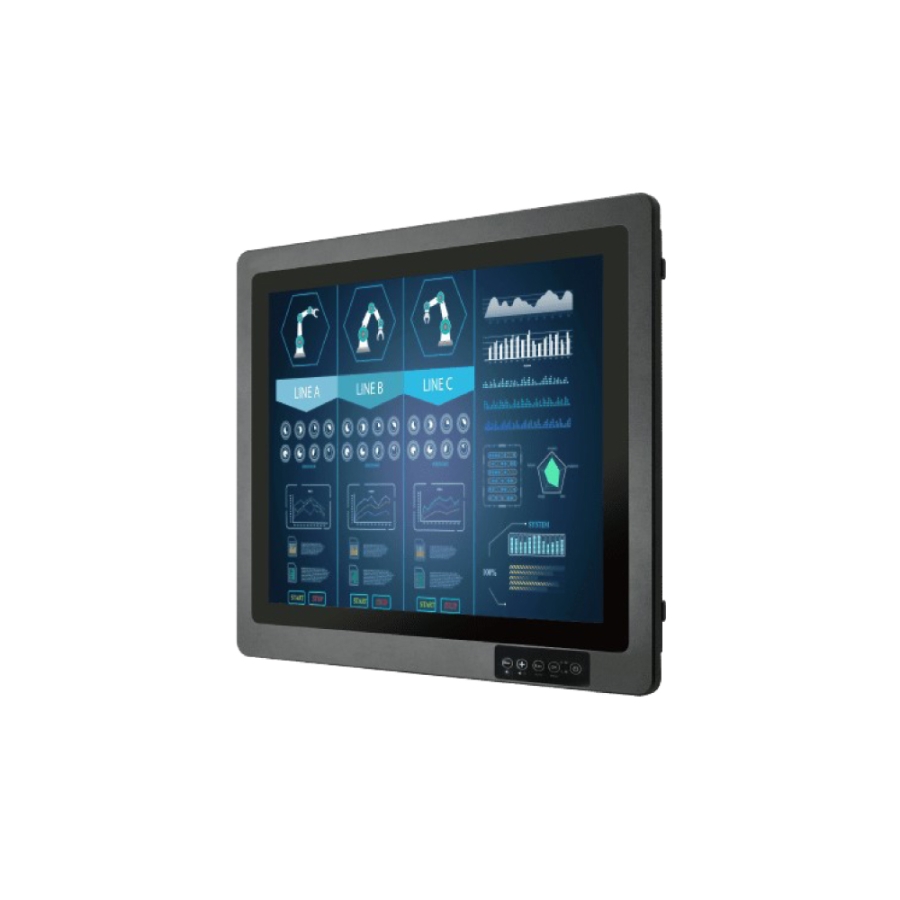

Winmate R19L100-67FTP 19″ 1280×1024 Full IP67 Rugged Display with P-CAP Touch
End of Life
- Totally sealed Full IP67 aluminum compact housing design
- 19-inch 1280×1024 panel with Projected Capacitive touch screen
- -10 to 60°C wide operating temperature
- Fanless, streamlined enclosure for highly efficient heat dissipation
- Rugged Front Anti-Impact Design
- Front control membrane keys Lockable by software
- Full IP67 male connectors with external female cables
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
The Winmate R19L100-67FTP is a 19" rugged display with a totally sealed full IP67 aluminum compact housing design alongside a rugged front anti-impact design. The 19" display consists of a 1280 x 1024 resolution panel with a projected capacitive touch screen. The R19L100-67FTP operates at a -10°C to 60°C wide operating temperature with its fanless streamlined enclosure for highly efficient heat dissipation.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Size | 19″ |
| Resolution | 1280×1024 |
| Pixel Pitch | 0.294(H)x0.294(V) |
| Contrast Ratio | 41.66736111 |
| Brightness | 400(typ.) for R19L100-67FTP / 1000 (typ.) for R19L100-67FTP(HB) Optional High brightness |
| Viewing Angle | -85~85(H);-80~80(V) |
| Active Display Area | 376.32(H)x301.06(V) |
| Display Color | 16.7M |
| Touch(Optional) | Projected Capacitive |
| Operatiing Tempture | -10 deg.C to 60 deg.C |
| Ignition on/off delay | 19″ |
| Back Panel I/O Port | 1 x IP67 grade Connectors for HDMI (optional), 1 x IP67 grade Connectors for DC 9~36V in, 1 x IP67 grade Connectors for RS232 Remote Control (optional), 1 x IP67 grade Connectors USB for Touch Screen, 1 x IP67 grade Connectors for VGA signal in |
| Dimensions (W x L x H) | 474mm x 410mm x 111mm |
| Net Weight (kg) (with touch) | 10.3 kg |
| Power Input | 9~36V DC input |
| Operation Humidity | 5 to 95% |
| Certifications | CE, FCC |
| Gross Weight (kg) (single packing) | 13.5 kg |
| Shock | Compliant with MIL-STD-810G Method 516.6 |
| Vibration | Compliant with MIL-STD-810G Method 514.6 |
| Screen Size | 11" to 20", 19" |
|---|
