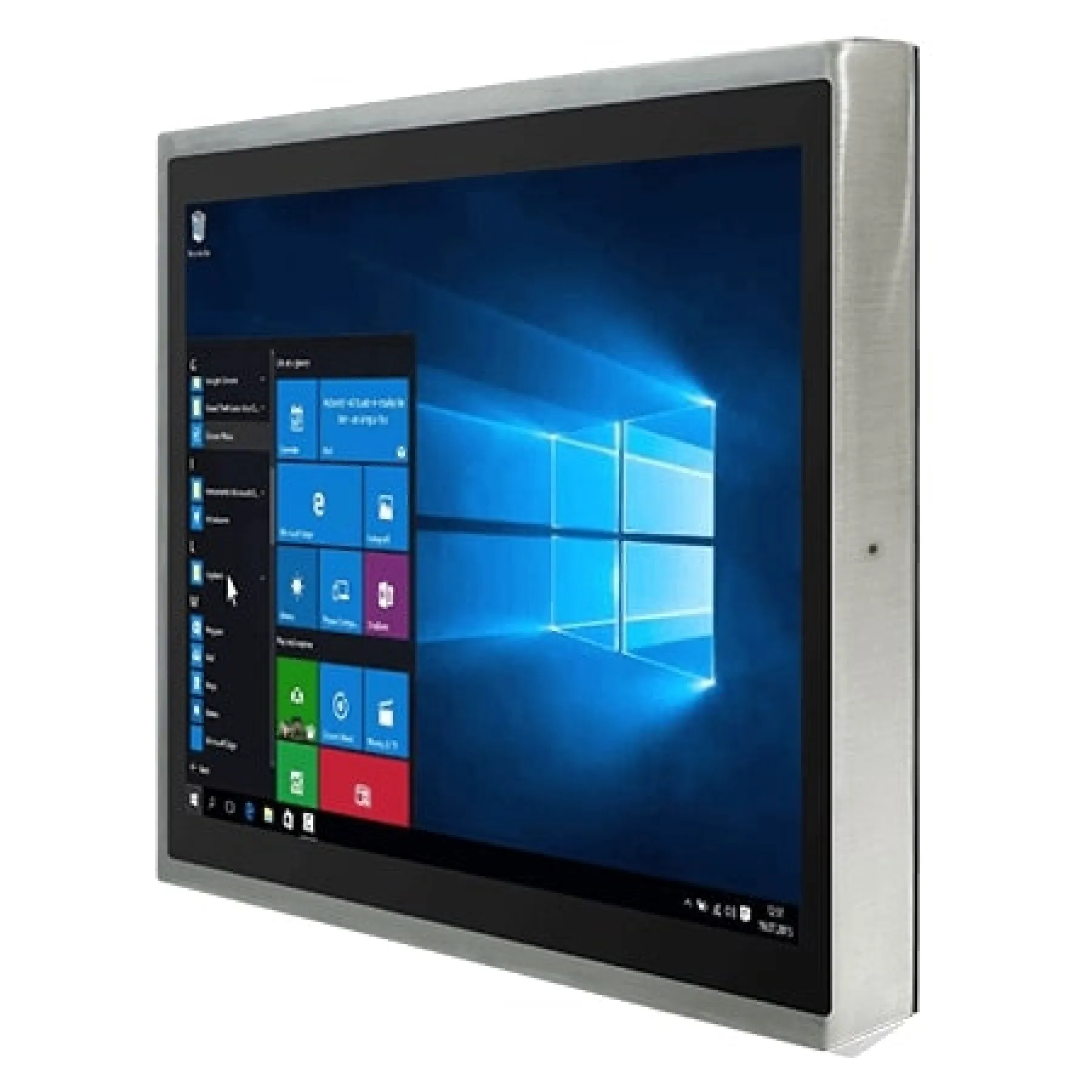

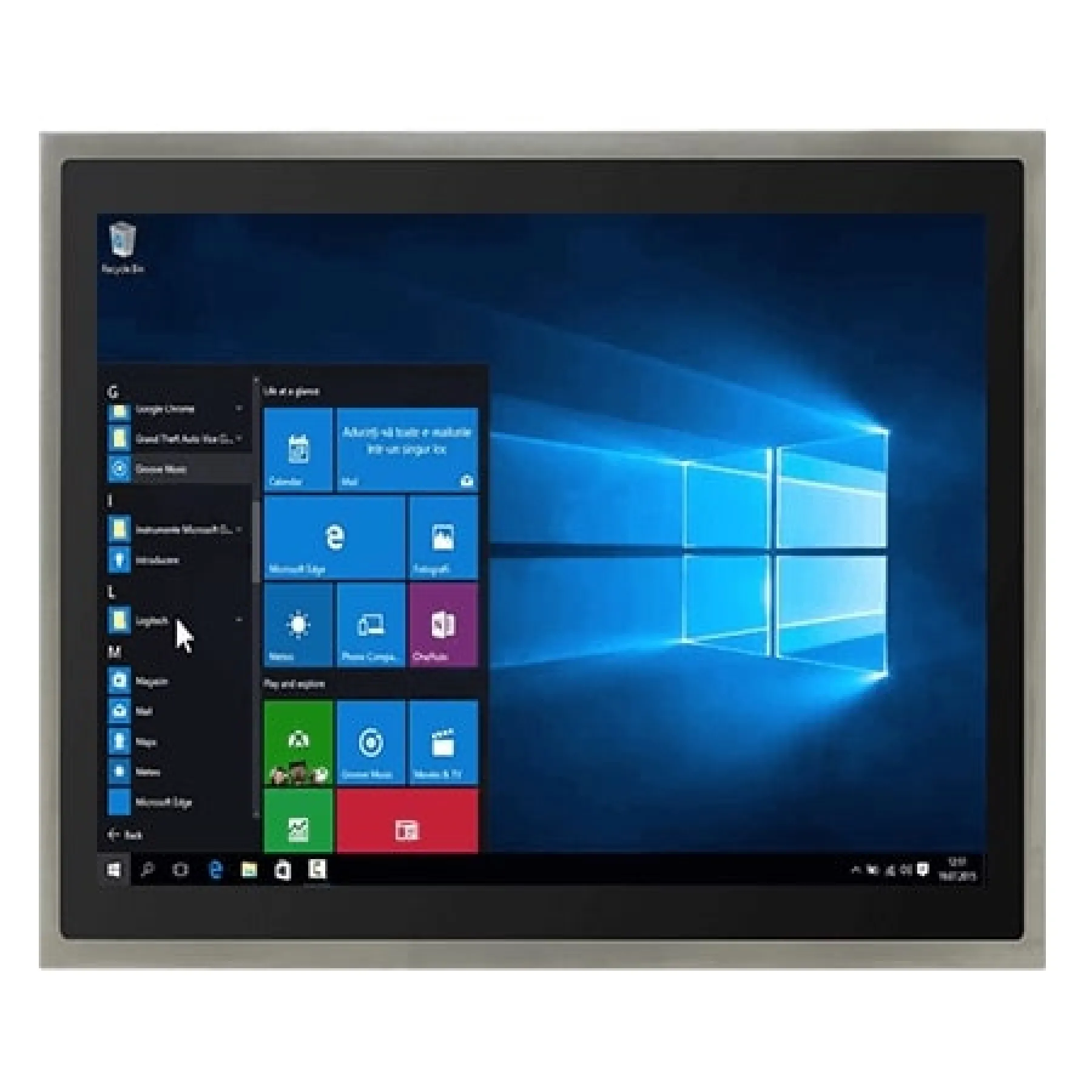

Winmate R19IT3S-SPM169 19″ Intel Core i5-1135G7 Stainless PCAP Chassis Panel PC with Full IP69K
R19IT3S-SPM169
- 19″, 1280 x 1024 P-cap touch with flat design, IP69K Stainless PCAP Chassis Panel PC
- 11th Generation Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
- SUS 316/ AISI 316 stainless steel for food and chemical industries
- Full IP69K waterproof enclosure
- A true flat, easy-to-clean front surface with edge-to-edge design
- Plenty of I/Os, including USB 2.0, RS232 and RJ45-10/100/1000 LAN
- Waterproof ports with adapter cables for external connectivity
- Support VESA/ YOKE mount
- Support Glove/ Rain mode
- Optical bonding (optional)
R19IT3S-SPM169
Industrial Touchscreen Computers, Stainless Steel Panel PCs, Winmate
Details
The Winmate R19IT3S-SPM169 is a Stainless PCAP Chassis Panel PC powered by Intel with up to 32GB Memory. The I/O includes 1x COM, 1x LAN and 2x USB ports alongside an operating temperature of 0ºC ~ 45ºC and stores within -20°C – 60°C.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
| Touch Technology | Projected Capacitive |
|---|---|
| Ingress Protection | IP69K |
| Stainless Steel | Yes |
| Brightness | 250nit, Standard |
| Resolution | 1280x1024, Special/Other |
| GPU | Integrated GPU |
| Memory Capacity | Up to 32GB |
| Cooling Type | Fanless, Yes |
| Serial Ports (COM) | 1 Port, RS-232 |
| USB Ports | 2 Ports, 2 Ports, USB 2.0 |
| Ethernet Ports (LAN) | 1 Port, 1GB |
| Storage Type | 1, 1, 2, M.2, SATA |
| Input Voltage | 12 VDC |
| Mounting Options | VESA-mount, Yoke-mount |
| Operating Temperature | 0°C to 45°C, Standard |
| Certifications | CE/FCC |
| OS Support | Linux, Windows 11, Windows 11 IoT, Windows 11 Pro |
