R19IB3S-67FTP(HB)

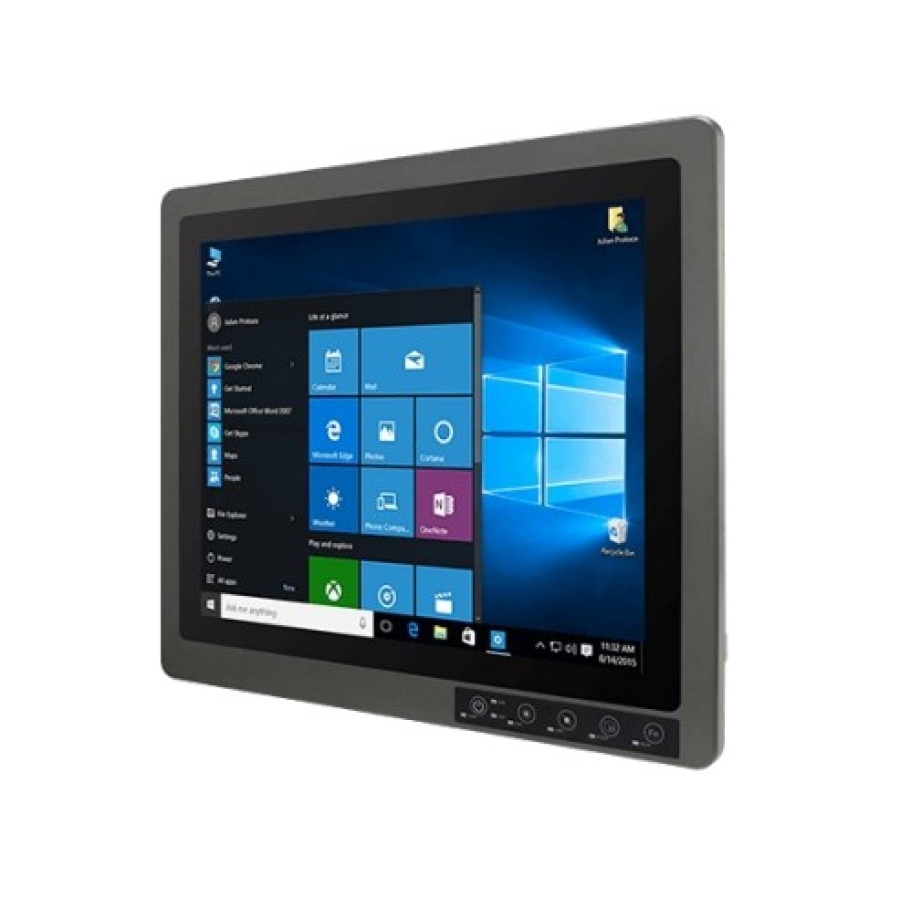

Name: Winmate R19IB3S-67FTP(HB) 19" Intel Celeron Fanless Rugged IP67 Touch Panel PC
SKU: R19IB3S-67FTP(HB)

Winmate

Winmate R19IB3S-67FTP(HB) 19″ Intel Celeron Fanless Rugged IP67 Touch Panel PC

R19IB3S-67FTP(HB)

Totally sealed IP67 Design
High performance / low power Intel Celeron N2930 2.16GHz Processor
Anti-scratch 19-inch sunlight viewable 400 nits LCD panel(Optional for 1000 nits High Brightness)
-10 to 60°C operating temperature
Fanless, streamlined enclosure for highly efficient heat dissipation
Touch screen control button to enable/disable touch screen interface
Rugged Front Anti-Impact Design
Front control membrane keys lockable by software

Product Code: R19IB3S-67FTP(HB)

Categories: Winmate

Range: Winmate

Details

The Winmate R19IB3S-67FTP(HB) is a 19" full IP67 panel PC powered by Intel Celeron processors. This panel PC features a totally sealed IP67 rugged front anti-impact design whilst also integrating a projected capacitive multi touch screen with 350nit brightness alongside an option for 1000nit high brightness.

Downloads

Winmate R19IB3S-67FTP(HB) Datasheet (PDF)

0.27MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Size	19″
Resolution	1280 x 1024
Contrast Ratio	1000 : 1 (typ.)
Display Color	16.7M
Panel Brightness	400 nits (optional 1000 nits High Brightness)
Viewing Angle	-85~85(H);-80~80(V)
Touch Screen	Projected Capacitive Touch
Processor	Intel® Celero n N2930 2.16 GHz
Chipset	Intel® HD graphics
Memory	1x DDR3L SO-DIMM 1600 MHz, 4GB default
BIOS	AMI BIOS
Storage	mSATA SSD 64GB default,Optional up to 256GB
OS	Windows Embedded Standard 7Windows 7 PRO for Embedded SystemWindows Embedded 8 StandardWindows Embedded 8.1 Industrial
Shock	Compliant with MIL-STD-810G Method 516.6
Vibration	Compliant with MIL-STD-810G Method 514.6
Net Weight (kg)	10.28 kg
Gross Weight(kg)	14.25 kg
Back Panel I/O Port	1 x IP67 grade USB A Type Connector with cover4 x IP67 Connectors (USB/LAN/COM/Power)
Dimensions ( L x W )	474mm x 410mm x 111mm
Power Input	9~36V DC input (isolation)
Operating Temperature	-10 deg.C to 60 deg.C (optional built-in intelligent heater to avoid moisture)
Operating Humidity	5 to 95%
Certifications	CE, FCC
Cooling System	Fanless design
OS	Windows Embedded Standard 7Windows 7 PRO for Embedded SystemWindows Embedded 8 StandardWindows Embedded 8.1 Industrial
Power Input	9~36V DC input (isolation)
