R15L600-MLA3FP

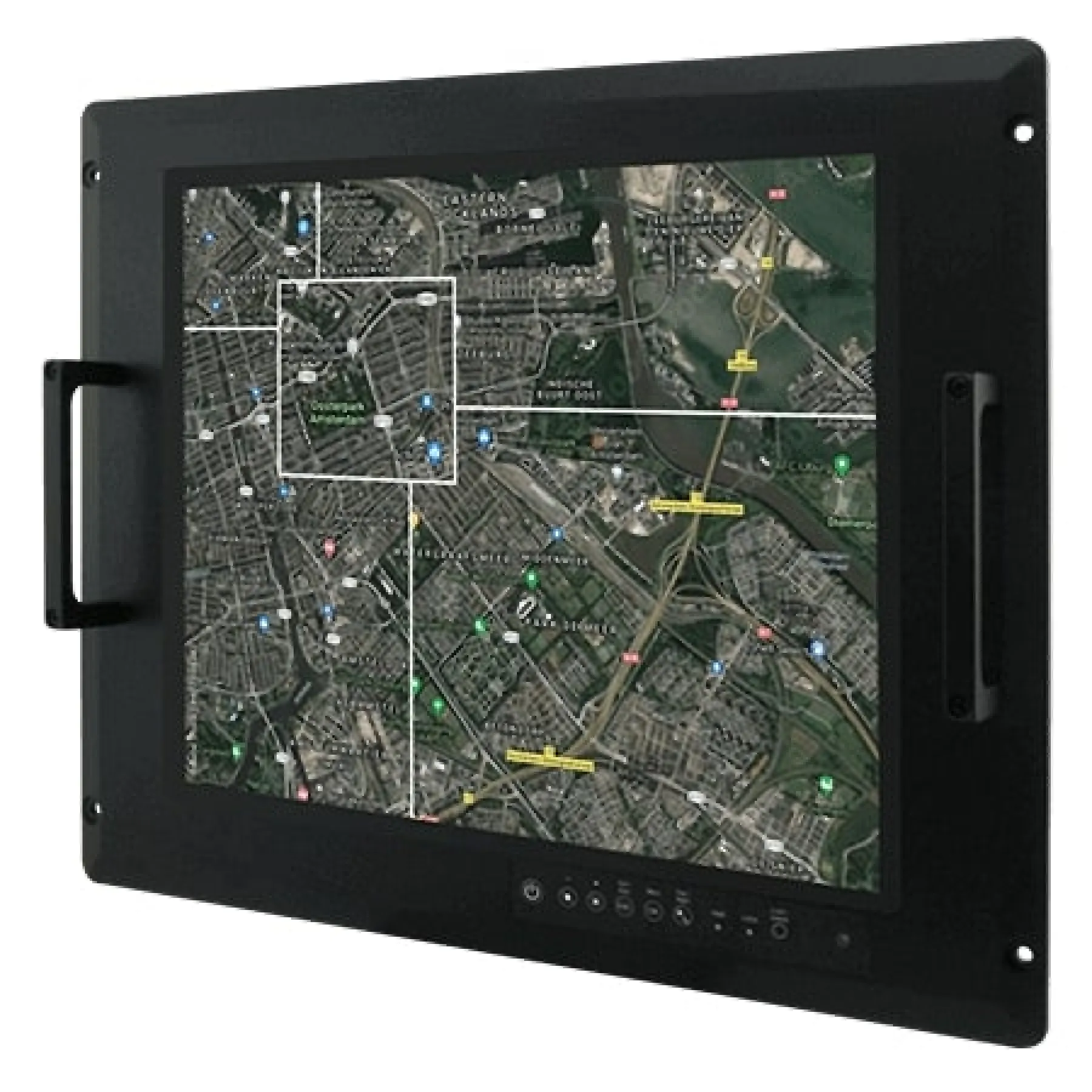

Name: Winmate R15L600-MLA3FP 15" PCAP Rack Mount Defence Display
SKU: R15L600-MLA3FP

Winmate

Winmate R15L600-MLA3FP 15″ PCAP Rack Mount Defence Display

R15L600-MLA3FP

15″, 1024 x 768 resolution
Compliant MIL-STD 810G/ MIL-STD 461E
Rack mount mechanical design, supports VESA mount
PCAP multi-touch screen
Defence-grade power connector (MIL-DTL-38999/1)
AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional)
Convenient on-screen display controls

Product Code: R15L600-MLA3FP

Categories: Industrial Monitors, Rackmount LCD Monitors, Rugged Military Displays, Specialist Monitors, Winmate

Range: Winmate

Details

To meet the regulatory requirements of the Defence and defense, all Winmate's Defence Console Rack Displays are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standard. Winmate performs in-house reliability test to ensure optimal performance in harsh defence environments. The Defence Console Rack Displays come with MIL-DTL-38999 type I power input connector and, for selected models, MIL-DTL-38999 type III input/ output connectors – high-performance cylindrical connector for cable-to-panel applications in the defence, air traffic control, or other mission-critical situations. Compatible with existing defence systems. Using Projected Capacitive touchscreen technology (PCAP) allows for a modern user interface thereby making use of new and extended ways of user input and control. Gesture-based interactions by touching and pointing, with one finger or more, rotate, pinch to zoom and move objects on the display. The Defence Console Rack Displays feature a built-in light sensor for auto-brightness control. The screen brightness effortlessly changes with the lighting conditions throughout the day.

Downloads

Datasheet (R15L600-MLA3FP) (PDF)

0.25MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Screen Size	11" to 20", 15"
Touch Technology	Projected Capactive
Brightness	500nit, Standard
