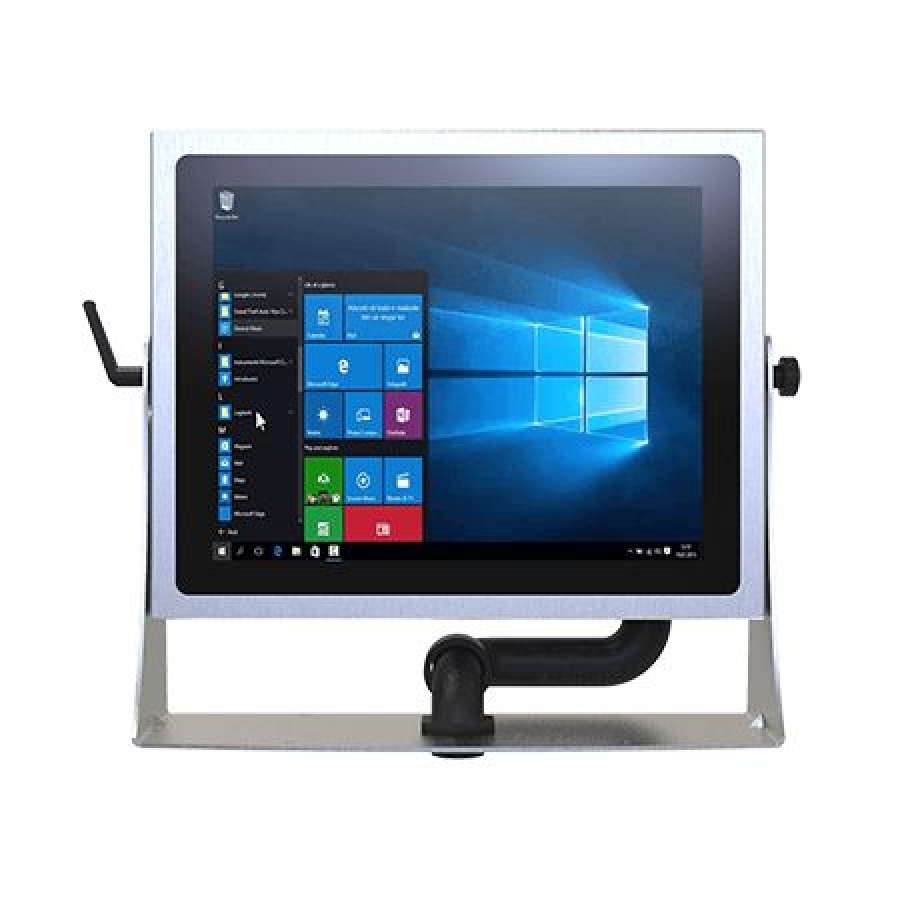

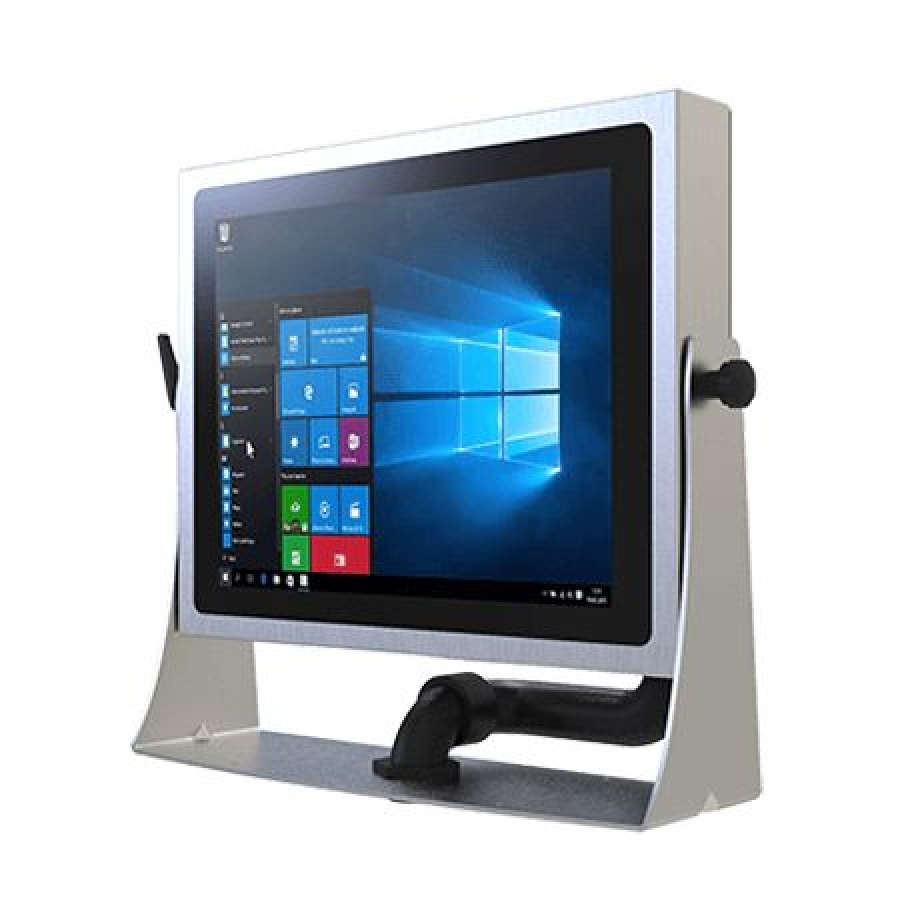

Winmate R15IK3S-SPC369-P1 15″ Intel Core i5-7200U IP69K Stainless Steel Panel PC
R15IK3S-SPC369-P1
- Intel Core i5-7200U, 2.50 GHz
- Fanless cooling system
- SUS316 / AISI 316 stainless steel for food and chemical industries
- Full IP69K waterproof enclosure
- A true flat, easy-to-clean front surface with edge-to-edge design
- Waterproof sealed conduit pipe for cable protection
- Support VESA mount, and optional Yoke mount stand
- Support Glove/ Rain mode
- Optical bonding (optional)
Details
With stainless steel housing and IP69K protection for dust and water resistance, the Winmate R15IK3S-SPC369-P1 Panel PC is ready for high-pressure, high-temperature washdowns regularly. The Panel PCs are designed for industries that require stringent disinfection processes and splashing cleanup routines found in Food, Beverage, and Chemical applications. Never worry about exposed cables again. The custom-built waterproof conduit pipe is pre-installed to give an additional layer of protection for any peripheral cables connected to the device. The protection grants increased product longevity to reduce downtime in the production facilities. The highly-sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Display |
Size |
15 inches |
|
Touch / Glass |
Projected Capacitive Multi Touch Screen |
|
|
Resolution |
1024×768 |
|
|
Panel Brightness |
300 nits |
|
|
Contrast Ratio |
2000:1 |
|
|
View Angles |
88,88,88,88 |
|
|
Active Area |
304.1×228.1 mm |
|
| SystemSpecification |
Processor |
Intel Core i5-7200U (3M Cache, up to 3.10 GHz) Intel Core i5-7300U (3M Cache, up to 3.50 GHz) |
|
Memory |
1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
|
|
Storage |
1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) M.2 2280 M-Key NVME SSD, up to 4TB (Optional) |
|
|
Ethernet controller |
Intel Ethernet Controller I210-AT + Intel Ethernet Connection I219-LM |
|
|
Security |
TPM 2.0 |
|
|
Operating System |
Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional) Linux Ubuntu 20.04 (Optional) |
|
|
WLAN |
Support (Optional) |
|
|
BT |
Support (Optional) |
|
| Mechanical |
Dimension |
378 x 301 x 56.2 mm |
|
Mounting |
VESA Mount Yoke Mount |
|
|
Enclosure |
Stainless Housing |
|
|
Cooling System |
Fanless design |
|
| Environment |
Operating Humidity |
10% to 90% (non-condensing) |
|
Operating Temperature |
0~45°C |
|
|
Storage Temperature |
-20~60°C |
|
|
IP rating |
IP69K |
|
| Certification |
Certification |
CE, FCC |
| IO Ports |
USB Port |
2 x USB 3.0 |
|
Serial Port |
1 x RS232/422/485 (Default RS232) 1 x RS232 (Optional) |
|
|
LAN |
2 x RJ-45 |
|
|
Video |
1 x HDMI |
|
| Control |
Button |
1 x Power Button |
| Accessory |
Accessory |
1 x Waterproof Conduit 1.5m 1 x Waterproof Conduit 0.3m 2 x Elbow for connect the conduit 1 x AC to DC power adapter with power cord 1 x D-sub9(male) to RJ45 adapter 1 x D-sub9(female) to RJ45 adapter 1 x External RJ45 male to male cable Driver CD & Manual VESA screws |
|
Optional Accessory |
1 x Open wire cable for phoenix connector (Optional) Yoke mount stand kit (Optional) |
|
|
Power |
Power Rating |
12V DC input |
| Certifications | CE/FCC |
|---|
