R15IB3S-SPC3-B

Name: Winmate R15IB3S-SPC3-B 15" Intel Celeron N2930 IP65 Stainless Steel Touch Panel PC
SKU: R15IB3S-SPC3-B

Winmate

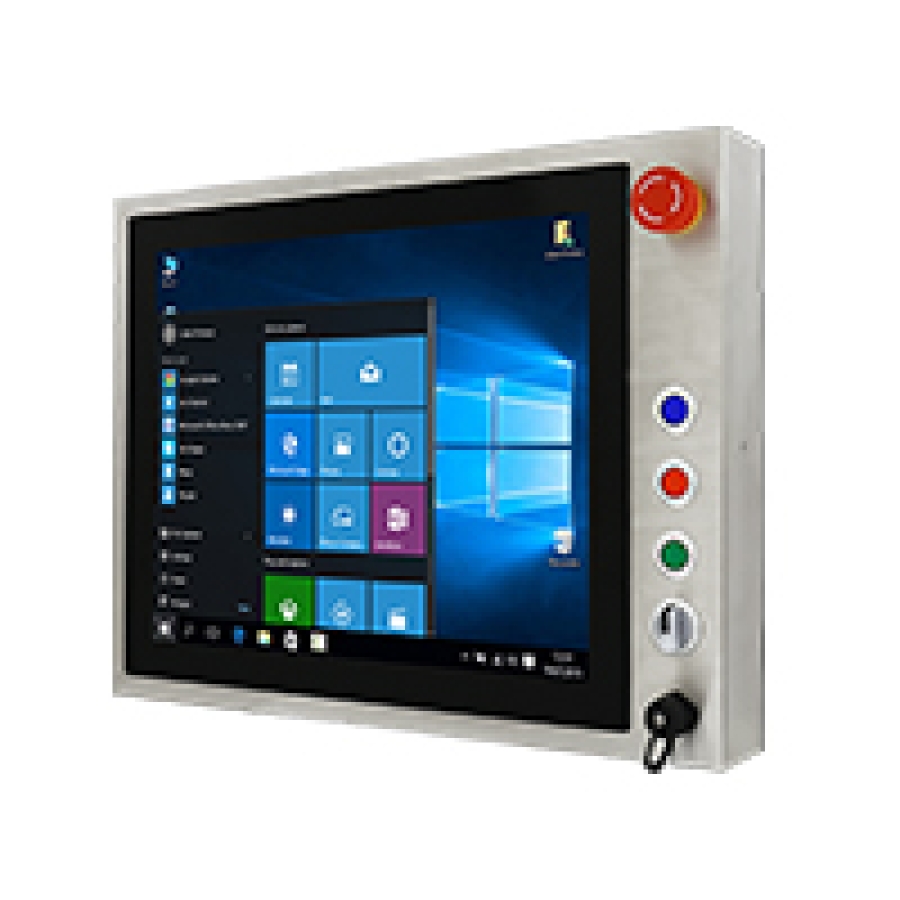

Winmate R15IB3S-SPC3-B 15″ Intel Celeron N2930 IP65 Stainless Steel Touch Panel PC

R15IB3S-SPC3-B

Intel® Celeron® N2930 (2M Cache, up to 2.16 GHz)
Fanless cooling system
SUS 316/ AISI 316 stainless steel for food and chemical industries
Full IP65 waterproof enclosure, good corrosion resistance
A true flat, easy-to-clean front surface with edge-to-edge design
Supports VESA mount
Rotary switch adjust different touch mode for Hand/Rain/Glove application
Emergency and Flat buttons for automation device control

Product Code: R15IB3S-SPC3-B

Categories: Industrial Touchscreen Computers, IP65 Panel PCs, Stainless Steel Panel PCs, Winmate

Range: Winmate

Details

The Winmate R15IB3S-SPC3-B is a 15", full IP65 stainless steel panel PC powered by Intel Celeron N2930 processor. This touchscreen panel PC contains PCAP touch technology with a panel brightness of 250nits and a resolution of 1024 x 768. The R15IB3S-SPC3-B supports VESA mounting and contains a rotary switch to adjust different touch mode for hand, rain or glove application and alongside the full IP65 stainless steel design which ensures good corrosion resistance this panel PC is perfect for industrial application such as the food and chemical industries.

Downloads

Datasheet (R15IB3S-SPC3-B) (PDF)

0.36MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Size	15″
Contrast Ratio	2000 : 1 (typ.)
Panel Brightness	250 cd/m2 (typ.)
Viewing Angle	-88~88(H);-88~88(V)
Recommend Resolution	1024 x 768
Touch Screen	PCAP touchscreen
Maximum Colors	16.7M
Processor	Intel® Celeron Bay Trail-M N2930(2M Cache, up to 2.16 GHz)
Chipset	Intel® SoC Integrated
Memory	1 x SODIMM, Max 8GB DDR3 1600 MHz, default 4GB
BIOS	AMI BIOS
Ethernet	Intel® Ethernet Controller I210-AT
Audio	Realtek HD codec
Expansion Slots	1 x mPCIe slot(for half size Wifi module)
OS	Windows 10 IoT Enterprise
DC-Input	1 x M12 waterproof connector for 12V DC
USB Port	1 x M12 waterproof connector for 2 x USB2.0
	1 x Front waterproof connector for USB2.0 type-A
Ethernet	1 x waterproof Giga LAN RJ45 connector
COM Port	1 x M12 waterproof connector for RS232
Operating Temperature	0~45°C
Storage Temperature	-20~60°C
Operating Humidity	10% to 90% (non-condensing)
Mounting	VESA Mount
Dimension (W x H x D)	426 x 301 x 69 mm
IP Proof	IP65
Power Input	Default 12V DC input, 9~36V DC input for optional
Power Adapter	100~240V AC to DC Adapter with waterproof connector
LED Indicator	1 x LED Indicator for power, 1 x LED Indicator for storage
Buttons	Rear side: 1 x Power Button, 1 x Reset Button Front side: 1 x Emergency Button & 3 x Flat Button for CN1 & CN2 M12 connector, 1 x Rotary Switch for touch mode
Certification	CE, FCC

Touch Technology	Projected Capacitive
Ingress Protection	IP65
Stainless Steel	Yes
Brightness	300nit, Standard
Resolution	1024x768, Special/Other
GPU	Integrated GPU
Memory Capacity	Up to 4GB, Up to 8GB
Cooling Type	Fanless, Yes
Serial Ports (COM)	1 Port, RS-232
USB Ports	3 Ports, 3 Ports, USB 2.0
Ethernet Ports (LAN)	1x 1G
Wireless	Wi-Fi
Storage Type	1, mSATA
Input Voltage	12 VDC, 9-36 VDC
Mounting Options	VESA-mount
Operating Temperature	0°C to 45°C, Standard
Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 10 IoT, Windows 10 Pro
