R15IB3S-67C3ST

Name: Winmate R15IB3S-67C3ST 15" Intel Celeron IP67 Fanless Stainless Steel Panel PC
SKU: R15IB3S-67C3ST

Winmate

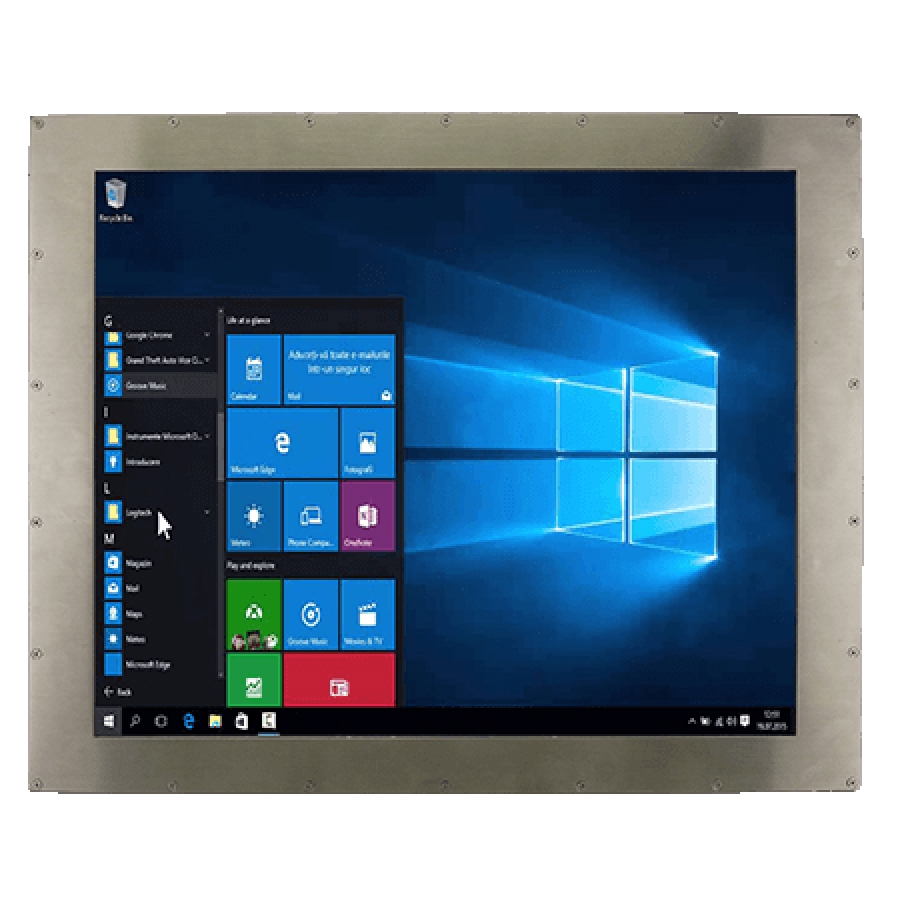

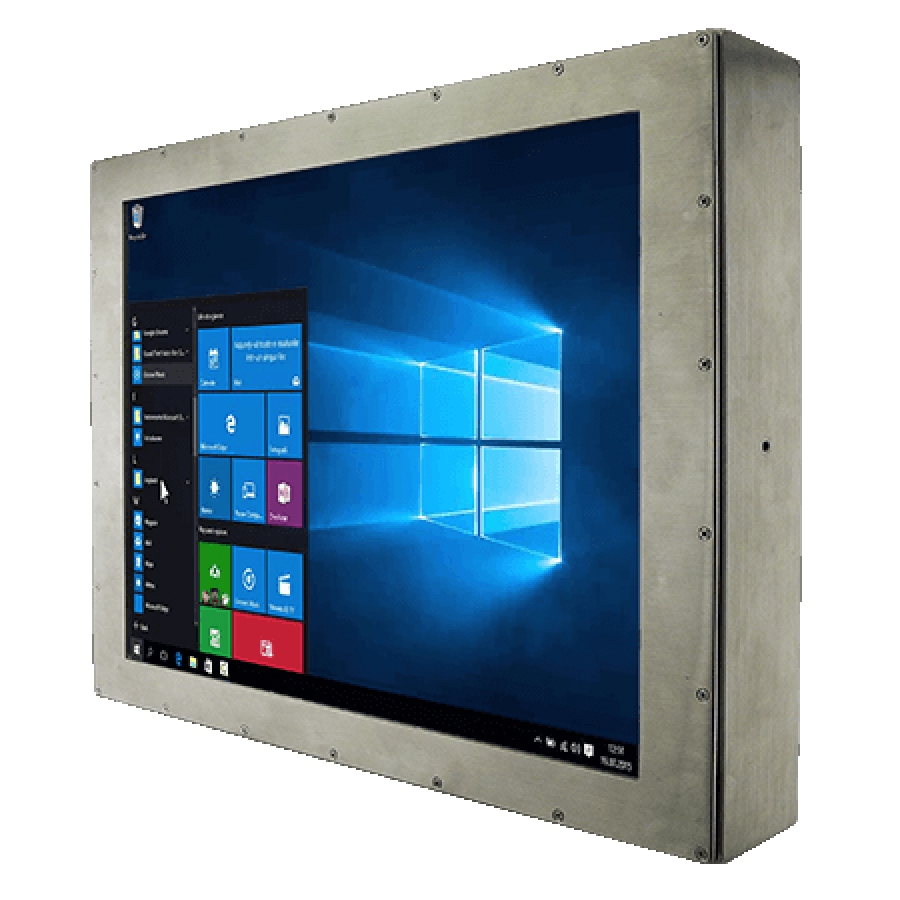

Winmate R15IB3S-67C3ST 15″ Intel Celeron IP67 Fanless Stainless Steel Panel PC

R15IB3S-67C3ST

Ultra Low Power but High Performance Intel Celeron Bay Trail-M N2930 1.83GHz Processor
Fanless Design
High Quality 15″ Panel,1024×768 Resolution
Full IP67 Dust/water resistant Protection
SUS 316/ AISI 316 stainless steel for food and chemical industries
Optical Bonding with Anti-moisture Treatment
Anti-Shock and Vibration Standard according to MIL810F
5 Wire Resistive Touch/ Anti-Reflection Protection Glass (Optional)
Wide Range 12V DC Input Acceptable(Optional)

Product Code: R15IB3S-67C3ST

Categories: Industrial Touchscreen Computers, Winmate

Range: Winmate

Details

The Winmate R15IB3S-67C3ST is a 15" fanless stainless steel panel PC powered by ultra low power but high performance Intel Celeron Bay Trail-M N2930 1.83GHz processor. This panel PC is full IP67 dust/water resistant whilst also incorporating optical bonding with anti-moisture treatment. The R15IB3S-67C3ST contains rich I/O including 3x COM, 6x USB and 1x LAN ports alongside operating at a standard operating temperature of 0°C ~ +45°C.

Downloads

Winmate R15IB3S-67C3ST Datasheet (PDF)

0.26MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Size	15″
Active Display Area	304.1 (H) x 228.1(V)
Pixel Pitch	0.297(H) x 0.297(W)
Resolution	1024 x 768
Contrast Ratio	2000 : 1(typ.)
Display Color	16.2M
Panel Brightness	300 nits(typ.)
Viewing Angle	-88~88 (H);-88~88 (V)
Graphic Controller	Intel® HD Graphics 4400
Processor	Intel® Celeron Bay Trail-M N2930 1.83GHz
Chipset	Intel® Atom SoC Integrate
Memory	DDR3L 1066 MHz SO-DIMM Slot, (default 4GB, max. 8GB)
BIOS	AMI UEFI BIOS
Ethernet	1000 Base-Tx Gigabit Ethernet Compatible
Audio	Realtek ALC886 codec
Serial	2 x RS232, 1 x RS232/422/485 ports
USB	6 x USB ports, USB 2.0 compliant
SDD Interface	1 x Μini PCIe SSD (default 64GB)
Expansion Slots	1 x Mini PCIe
OS	Windows 10 IoT Enterprise (Optional) Windows 8 embedded (Optional) Windows 7 embedded (Optional)
Gross Weight(kg)	8.35 kg
DC-Input	1 x 12V DC
USB Port	2 x USB
Ethernet	1 x RJ45-10/100/1000 Mbps
COM Port	1 x RS232
Power Input	DC-IN (Lockable, Power Jack)
Operating Temperature	0°C ~ +45°C
Operating Humidity	30% to 90% (non-condensing)
Dimension (W x H x D)	56.4 x 382.5 x 310 mm
IP Proof	IP67
Power Input	12V DC IN (Lockable Power Jack)
Power Consumption	38W (typ.)(max. backlight & high CPU load)

Touch Technology	Resistive
Ingress Protection	IP67
Brightness	300nit, Standard
Resolution	1024x768, Special/Other
GPU	Integrated GPU
Memory Capacity	Up to 4GB, Up to 8GB
Cooling Type	Fanless, Yes
Serial Ports (COM)	1 Port, RS-232
USB Ports	2 Ports, 2 Ports, USB 2.0
Ethernet Ports (LAN)	1x 1G
Wireless	Wi-Fi
Storage Type	1, mSATA
Input Voltage	12 VDC
Mounting Options	VESA-mount, Yoke-mount
Operating Temperature	0°C to 45°C, Standard
Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 10 IoT, Windows 10 Pro
