R12IT3S-MRM2

Name: Winmate R12IT3S-MRM2 12.1" Intel Core i7-1165G7 Marine Panel PC
SKU: R12IT3S-MRM2

Winmate

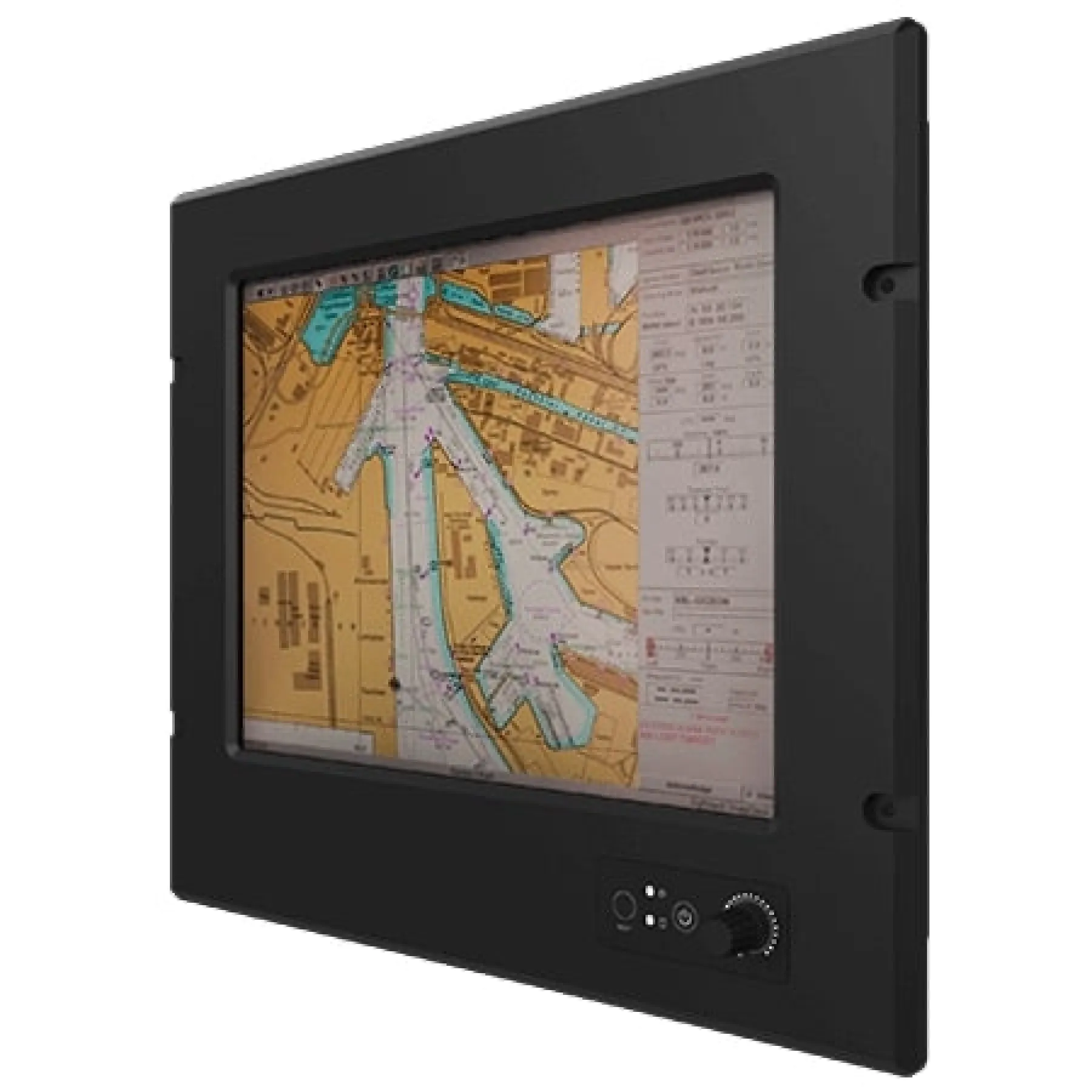

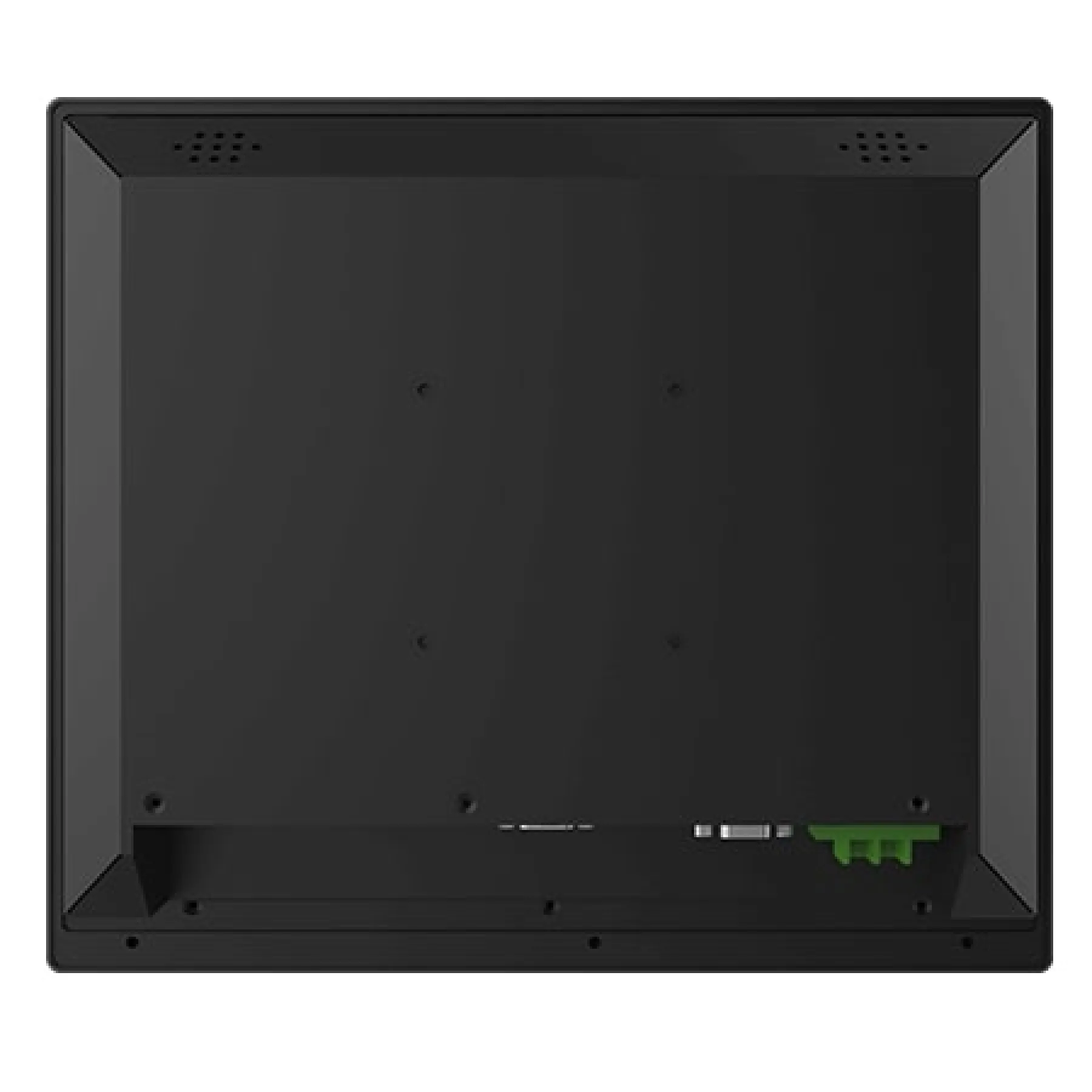

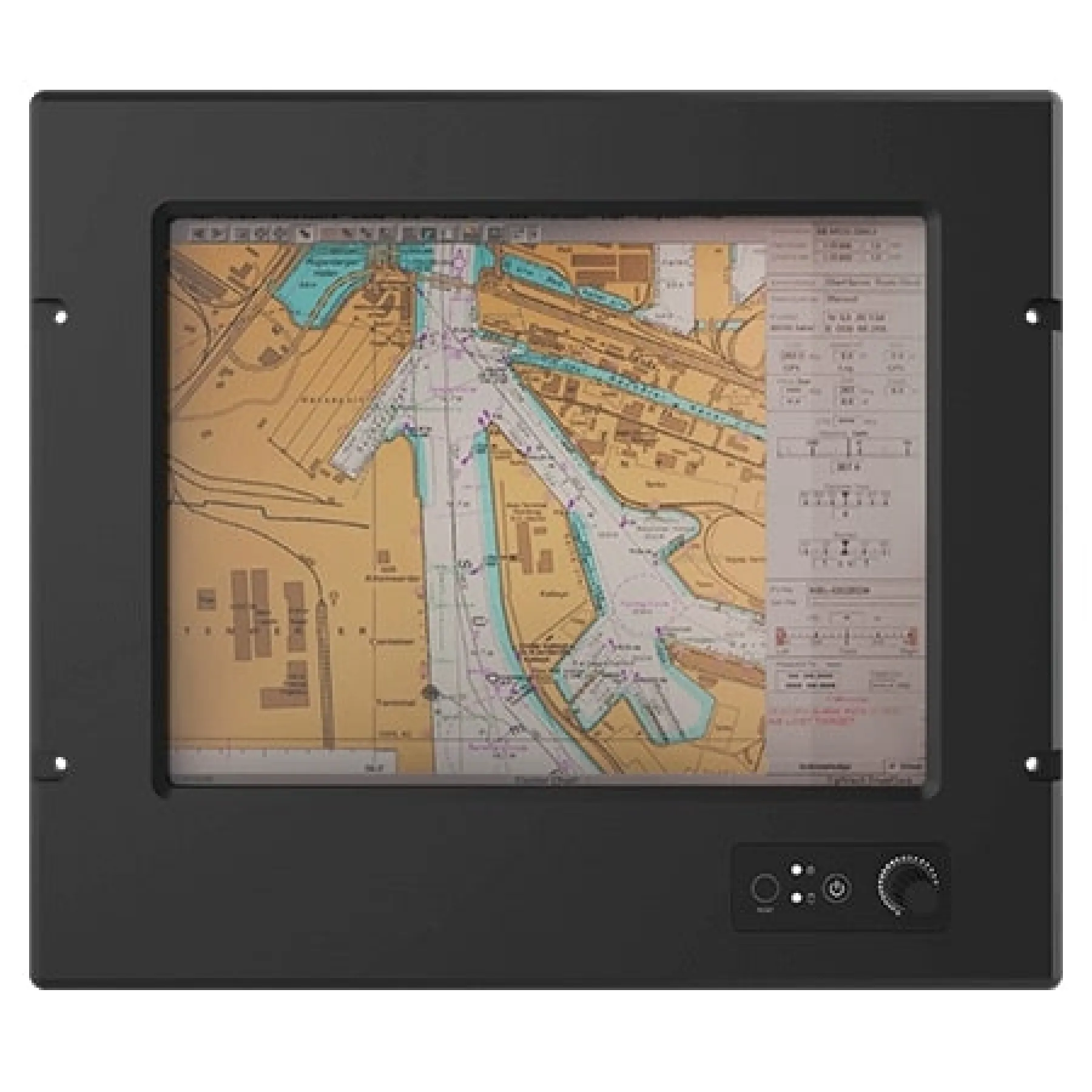

Winmate R12IT3S-MRM2 12.1″ Intel Core i7-1165G7 Marine Panel PC

R12IT3S-MRM2

Intel Core i7-1165G7 processor marine panel PC
Dimming knob control backlight brightness from nearly 0% to 100%
9~36V DC power input acceptable
Panel (flush) mount IP66 aluminum housing with powder coating design

Product Code: R12IT3S-MRM2

Categories: Certified, Industrial Touchscreen Computers, IP66 Panel PCs, Marine Certified Panel PCs, Panel Mount Panel PCs, Winmate

Range: Winmate

Details

Reliable Computing Certified for Marine Applications

Winmate marine panel PCs are built and tested according to DNVGL-CG-0339 Standard, IEC60945, and IACS-E10 to meet the international regulatory requirements of the marine industry. Standard, IEC60945, and IACS-E10. Winmate performs in-house reliability test to ensure optimal performance in harsh maritime environments.

Safe Sailing at Bright Sun, Dusk, and Night

To face the challenges of sailing in different conditions, Winmate marine panel PCs suitable for day, dusk, and night settings. Our devices feature hyper dimming technology that can control backlight brightness linearly from nearly 0% to 100% by a dimming knob. At the same time, add an optional transflective film to enhance the visibility in an outdoor and bright ambiance environment.

Convenient Front Panel OSD Control and Dimming Knob

All the controls are located on the front panel OSD for fast access anytime. Dimming knob allows controlling backlight brightness from nearly 0% to 100%, designed for marine industry applications.

Survives All Weather Conditions

The rugged mechanical design of the Winmate marine panel PCs provides enhanced shock and vibration resistance. Also, the high power efficiency and low heat design guarantee for mission-critical deployment. Deploy Winmate marine panel PCs for the stability and longevity required your safe operations at sea in all weather conditions.

Peripheral Connectivity

Marine Panel PC feature-rich I/O connectivity for easy integration into various marine dock equipment.

Downloads

Datasheet (R12IT3S-MRM2) (PDF)

0.24MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Touch Technology	Resistive
Ingress Protection	IP66
Brightness	500nit, Standard
Resolution	1024x768, Special/Other
GPU	Integrated GPU
Memory Capacity	Up to 16GB, Up to 32GB, Up to 4GB, Up to 8GB
Cooling Type	Fanless, Yes
Serial Ports (COM)	1 Port, 2 Ports, 3 Ports, 3 Ports, RS-232, RS-422/485
USB Ports	2 Ports, 2 Ports, USB 3.0
Ethernet Ports (LAN)	2 Ports, 2 Ports
Video Ports	1x HDMI
Storage Type	1, M.2 NVMe
Input Voltage	9-36 VDC
Mounting Options	Panel-mount, VESA-mount
Operating Temperature	-15°C to 55°C, Wide
Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 10 IoT, Windows 10 Pro, Windows 11, Windows 11 IoT, Windows 11 Pro
