M700DQ8-EX

Name: Winmate M700DQ8-EX Snapdragon 660 IP65 7" ATEX Zone 2 Rugged Android PDA w/
SKU: M700DQ8-EX

Winmate

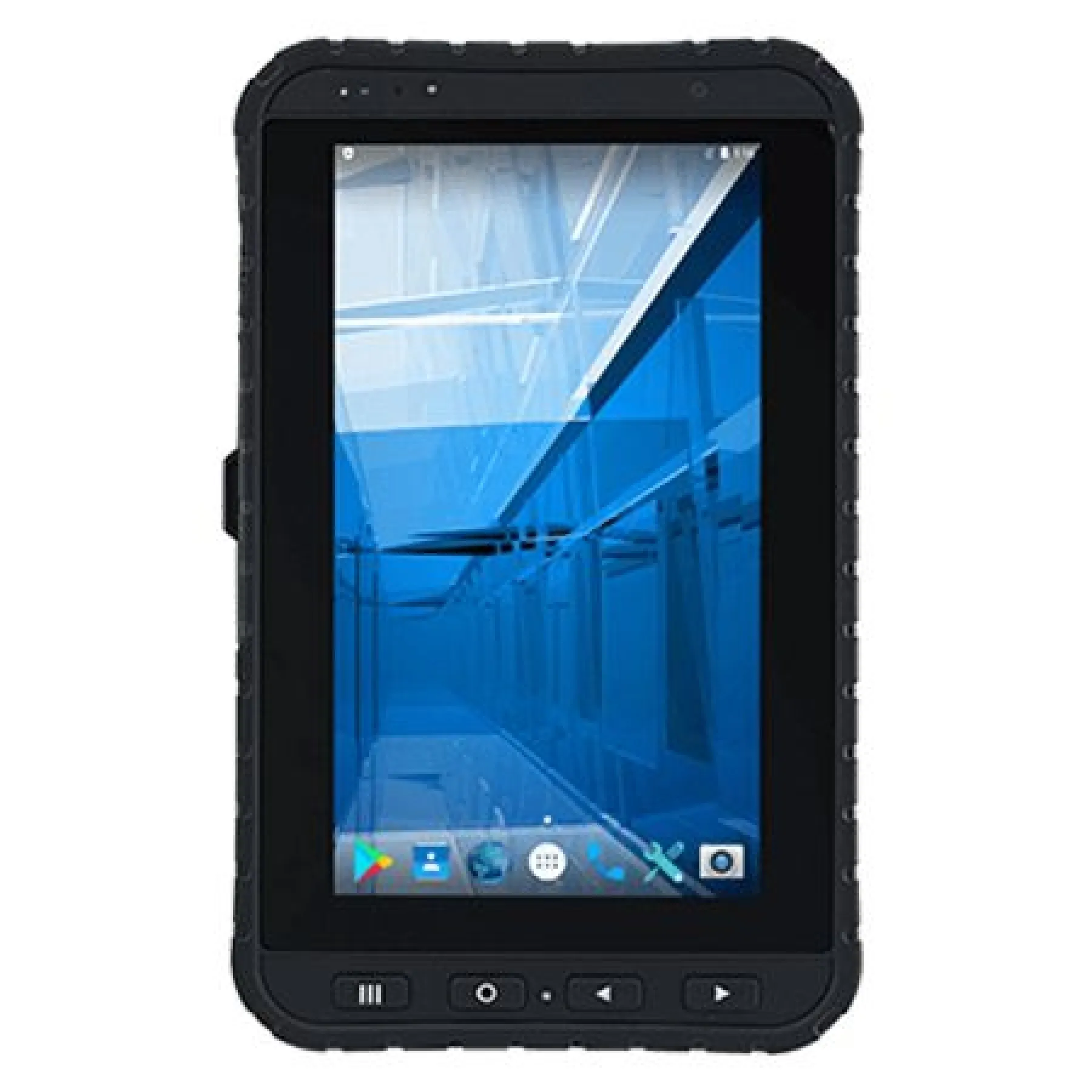

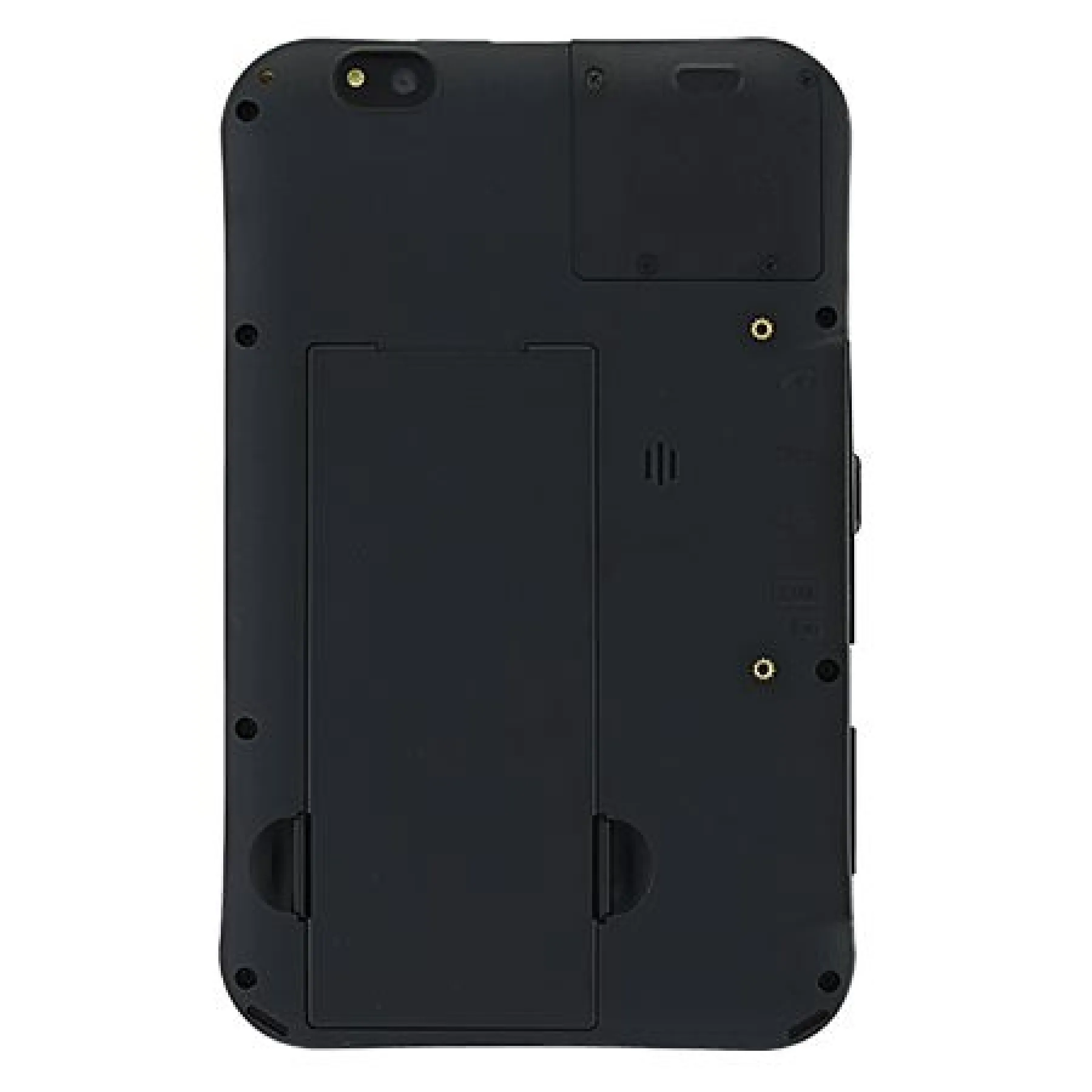

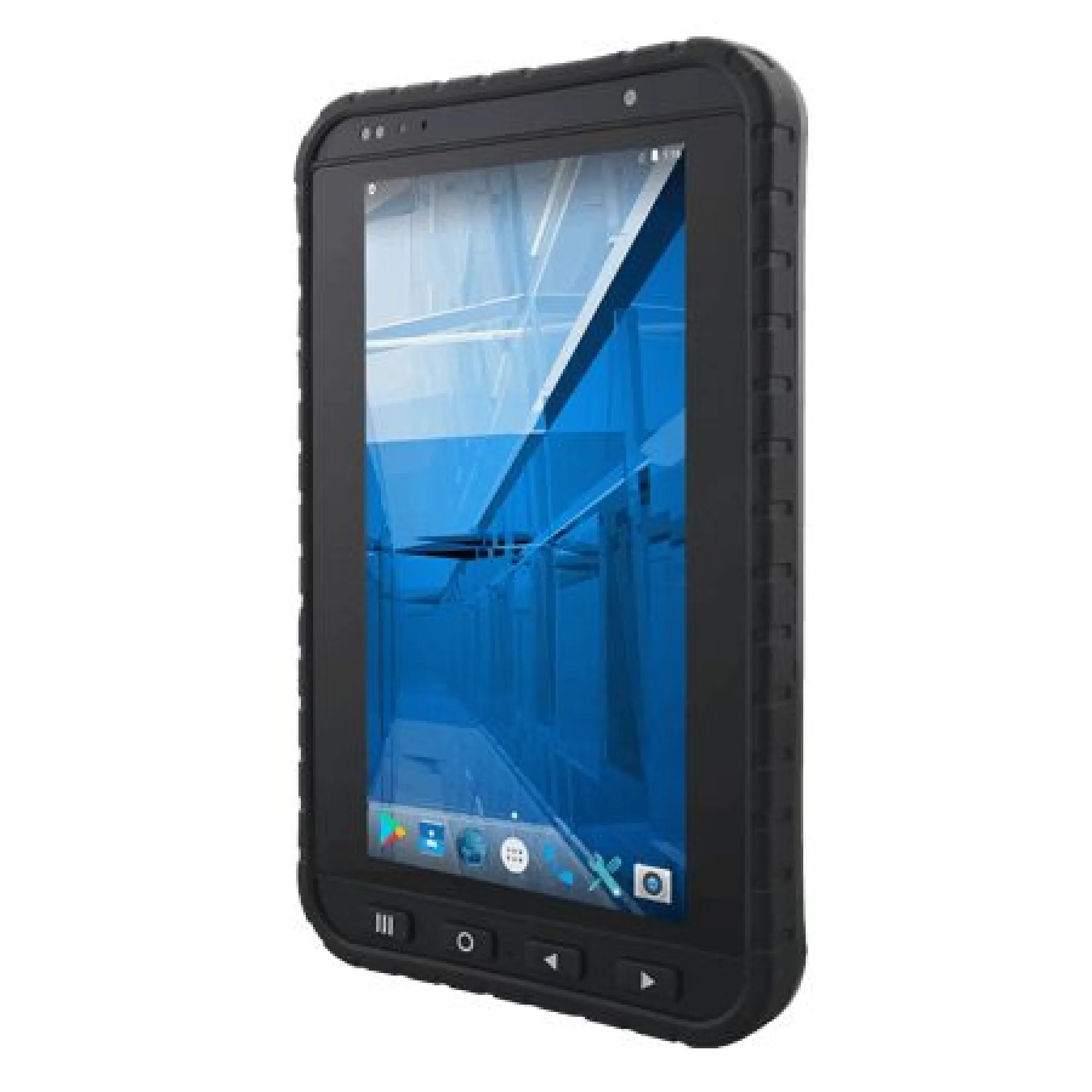

Winmate M700DQ8-EX Snapdragon 660 IP65 7″ ATEX Zone 2 Rugged Android PDA w/

M700DQ8-EX

Qualcomm Snapdragon 660, Octa-core up to 2.2 GHz , ATEX rugged android PDA
7 inch android tablet, 1280 x 720 TFT Panel with direct optical bonding
Supports Android 9.0 OS,Sunlight readable android tablet
IP65 waterproof and dustproof
Rated for extreme temperature use
ATEX Zone 2 application certification

Product Code: M700DQ8-EX

Categories: Intrinsically Safe Mobile Computing, Mobile Computing, Winmate

Range: Winmate

Details

High-Performance Qualcomm Snapdragon 660 Processor 7 inch tablet

This handheld rugged tablet is powered by a Qualcomm Snapdragon 660 Processor for quicker response times and improved performance. Plus, the easy-to-use Android interface helps to boost productivity further than ever before.

Real-Time Data and Wireless Connectivity

Real-time data access to the right information is crucial for mobile workers. With a host of features that include GPS / AGPS / GLONASS, WLAN, BT, and optional 4G LTE, workers can now share files or communicate with each other anytime and anywhere. The built-in 13.0 MP rear camera makes it easy to instantly capture photos, videos, and documents. Plus, the front 8.0 MP camera is perfect for self-recording or video calls.

Brilliant 7” Sunlight Readable Display

The 7-inch, sunlight readable android tablet 1280 x 720 TFT LCD screen is made with direct optical bonding technology for sunlight readability with true-to-life colours. The device also supports automatic screen rotation for ease-of-use.

Ultimate Productivity for Field Work

Data collection has never been easier with a range of optional tools designed to make life easier for workers on the move. The NFC reader (optional) includes default read & write functions, plus an optional 1D/2D barcode scanner can be added for even more data collection options.

Accessories Tailored for Your Application

Use this tablet for in-vehicle applications with its docking station and adapter. Easily transform this device from an in-vehicle solution to a handheld device, where you can put the device into a carry bag for full mobility.

Ordering Info

Standard Accessories
Universal Adaptor	Model Name: 6A-181WP05 Part Number: 9226015W05V1 Input: AC 100-240V Output: 5V 3A for M700DM8
Battery	Model Name: M700DT4 Part Number: 98K007SP002P 3.7V 5300mAh Li-Poly removable battery
Optional Accessories
Capacitive Stylus	Model Name:CTS-V1 Part Number: 9B000000001D 93mm/5.5Φ
Micro SD Card	Model Name: MSD-16GB Part Number: 76000000000V 16G Micro SD Card
Carry Bag	Model Name:M700-CarryBag Part Number: 9B000000000X This durable bag protects M700 and allows users to carry it easily
Vehicle Dock (Charging Only) (CVD-M700D)	Model Name: CVD-M700D Part Number: 98TA07Z00003 Hold the Tablet tightly on the moving vehicle Lockable design to avoid Tablet be taken away (with key) Support both terminal block & 2.5ψp ower jack input 9~36V DC-in wide range DC input Bottom I/O supported: USBx2, LANx1, and COMx1 IP52 design (Rain proof)
Desk Dock	Model Name: DD-M700DM8 Part Number: 98TA07Z00005 5V DC-in for Charging USB 2.0 x 4 1 x COM port 1 x LAN 10/100M
Battery Charging Dock 2 Bay	Model Name: BD-5300-2 Part Number: 98TA00Z00003 PoGo Pin type charging slot Power level LED Indicators Supports multiple docking sets interconnected Buzzer indicating the battery is inserted or alerting battery error state
Vehicle Adapter	Model Name: VA-10V Part Number: 98TZ00ZZ0006 Input: 5V DC cigarette lighter socket USB car charger USB to DC jack Cable
HDMI Adapter	Model Name: TC-HDMI Part Number: 9AN000000012 USB-C to 4K HDMI Adapter USB-C Cable: 5.5 in./14.5cm
Vehicle Dock	Model Name:VD-M700D Part Number: 98TA07Z00004 Hold the Tablet tightly on the moving vehicle Lockable design to avoid Tablet be taken away (with key) Support both terminal block & 2.5ψp ower jack input 9~36V DC-in wide range DC input Bottom I/O supported: USBx2, LANx1, and COMx1 IP52 design (Rain proof)

Downloads

Winmate M700DQ8-EX Datasheet (PDF)

0.52MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Display
Size	7 inches
Resolution	12080 x 720
Type	Projected Capacitive Multi Touch
Panel Brightness	650 nits
Contrast Ratio	800:1
View Angles	80, 80, 80, 80
Bonding	Optical Bonding for Sunlight Viewability
Touch Mode	Support Hand / Gloves and Rain Mode
System Specification
Processor	Qualcomm Snapdragon 660 (Octa-Core 2.2 GHz)
Memory	3GB
Storage	32GB
Operating System	Android 9.0
WLAN	Support
BT	Support
WWAN	4G/LTE (Optional)
GNSS	GPS/GLONASS
RFID	NFC (Read / Write, Peer to Peer mode) (Optional)
Sensors	Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors
Camera
Front Camera	8MP Camera
Rear Camera	13MP Camera with LED Auxiliary Light (Auto Focus)
Mechanical
Dimension	212.4 x 132.8 x 19 mm
Weight	550g
IO Ports
USB Port	1 x USB 3.0 Type C OTG
Audio	1 x Audio Combo connector (Mic in and Line Out) 2 x Built-in Mic 1 x Speaker 1 x Earphone
SD Card Slot	1 x Micro SD Card Slot
SIM Card Slot	1 x Micro SIM Card Slot
Indicator	2 x LED Indicators (Power, Battery)
Docking Connector	1 x Docking Connector
Environment
Operating Humidity	5% to 95% RH, Non-Condensing
Operating Temperature	-10°C to 50°C (Battery mode) -20°C to 60°C (Charging mode)
Storage Temperature	-30°C to 70°C
Shock	MIL-STD-810G Method 516.6 Procedure I
Vibration	MIL-STD-810G Method 514.6 Procedure I
Drop	MIL-STD-810G Method 516.6, 5 ft
IP Rating	IP65, Compliance IEC60592
Certification
Certification	CE, FCC ATEX Zone 2 EX II 3 G Ex ic IIC Gc
Control
Button	1 x Volume + ,1 x Volume – , 1 x Power Button, 1 x Home Button, 1 x Menu Button, 1 x Return Button, 1 x Trigger Button
Power
Battery	3.7V 5300mAh
Battery Operating Time	20Hr
Power Rating	DC 5V
Adapter	Input: 100V-240V AC Output: DC 5V 3A
Accessory
Accessory	Universal Adapter x1 Battery x1 USB Type-C Cable x1
Optional Accessory	Battery Charging Dock Vehicle Dock (Charging + Connectors) Vehicle Dock (Charging Only) Desk Dock Hand Strap Micro SD Card Capacitive Touch Stylus Vehicle Adapter HDMI Adapter

Screen Size	1" to 10", 7"
Touch Technology	Projected Capactive
Ingress Protection	IP65
Brightness	650nit, Standard
