M101H

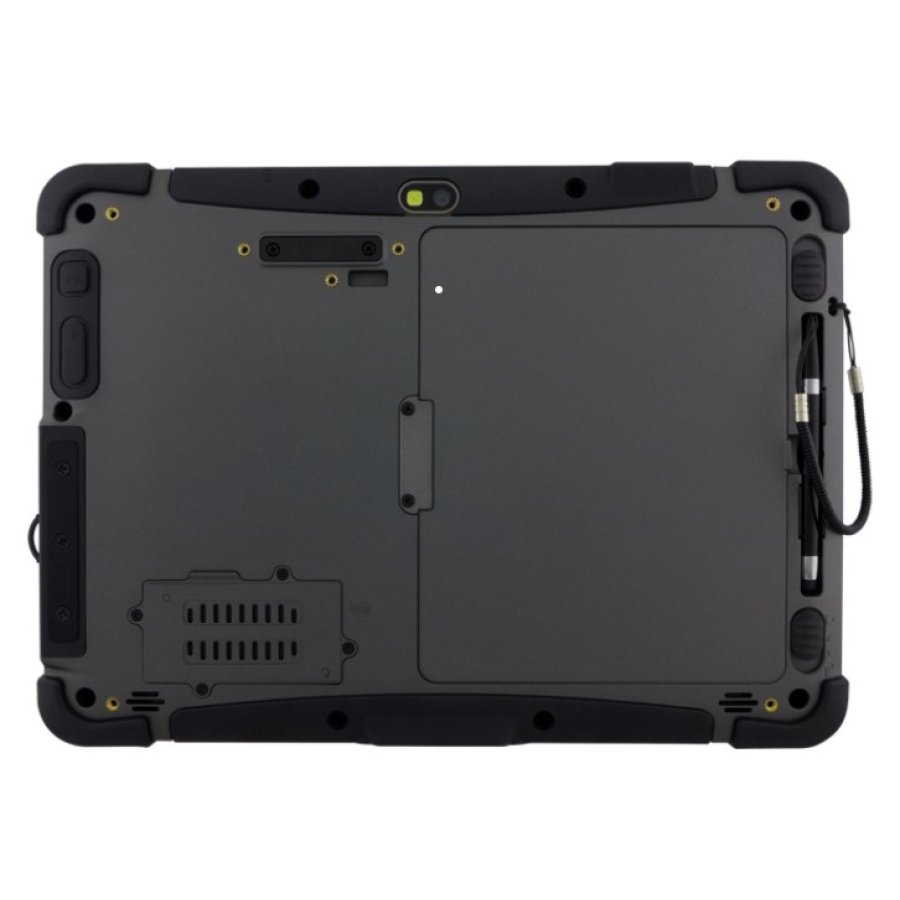

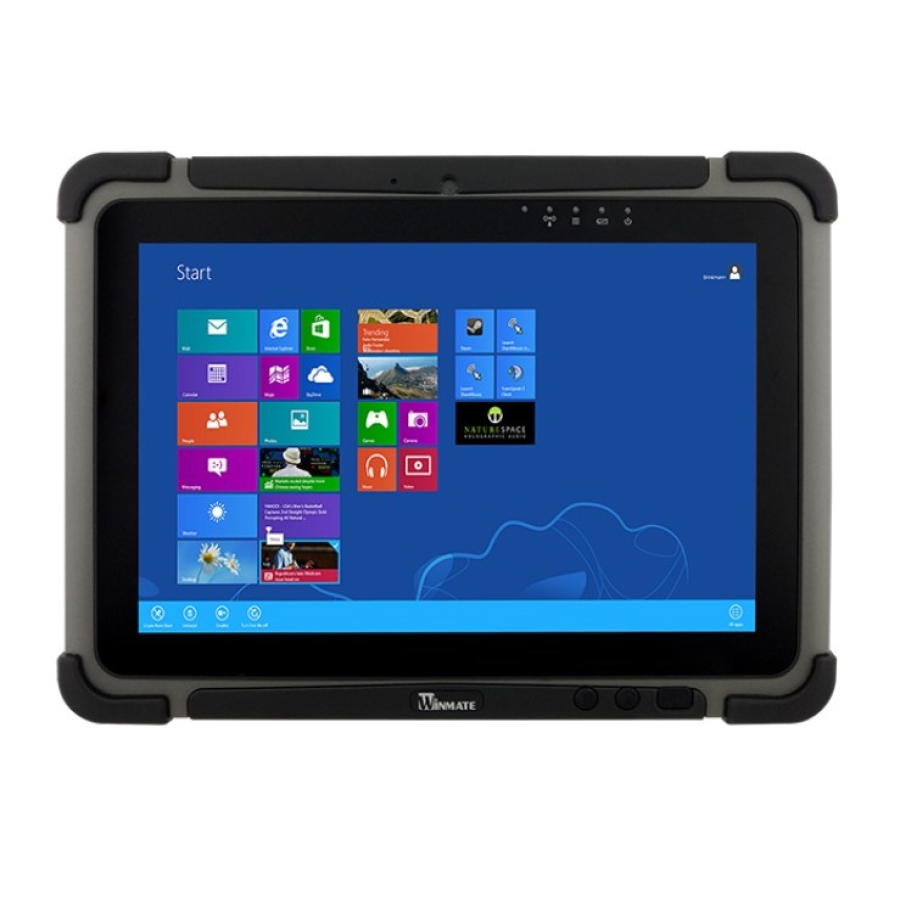

Winmate M101H 10.1″ Intel Broadwell IP65 Sunlight Readable Rugged Touch Tablet

End of Life

10.1” 1920×1200 IPS LED Panel with P-Cap Touch
Sunlight Readable Display
High-performance system with Intel® Broadwell processor
IP65 water and dust proof
Optional 1D/2D Barcode Reader
Dual Camera Design: 5MP Main camera with LED flash /2MP Webcam
Optional Expansion port for USB / RS232 connection
Hot-Swappable Battery Design /Optional high capacity battery pack
2 Programmable function keys
With Optical Bonding for Sunlight Readability
SOTI MobiControl compatible

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: M101H

Categories: End of Life Products

Range: Winmate

Details

Winmate's M101H is a rugged tablet PC with robust set of features designed to withstand industrial use while providing high tech solutions that increase productivity, improve safety, and reduce operational costs. The processing power comes from Intel's Core i5-5250U Broadwell processor paired with genuine Intel graphics for high performance. The tablet features a brilliant, in-plane switching with direct optical bonding, projective capacitive touch screen, which is outdoor viewable and offers 1920 x 1200 pixel resolution. Weighing at just 2.7 pounds (approx. 1200 grams) the M101H delivers lightweight mobility in a rugged tablet.

Downloads

Winmate M101H Datasheet (PDF)

0.59MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Size	10.1″
Brightness	700(typ.)
Resolution	1920×1200
Contrast Ratio	31.25069444
Display Color	16.7M (6bit + HFRC)
Touch	Projected Capactive Touch (min 4 points)
Panel Viewability	Optical Bonding for Sunlight Viewability
Processor	Intel 5th ® Generation Core TM i5-5250U 1.6GHz (turbo to 2.7GHz)
Memory	4GB SODIMM DDR3L-1600
LAN Controller	Intel WG82574L GigaLAN Controller
Storage	64GB mSATA SSD
Audio	1W Speaker x2 (Built-in)
WLAN	802.11 a/b/g/n
Bluetooth	Bluetooth+ Class I
WWAN	Optional 4G/ LTE
GPS	u-Blox Neo-6Q
Right I/O Connectors	1 x Micro HDMI, 1 x LAN/RS232 Combo Connector, 1 x USB 3.0, 1 x Line out/Mic in, 1 x DC jack
Downside I/O Connectors	1 x Docking Connector, 1 x Extension Port (Optional)
Control Button	1 x Power Button, 1 x Menu/Home key, 2 x Programmable Function Keys, 1 x Volume up, 1 x Volume down
LED indicator	Power, Battery, HDD Access, RF
Dimensions (W x L x H)	271.8 x 197.2 x 21 mm
Net Weight (kg)	1.2 kg (2.7 lbs) with standard battery, 1.4 kg (3.1 lbs) with optional high capacity battery
Operating Temperature	-20°C to 60°C (AC Mode), -10°C to 50°C ( Battery Mode )
IP Proof	IP65
Operating Humidity	30% ~ 90% (non-condensing)
Certifications	CE, FCC
Drop	MIL-STD-810G Method 516.6, 4 ft to concrete*
Power Input	12~19V DC
Battery	7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P), 7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, Optional)
Battery Mark Ver. 4.0.1 Result	8 hours (tested with MobileMark 2007)
Adapter	100-240V, 50-60Hz, 19V DC
Battery Operating Time	Std. Battery: 8 hours, High Capacity Battery: 16 hours
OS	Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry Pro, Windows 7 Pro for Embedded Systems
Security	Password security for user and hard disk lock, Trusted platform module (TPM) V1.2
Mobile Device Management	SOTI MobiControl compatible

Screen Size	1" to 10", 10.1"
