M101BT

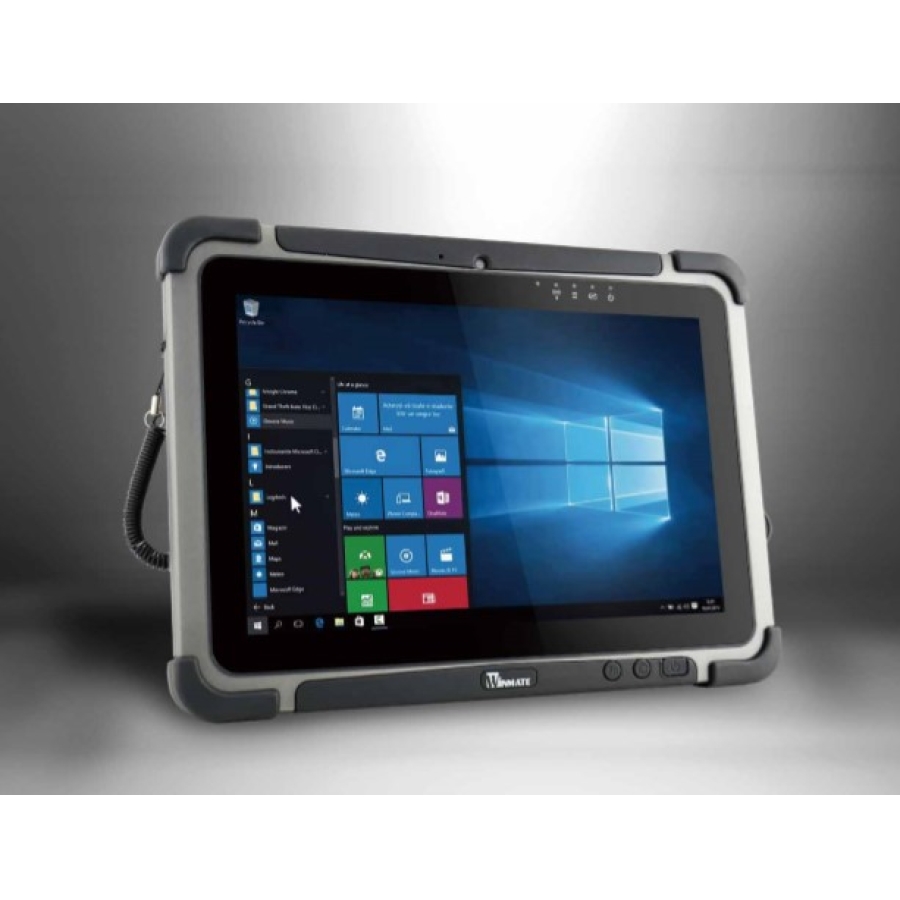

Winmate M101BT 10.1″ IP65 Rugged Tablet with Built In Smart Card Reader

End of Life

10.1” 1280×800 IPS LED Panel with P-Cap Touch
Low-power system with Intel® Bay Trail-M processor
IP65 water and dust proof
Built-in Smart Card Reader
Built-in 2D/1D Barcode Reader (Optional)
Dual Camera Design: 5MP main camera with LED flash / 2MP Webcam
Expansion port for USB connection (Optional)
Hot-Swappable Battery Design / Optional high capacity battery pack
1 user-definable function key
With Optical Bonding for Sunlight Readability
SOTI MobiControl compatible

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: M101BT

Categories: End of Life Products

Range: Winmate

Details

Winmate's M101BT is a rugged tablet PC with robust set of features designed to withstand industrial use while providing high tech solutions that increase productivity, improve safety, and reduce operational costs. The processing power comes from Intel's quad core N2930 Bay Tail-M processor paired with genuine Intel graphics for high performance. The tablet features a brilliant, in-plane switching with direct optical bonding, projective capacitive touch screen, which is outdoor viewable and offers 1280 x 800 pixel resolution. Equipped with built-in smart card reader and weighing at just 2.7 pounds (approx. 1200 grams) the M101BT delivers lightweight mobility in a rugged tablet.

Downloads

Winmate M101BT Datasheet (PDF)

0.55MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Size	10.1″
Brightness	350(typ.)
Resolution	1280×800
Contrast Ratio	800:1(typ.)
Display Color	16.7M
Touch	Projective Capactive Touch (min 4 points), (supports Rain, Glove, Stylus Modes)
Panel Viewability	Optical Bonding for Sunlight Viewability
Processor	Intel BayTrail-M Quad-Core 1.8GHz
BIOS	AMI System BIOS
Memory	4GB SODIMM DDR3L-1600 (up to 8GB)
Storage	64GB mSATA SSD (up to 256GB)
Audio	1 x Built-in Mic, 2 x 1W Speaker
WLAN	802.11 a/b/g/n/ac
Bluetooth	Bluetooth 4.2
WWAN	Optional 4G/ LTE
GPS	u-Blox Neo-6Q
Right I/O Connectors	1 x USB3.0, 1 x Audio Combo Conn. (Mic in / Line Out), 1 x Power Jack, 1 x Micro SD Slot, 1 x Micro SIM Slot
Control Button	1 x Power Button, 1 x Home key, 1 x Programmable Function Key
LED indicator	Power, Battery, HDD, RF
Dimensions (W x L x H)	271.8 x 197.2 x 19 mm (10.7 x 7.76 x 0.75 inches)
Net Weight (kg)	1.2 kg (2.7 lbs) with standard battery, 1.4 kg (3.1 lbs) with optional high capacity battery
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
IP Proof	IP65
Operating Humidity	10 to 90% RH, non-condensing
Certifications	CE, FCC, IC
Shock	MIL-STD-810G Method 516.6 Procedure I
Vibration	MIL-STD-810G Method 514.6 Procedure I
Drop	MIL-STD-810G Method 516.6, 4 ft to concrete*
Power Input	12-19V DC
Battery	7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P)7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, Optional)
Adapter	100-240V, 50-60Hz / 19V DC
Battery Operating Time	7 hours **
OS	Windows 10 IoT EnterpriseWindows Embedded 8.1 Industry ProWindows 7 Pro for Embedded Systems
Smart Card Reader	Comply with ISO7816-1.2.3 T=1 and T=Ø protocol
Barcode	Short range 1D/2D Barcode Reader (optional)
Security	Password security for user and hard disk lockKensington lock slotTrusted platform module (TPM) V1.2
Mobile Device Management	SOTI MobiControl compatible

Screen Size	1" to 10", 10.1"
