E500RM8-4EBM

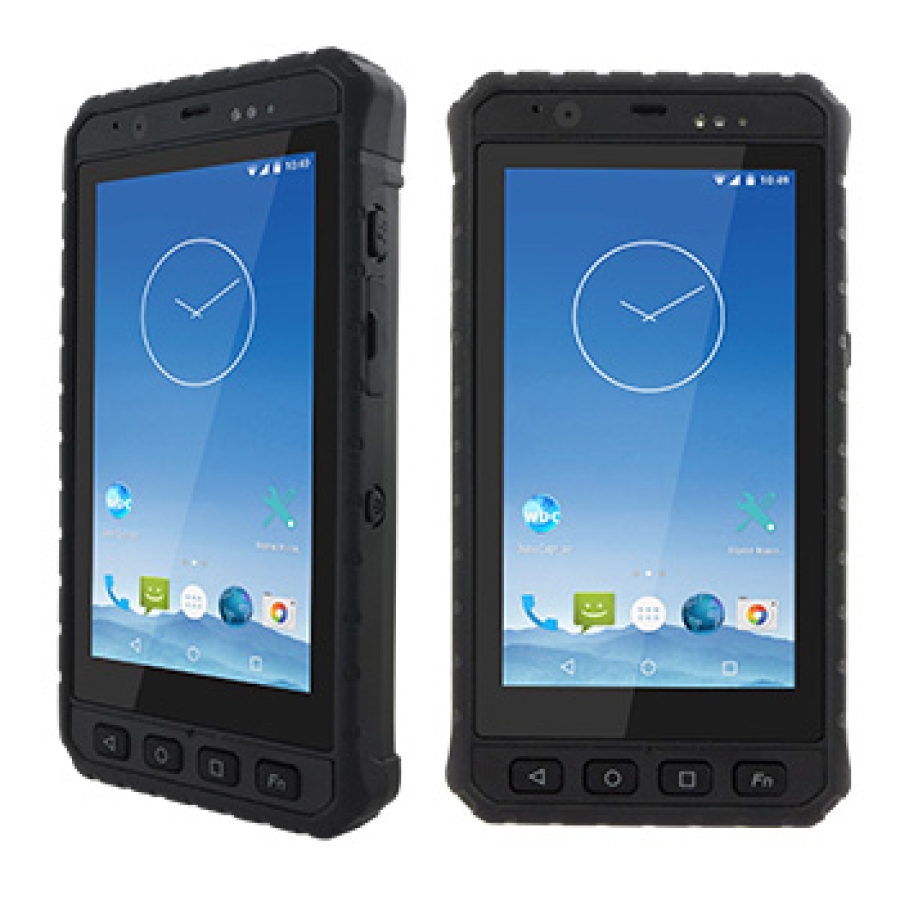

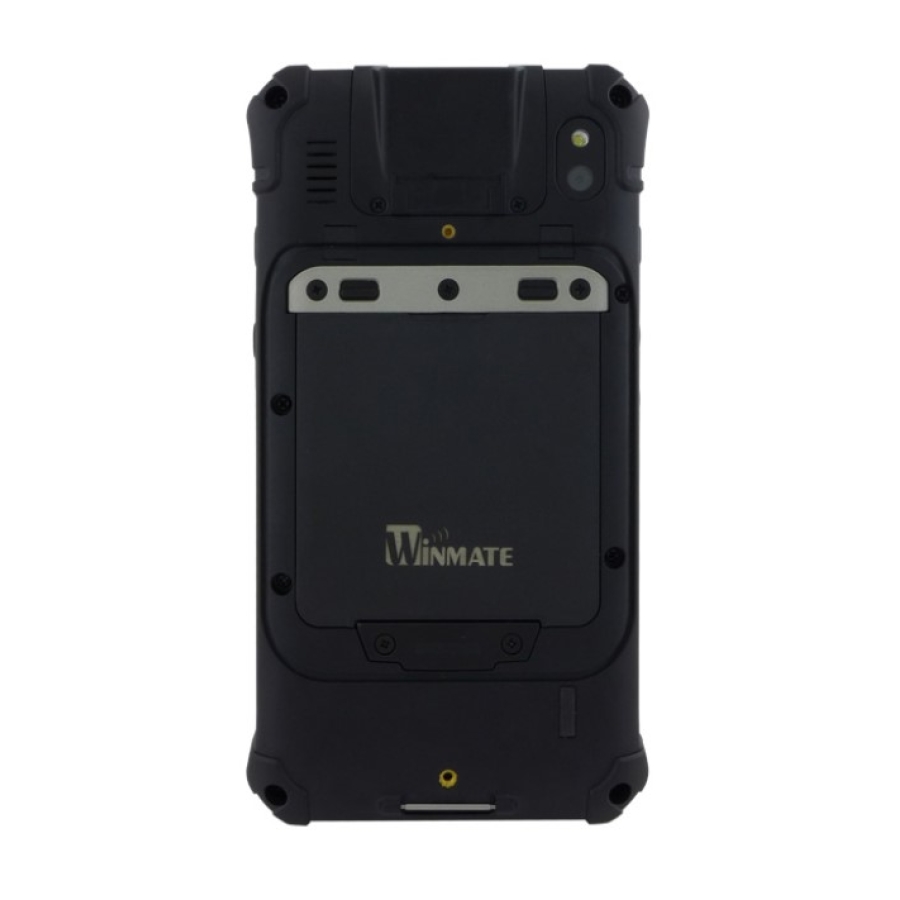

Winmate E500RM8-4EBM 5″ ARM Cortex, IP65 Rugged Mobile Computer with PCAP Touch

End of Life

5” 1280 x 720 Panel with Projected Capacitive Multi-touch
Built-in Wi-Fi/ Bluetooth 4.0/ GPS / LTE
8 Mega-pixel camera with LED at rear side
Supports NFC Function
Water and dust proof IP65 design
Compliant with MIL-STD-810G for High/Low temperature, Vibration, Drop test
Supports Android 7.0 operating system
3900 mAh full-day battery with removable design
Default 1D/2D Barcode
Optional Smart Card, and Fingerprint Reader

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: E500RM8-4EBM

Categories: End of Life Products

Range: Winmate

Details

Winmate's E500RM8-4EBM PDA is an enterprise-class PDA with powerful mobile computing solution. The E500RM8-4EBM PDA brings a new level of flexibility, functionality and rugged design to pocket-sized mobile devices, providing task workers and managers with the power to streamline business processes, increasing productivity and improving customer service. The E500RM8-4EBM packs WLAN, Bluetooth, GPS, and WWAN function - all into a single device. With great mutiple wireless communicate design, this product will be applicable to mobile worker, business application, and IT requirements.

Downloads

Winmate E500RM8-4EBM Datasheet (PDF)

0.62MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Size	5″
Brightness	500 nit(typ.)
Resolution	1280 x 720
Touch	Projected Capacitive Multi-touch
Processor	ARM® Cortex™-A53 Octa-core 1.3GHz
Memory	2GB RAM
Storage	16GB Emmc, Additional storage available with optional Storage Card: SDHC (up to 32 GB)
Audio	2 x Built-in Mic, 1 x Front Receiver, 1 x 1.2W Speaker
WLAN	802.11 a/b/g/n
Bluetooth	Bluetooth 4.0
WWAN	Optional 4G/ LTE or 3G.
GPS	GPS / AGPS / GLONASS
External I/O	2 x SIM card slot, 1 x Micro SD card slot, 1 x Micro USB, 1x Power Jack, 1 x Docking Connector
Control Button	1 x Volume – +, 1 x Power button, 2 x Function button
LED indicator	1 x LED indicator
Dimensions (W x L x H)	85.9 x 163.2 x 22.5 mm
Net Weight (kg)	0.315
Operating Temperature	-10 ℃ to 50 ℃ (Battery Mode)
IP Proof	IP65
Certifications	CE, FCC, CCC
Shock	MIL-STD-810G Method 516.6 Procedure I
Vibration	MIL-STD-810G Method 514.6 Procedure I
Drop	MIL-STD-810G Method 516.6, 4 ft, Free to concrete
Battery	3.7V 3900mAh Li-ion removable battery
Adapter	5V 2A Adapter
Battery Operating Time	20 hrs **
OS	Android 7.0
Smart Card Reader	ISO 7816 part 1,2,3 (Optional)
Barcode	1D/2D Barcode Reader (Default)
NFC	Default NFC (Read / Write, Peer to Peer mode)
Camera	Rear: 8 MP Camera with LED auxiliary light (Auto Focus)
Fingerprint Reader	Fingerprint Reader (Optional)

Screen Size	1" to 10", 5"
