E500QK

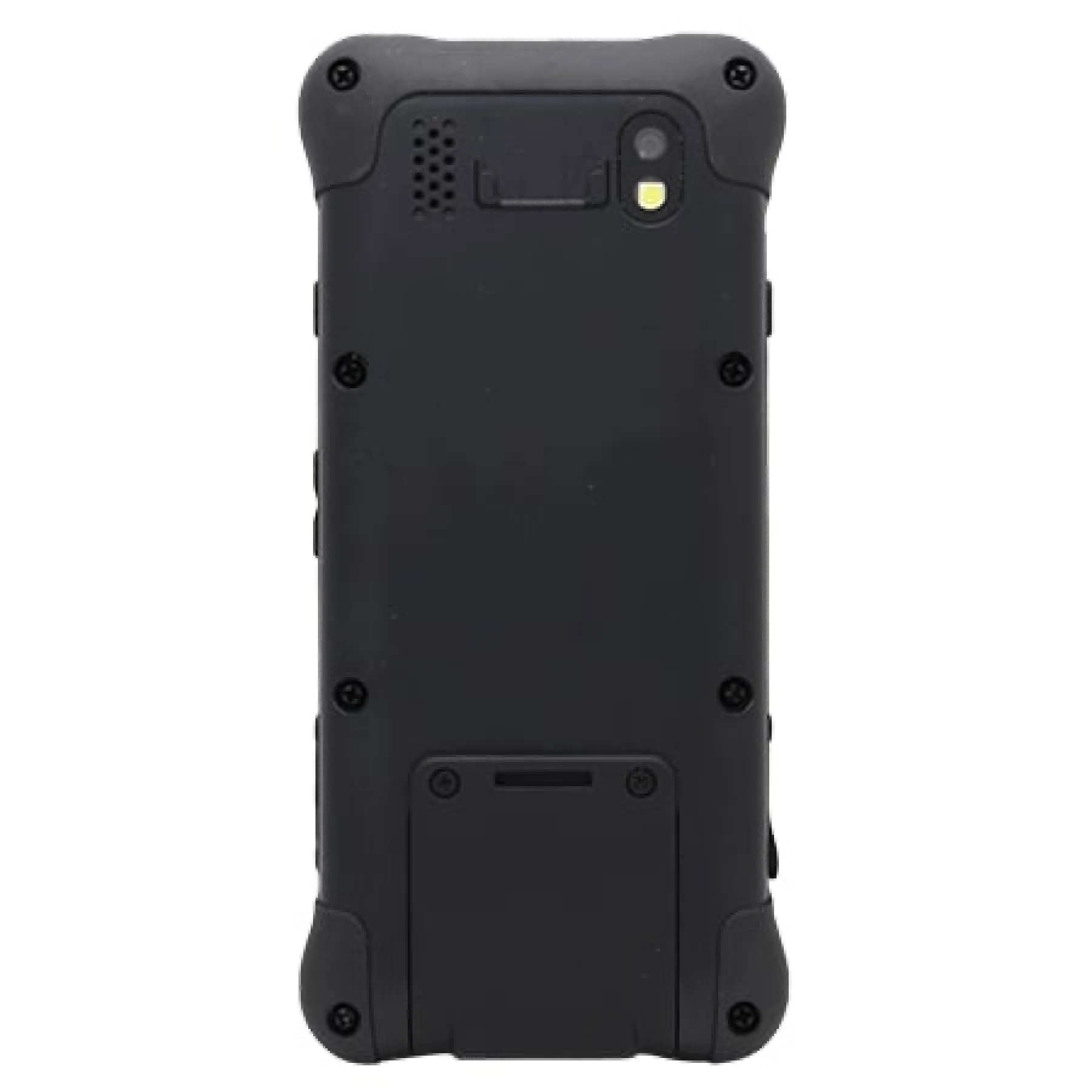

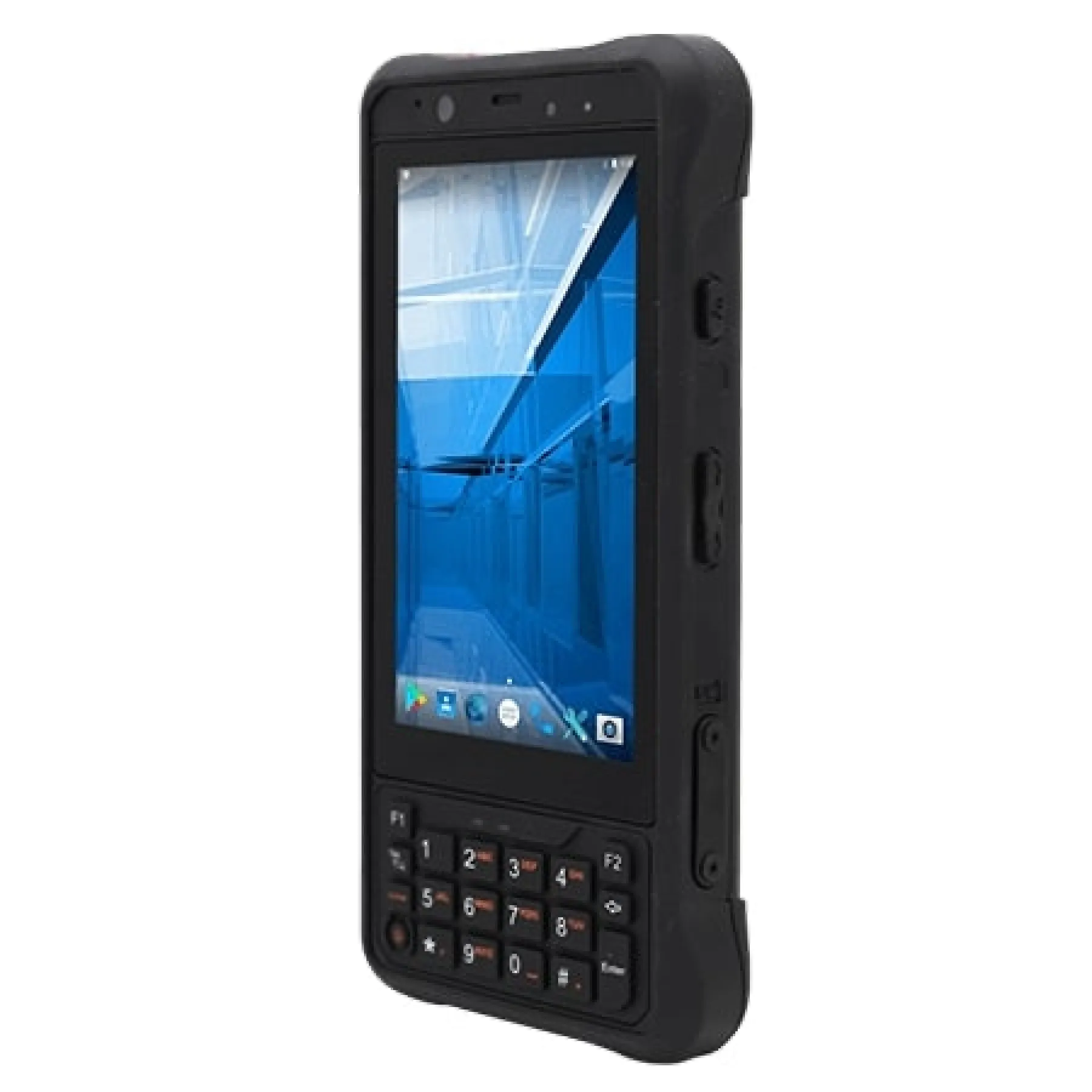

Winmate E500QK 5″ Qualcomm Snapdragon 660 Rugged Handheld Computer

E500QK

  • Qualcomm Snapdragon 660 (Octa-core 2.2 GHz), Android 9.0 Rugged Handheld Computer
  • 5” 1280 x 720 Panel with direct optical bonding
  • IP67 waterproof and dustproof
  • 8MP Front Camera / 13MP Rear Camera
  • With 19 keypad include power key
-
+

Details

Powerful Computing Performance with Qualcomm Snapdragon 660 Gain high efficiency and versatility with the E500QK Rugged Tablet equipped with Qualcomm® Snapdragon™ 660 Octa-core processor that delivers stable performance at superior power efficiency. Built to Survive Sealed to IP67, the E500QK rugged mobile computer is built to withstand harsh environments, protected against water and dust. Compliant with MIL-STD-810G, it can operate in extreme temperatures ranging from -30°C to 70°C and endure shocks and vibrations. The Most Compact Rugged Solution for Mobile Workforce Weighing only 370 grams, the E500QK is an ultra-compact, pocket-sized 5” rugged mobile computer for real-time communications, monitoring, and data capture. Real-Time Data and Wireless Connectivity Real-time data access to crucial information is vital for mobile workers. The E500QK offers WLAN and BT capabilities to enable robust communications anytime and anywhere. With a built-in 13MP rear camera, users can capture photos, videos, documents instantly or use the 8MP front camera for applications like video recording or video communications. Make your cold chain logistics more productive Smart temperature sensors automatically control heating and heating speed, PC type keyboard with heaters to prevent icing. Sealing rating: IP67.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Touch Technology Projected Capacitive
Ingress Protection IP67
Brightness 500nit, Standard
Resolution 1280x720, Special/Other
Memory Capacity Up to 3GB
USB Ports 1 Port, USB 3.0
Wireless Cellular, Wi-Fi
Audio Yes
Storage Type 1, Micro SD
Input Voltage 5 VDC
Operating Temperature -20°C to 60°C, Wide
Certifications CE/FCC, MIL-STD
OS Support Android
