XD86B-4F

Name: Vestel XD86B-4F 86″ Digital Signage Display
SKU: XD86B-4F

Vestel

Vestel XD86B-4F 86″ Digital Signage Display

XD86B-4F

Resolution: 3840×2160 (UHD)
Brightness: 400 cd/m²
Operation: 16/7
Interface: HDMI 2.0 / VGA / USB / RS232 /RJ45 / RJ12 / IR / HP / Audio / Speaker
Application Areas: Retail, Entertainment, Corporate, Control Rooms

Product Code: XD86B-4F

Categories: Vestel, Digital Signage, Professional Displays and Monitors, Large Format Professional Monitors

Range: Vestel

Details

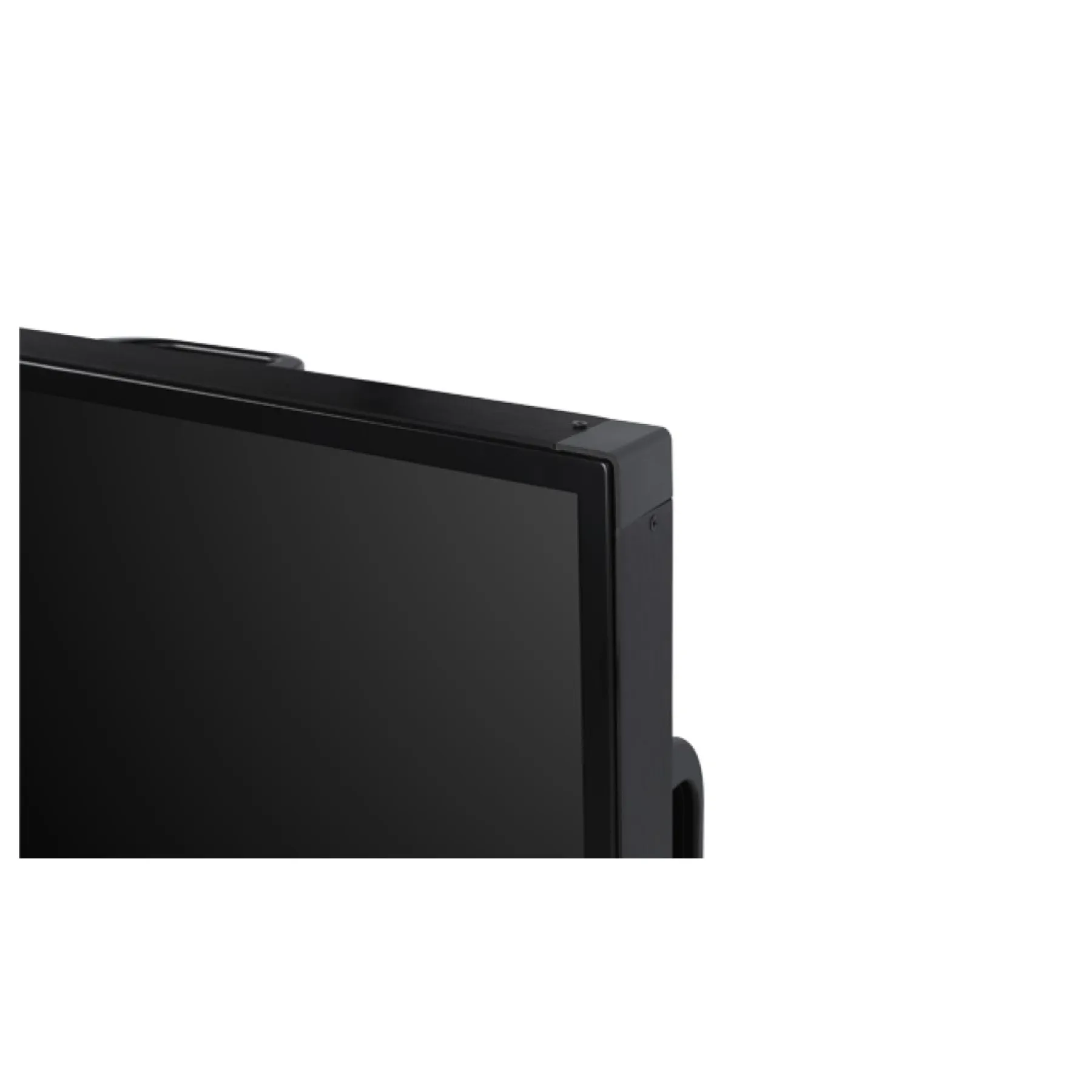

The XD86B-4F is a 86″ Digital Signage Display, offering an ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, OPS-slot, detachable power plug, carrying handles and IR extender.

The XD86B-4F can mirror the content (to another display) into its display port out coming from its display port in. This creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode. These displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customised banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is a critical feature in signage displays.

You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen. The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

Downloads

Datasheet (XD86B-4F) (PDF)

3.35MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Screen Size	86"
Aspect Ratio	16:9
Resolution	3840x2160
Viewing Angle	178/178 (H/V)
Speaker	Yes
I/O	DP, HDMI Input, HDMI Output, LAN, RJ45, RS232, USB, VGA
Mounting	VESA
Operating Temperature	0° to 40°C
Operating Humidity	10% to 90%
LAN	Yes
Wi-Fi	Yes
