IPC/OEMM81I20-A101E

Syslogic IPC/OEMM81I20-A101E Intel Atom x7-E3950/Celeron/Pentium Industrial Compact PC with 8GB ECC Memory

IPC/OEMM81I20-A101E

  • Low power, high performance Intel Atom E3900 processor
  • USB, LAN, DIO, CAN
  • Mini PCIe socket
  • Fanless
  • Fixed BOM
  • Windows 10 IoT ready
  • 24/7 continuous operation

Choose Embedded OEM M-81 Model:

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

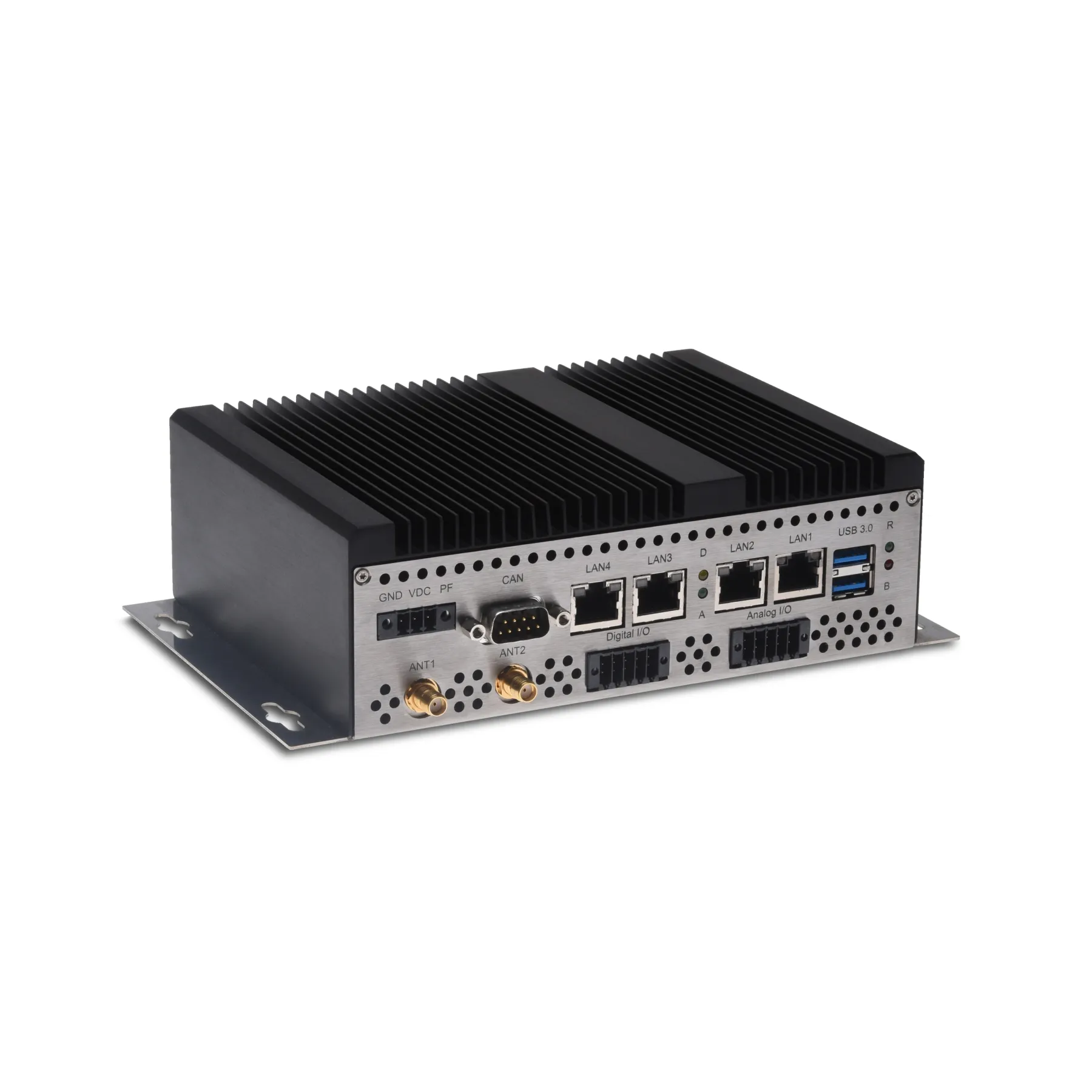

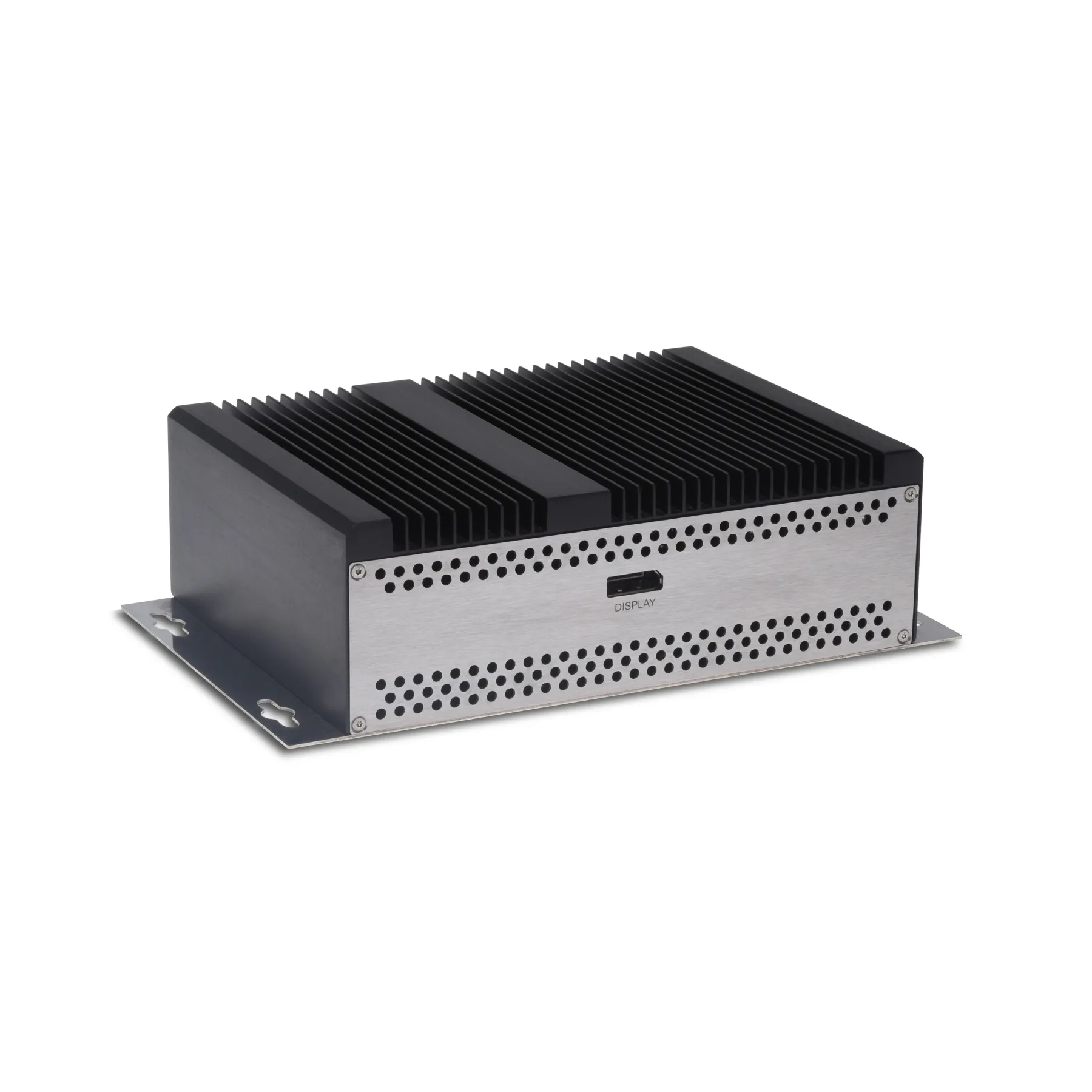

The compact embedded computer OEM M-81 offers versatile connectivity options across various communication levels. Its integrated I/O interfaces allow direct control of actuators and sensors, making it an ideal choice for conventional automation tasks. With two standard CAN interfaces (optionally upgradable to six), the Box PC doubles as a CAN bus controller. This functionality extends its utility to monitoring or managing vehicles like automated guided vehicles (AGVs). Designed to comply with EN 1175-1:1998+A1:2010 standards for automated ground conveyors, the Box PC is equipped with integrated Gigabit Ethernet interfaces and WiFi support. These features enable its use as an IoT gateway or data logger, enhancing its adaptability and versatility.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type Intel Celeron, up to 2 Cores, Intel Pentium, up to 4 Cores, Intel Atom, up to 4 Cores
Memory Capacity Up to 8GB
Cooling Type Fanless
Serial Ports (COM) 1x RS-232
USB Ports 2x USB 3.0, 4x USB 2.0
Ethernet Ports (LAN) 4x 1G
Wireless Cellular, Wi-Fi
CAN Bus Yes
Video Ports 1x DisplayPort
Digital I/O 8 DIO
Audio Yes
Storage Type 1x Cfast, 1x MicroSD
Expansion Type 1x Mini PCI Express
Input Voltage 9-30 VDC
Mounting Options DIN-mount, Wall-mount
Operating Temperature Extra-Wide OT: -40°C to 70°C
Market Certifications CE/FCC, EN 55032, EN 55035, EN 60068, EN 62368, UL
OS Support Linux, Windows 10, Windows 11
