M1000 MP

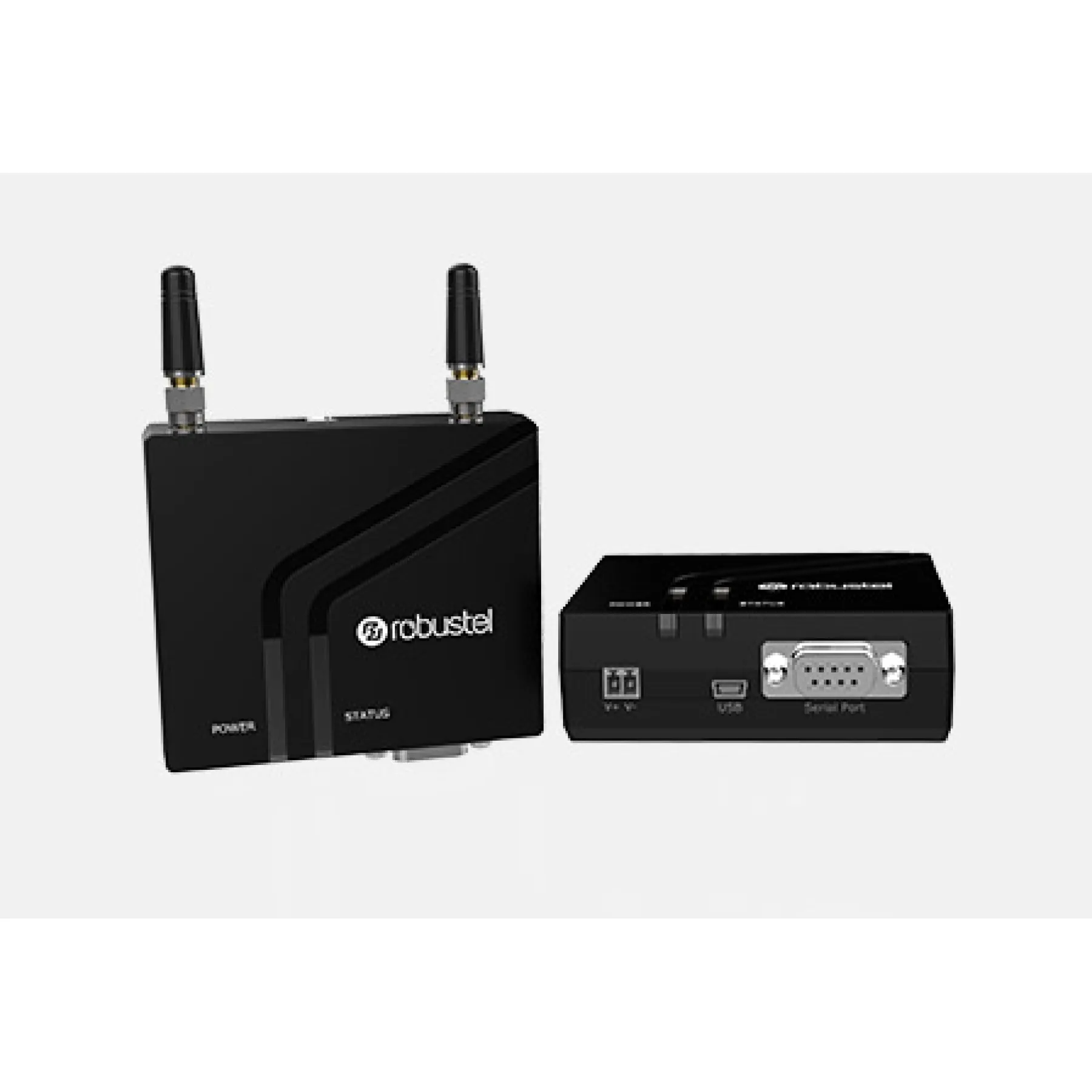

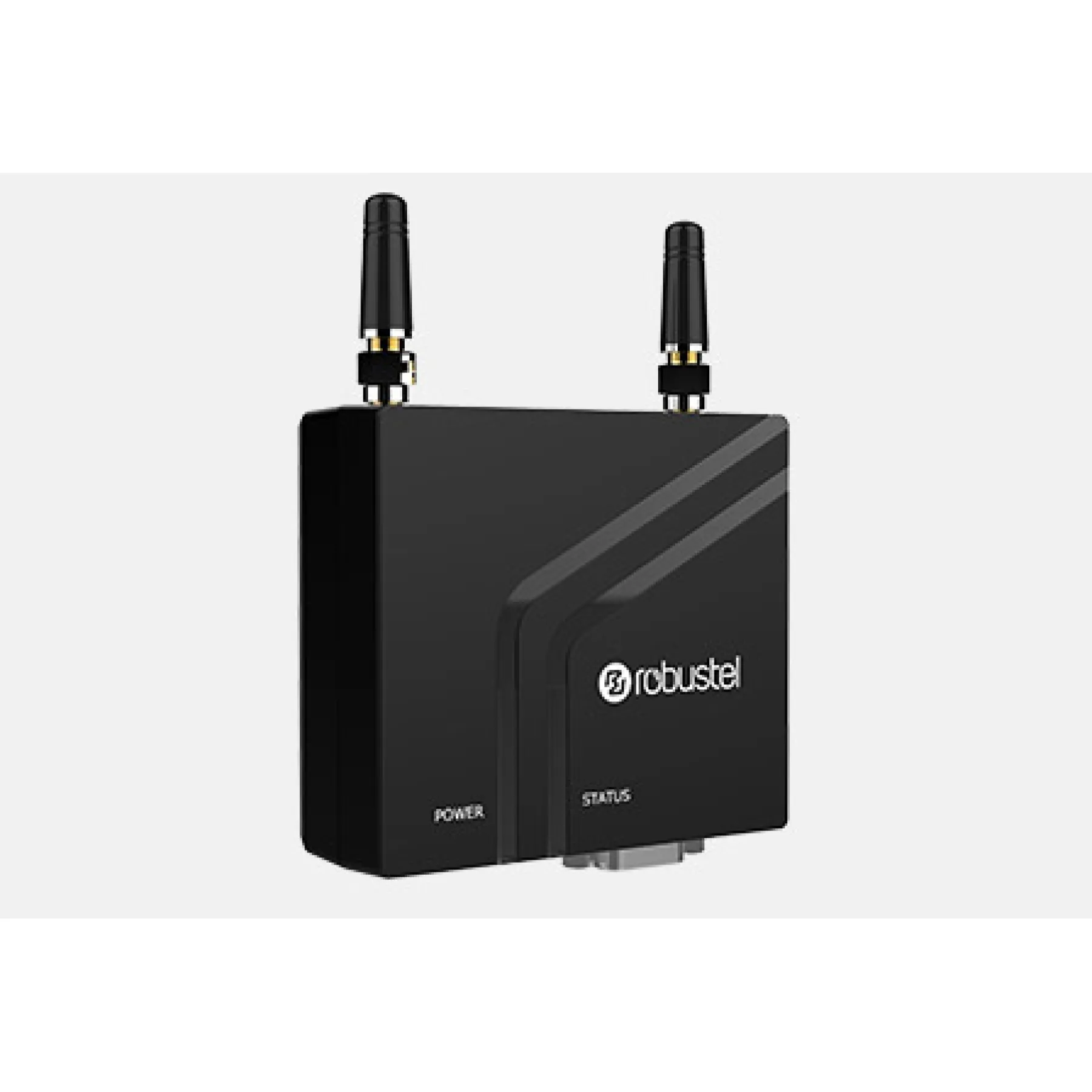

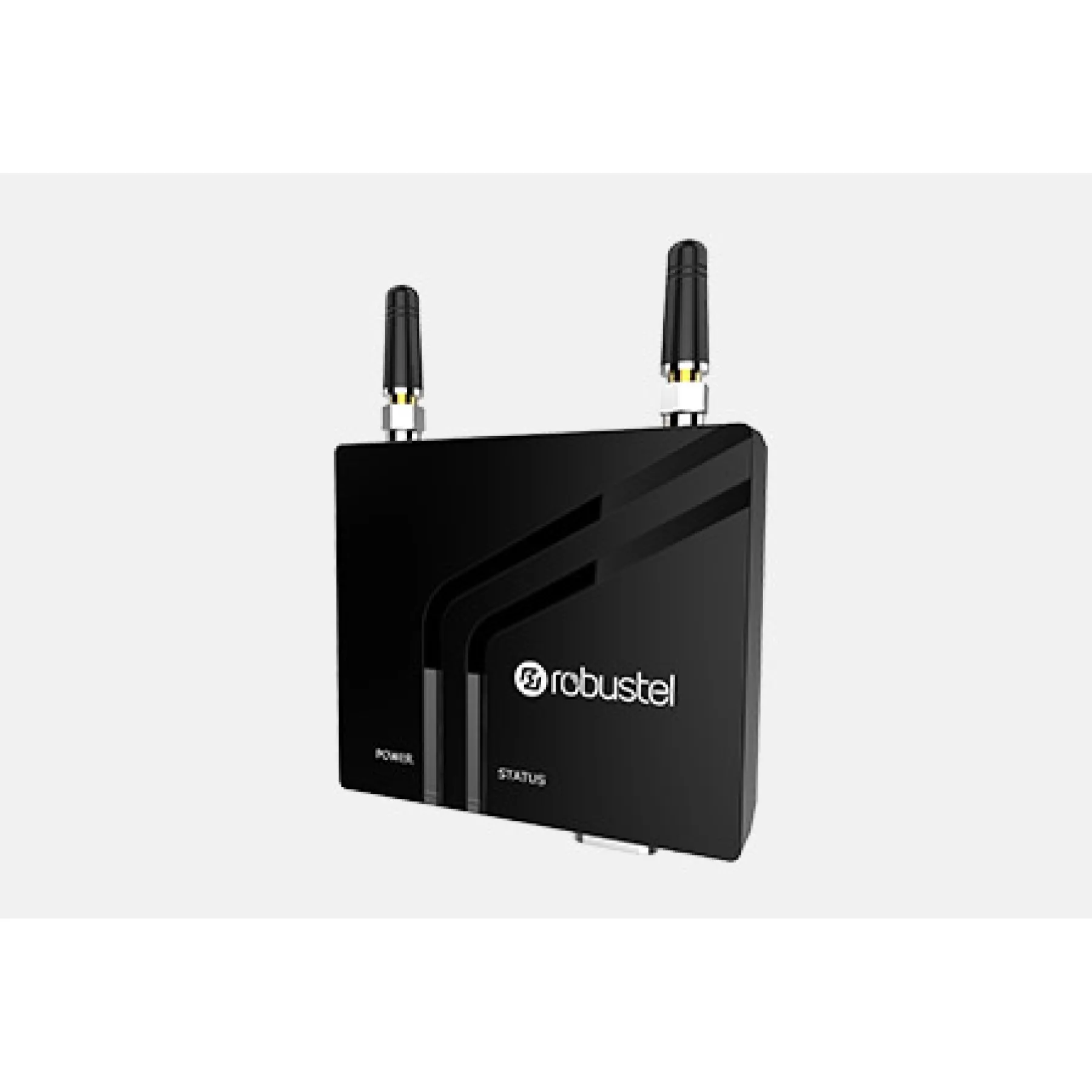

Robustel M1000 MP Industrial Cellular Modem
M1000 MP
- Control via AT commands (Hayes 3GPP TS 27.007 and 27.005)
- Connecting TCP/IP and sending SMS via AT commands
- Supporting 1 x RS-232
- Supporting 1 x mini USB 2.0 high speed interface
- -40 to +85 °C extended operating temperature
- Robust industrial design (6 to 36V DC, desktop or wall mounting or DIN rail mounting)
M1000 MP
Din Rail PCs, Embedded Box PCs, Industrial Cellular (2G/3G/4G/5G), Industrial Wireless Solutions, IoT Gateways, Robustel
Details
The Robustel Industrial Cellular Modem M1000 MP is a compact design cellular modem based on GSM/GPRS/EDGE/UMTS/ HSDPA/HSUPA/HSPA+ networks. It offers the state-of-the-art 2G/3G connectivity for machine to machine (M2M) applications, providing users with reliable data transmission. Its standards-compliant industrial designs are available to meet different industrial application needs. Moreover, M1000 MP embeds high-performance module, and supports a serial port and a high-speed USB interface.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
Cellular Interface | |
Number of antennas | 1 (MAIN) |
Connector | SMA female |
SIM | 1 (3 V & 1.8 V) |
Standards | GSM/GPRS/EDGE/UMTS/HSDPA/HSUPA/HSPA+ |
Serial Interface | |
Number of ports | 1 x RS-232 |
Connector | DB9 female |
Baud rate | 1200 bps to 115200 bps |
RS-232 | RxD, TxD, RTS, CTS, GND |
USB Interface | |
Number of ports | 1 x mini USB |
Connector | Mini female |
Speed | 2.0 high speed up to 480 Mbit/s |
Others | |
Reset button | 1 x RST |
LED indicators | 1 x POWER + 1 x STATUS |
Power Supply and Consumption | |
Connector | 2-pin 3.5 mm female socket |
Input voltage | 6 to 36V DC |
Power consumption |
Idle: 50 to 60 mA@12 V Data link: 100 to 200 mA (peak) @12 V |
Physical Characteristics | |
Ingress protection | IP30 |
Housing & Weight | Plastic, 90 g |
Dimensions | 85 x 75 x 28.5 mm |
Installations | Desktop, wall mounting and 35 mm DIN rail mounting |
Serial Ports (COM) | 1x RS-232 |
---|---|
USB Ports | 1x USB 2.0 |
Wireless | Cellular |
Input Voltage | 6-36 VDC |
Mounting Options | Desk-mount, DIN-mount, Wall-mount |
Market Certifications | CE/FCC |
Delivery Information
Orders dispatched from Assured Systems USA will be delivered using FedEx.
Payment Methods & Options
Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.
Robustel: Warranty and Service Information
Founded in 2011, Assured Systems are an official EMEA Partner of Robustel. For all Robustel products supplied we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
