TMP-10B

Name: ProDVX TMP-10B 10" Multi-Touch Display 200 NITS (1024 x 600)
SKU: TMP-10B

ProDVX

ProDVX TMP-10B 10″ Multi-Touch Display 200 NITS (1024 x 600)

TMP-10B

Brand: ProDVX
Full HD (1024 x 600)
5 point touch
Size: 248mm (W) x 153mm (H) x 29mm (D)

Product Code: TMP-10B

Categories: ProDVX, Touchscreen, Touchscreen Android OS

Range: ProDVX

Details

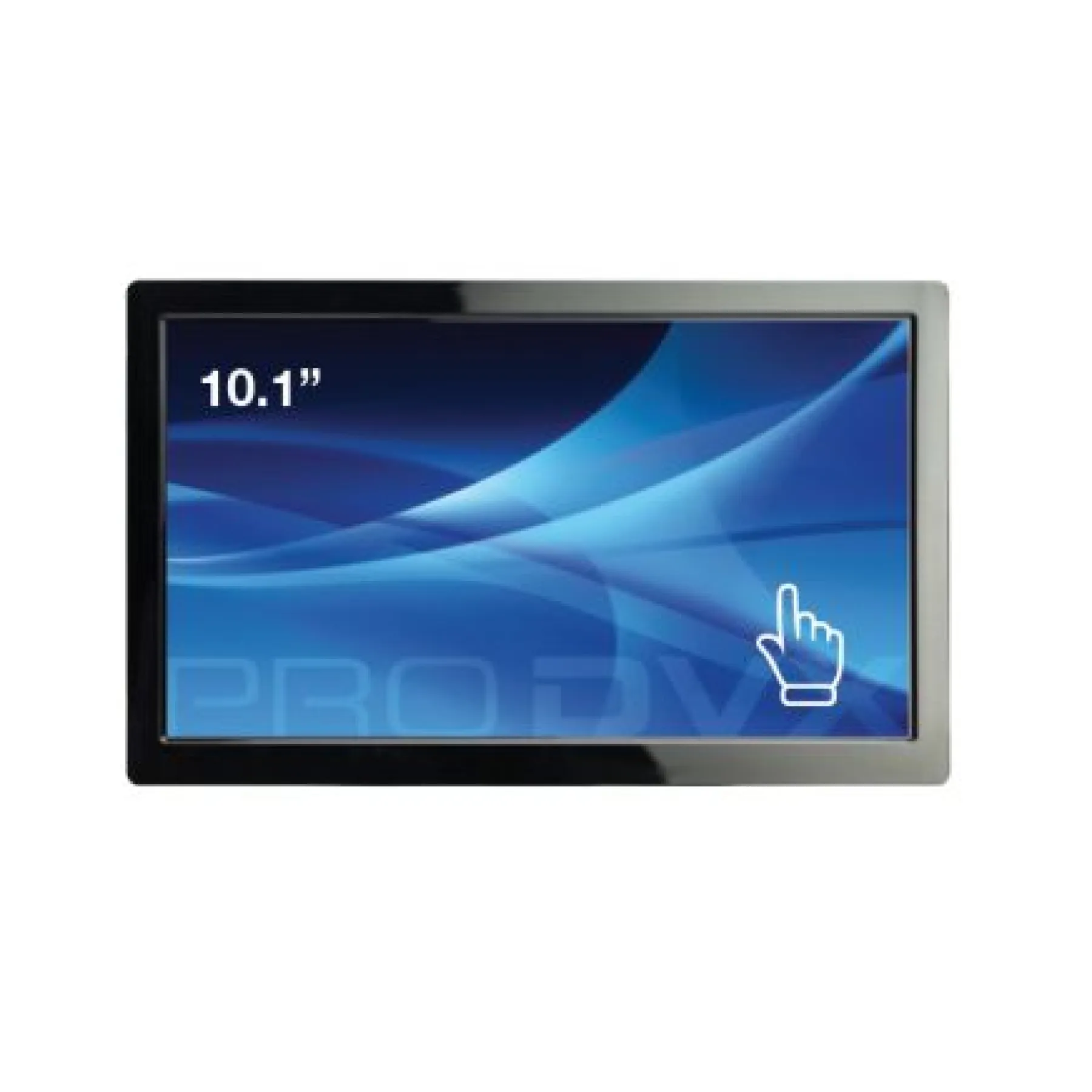

The TMP-10B is a 10.1 inch multi-touch display designed for commercial applications such as digital signage, home automation, self-service and check-in posts. The screen has a resolution of 1024 x 600 and a brightness of 200 NITS with projected capacitive touch technology allowing for 5 separate touch points. This unit has a non-flat bezel, for flat bezel see the TMP-10. The system drives Android 5.1, Linux Ubuntu or Windows and video is input via USB. The screen can be VESA mounted and weighs 600g.

Ordering Info

TMP-10B – 10″ Multi-Touch Display 200 NITS (1024 x 600)

Downloads

TMP-10B Datasheet (PDF)

0.25MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Screen size: 10.1″
Resolution: 1024 x 600
BacklightLED: Full-led
Brightness: 200 cd/m2
Viewing Angle: Hori / Vert140 / 130
Touch: Projected Capacitive (10 touchpoints)
CPU: Android 5.1> (Display Link APP), Windows 7 / 8 / 10 (32/64 bit), Linux (Ubuntu)
I/O Ports: 1 x USB2.0
Housing: Plastic Housing
Color: Black
Weight: 600g
Dimensions: 248 x 153 x 29 mm

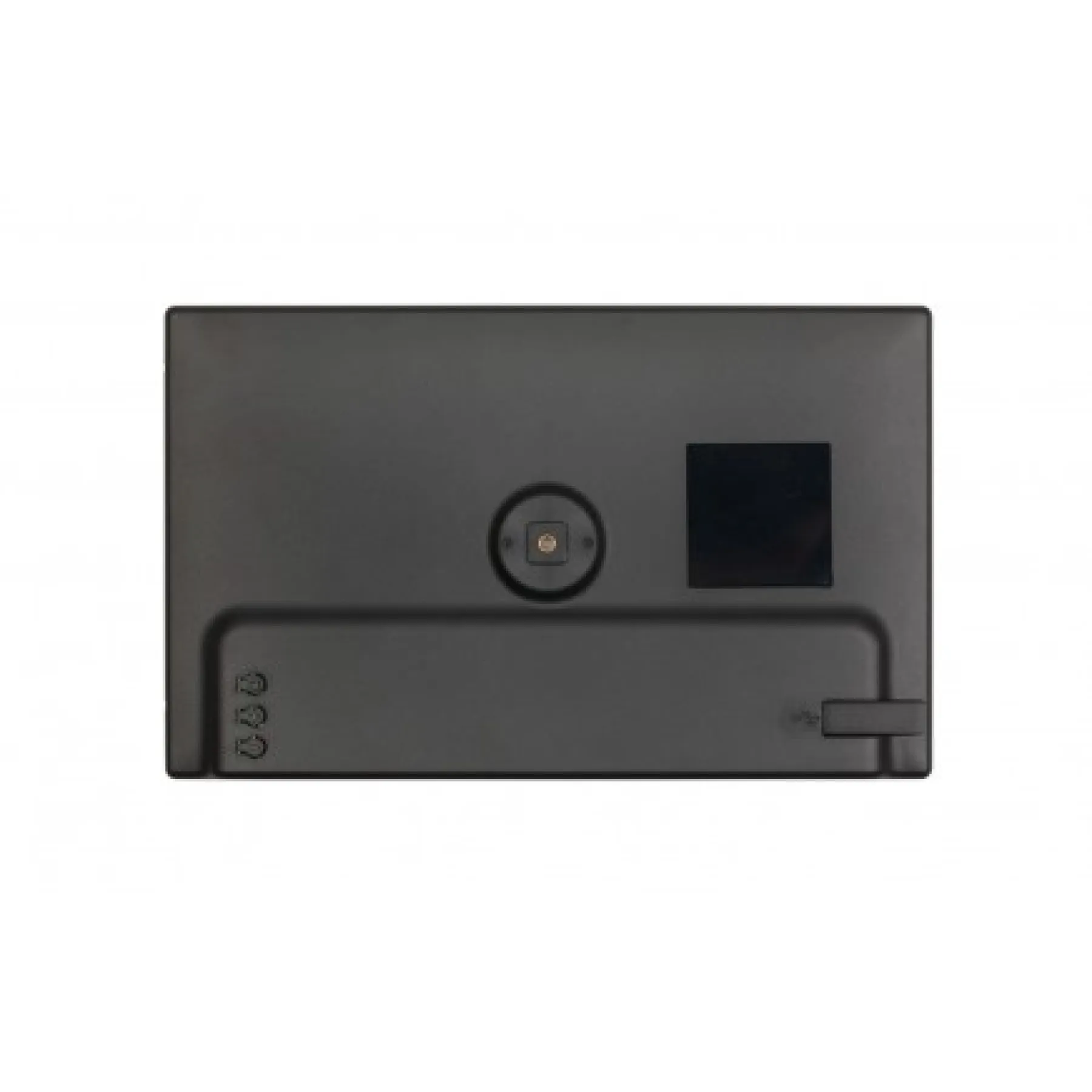

Mounting: Optional: VESA 75
