49BDL5057P/00
Philips 49BDL5057P/00 49″ Signage Display with OPS Slot and Android Apps
End of Life
- Brand: Philips
- Supports Android Apps
- OPS Slot
- Usage: 24/7
- Bezel Size: 6.5mm
- 700 nits brightness
- Viewable Area: 1079.78mm (W) x 610mm (H)

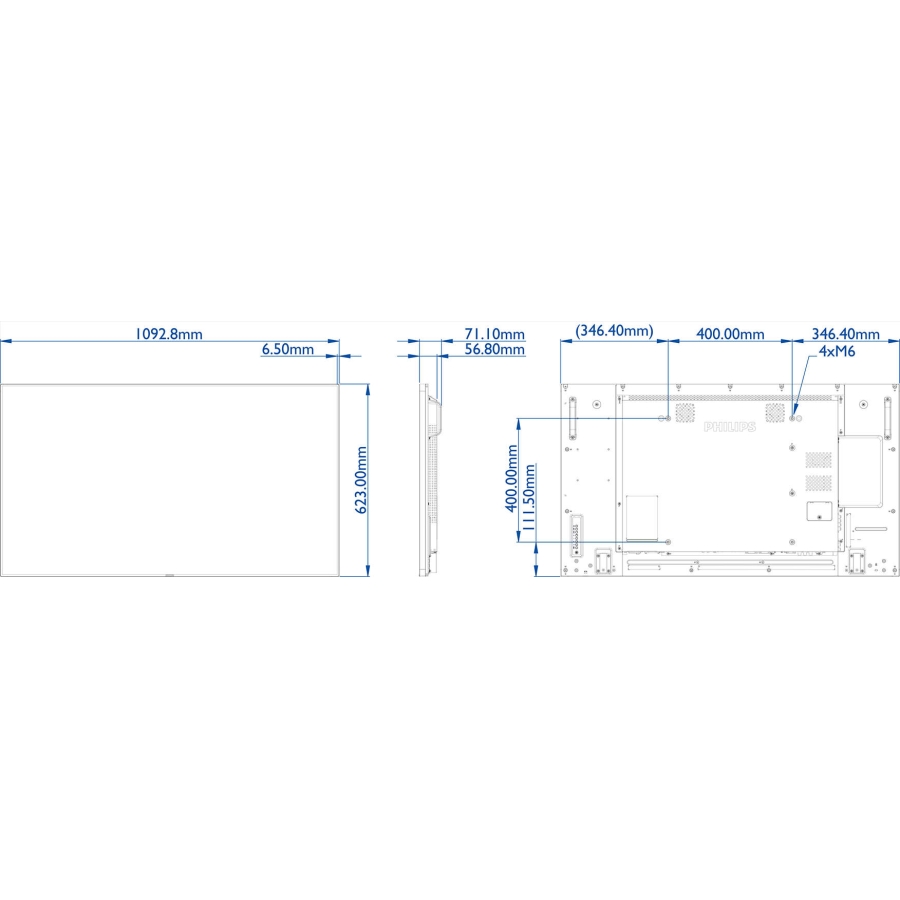

- Size: 1092.78mm (W) x 623.0mm (H) x 56.8mm (D)
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
The 49BDL5057P/00 is a 49 inch signage display monitor designed for 24/7 commercial usage with the support for Android Apps and an Intel OPS PC. The screen also has integrated Wi-Fi, Philips CMS 'CMND & Create' and memory storage for content playback. These screens deliver remarkably clear imagery and reliability, with a range of technical features enabling professional signage functionality. Android: Run your own app or choose your favourite app to run With Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto-orientation feature, showing content in portrait or landscape is as simple as turning the display. OPS insert to create an all-in-one solution Turn your display into an all-in-one digital signage solution and create a display network that is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industry-standard slot into which you can add an OPS-standardised media player. This cable-free solution gives you the ability to install, use or maintain your hardware whenever you need to. Save and play content with internal memory Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down. Keep your content up and running with FailOver Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and you're ready for instant protection. SmartPower for energy saving The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs. CMND: Take control of your displays A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND. Create and update content with CMND & Create Design and create compelling content with CMND & Create, a powerful authoring tool. With a drag and drop interface, preloaded templates, and integrated widgets, you'll be able to amaze your customers with compelling content. Available in portrait and landscape mode. Manage settings of multiple displays with CMND & Control With CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software updates from a remote location, and the ability to customise and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier. Connect and control your content via the cloud Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with full HD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlists Ensure your content is running with automatic screenshots Content is king, and with the automatic screenshot feature, you can make sure that your content is up and running at all times. Screenshots are taken throughout the day, which are then stored in the FTP server. From there, the screenshots can be viewed no matter when, or where you are. Enhance your connectivity with an integrated mPCIe slot With an integrated PCI slot, you can connect a Wi-Fi, Bluetooth or 4G LTE module, allowing for even greater communication with the display. Machine-to-machine communication is also enhanced, with numerous configurations available for customers to use, such as the ability to expand product features or signal-handling capability.Ordering Info
- 49BDL5057P/00 –Â 49″ Signage Display with OPS Slot and Android Apps
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Diagonal screen size (inch):Â 48.5 inch
- Diagonal screen size (metric): 123.2Â cm
- Panel resolution:Â 1920 x 1080p
- Optimum resolution:Â 1920 x 1080 @ 60 Hz
- Brightness: 700  cd/m²
- Contrast ratio (typical):Â 1300:1
- Dynamic contrast ratio:Â 500,000:1
- Aspect ratio:Â 16:9
- Response time (typical): 8Â ms
- Pixel pitch:Â 0.55926 x 0.55926 mm
- Display colours:Â 1.07 billion
- Viewing angle (horizontal):Â 178 Â degree
- Viewing angle (vertical):Â 178 Â degree
- Picture enhancement
- 3/2 – 2/2 motion pull down
- 3D Combfilter
- Motion compens. deinterlacing
- 3D MA deinterlacing
- Dynamic contrast enhancement
- Progressive scan
- Product weight:Â 19Â kg
- VESA Mount: 400 x 400 mm, M6
- Standby power consumption:
- Mains power:Â 100 ~ 240Â VAC, 50 ~ 60Â Hz
- Consumption (EPA 6.0): 95Â W
- Consumption (Typical): 99.83Â W
- Temperature range (operation): 0 ~ 40  °C
- Temperature range (storage): -20 ~ 60  °C
- Relative humidity:Â 20 ~ 80 Â %
- Altitude:Â 0 ~ 3000Â m
- MTBF: 60,000 Â hour(s)
- CPU:Â Octacore Cortex A53 1.5Â GHz
- GPU:Â PowerVR SGX6110
- Memory:Â 2Â GB DDR3
- Storage:Â 16 GB EMMC
- Tiled Matrix:Â Up to 15 x 15
- Keyboard control
- Hidden
- Lockable
- Signal Loop Through
- DVI
- VGA
- RS232
- IR Loop through
- DisplayPort
- Network controllable
- RJ45
- RS232
- One Wire (HDMI-CEC)
- HDMI (One Wire)
- Energy-saving functions:Â Smart Power
- Screen-saving functions:Â Pixel Shift, Low Bright
- Video input
- DisplayPort (1.2)
- HDMI (x 2)
- DVI-D
- VGA (via DVI)
- USB
- Video output
- DisplayPort
- DVI-I
- VGA (via DVI-D)
- Audio input
- 3.5-mm jack
- Audio Left/Right (RCA)
- Audio output
- Audio Left/Right (RCA)
- Ext. speaker cntrl (aud. out)
- Other connections
- mPCIe
- micro SD
- micro USB
- USB power outlet (5 V. 2 amp)
- Built-in WiFi antennas
- OPS
- External control
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
OS | Android |
---|---|
Screen Size | 41" to 50", 49" |
Brightness | 700nit, Standard |
