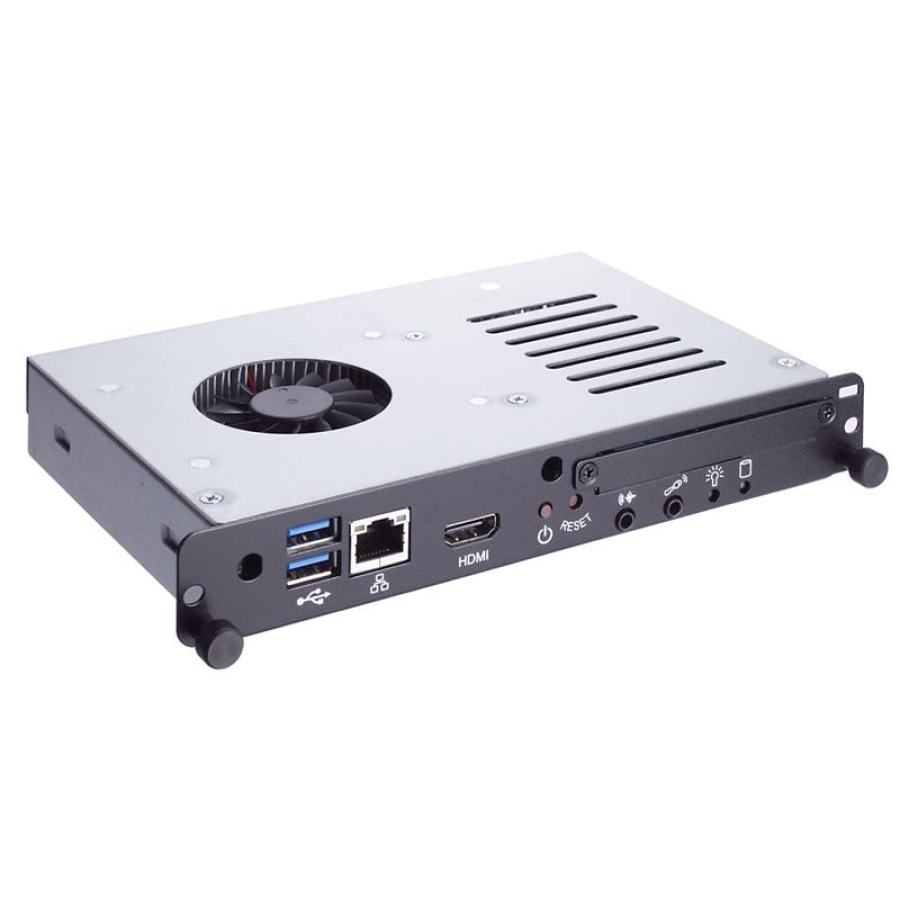

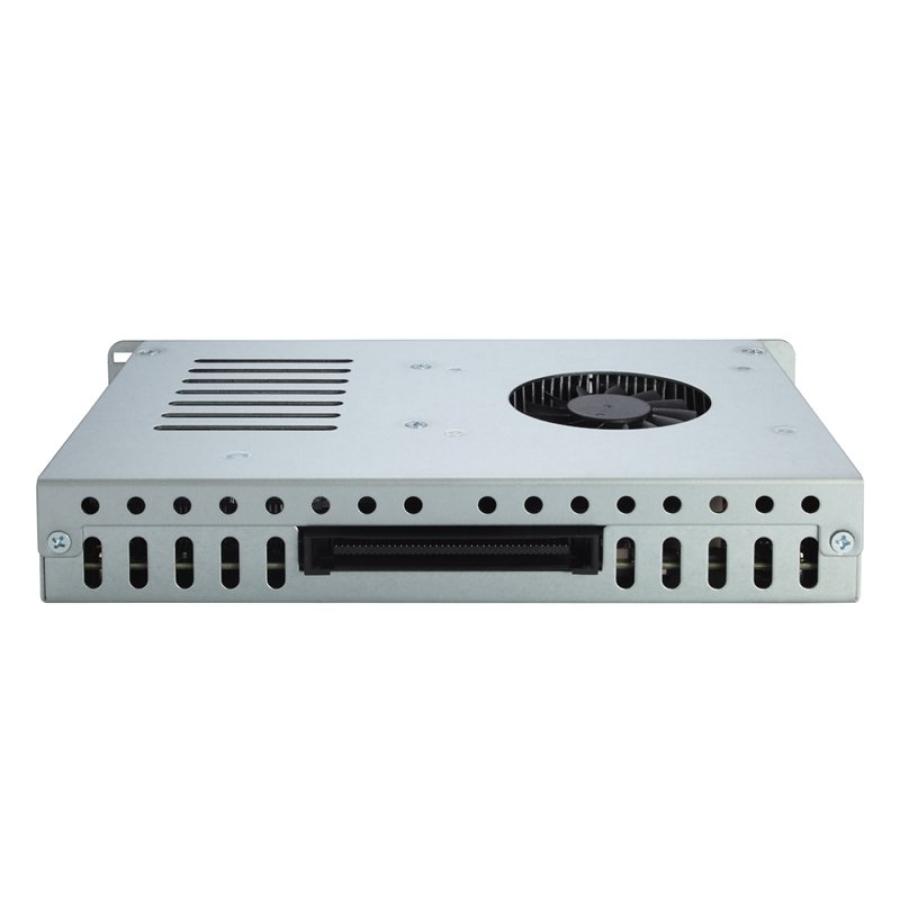

Axiomtek OPS871-HM Intel OPS System with 3rd Gen Intel Core Processor
End of Life
3rd Gen. Ivy Bridge Intel Core i3/i5 OPS Digital Signage Player with HM76 Chipset, up to 8GB Memory, 2 USB 3.0 Ports, 1 HDMI Port and PCI Expansion
- Brand: Axiomtek
- 3rd generation Intel Core rPGA socket type CPU
- Intel HD GPU graphics
- USB 3.0, PCI Express Mini Card
- HDMI interface for 2nd display
- Size: 200mm (W) x 119mm (D) x 30mm (H)
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
The Axiomtek OPS871-HM is an Intel OPS compliant digital signage player based around the 3rd generation Intel Core processors. The high performance system offers superb graphics performance via Intel's acclaimed HD GPU technology offering smooth full HD playback and a second display port if required. The system can be installed in to any OPS compliant monitor and features USB 3.0, Gigabit Ethernet, Audio in/out, a 2nd HDMI port and optional Wi-Fi via the mini-PCIe slot. The OPS871-HM accepts a standard 2.5" HDD/SSD which is removable by a cold swap tray.
Ordering Info
- OPS871-HM (P/N-E22M871101) 3rd Gen. Ivy Bridge Intel Core i3/i5 OPS Digital Signage Player with HM76 Chipset, up to 8GB Memory, 2 USB 3.0 Ports, 1 HDMI Port and PCI Expansion
- OPS871-HM-SF (P/N-E22M871102) Including smart fan solution
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Form Factor: Intel Open Pluggable Specification (OPS)
- CPU: 3rd generation Intel Core rPGA socket type processor
- Chipset: Intel HM76
- Memory: 1 x SO-DIMM, DDR3 1600 MHz up to 8GB
- Storage: 2.5″ SATA Storage Bay for HDD / SSD (Cold swappable)
- USB: 2 x USB 3.0
- LAN: 1 x 10/100/1000
- Graphics: Intel Integrated HD (Processor dependant)
- Audio: Line-out, Line-in
- Wireless: Optional 802.11 b/g/n
- Operating Temperature: 0°C to 45°C
- Certification: CE, FCC Class A
