NISE 50

Name: Nexcom NISE 50 Intel Atom Processor E3826 Dual Core Fanless Industrial PC
SKU: NISE 50

Nexcom

Nexcom NISE 50 Intel Atom Processor E3826 Dual Core Fanless Industrial PC

NISE 50

Onboard Intel Atom processor E3826 dual core, 1.46GHz
1 x HDMI Display
2 x Intel I210AT GbE LAN ports; Support WoL, Teaming and PXE
4 x USB 2.0
3 x mini-PCIe sockets for optional Wi-Fi/3.5G/LTE modules
1 x RS232, 1 x RS232 (only Tx/Rx/GND), 1 x RS422/485 with auto flow control
Support -5 ~ 55 degree C operating temperature
Support 24V DC input

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: NISE 50

Categories: Embedded Box PCs, Expandable Computer Systems, Fanless Embedded PCs, Fanless Industrial PCs, Industrial Computing, Industrial Mini PCs, Nexcom, Rugged Computers

Range: Nexcom

Details

Powered by the latest generation of Intel Atom processor E3826 (formerly codenamed "Bay Trail-I"), Nexcom's NISE 50 series positions at the intelligent IoT gateway for factory automation and for smart city applications. Up to 4G on-board DDR3L memory, the NISE 50 series support operating temperature from -5 up to 55 degree C with 24V DC input with +/-20% range. The NISE 50 series have strong connectivity - Ethernet-based LAN port and traditional RS485, mainly for Modbus TCP or Modbus RTU communication. For wireless connectivity, there are 3x mini-PCIe sockets which can support optional wireless modules for IoT applications, for example, Wi-Fi, Bluetooth, 3.5G and 4G LTE module. NISE 50 is definitely the best choice for M2M intelligent system as an intelligent IoT gateway.

Ordering Info

NISE 50 (P/N: 10J00005000X0): Intel® Atom™ Processor E3826 Dual Core Fanless System, with on-board 16GB EMMC and 2G DDR3L RAM

Downloads

Nexcom NISE 50 Datasheet (PDF)

0.47MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU Support	Option: Support Intel® Atom™ processor E3845 Quad Core,1.91GHz (by request)
Main Memory	On-board 2GB DDR3L 1066/1333 RAM – Un-buffered and non-ECC – Max up to 4GB for option
Display Option	1 x HDMI display

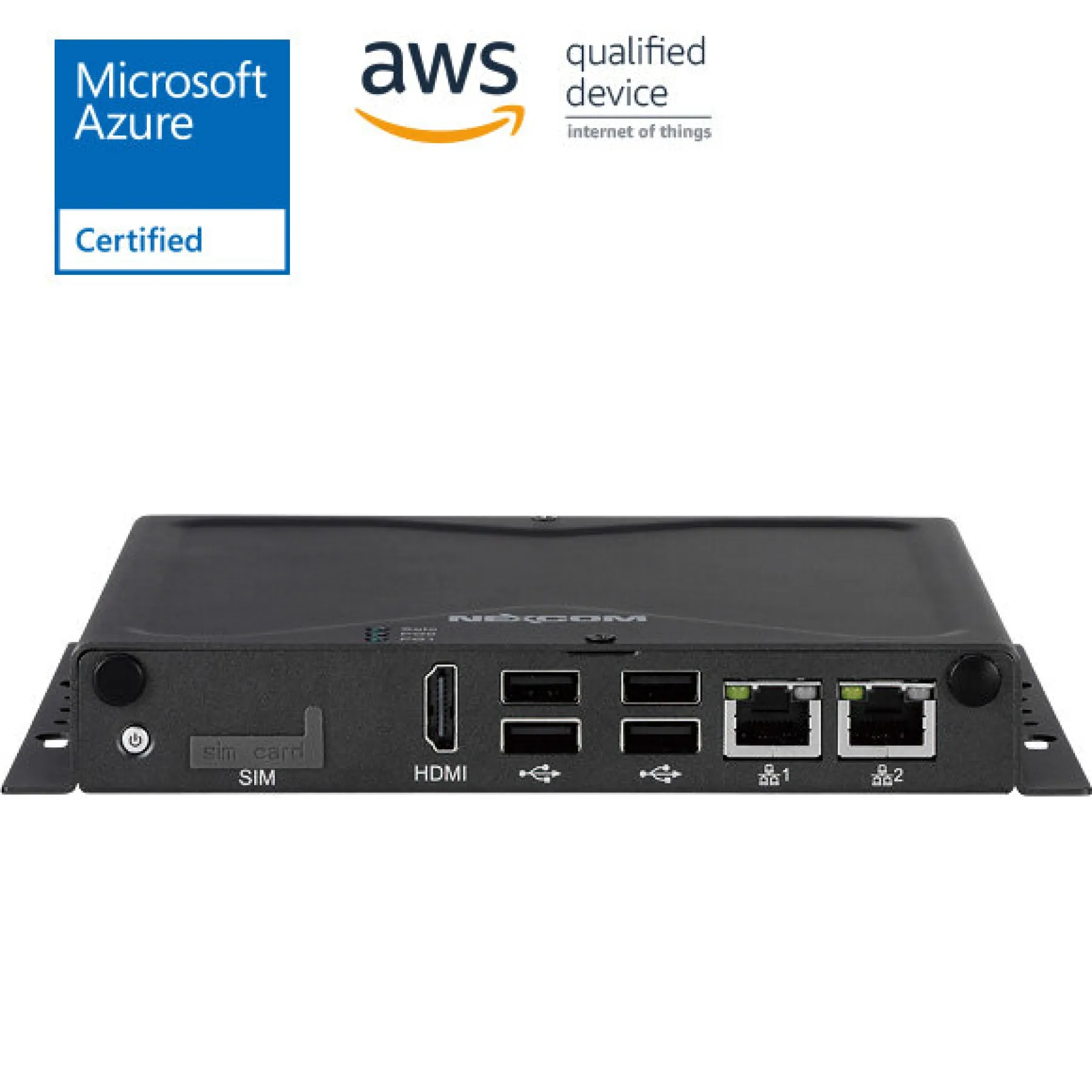

I/O Interface-Front	ATX power on/off switch 1 x Storage/2 x GPO Programmable LED 1 x SIM Card holder 2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE 1 x HDMI Display Output 4 x USB 2.0 (500mA per each) 2 x Antenna Holes for optional Wi-Fi/3.5G antenna

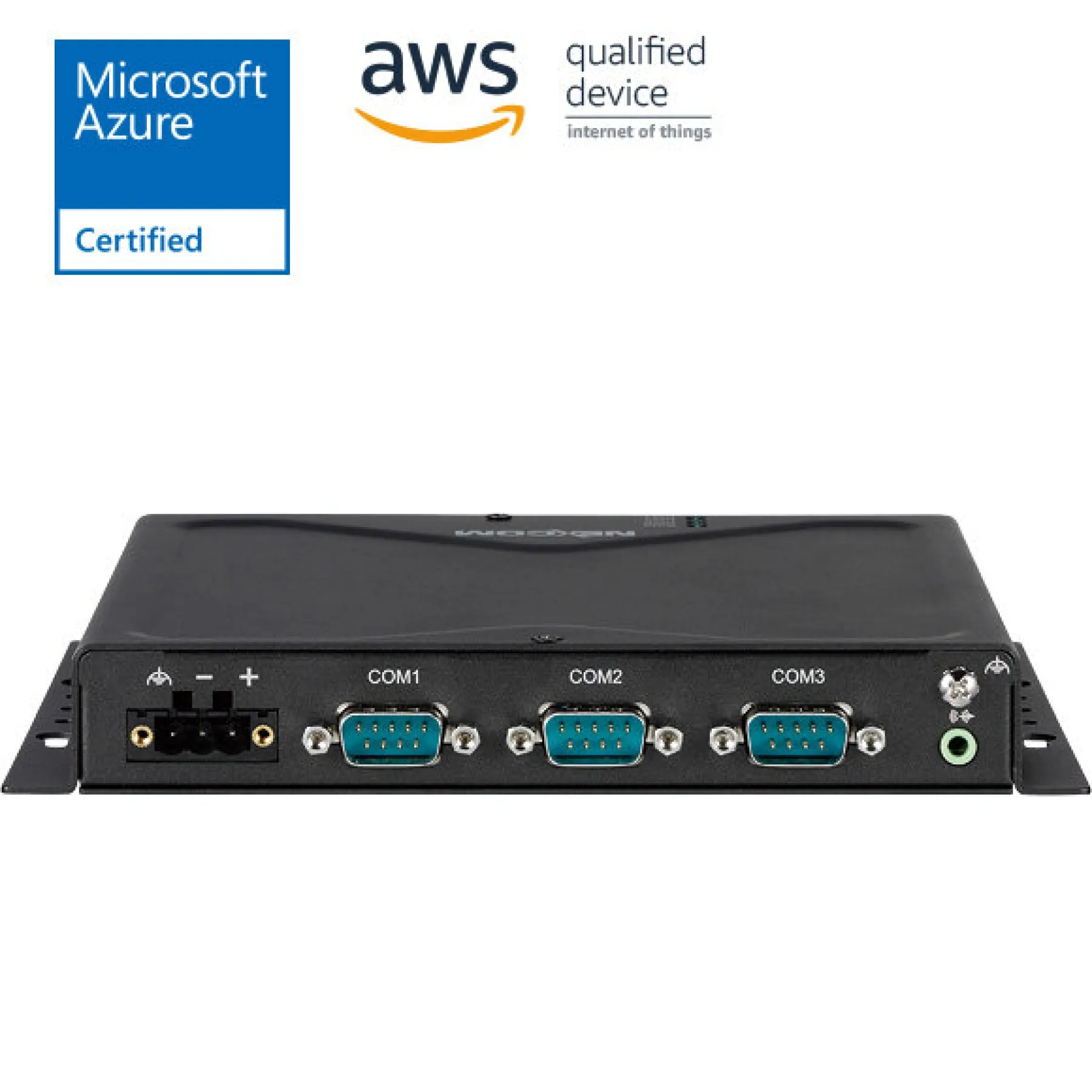

I/O Interface-Rear	3 x DB9 for COM1 & COM2 & COM3 – COM1: full RS232 signal – COM2: RS232, only support Tx/Rx/GND – COM3: RS422/485 auto flow control 1 x Line-out Support 24V DC INPUT
I/O Interface – Internal	4 x GPI and 4 x GPO (Programmable to GPI or GPO) 1 x DB9, only support RS232, Tx/Rx/GND single
Storage Device	On-board 16GB EMMC Optional mSATA module
Expansion Slot	3 x Mini-PCIe socket for optional Wi-Fi/3.5G modules – Mini-PCIe: CN5; Size: Full; USB: V; PCIe:N/A; mSATA: Support; 3.5G/4G: Support – Mini-PCIe: CN6; Size: Full; USB: V; PCIe:V; mSATA: N/A; 3.5G/4G: Support – Mini-PCIe: CN7; Size: Half; USB: V; PCIe:V; mSATA: N/A; 3.5G/4G: N/A
Power Requirements	Power input: 24V DC +/-20% 1 x optional 24V, 60W power adapter
Support OS	Model Name: NISE 50 Storage: eMMC 16GB Memory: 2GB OS: Ubuntu 32-bit/WES8 32-bit Model Name: NISE 50 Storage: mSATA Memory: 2GB OS: WES8 32-bit/Win7 Pro 32-bit/WES7E 32-bit/WEC7 32-bit Model Name: NISE 50-4G-32G Storage: eMMC 32GB Memory: 4GB OS: Ubuntu 64-bit/Win10 IoT Ent. 64-bit/WES8 64-bit Model Name: NISE 50-4G-32G Storage: mSATA Memory: 4GB OS: Win10 IoT Ent. 64bit/WES8 64-bit/Win7 Pro 64-bit/WES7E 64-bit/WEC7 32-bit Model Name: NISE 50W Storage: SSD Memory: 2GB OS: WES8 32-bit/Win7 Pro 32-bit/WES7E 32-bit/WEC7 32-bit
Dimensions	162mm(W) x 26mm(H) x 150mm(D) without wall-mount bracket
Construction	Metal Chassis with fanless design
Environment	Operating Temperature: Ambient with air flow: -5°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage Temperature: -20°C to 75°C Relative Humidity: 10% to 95% (non-Condensing) Shock Protection: – mSATA / EMMC: 50G, half sine, 11ms, IEC60068-2-27 Vibration protection w/mSATA or EMMC condition – Random: 2Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications	CE FCC Class A UL/cUL

Processor Type	Intel Atom, up to 2 Cores
Memory Capacity	Up to 8GB
Cooling Type	Fanless
Serial Ports (COM)	1x RS-422/485, 2x RS-232
USB Ports	4x USB 2.0
Ethernet Ports (LAN)	2x 1G
Wireless	Cellular, Wi-Fi
Video Ports	1x HDMI
Storage Type	1x mSATA, 1x eMMC
Expansion Type	3x Mini PCI Express
Input Voltage	24 VDC
Operating Temperature	Wide OT: -5°C to 55°C
Market Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 7
