NEX614

Name: Nexcom NEX 614 Skylake Core i7/i5/i3 Mini ITX Motherboard 4 x SATA
SKU: NEX614

Nexcom

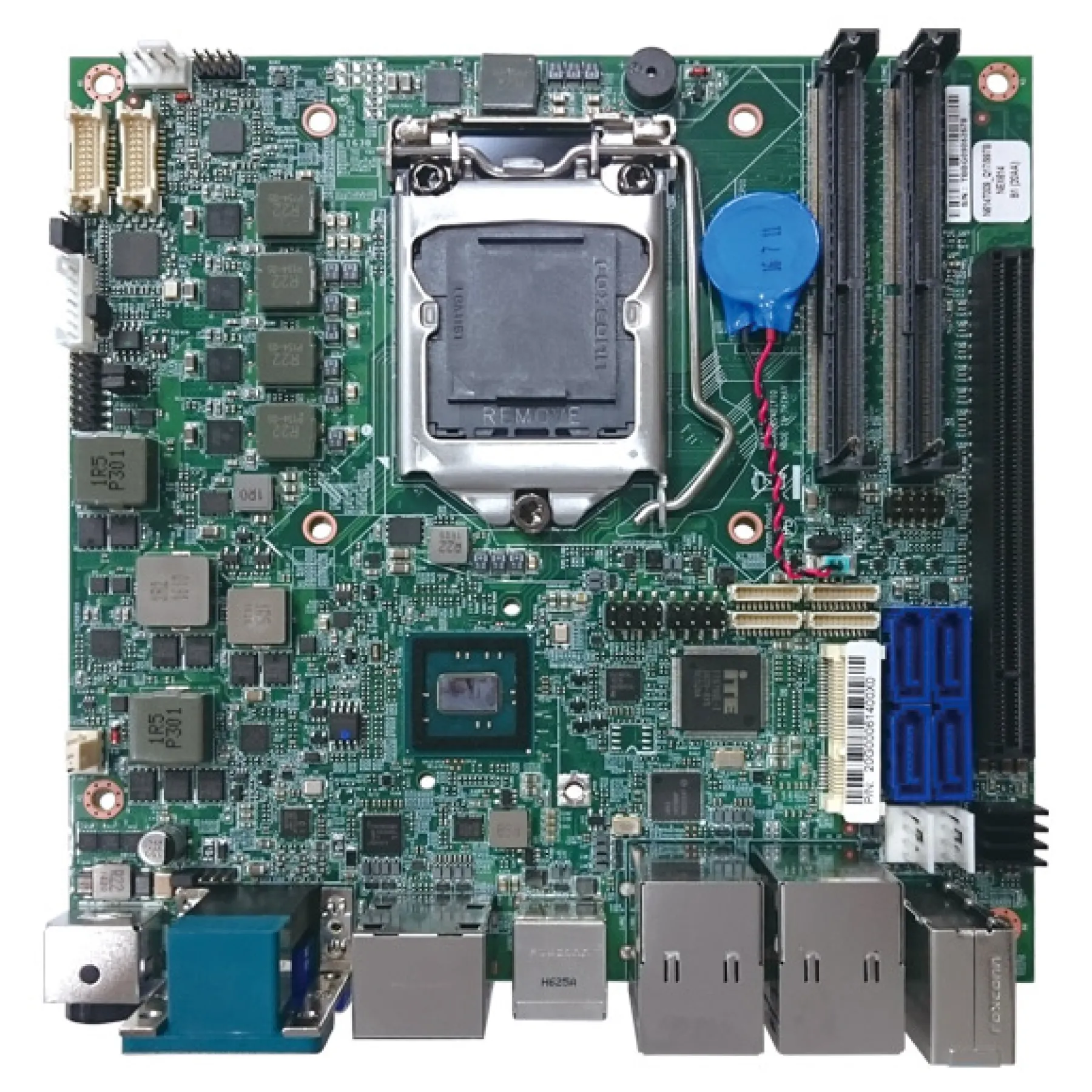

Nexcom NEX 614 Skylake Core i7/i5/i3 Mini ITX Motherboard 4 x SATA

NEX614

Support socket LGA1151 for 6th generation Intel® Core™ i7/i5/i3 and Intel® Celeron® processors (codenamed Skylake) or next generation Intel® Core™/Celeron® processors
Intel® Q170/H110 chipset
2 x 260-pin SO-DIMM DDR4 up to 32GB
Triple display: HDMI/DP/VGA/LVDS
2 x GbE with Intel® I219LM and i211-AT
1 x Full size mini-PCIe
4 x SATA 3.0
4 x COM, 7 x USB, 4-in/4-out GPIO, HD Audio
1 x PCIe x16
DC +12V~24V input ±5%

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: NEX614

Categories: Industrial Motherboards, Mini-ITX Motherboards, Nexcom

Range: Nexcom

Details

The Nexcom NEX 614 is a Mini-ITX board with 6th generation Intel® Core™ i7/i5/i3 processors and Intel® Celeron® processors (codenamed Skylake) and as well as next generation Intel® Core™/Celeron® processors which integrated Intel® Skylake graphic controller. NEX 614 supports multi-displays by HDMI (4K/2K), DP, VGA and LVDS (dual channel 24-bit up to 1920 x 1200 @60Hz). With dual DDR4 SO-DIMM channel, the maximum memory supports up to 32GB. NEX 614 embedded Intel® H110 as default provides three SATA, four serial ports, four USB 3.0 ports, four USB 2.0 ports, two Gigabit Ethernet LAN port, one PCIe x16 slot and one full size mini-PCIe with 3G/Wi-Fi/mSATA interface. The power input covers from 12V to 24V DC. With optional Intel® Q170 chipset, NEX 614 expends 4th SATA function for mass storage. NEX 614 features versatile displays, riches I/O support for multimedia as well as critical mission of industrial embedded applications, such as Kiosk, digital signage, gamming, automation applications...etc.

Ordering Info

NEX 614 (P/N: TBD)Mini-ITX, Intel® 6th gen. Skylake Core™ processor family, with DP/HDMI/VGA/LVDS interface/2 x Gigabit LAN/PCIe x16/mPCIe/8 x USB/4 x COMs/TPM (option)/4 x SATA/12V~24V DC input

Downloads

Nexcom NEX614 Datasheet (PDF)

1.15MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Memory Type	DDR4
COM Ports	1x RS-232/422/485, 3x RS-232
LAN Ports	2x 1GB
USB Ports	3x USB 2.0, 4x USB 3.0
Video Ports	1x VGA, 1x HDMI, 1x LVDS, 1x DisplayPort
Storage	4x SATA
Operating Temperature	0°C to 60°C
