MVS 5600-IP

Name: Nexcom MVS 5600-IP 6th Gen Intel Core Dual Core In-Vehicle IP65-rated Box PC
SKU: MVS 5600-IP

Nexcom

Nexcom MVS 5600-IP 6th Gen Intel Core Dual Core In-Vehicle IP65-rated Box PC

MVS 5600-IP

IP65-rated rugged design
Intel® Core™ dual core i7-6600U/i3-6100U (Skylake)
9~36VDC with ignition control
Built-in GPS with optional dead reckoning
Up to 2WLAN or two 3G/LTE via 3 mini-PCIe slots
Electrical isolation for CAN 2.0B & GPI/O
Optional OBD function (SAE J1939/J1708)
Rich and various GbE, USB 2.0/3.0, serial I/O and storages
Compliant to E-mark and ISO 7637-2
Compliant to MIL-STD-810G in vibration/shock

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: MVS 5600-IP

Categories: Certified Computers, In Vehicle Computers, Nexcom

Range: Nexcom

Details

The Nexcom VS 5600-IP, an IP65-rated rugged enclosure, maintenance-free box computer, is ideal for data acquisition in extreme environments throughout a number of in-vehicle applications, like transportation, heavy duty and waste management, etc. All external interfaces, including Gigabit Ethernet, isolated CAN bus and digit I/O, USB, and RS232/485 serial ports, are implemented on IP67-proof connectors for reliable data transmission in harsh and rugged environments. MVS 5600-IP is a modular design, it is flexible to use other kinds of expansion boards to extend different I/O functions for quickly tailored to a vast number of applications. Inside the system, there’re four mini-PCIe slots with three SIM card slots offering WLAN, 3G/LTE cat.12, CAN OBD (SAE J1708/J1939) or CVBS functionality. Besides, it can operate at temperatures from -30°C to +60°C under fanless. MVS 5600-IP supports 9~36VDC power input with ignition managemnt and 12VDC at 2A maximun power output. It is compliant to E-mark and ISO 7637-2 in vehicle certificate and meet US military MIL-STD-810G, category 4, composite wheeled vehicle, for vibration and shock criteria.

Downloads

Nexcom MVS 5600-IP Datasheet (PDF)

0.6MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU	6th generation Intel® Core™ dual core i7-6600U, 3.4GHz/i3-6100U, 2.3GHz
Memory	204-pin DDR3L SO-DMIM socket support 1600MHz up to 16GB 2GB industrial grade memory in default
Storage	1 x 2.5″ SATA 3.0 SSD/HDD 1 x CFast (externally acessible)
Expansion	1 x full size mini-PCIe socket (USB 3.0/2.0) 1 x full size mini-PCIe socket (USB 2.0) 1 x full size mini-PCIe socket (USB 2.0 + PCIe) 1 x half size mini-PCIe socket (USB 2.0 + PCIe)
GPS and On Board Sensor	1 x default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou Optional modules with Dead Reckoning available Built-in G-sensor
Ethernet	2-port 10/100/1000 Mbps Controller: Intel® 1210-T1
Security	TPM in option

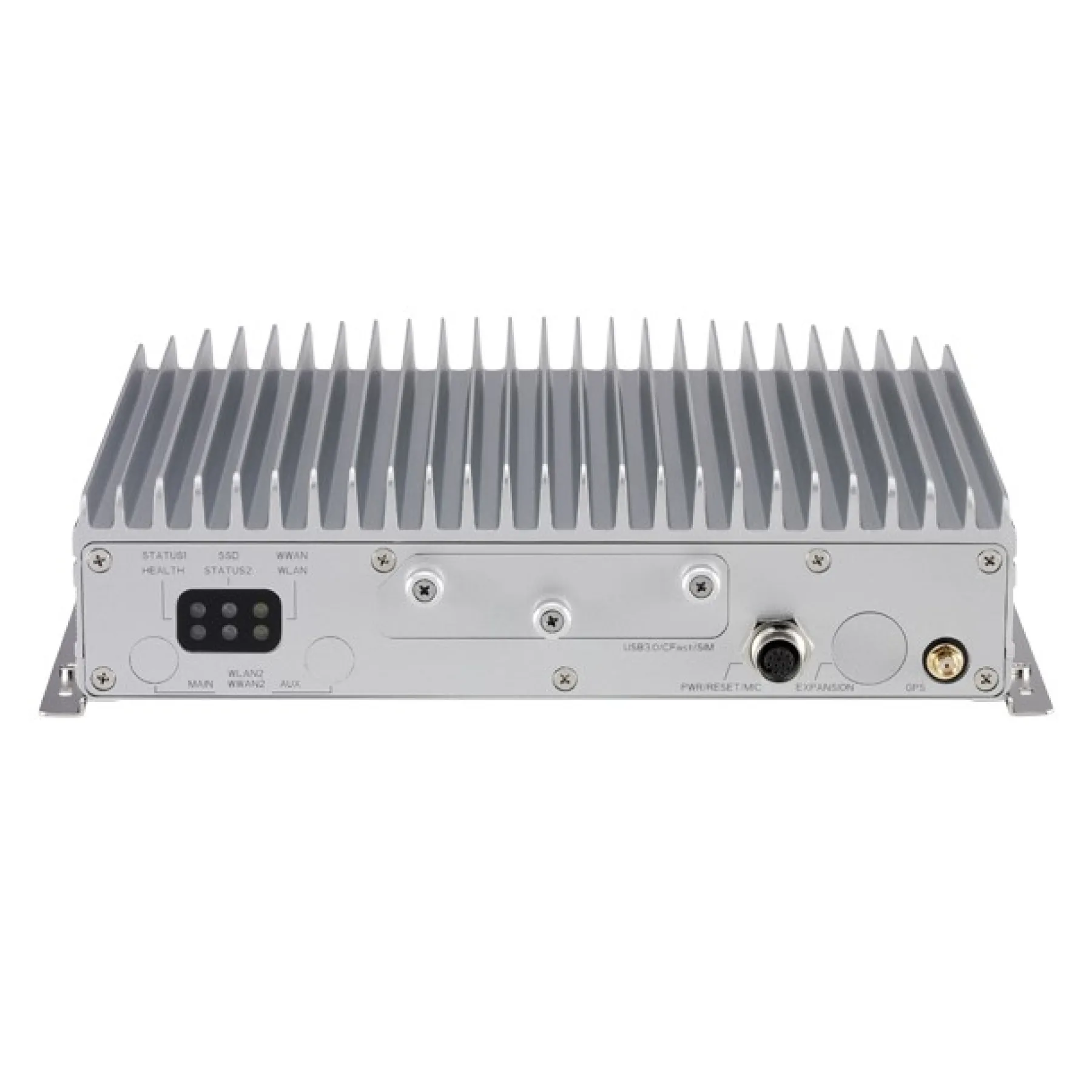

I/O Interface-Front	6 x LED indicators for power/storage/WLAN/WWAN/Status/Health 1 x USB type A USB 3.0 port (w/ lid) 1 x SIM slot (w/ lid) 1 x Mic-in, 1 x Line-out, power & reset buttons for M12 connector 3 x antenna holes for WWAN/GPS One expansion port (M12-type) reserved

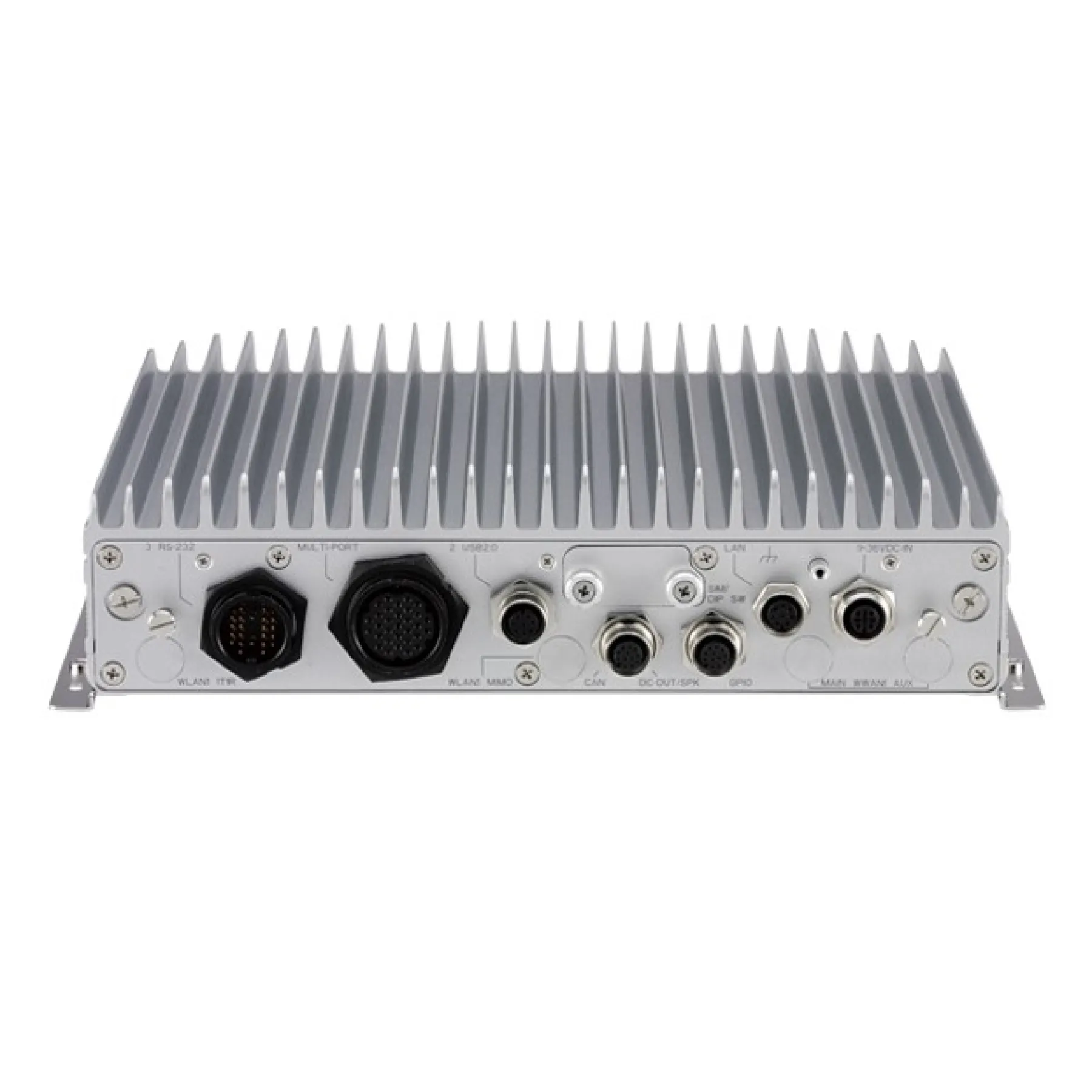

I/O Interface-Rear	Circular 22-pin: – 3 x RS-232 (two for full, RI/5V/12V selectable) M12 8-pin: – 1 x GbE M12 8-pin: – 2 x USB 2.0 M12 12-pin: – 3-bit GPO & 3-bit GPI – iButton M12 12-pin: – 1 x Line-out – DC12V-out, 2A max. – OBD from optional VIOB-CAN-05/06 module (SAE J1708/J1939) – 2 x CAN Bus 2.0B from optional VIOB-CAN-04 module Circular 31-pin: – 1 x VGA, resolution up to 2560 x 1600 @60Hz – 1 x GbE – 2 x RS-485 (2-wire) – 1 x CAN 2.0B w/ isolation M12 S-code: – DC 9~36V input with ignition and 40W typical power consumption 6-bit DIP switch (w/ lid) 3 x Digital inputs – Source-type: 9~36V-in (default) – Eexternal-type: 0~33VDC pull-high – Isolation 3 x Digital outputs – Source-type: 9~36V-in (norminal 40mA@24V) (default) – External 5~27VDC pull-high, sink current: typical 220mA for each bit, 500mA max (@25°C) – Isolation Source or external selected by 6-bit DIP Switch 1 x SIM card socket (w/ lid) and 1x internal SIM card socket selectable 4 x antenna holes for WLAN/WWAN 1 x M12 S-code for 9~36VDC-IN
Power Management	Selectable boot-up & shut-down voltage for low power protection by software. Setting 8-level power on/ off delay time by software. Support S3/S4 suspend mode
Operating System	Windows 7/WES7/Windows 8/WES8/Windows 10/Linux kernel 3.X
Dimensions	260mm (W) x 198mm (D) x 66.5mm (H) (10.24″ x 7.80″ x 2.62″) 3.3kg
Environment	Operating temperatures: -30°C~60°C (w/ industrial SSD) with air flow Storage temperatures: -40°C~80°C Relative humidity: 10% to 90% (non-condensing) Vibration (random): 1.5g@5~500 Hz (in operation, HDD), 2g@5~500 Hz (in operation, SSD) Vibration (SSD): – Operating: MIL-STD-810G, 514.6C, Category 4 – Storage: MIL-STD-810G, 514.6, Category 24, minimum integrity test Shock (SSD/HDD): – Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g – Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Certifications	CE approval, FCC Class A, E13
