MVS 5600

Name: Nexcom MVS 5600 Intel Core i7 Modular Fanless In-Vehicle Computer
SKU: MVS 5600

Nexcom

Nexcom MVS 5600 Intel Core i7 Modular Fanless In-Vehicle Computer

MVS 5600

Modular design for flexible I/O expansion
Three SIM cards + dual WWAN modules support
Wake on RTC/SMS via WWAN module
Built-in u-blox NEO-M8N module, optional Dead Reckoning support
Intel Core dual core i7-6600U/i3-6100U
Voice communication via WWAN module
iButton for driver ID identification
Built-in CAN 2.0B. Optional OBDII function (SAE J1939)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: MVS 5600

Categories: Certified Computers, In Vehicle Computers, Nexcom

Range: Nexcom

Details

The Nexcom MVS 5600, based on 6th generation Intel Core dual core i7-6600U 2.6GHz and i3-6100U 2.3GHz, is specifically designed for the harsh in-vehicle environment. It allows MVS 5600 to comply with stringent MIL-STD-810G military standard in rugged, fanless and compact mechanism. MVS 5600 is a modular design, it is flexible to use other kinds of expansion boards to extend different I/O functions for different applications. MVS 5600 leverages wireless networks to simplify fleet management with capabilities such as remote, real-time video monitoring. This remote capability keeps transit fleets in service around the clock. Vehicle data integration and diagnostics are also carried out via CAN Bus and OBDII. With iButton function, it is easy to perform driver identification management. Optional internal back-up battery guards against any unexpected vehicle power failure or unstable vehicle power.

Ordering Info

MVS 5600-7BU (P/N: 10VS0560006X0)	6th generation Intel® Core™ dual core i7-6600U, 2.6GHz, 2GB DDR3L industrial grade SO-DIMM, 2 x 10/100/1000 Ethernet, VGA/HDMI output, 2 x RS232, 1 x RS-232/422/485, 2 x USB3.0, 2 x USB2.0 , 12VDC output, 1 x CAN
MVS 5600-3BU (P/N: 10VS0560007X0)	6th generation Intel® Core™ daul core i3-6100U, 2.3GHz, 2GB DDR3L industrial grade SO-DIMM, 2 x 10/100/1000 Ethernet, VGA/HDMI output, 2 x RS232, 1 x RS-232/422/485, 2 x USB3.0, 2 x USB2.0, 12VDC output, 1 x CAN

Downloads

Nexcom MVS5600 Datasheet (PDF)

0.55MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU	6th generation Intel® Core™ dual core i7-6600U, 2.6GHz/i3-6100U, 2.3GHz
Memory	2-channel 204-pin DDR3L SO-DMIM socket support 1600MHz up to 16GB, default 2GB industrial grade memory
Storage	1 x 2.5″ SATA 3.0 SSD/HDD (removable & hot swappable), RAID 0, 1 supported (optional lockable storage available) 1 x CFast (externally accessible)
Expansion	1 x full size Mini-PCIe socket (USB 2.0) 1 x full size Mini-PCIe socket (USB 2.0 + PCIe) 1 x half size Mini-PCIe socket (USB 2.0 + PCIe)
GPS and On Board Sensor	1 x default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou Optional modules with Dead Reckoning available Built-in G-sensor Built-in TPM

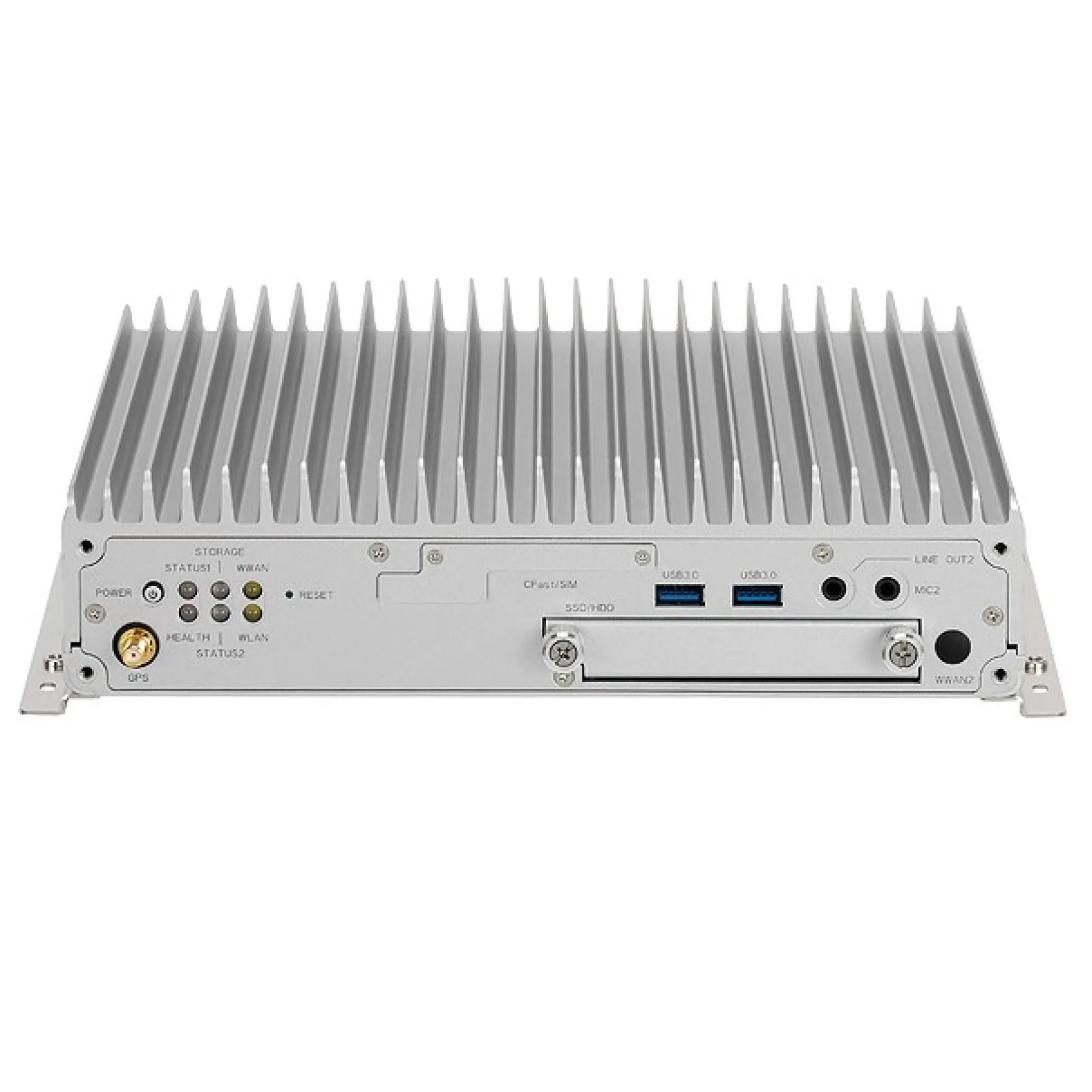

I/O Interface-Front	6 x LED indicators for power/storage/WLAN/WWAN/Status/Health 1 x CFast socket with cover 1 x Reset button 2 x USB type A USB 3.0 port 2 x phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out 2 x externally accessible SIM card sockets (selectable) 2 x antenna holes for WWAN/WLAN/BT/GPS

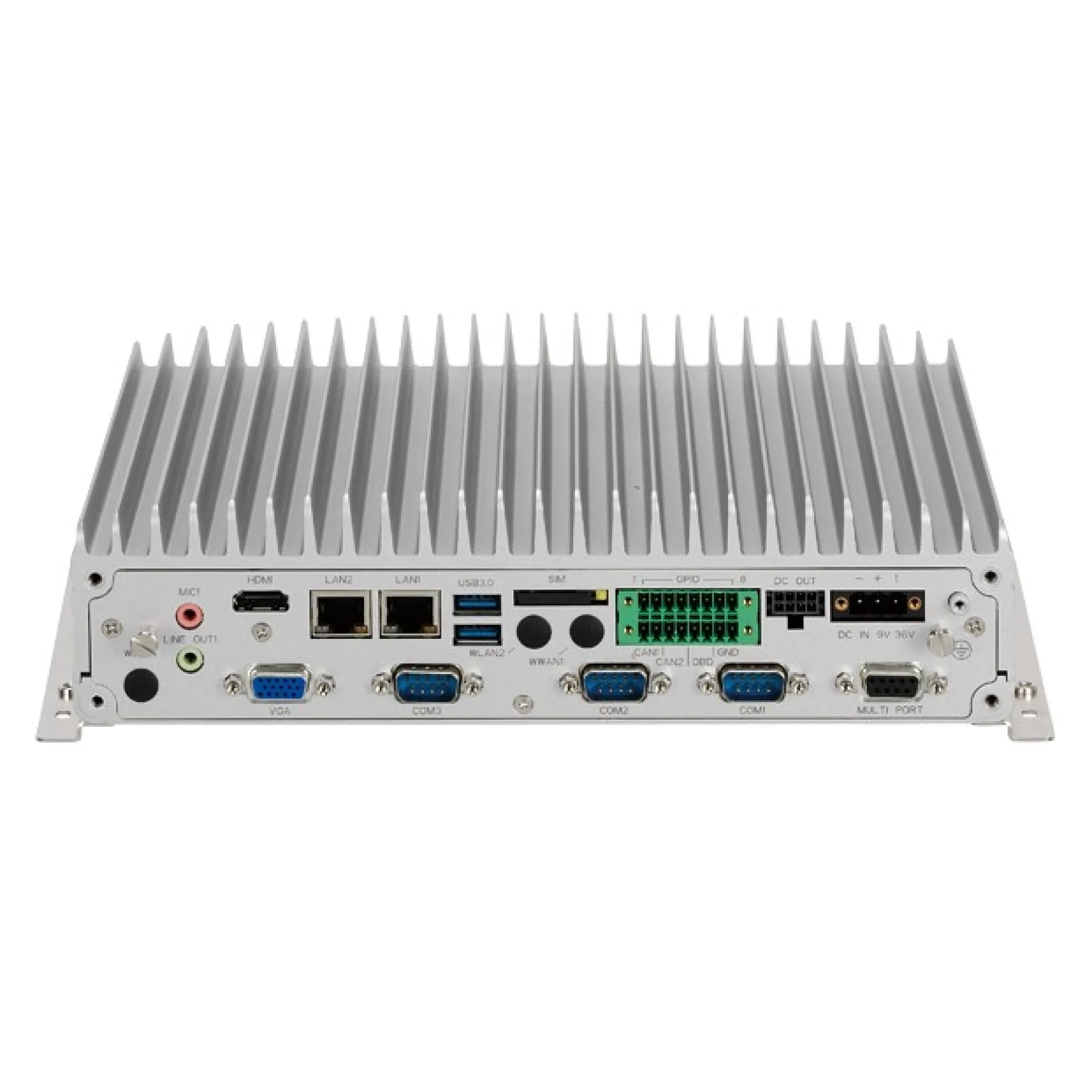

I/O Interface-Rear	2 x RJ45 10/100/1000 Intel® Fast Ethernet with LED 1 x 9~36VDC input with ignition and 34W typical power consumption 2 x USB type A USB 3.0 port 2 x phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out 1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz 1 x HDMI port, resolution up to 2560 x 1600 @60Hz 2 x DB-9 RS-232 1 x DB-9 RS-232/422/485 (RI/5V/12V selectable) 1 x 12VDC output (2A) + SM Bus + 2 x MDI + power button 1 x 16-pin terminal block connector – 1 x CAN Bus 2.0B (on board) – 1 x OBDII from optional VIOB-OBD-03 module (SAE J1939) – 1 x CAN Bus 2.0B from optional VIOB-CAN-03 module – 1 x DB9 connector for optional DR signal input, 2 x MDO and iButton – 8 x programmable GPIO (4 x Digital inputs, w/ optional 3KV isolation protection) Input voltage (internal type): 5VDC TTL (default) Input voltage (source type): 3 ~24VDC (4 x Digital outputs, w/ optional 3KV isolation protection) Digital output (sink type): 5VDC TTL (default), max current: 20mA Digital output (source type): 3 ~ 24VDC, max current: 150mA
Power Management	Selectable boot-up & shut-down voltage for low power protection by software. Setting 8-level power on/ off delay time by software. Support S3/S4 suspend mode Optional internal 1100mAh, Li-Polymer rechargeable battery
Operating System	Windows 7/WES7/Windows 8/WES8/Windows 10/Linux kernel 3.X
Dimensions	260mm (W) x 196mm (D) x 66.5mm (H) (10.24″ x 7.72″ x 2.62″) 2.1kg
Environment	Operating temperatures: -30°C~60°C (w/ industrial SSD) with air flow Storage temperatures: -40°C~80°C Relative humidity: 10% to 90% (non-condensing) Vibration (random): 1.2g@5~500 Hz (in operation, HDD), 2g@5~500 Hz (in operation, SSD) Vibration (SSD/HDD): – Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure – Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD/HDD): – Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g – Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Certifications	CE approval, FCC Class A, E13 Mark
