IPPC 2411-C11

Name: Nexcom IPPC 2411-C11 23.8" 10th Gen Intel Core Heavy Industrial P-CAP Panel PC
SKU: IPPC 2411-C11

Nexcom

Nexcom IPPC 2411-C11 23.8″ 10th Gen Intel Core Heavy Industrial P-CAP Panel PC

IPPC 2411-C11

Support 35W 10th Gen Intel Core i9/i7/i5/i3/Pentium/Celeron processor (Comet Lake-S)
Stylish slim bezel, metal housing with robust aluminum front zero bezel for harsh environment
10 points P-Cap touch with zero bezel flush front design
2 X DDR4 2933MHz memory, up to 64GB (non-ECC)
Dual Intel GbE LAN ports/DP++/dual USB 3.0
1 x RS232,1 x RS232/422/485 with isolation (optional)
Internal support : 1 x mini-PCIe (PCIe x1, USB 2.0, SATA)，1 x M.2 3042/3052 Key B (PCIe x1, USB 3.0, USB 2.0)，1 x M.2 2242 Key B (USB 2.0, SATA)
24VDC input; support AT/ATX power mode
1 x PCIe x4 expansion

Product Code: IPPC 2411-C11

Categories: Industrial Panel PCs, Industrial Touchscreen Computers, IP66 Panel PCs, Nexcom, Panel PCs

Range: Nexcom

Details

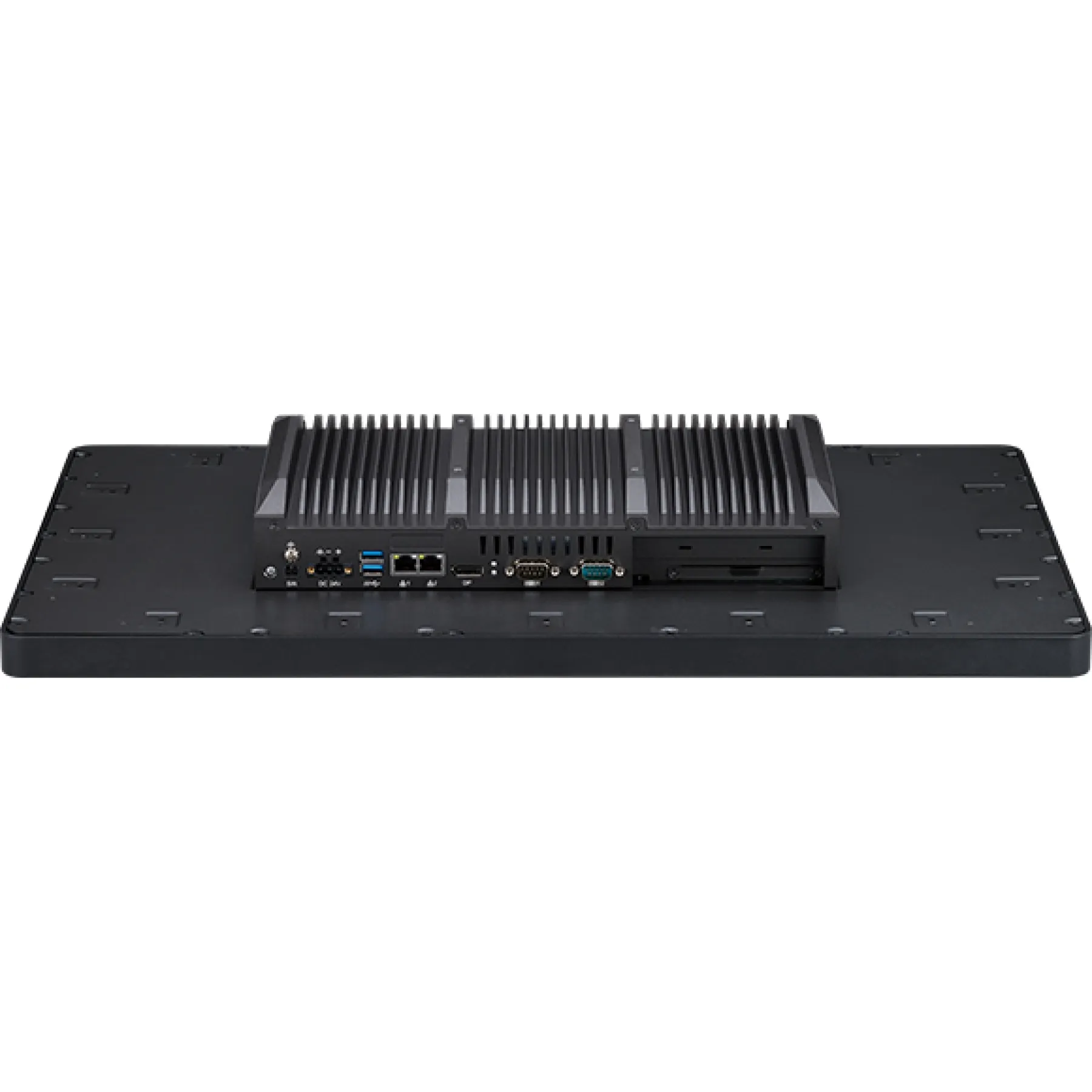

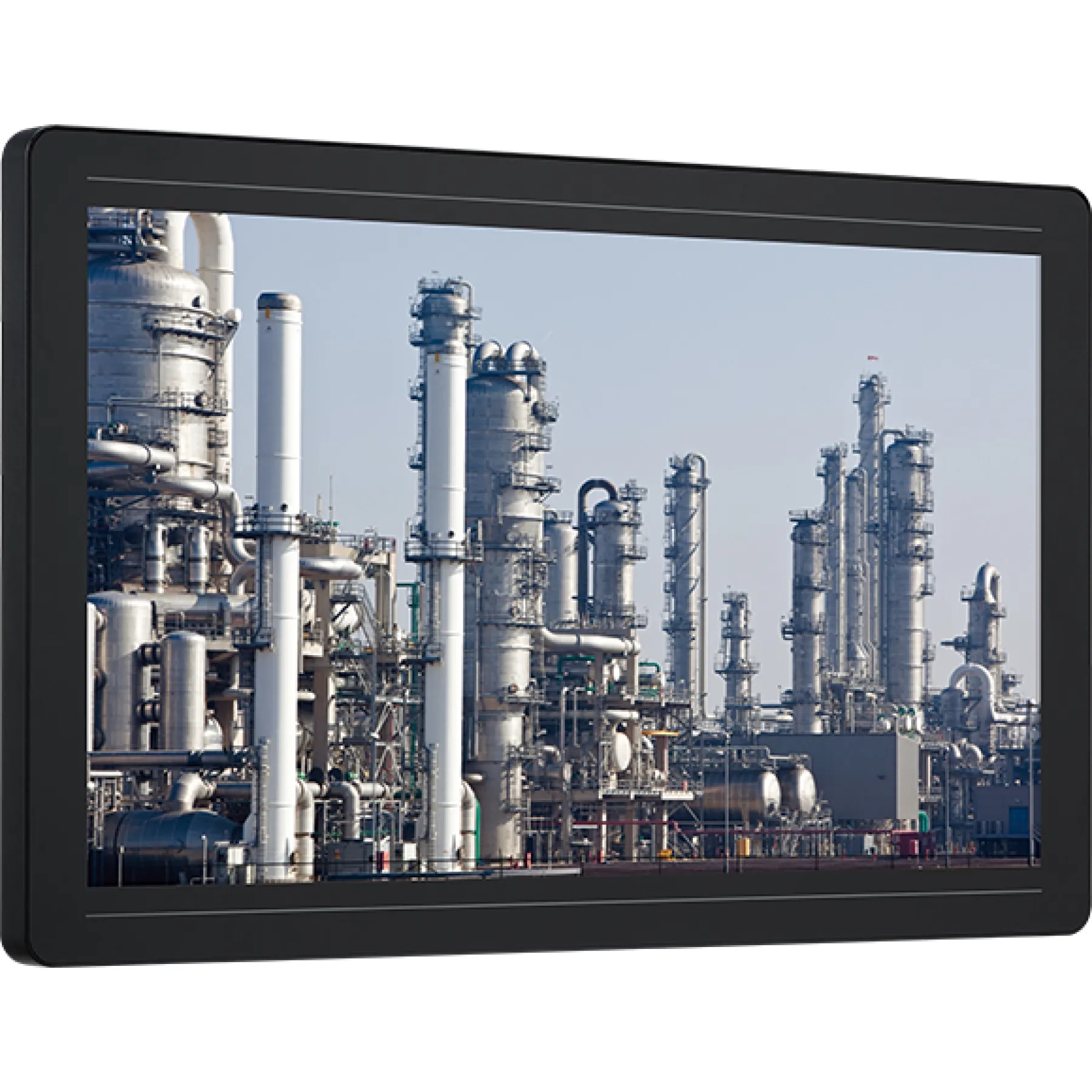

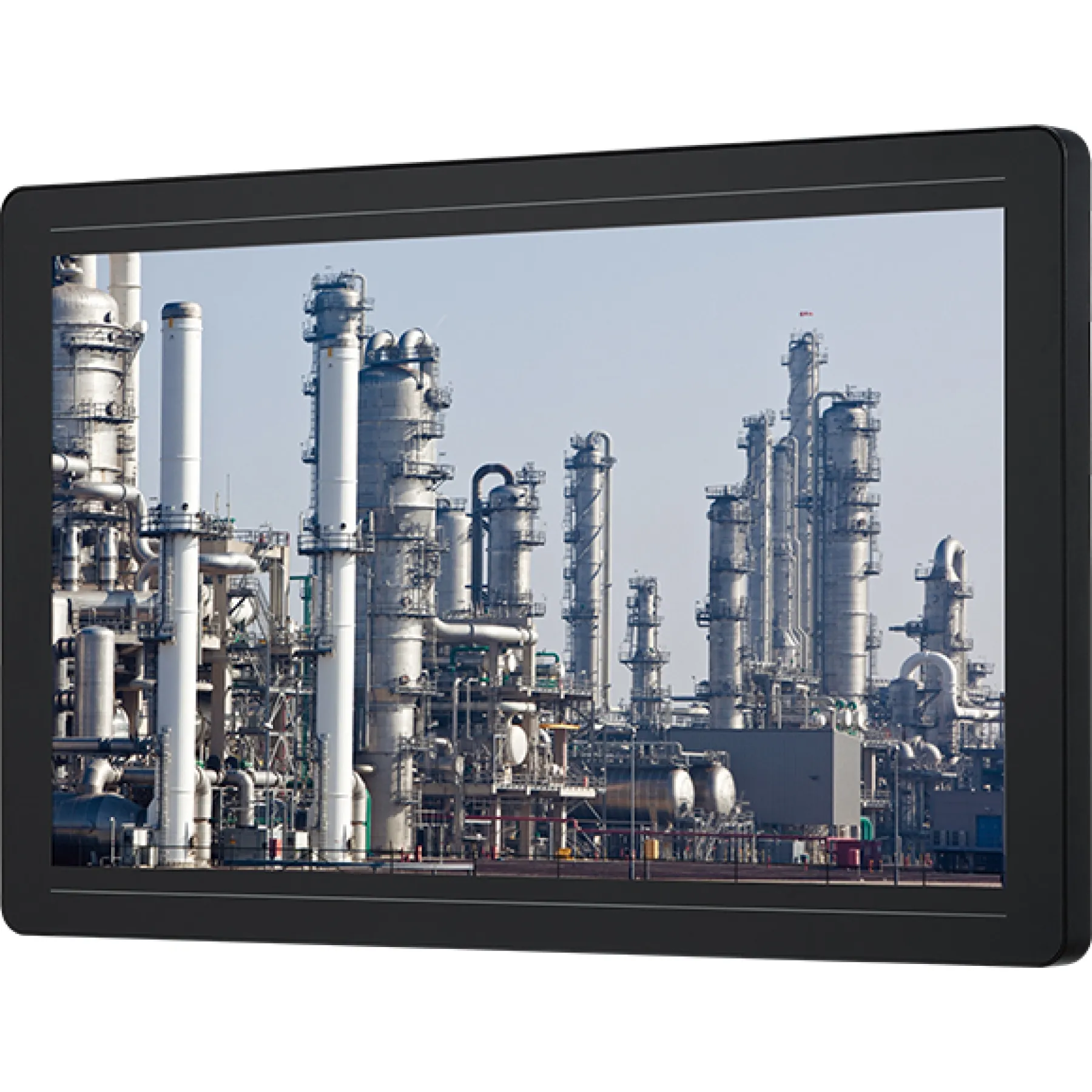

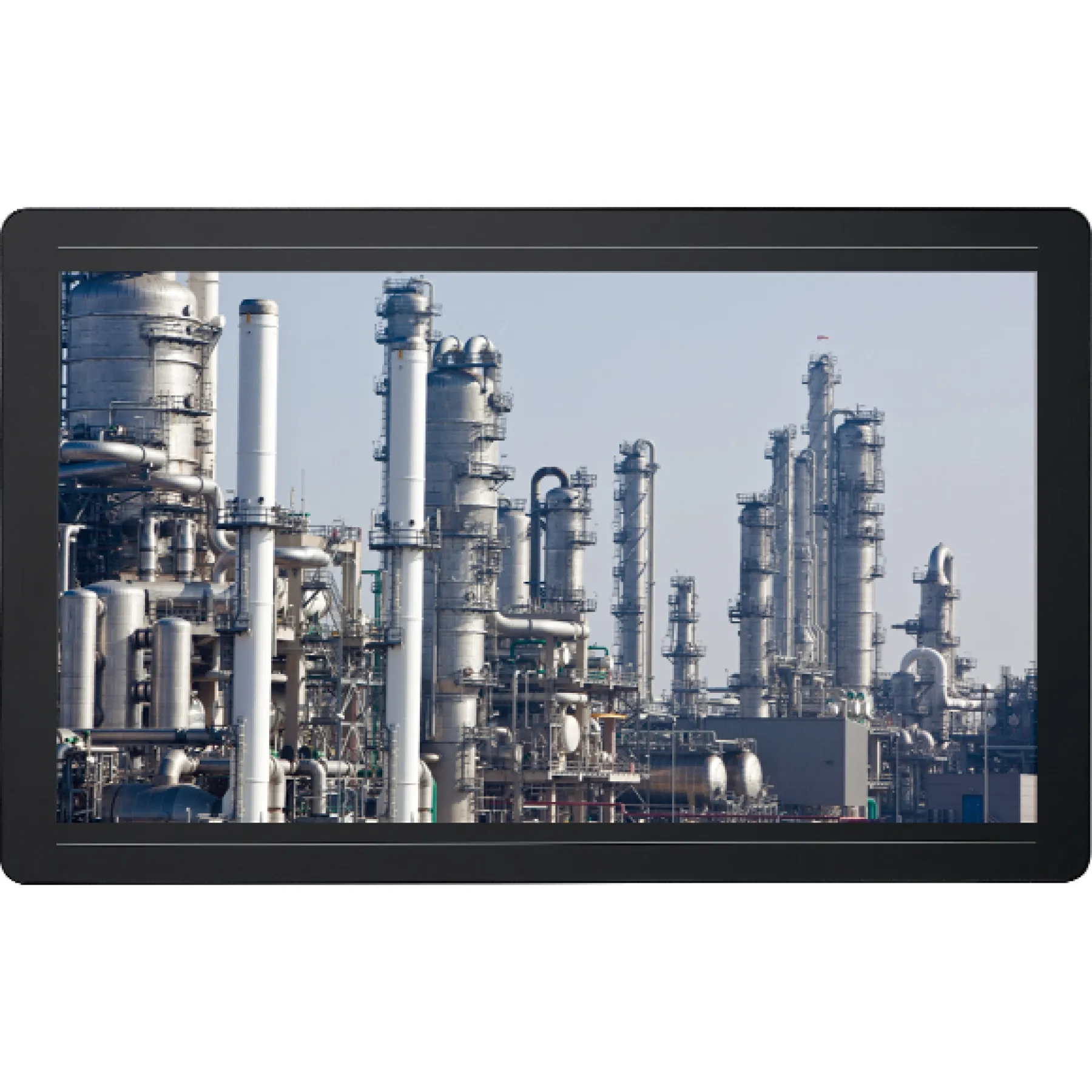

The new 23.8” fanless panel PC IPPC 2411-C11 is equipped with a high-performance 10th Gen Intel Core i9/i7/i5/i3 socket-type CPU platform, intended for versatile industrial applications. IPPC 2411-C11 has a narrow border touch screen and a LED backlight LCD panel with 1920x1080 (FHD) resolution. The front panel which adopts a flush, narrow border design and complies with the IP66 standard to make it perfectly fit in industrial applications. IPPC 2411-C11 contains dual Gigabit Ethernet connectors, one mini-PCIe slot, and an M.2 slot to support multiple networks of LAN/WLAN/WWAN (5G). In addition, it can hook a 2nd display via DP++ for dual independent display, one adjustable RS232/422/485 port with isolation, and provides a PCIe x4 for add-on card expansion.

Downloads

Datasheet (IPPC 2411-C11) (PDF)

0.53MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Touch Technology	Projected Capacitive
Ingress Protection	IP66
Brightness	450nit, Standard
Resolution	1920x1080, FHD
GPU	35W, Integrated GPU
Memory Capacity	Up to 32GB
Cooling Type	Fanless, Yes
Serial Ports (COM)	1 Port, 1 Port, 2 Ports, RS-232, RS-232/422/485
USB Ports	2 Ports, 2 Ports, USB 3.1
Ethernet Ports (LAN)	2 Ports, 2 Ports
Wireless	Cellular, Wi-Fi
Video Ports	1x DisplayPort, 2 Ports
Storage Type	1, 1, 1, 1, 3, Hard Drive Tray, M.2 PCIe, M.2 SATA, Mini PCI Express
Expansion Type	1, 1x M.2, 1, 3, Any Expansion Type, M.2, Mini PCI Express, PCI Express
Input Voltage	24 VDC, ATX Powered, Yes
Operating Temperature	0°C to 50°C, Standard
Certifications	CE/FCC
OS Support	Windows 10, Windows 10 IoT, Windows 10 Pro, Windows 11, Windows 11 IoT, Windows 11 Pro
