IPPC 1670P

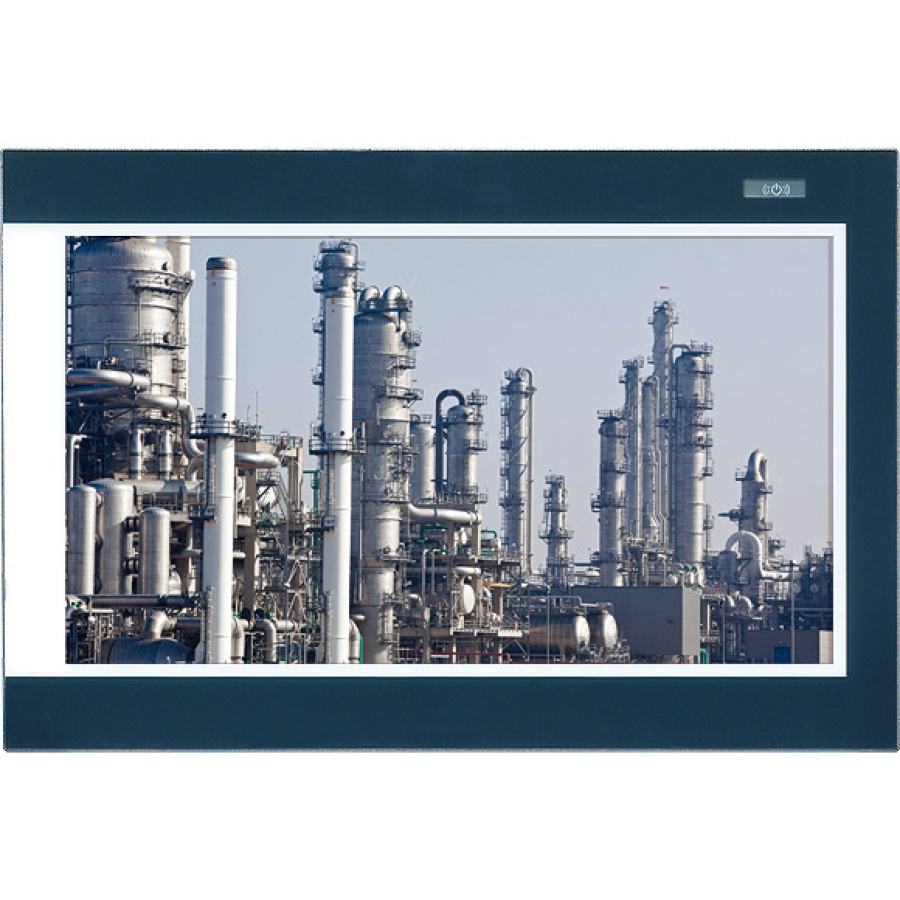

Nexcom IPPC 1670P 15.6″ Industrial Panel Mount PC

End of Life

16:9 WXGA, 1366 x 768 fanless panel computer
Powerful 4th generation Intel® Core™ i processor
Optional two expansion slots for add-on PCI or/and PCIe cards
Optional 3.5G/Wi-Fi module/2.5″ HDD
Inside USB 2.0 type A connector for license key
Metal housing with robust aluminum IP66 compliant front bezel for harsh environment
Two FBI ports support fieldbus module (optional)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: IPPC 1670P

Categories: End of Life Products

Range: Nexcom

Details

The Nexcom IPPC 1670P is a heavy industrial panel PC to support powerful 4th generation Intel® Core™ i processor, TFT LCD panel with LED backlight and userfriendly touch screen. It provides two expansion slots to support PROFINET, PROFIBUS, DeviceNet, EtherNet/IP and EtherCAT protocols. The IP66 rated heavy-duty aluminum front bezel and the vibration-resistant rugged chassis are specifically designed for outdoor and harsh industrial environments. IPPC 1670P is ideal for use in oil and gas rig, wind farms, chemical factories, pharmaceutical factories, and hazardous working area.

Ordering Info

IPPC 1670P-DC (P/N: 10II1670P01X0): 15.6″ WXGA LED backlight fanless P-CAP touch panel PC, 2 x COM, DC power input

Downloads

Nexcom IPPC 1670P Datasheet (PDF)

1.07MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Panel	LCD size: 15.6″, 16:9Resolution: WXGA, 1366 x 768Luminance: 300cd/m²Contrast ratio: 500LCD color: 16.7MViewing angle: 80(U), 80(D), 85(L), 85(R)Backlight: LED
Touch (for IPPC 1670P Series)	Ten points P-Cap (projected capacitive touch)Light transmission: 87%Interface: USBAnti-scratch surface: >= 6H hardness
System	CPU (optional): support 4th gen. Intel® Core™ i processor family, LGA1150 socket type– Core™ i5-4590T, Quad Core, 2.0GHz, 6M Cache (maximum frequency 3.0GHz if turbo boost enabled)– Core™ i5-4570TE, Dual Core, 2.7GHz, 4M Cache (maximum frequency3.3GHz if turbo boost enabled)– Core™ i3-4350T, Dual Core, 3.1GHz, 4M Cache (no turbo boost)– Core™ i3-4340TE, Dual, Core, 2.6GHz, 4M Cache (no turbo boost)– Pentium® G3320TE, Dual Core, 2.3GHz, 3M Cache (no turbo boost)– Celeron® G1820TE, Dual Core, 2.2GHz, 2M Cache (no turbo boost)BIOS: AMI BIOSSystem chipset: Intel® Q87 PCHSystem memory (optional): 2 x 204-pin DDR3/DDR3L SO-DIMM socket, support up to 16GB DDR3/DDR3L 1333/1600, non-ECC and unbufferedStorage device:– 1 x External locked CFast socket– 1 x mini-PCIe w/o SIM card holder slot to support mSATA storage– 1 x Hard drive bay: support 1 x 2.5″ SATA HDD/SSD (optional)(for DC model only)Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)H/W status monitor: monitoring system temperature and voltageExpansion:– 2 x mini-PCIe sockets (support optional Wi-Fi or 3.5G module/NVRAM/mSATA storage)– 2 x Expansion slots for add-on PCI or/and PCIe cards (optional)– 1 x PCI and 1 x PCIex4 slots– 2 x PCIex4 slots– 2 x PCI slots– 1 x PCIex16 slot
Rear I/O	1 x PS2 for keyboard/mouseEthernet: 2 x RJ452nd/3rd display: additional independent DisplayPort: 1 x DVI-I (DVI-D + DVI-A) and 1 x DisplayPortAudio port: 1 x Line-out; 1 x Line-in; 1 x MIic-inUSB: 4 x USB3.03-pin remote power on/off switch connectorReset buttonCOM#1: RS232/422/485 w/ 5V or 12V selection (for T/P-DC only)ATX power switch (for T/P-DC only)
Top I/O	COM#2 RS232/422/485 w/ 5V or 12V selection (for T/P-DC only)
Audio	HD codec: Realtek ALC886-GRAudio interface: Line-out/Line-in/Mic-in audio jack
Ethernet	LAN chip: dual Intel® I210IT Gigabit LANEthernet interface: 10/100/1000 Base-Tx Ethernet compatible
Fieldbus	Support up to two Fieldbus module
Mechanical & Environment	Color: Pantone 432CRAL 70 24 front bezelEnclosure: aluminum front bezel with SPPC nickel plated housingIP protection: IP66 frontMounting: panel/wall/stand/VESA 100mm x 100mmPower: IPPC 1670P– Power input: 12~30 VDC– Power connector: 3-pin PHOENIX connectorVibration:– IEC 68 2-64 (w/ HDD)– 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating)– 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating)– 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)Shock:– IEC 68 2-27– HDD: 20G @ wall mount, half sine, 11msOperating temperature:Resistive: -10°C to 50°CP-Cap: -10°C to 50°C Storage temperature: -20°C to 75°COperating humidity: 10%~90% relative humidity, non-condensing (for IPPC 1670P series, limits to be at 90% RH at max 50°C)
Dimension	417.4 x 312.4 x 105.95mmWeight: (barebone): 9.18kg
Certifications	CE (including EN61000-6-2/EN61000-6-4), FCC Class A
OS Support Lists	Windows 7 32-bit and 64-bitWindows 8.1 32-bit and 64-bitWindows 10 32-bit and 64-bit
