CMC 300-F0x

Name: Nexcom CMC 300-F0x Intel Xeon &amp; Intel Core Cabinet Mount Fanless Industrial PC
SKU: CMC 300-F0x

Nexcom

Nexcom CMC 300-F0x Intel Xeon & Intel Core Cabinet Mount Fanless Industrial PC

CMC 300-F0x

Fanless system design
Intel Xeon E-2278GEL and 8th & 9th Gen Intel Core i7/i5/i3 LGA socket type processors
2 x Gigabit Ethernet
2 x USB 2.0, 2 x USB 3.0, 1 x COM RS232/422/485

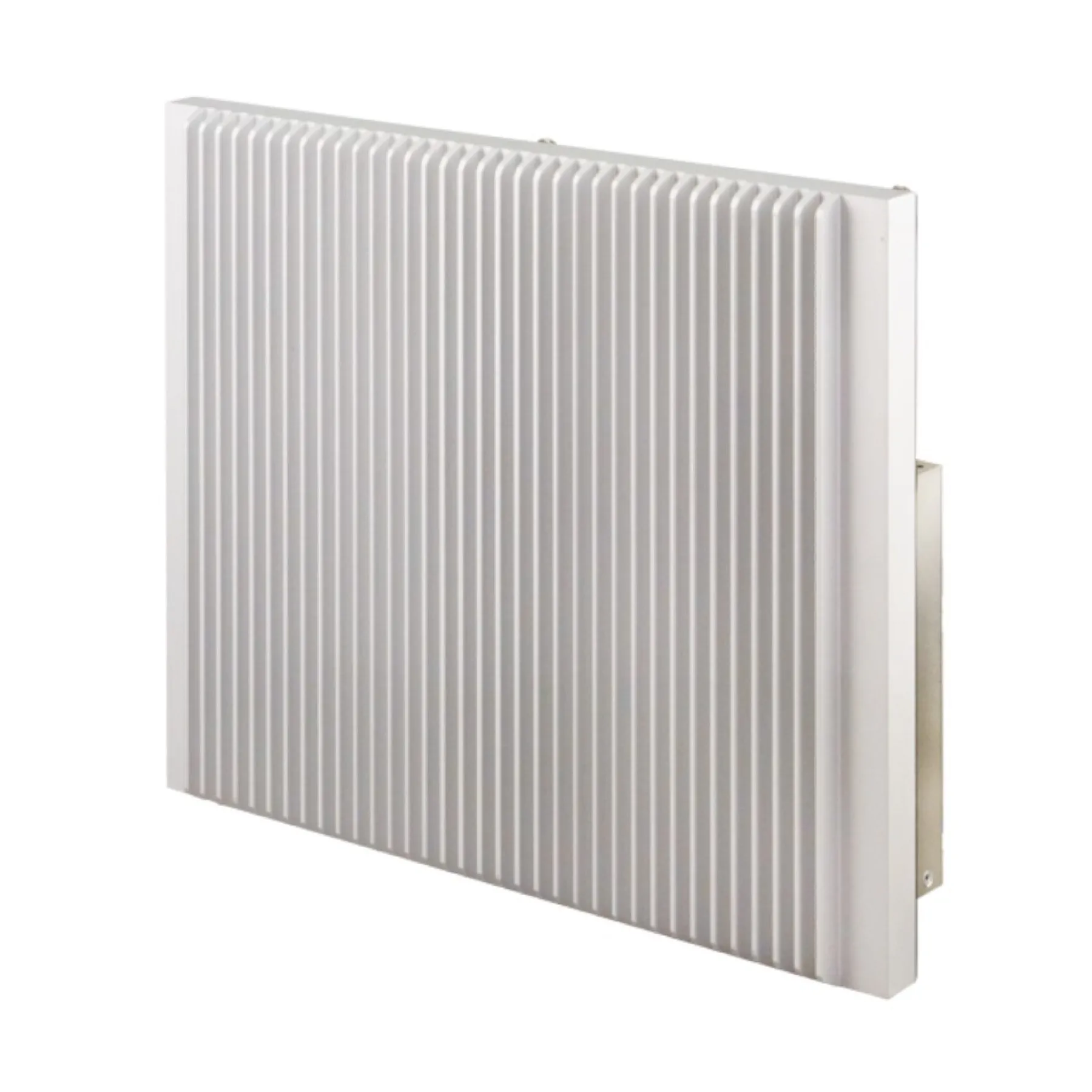

IP65 protection on the outside heatsink
1 x DVI-D display output
2 x DDR4 up to 64GB
1 x mini-PCIe for storage device
2 x Easy-access 2.5” SSD trays
Support power input 24 VDC

Product Code: CMC 300-F0x

Categories: Industrial Computing, Nexcom, Rugged Computers

Range: Nexcom

Details

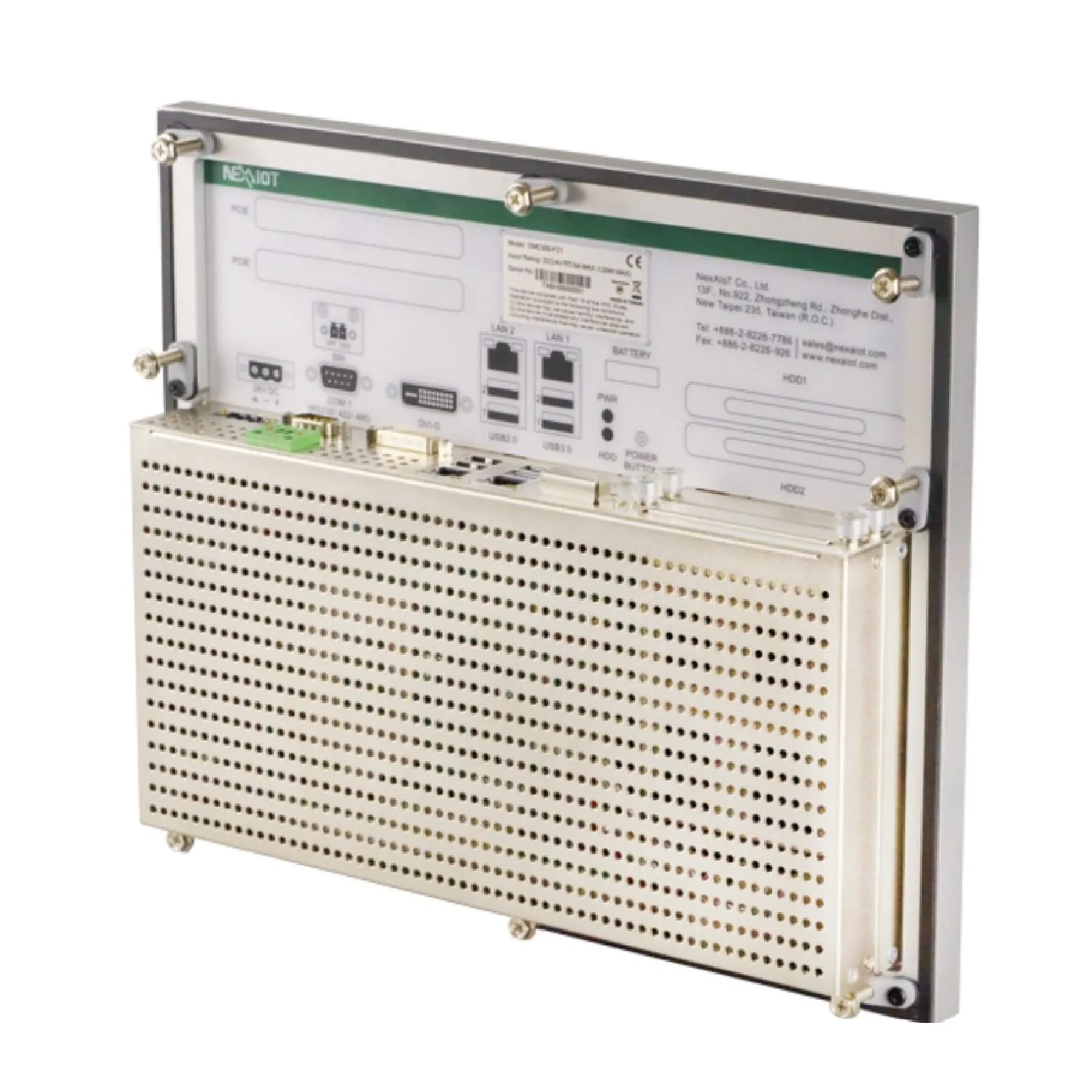

The CMC 300-F0x industrial fanless PC series has been designed with the purpose of being installed in the plate of the control cabinet or in the rear plate of a control cabinet. This fanless PC cut-in to a suitable cut-out in the control cabinet and its heatsink is at outside the cabinet with IP65 protection. The CMC 300-F0x is up to high performance Intel Xeon grade CPU with two PCIe x4 expansion and two external 2.5” HDD trays. This product meets easy maintenance condition in the industrial such as wind power, charging station.

Downloads

Nexcom CMC 300-F0x Datasheet (PDF)

0.67MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU Support	Support Intel Xeon E-2278GELSupport 8th & 9th Gen Intel Core i7/i5/i3 LGA socket type: – Intel Core Core i3-8100T, i5-8500T, i7-8700T – Intel Core Core i3-9100TE, i5-9500TE, i7-9700TESupport up to TDP 35W CPU
PCH	Intel C246 PCH
Main Memory	2x DDR4 2400/2666 SO-DIMM sockets, support up to 64GB with non-ECC and un-bufferedSupport ECC with Intel Xeon processor
I/O Interface Status LEDs	PowerSATA (SSD)

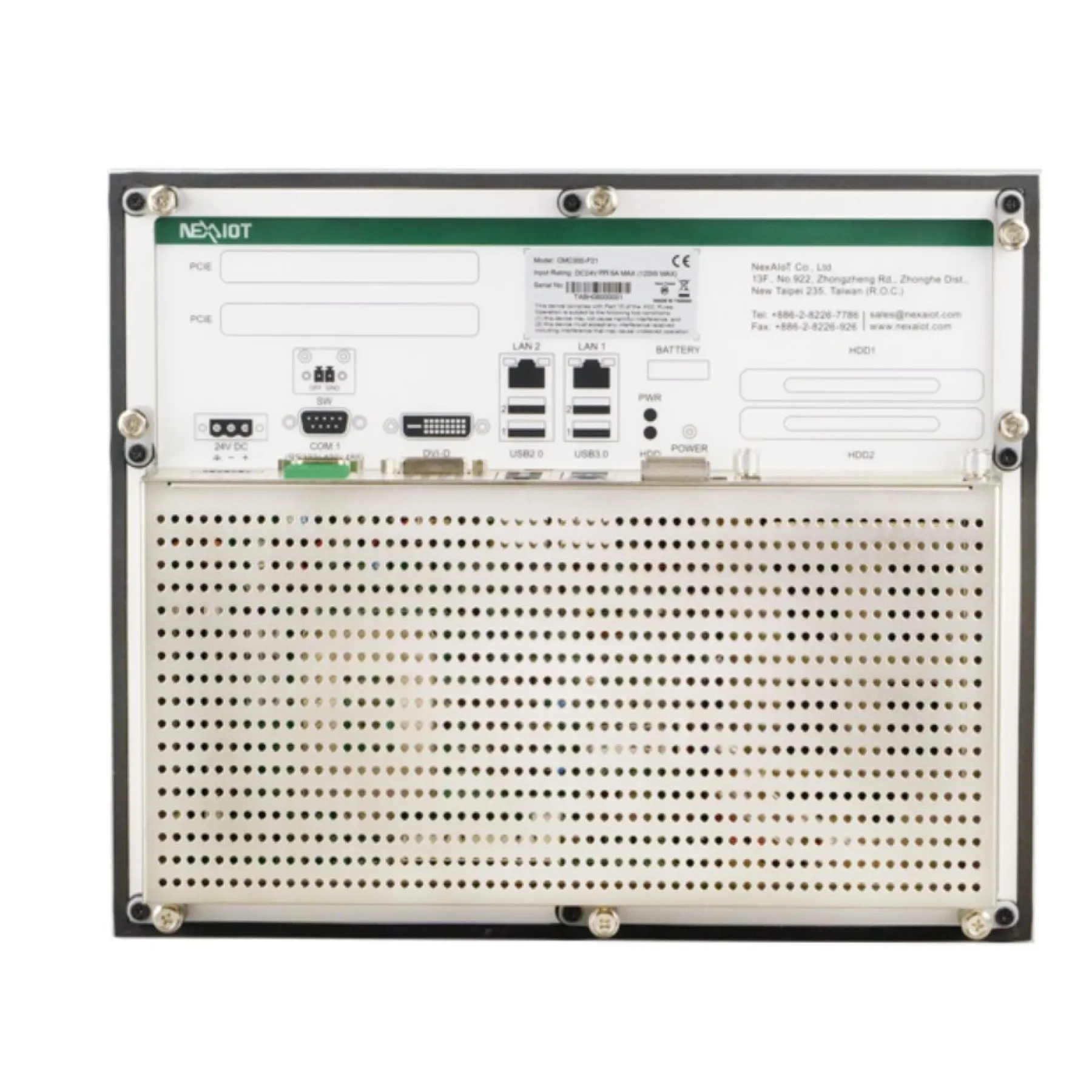

I/O Interface	DC power input connector: 3-pin Phoenix contact terminal blocksCOM: 1 x RS232/422/485Display: 1 x DVI-D portEthernet: 2 x RJ45 – LAN: 1 x Intel I219-LM PHY LAN and 1 x Intel I210-IT Gigabit LAN – Ethernet interface: 10/100/1000 Mbps – Support wake up on LAN2 x USB 2.0 ports2 x USB 3.0 ports2-Pin remote power on/off1 x Easy-access RTC battery socket
Storage Device	2 x Easy-access 2.5” SSD trays1 x mini-PCIe slot for storage
Expansion	Two PCIe x4 expansion slots from PCIe x8 Riser card, 1 x mini-PCIe slot for storage
Power Requirements	DC power input: – Input voltage: 18VDC -5% to 24VDC +10%, 7.5A – Reverse polarity protection
Environment	Operating temperature: – 0°C to 55°C with natural convection – 0°C to 60°C with mild forced airflowOperating humidity support 10%~90% relative humidity, noncondensingVibration protection w/ HDD condition: – Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-64
Dimensions	Dimension: 330mm x 275mm x 62.7mm Weight: 5.7KG
Construction	Aluminum extrusion heat sink and iron nickel plating housingBack cover with reserved RAID card heatsink holeIP65 protection for the outside heatsink
Certifications	CE (EN61000-6-2/EN61000-6-4)FCC Class A
OS Support List	Windows 10 64-bit
