APPC 1550T

Name: Nexcom APPC 1550T 15" Intel Celeron J3455 400nit Resistive Touch Panel PC
SKU: APPC 1550T

Nexcom

Nexcom APPC 1550T 15″ Intel Celeron J3455 400nit Resistive Touch Panel PC

APPC 1550T

On-board Intel Celeron J3455, 1.5GHz with 4GBDDR3L
2 x DP up to 3 displays
2 x USB 3.0, 1 x USB 2.0, 2 x LANs, 3x COMs
Support 1 x mini-PCIe and M.2 storage
Family include: 12.1” (APPC1250T) / 15” (APPC1550T) / 17” (APPC1750T) / 19” (APPC1950T)

Product Code: APPC 1550T

Categories: Industrial Touchscreen Computers, IP66 Panel PCs, Nexcom, Panel Mount Panel PCs, Wall Mount Panel PCs

Range: Nexcom

Details

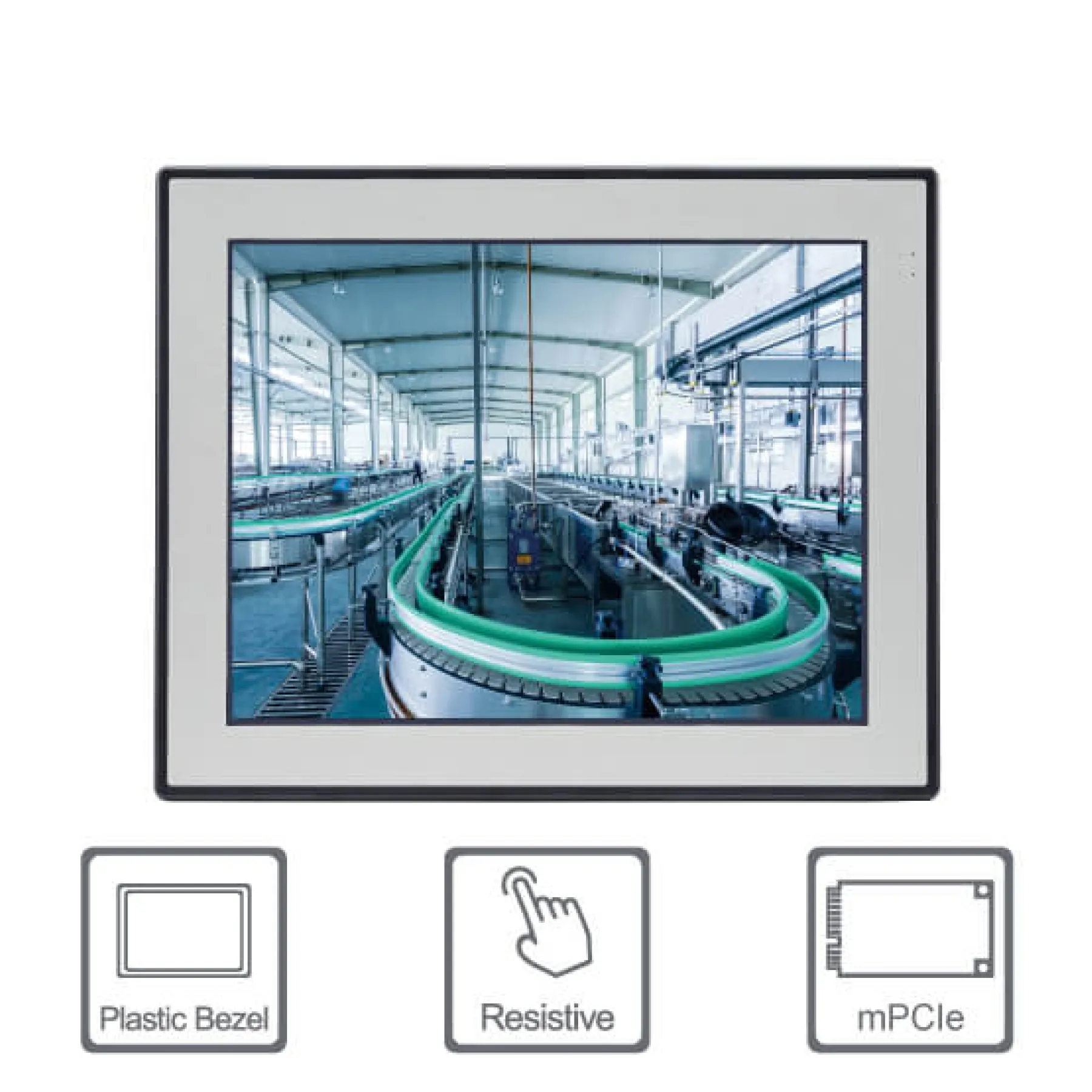

The 15” XGA fanless panel PC APPC 1550T incorporating an industrial motherboard is intended for versatile industrial applications. APPC 1550T supports 1024 x 768 (XGA) resolution and 400-nit brightness. The front panel which adopts flush design and complies with IP65 standard makes it the perfect fit in industrial applications. APPC 1550T supports LTE, WLAN communications via dual Gigabit Ethernet connectors and a mini-PCIe slot . Several options are on storage devices like M.2 and 2.5” SSD. With support for DC power input of 24VDC, APPC 1550T can gain a strong foothold in the industrial field and machine devices. In addition, APPC 1550T can hook 2nd display via a DP for dual independent display, with the 3 x COM ports option, which will makes it a real intelligent system for various solutions.

Ordering Info

Barebone: APPC 1550T (10IA0125000X0)	15” XGA LED backlight touch panel PC, Intel Celeron J3455, Quad Core processor, 1.50GHz, touch screen, 4GB DDR3L, 1 x RS232/422/485
Options	24V, 60W AC/DC power adapter w/o power cord (P/N: 7400060054X00)

Downloads

Nexcom APPC 1550T Datasheet (PDF)

0.61MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Panel	LCD size: 15”, 4:3 Resolution: XGA 1024 x 768 Luminance: 400cd/m2 Contrast ratio: 2500 LCDcolor: 16.7M Viewing angle: 88(U), 88(D), 88(L), 88(R) Backlight: LED
Touch Screen	5-wire resistive (flush panel type) Light transmission: 80% Interface: USB
System	System memory: 1 x 204-pin DDR3L SO DIMM socket, 4GB DDR3L(default), support up to 8GB DDR3L 1866, non-ECC and un-buffered BIOS: AMI BIOS CPU: onboard Intel Celeron J3455 Quad Core processor, 1.50GHz Storage device: 1 x Internal M.2 2242 1 x Hard drive bay: optional 1 x 2.5” SATA HDD Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C) Expansion: 1 x mini-PCIe sockets (support optional Wi-Fi module) Front LED indicator to show operating status

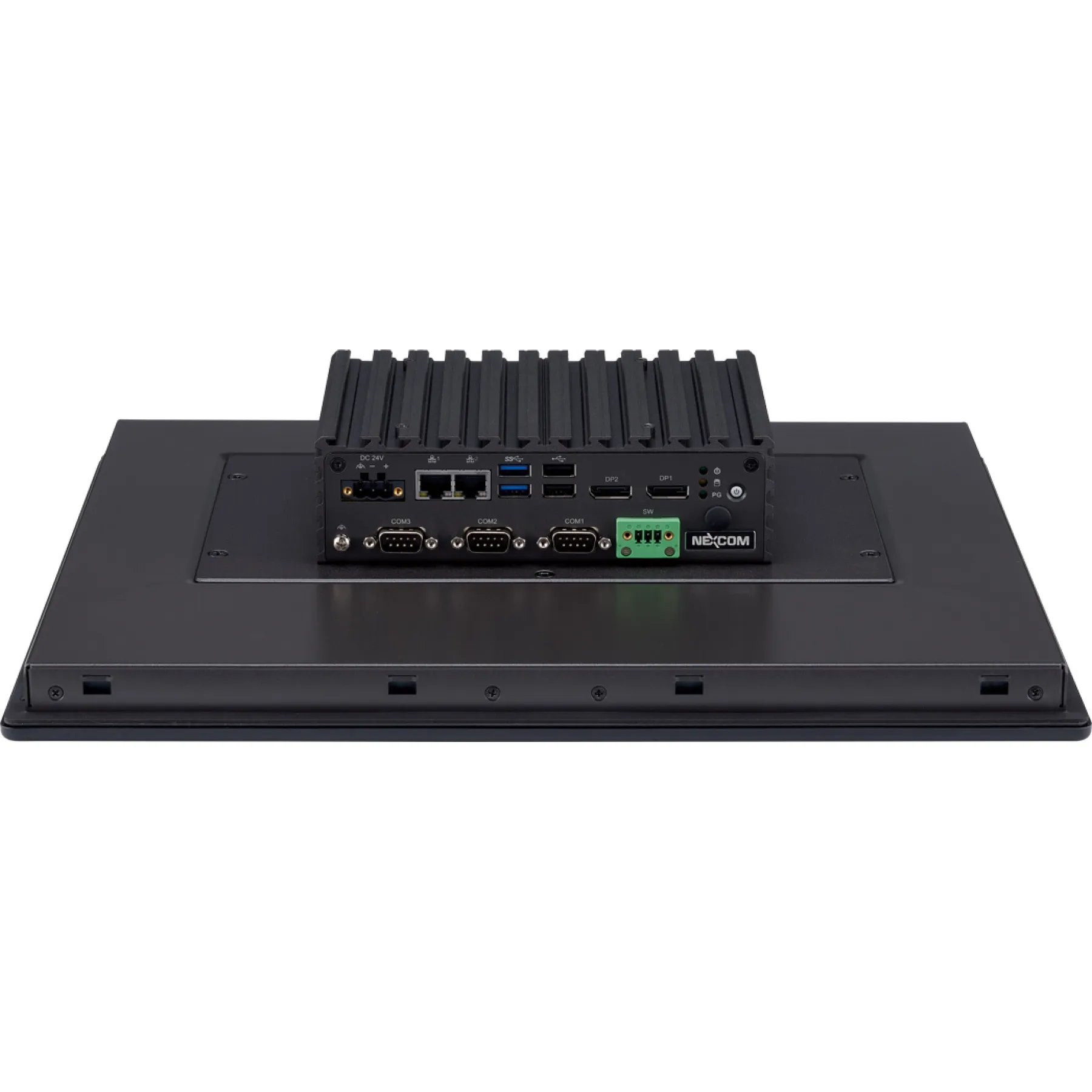

Rear I/O	Ethernet: 2 x RJ45 Display: 2 x DP1.2 USB: 2 x USB 2.0, 2 x USB 3.0 LED indicator: power/HDD/GPIO programmable LED Power button COM #3: RS232/422/485 COM #1&2: RS232
Ethernet	LAN chip: dual Intel I210 IT Gigabit LAN Ethernet interface: 10/100/1000 based-Tx Ethernet compatible
Mechanical & Environment	Color: Pantone blackRAL 15 00 front bezel w/ Pantone 400CRAL 090 80 10 metal style membrane and black silver PC box IP protection: IP65 front Mounting: panel/wall/stand/VESA 100mm x 100mm Power: Power input: 24 VDC Power adapter: optional AC to DC power adapter (+24V, 60W) Vibration: IEC 68 2-64 (w/ HDD) 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating) 2Grms @ sine, 5~500Hz, 1hr/axis (M.2/SSD operating) 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) Shock: IEC 68 2-27 HDD: 20G @ wall mount, half sine, 11ms Temperature: Operating temperature: 0°C to 50°C Storage temperature: -20°C to 75°C Operating humidity: 10%~90% relative humidity, non-condensing (limits to be at 90% RH at max 50°C) Dimension: 384.37 x 309.95 x 80.2 mm Weight: 4.6kg
Certifications	CE approval FCC Class A
OS Support Lists	Windows 10 64-bit

Touch Technology	Resistive
Ingress Protection	IP66
Brightness	400nit, Standard
Resolution	1024x768, Special/Other
GPU	Integrated GPU
Memory Capacity	Up to 4GB, Up to 8GB
Cooling Type	Fanless, Yes
Serial Ports (COM)	1 Port, 2 Ports, 3 Ports, RS-232, RS-232/422/485
USB Ports	2 Ports, 2 Ports, 4 Ports, USB 2.0, USB 3.0
Ethernet Ports (LAN)	2 Ports, 2 Ports
Wireless	Wi-Fi
Video Ports	2 Ports, 2 Ports
Storage Type	1, 1, 1, 2, 2.5", M.2 PCIe, M.2 SATA
Expansion Type	1, Any Expansion Type, Mini PCI Express
Input Voltage	24 VDC
Mounting Options	Panel-mount, Stand-mount, VESA-mount, Wall-mount
Operating Temperature	0°C to 50°C, Standard
Certifications	CE/FCC
OS Support	Windows 10, Windows 10 IoT, Windows 10 Pro
