AIEdge-X300-RTX30

Name: Nexcom AIEdge-X300-RTX30 8th Gen Intel Core AI Computer w/ NVIDIA Graphics Card
SKU: AIEdge-X300-RTX30

Nexcom

Nexcom AIEdge-X300-RTX30 8th Gen Intel Core AI Computer w/ NVIDIA Graphics Card

AIEdge-X300-RTX30

Supports 8th/9th Gen Intel Core – i3/i5/i7 socket type processor up to 65W
PCI-e slot supports PCI-e x16 graphics card up to 350W
Validated with NVIDIA RTX30 series graphics card
Industrial AI system stylish yet able to contain powerful GPU
Support optional M.2 module for Wi-Fi and flash storage
Support 1 x SATA 2.5” HDD/SSD

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: AIEdge-X300-RTX30

Categories: Edge AI GPU Computing Platforms, Embedded Box PCs, GPU Computing, Nexcom, Rugged AI Computers

Range: Nexcom

Details

Powered by the 8th/9th generation Intel Core processor, the AIEdge-X 300-RTX30 GPU enhanced Edge PC that can handle powerful multimedia content. In addition, it includes one expansion slot for graphics card that supports up to NVIDIA RTX 3090 GPU which powers up to 10496 CUDA Cores, not only does it offer stunning visuals for image projecting, it is also optimal for AI machine/deep learning. AIEdge-X300- RTX30 engages “calls to action” with virtual interactions in order to increase product interest and dwell time.The AIEdge-X300-RTX30, supporting HDMI display, LAN ports, USB 3.0 ports, and a RS232/RS422/RS485 interface, is an ideal high-end PC to optimize Image analytics, interactive projection, information visualization, convey brand messages, customer engagement, and smart retail management efficiencies to increase customer interaction and brand awareness. The AIEdge-X300-RTX30 can also support usages in education, interactive walls/floors, virtual and augmented reality and much more.

Ordering Info

AIEdge-X300-RTX30 (P/N:10W20X30001X0)	Industrial AI computing system at the Edge powered by Intel 8th/9th Gen Intel Core CPU and NVIDIA graphics card
AIBooster-X8 (P/N: 10E000AIB00X0)	Intel Movidius Myriad X VPU PCIe deep learning accelerator card

Downloads

Nexcom AIEdge-X300-RTX30 Datasheet (PDF)

0.7MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU Support	CPU support Socket LGA1151, Intel 8/9th Generation Core i9/i7/i5/i3 processor, 14nm process – i3-8100T Quad cord, 3.10 GHz, TDP 35W – i5-8500T 6 cord, 2.10 GHz, TDP 35W – i7-8700T 6 cord, 2.40 GHz, TDP 35W – i3-8300 Quad cord, 3.70 GHz, TDP 65W – i5-8500 6 cord, 3.0 GHz, TDP 65W – i7-8700 6 cord, 3.2 GHz, TDP 65W – i3-9100TE Quad cord, 2.20 GHz, TDP 35W – i5-9500TE 6 cord, 2.2 GHz, TDP 35W – i7-9700TE 8 cord, 1.8 GHz, TDP 35W – i9-9900T 8 cord, 2.1 GHz, TDP 35
Chipset	Intel PCH Q370
Graphics	Supports up to RTX 2060 (graphics card optional) – Integrated graphic powered by Intel® UHD graphics 630 – Suggested expansion card dimension within the limit of290mm (L) x 121mm (W) x 43mm (H)Validated graphics card include: – ASUS PH-RTX2060-O6G – Leadtek Quadro P2200
Main Memory	2 x 260-pin SO-DIMM sockets support DDR4-2400/2666 MHz non ECC, un-buffered memory up to 32G (single socket max16GB)
Internal I/O	2 x RS232 COM port box header8 channels GPIO pin header4 x USB 2.0 pin header1 x SATA connector

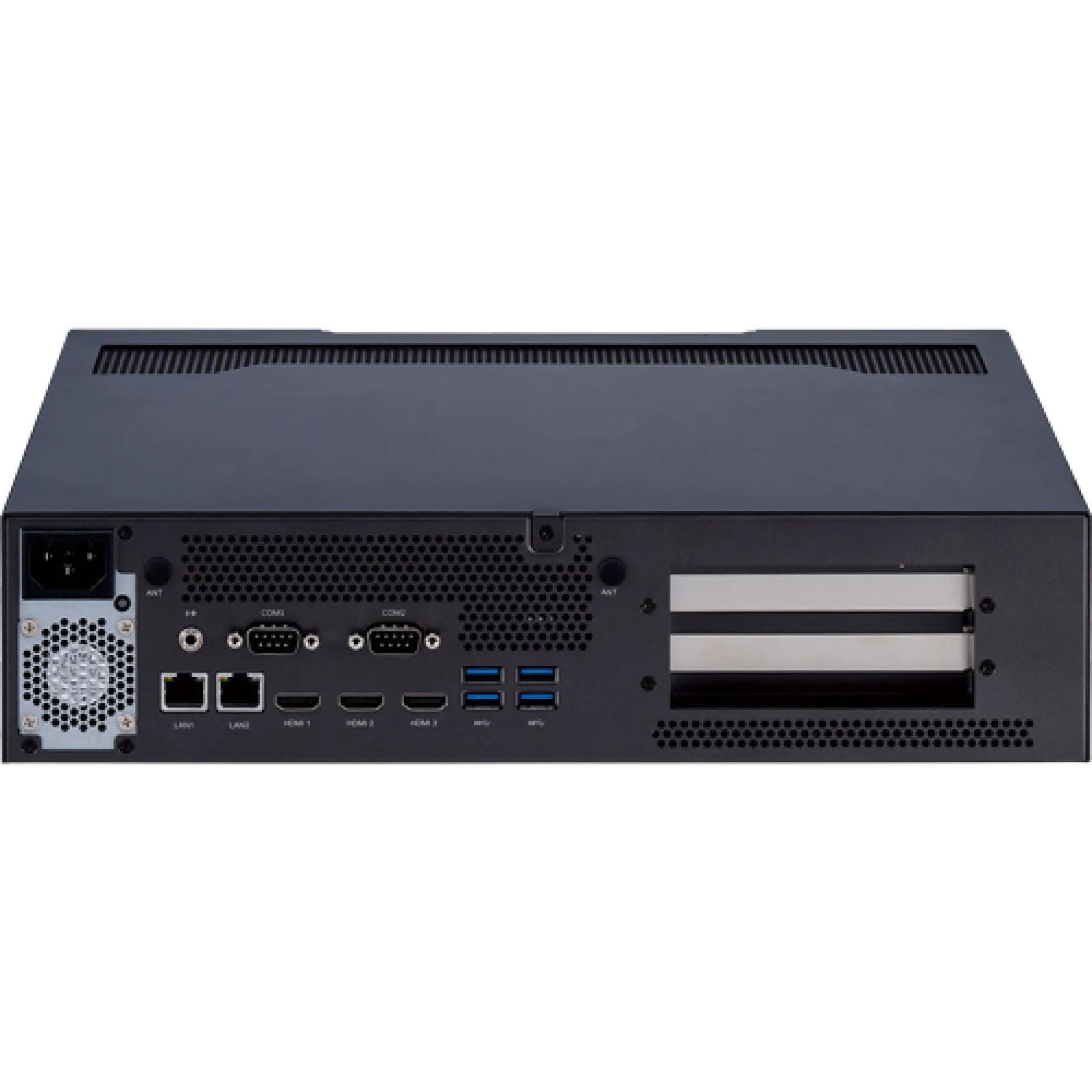

I/O Interface	1 x Power button with LED1 x HDD LED2 x Antenna hole3 x HDMI 2.04 x USB 3.02 x RJ45 with LEDs for gigabit LAN (i219LM/i211AT)1 x COM 1 port RS232/RS422/RS4851 x COM 2 port RS2321 x Audio line out
Storage	1 x SATA 2.5” HDD/SSD1 x M.2 Key M 2280 SSD with SATA/PCIe signal
Expansion	PCIe x16 Gen 3 slot (2 slot space available for graphics card)1 x M.2 Key E 2230 supporting Wi-Fi module
Power Supply	1 x 850W power supplyInput: 100VAC to 240VACOutput: +12VDC
Environment	Operating temperature: 0°C to 45°C (active cooling design)Storage temperature: -20°C to 80°CHumidity: 10% to 90% (non-condensing)Shock protection: 50G peak acceleration, 11ms according to IEC60068-2-27Vibration protection: – Random: 2Grms @ 5~500 Hz, IEC60068-2-64 (with SSD) – Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6 (with SSD)
Certification	CE (EMC EN55032 + EN55024)FCC Class A (EMI part 15B)LVD
Dimensions	360mm (W) x 335mm (D) x 85mm (H)
Operating System Support	Win10/Linux

Processor Type	Intel Core, up to 8 Cores
GPU	Integrated GPU, Discrete Plug in GPU
AI Engine	Intel AI Solutions
Memory Capacity	Up to 32GB
Serial Ports (COM)	1x RS-232/422/485, 1x RS-232
USB Ports	4x USB 3.0
Ethernet Ports (LAN)	2x 1G
Wireless	Wi-Fi
Video Ports	3x HDMI
Audio	Yes
Storage Type	1x 2.5", 1x M.2 SATA, 1x M.2 PCIe
Expansion Type	1x M.2, 1x PCI Express
Input Voltage	100-240 VAC
Operating Temperature	Standard OT: 0°C to 45°C, Standard
Market Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 11
