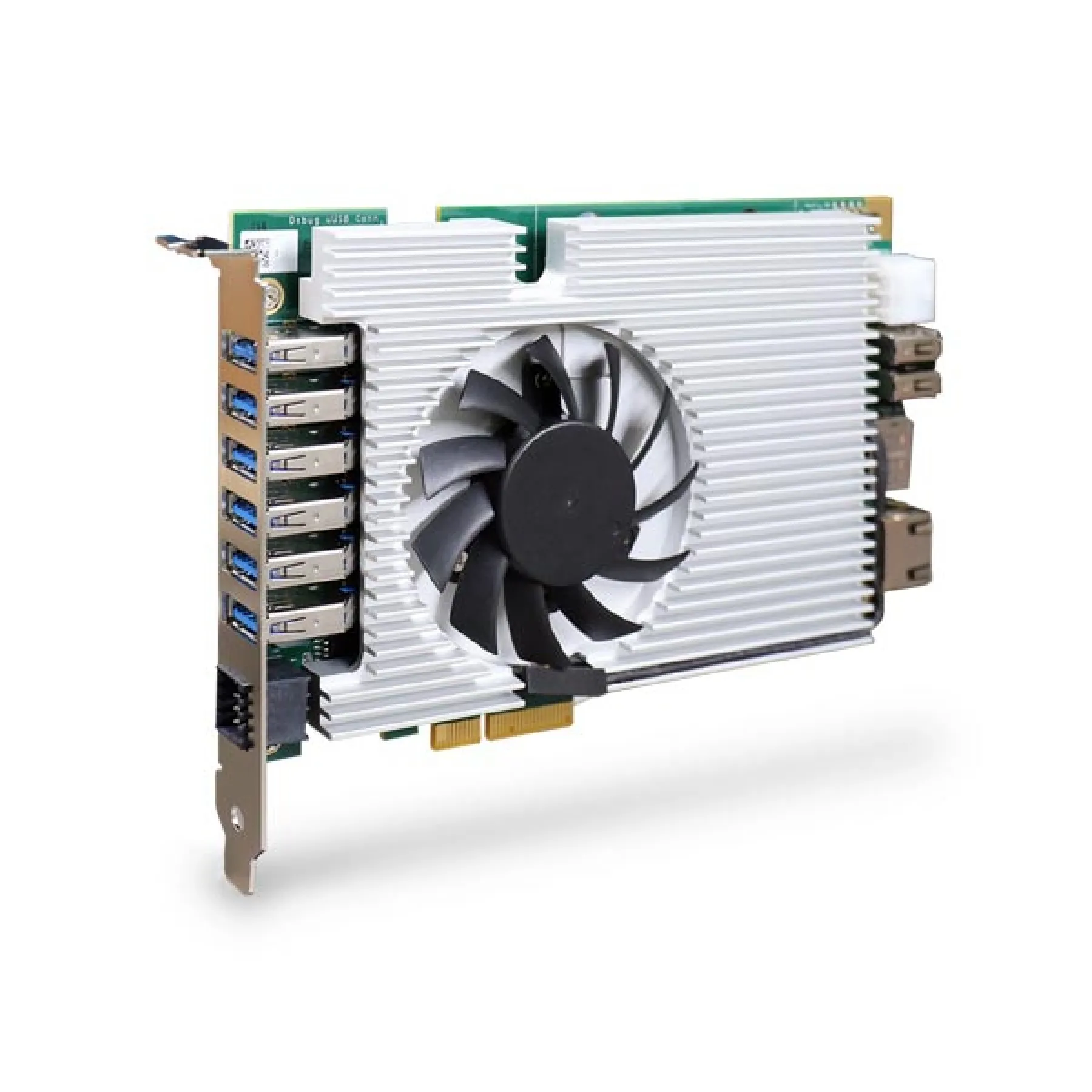

Neousys PCIe-NX156U3 NVIDIA Jetson Orin NX 100 TOPS Intelligent Grabber Card with 6x USB 3.2 Ports for AI Inspection
PCIe-NX156U3
- Powered by NVIDIA® Jetson Orin™ NX bundled with JetPack 5.1
- Single-slot width, standard PCIe half-length card form factor
- 6x USB 3.2 ports, each port with user-configurable 900mA and 1500mA current limit
- 100 TOPS AI inference performance
- Software-programmable per-port power on/off control
- 1x isolated RS-485 and 1x RS-232
- x1 Gen2 PCI Express interface offering 2.5Gb/s total bandwidth
- -25°C to 60°C operating temperature with airflow
PCIe-NX156U3
Machine Vision Frame Grabber Cards, Neousys, Neousys Expansion Cards and Accessories, NVIDIA Jetson Carrier Boards, NVIDIA Jetson Orin NX Carrier Boards, Video Capture Cards and Encoders
Details
COMING SOON PCIe-NX156U3 is an intelligent 6-port USB 3.2 frame grabber card powered by NVIDIA’s Jetson Orin NX designed to enable AI capabilities for modern vision inspections. It delivers 100 INT8 TOPS AI performance via its 1024 CUDA cores, 32 Tensor cores, and 2 NVDLA engines. It also features two USB 3.2 Gen2 ports and four USB 3.2 Gen1 ports; each port provides 10 Gbps (Gen2) or 5 Gbps (Gen1) data bandwidth, and up to 1500mA current for USB camera connectivity. PCIe-NX156U3 aims to enable AI inference and increase USB camera connectivity for existing 19" rack-mount or commercial off-the-shelf box AOI systems. With a standard single-slot half-length PCIe card form factor, PCIe-NX156U3 communicates with the host via the PCIe x4 slot Gen2 x1 signal. Its AI capabilities offloads deep-learning vision computing from the host computer, actions such as image capture, pre-processing, and inference are all performed by PCIe-NX156U3 while utilizing minimum host computer resources. Capable of wide temperature -25°C to 60°C operation and Windows and Linux OS compatibility make PCIe-NX156U3 the perfect upgrade for legacy machine vision systems to leverage deep learning-based image processing such as package inspection, object sorting, surface defect detection, assembly verification, and robotic guidance, etc. It is a revolutionary AI-enabling frame grabber card for next-generation inspection applications. Read Our Article on the PCIe-NX156U3Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
| AI Engine | NVIDIA Jetson Orin NX |
|---|---|
| Processor Type | 6 Cores, RISC: Up to 8 Cores |
| Memory Type | LPDDR5 |
| COM Ports | 1x RS-232, 1 Port, RS-485 |
| LAN Ports | 1x 1GB |
| USB Ports | 6x USB 3.2 |
| Video Ports | 1x DisplayPort |
| Storage | 1 |
| Operating Temperature | -25°C to 60°C |
