Nuvo-7000

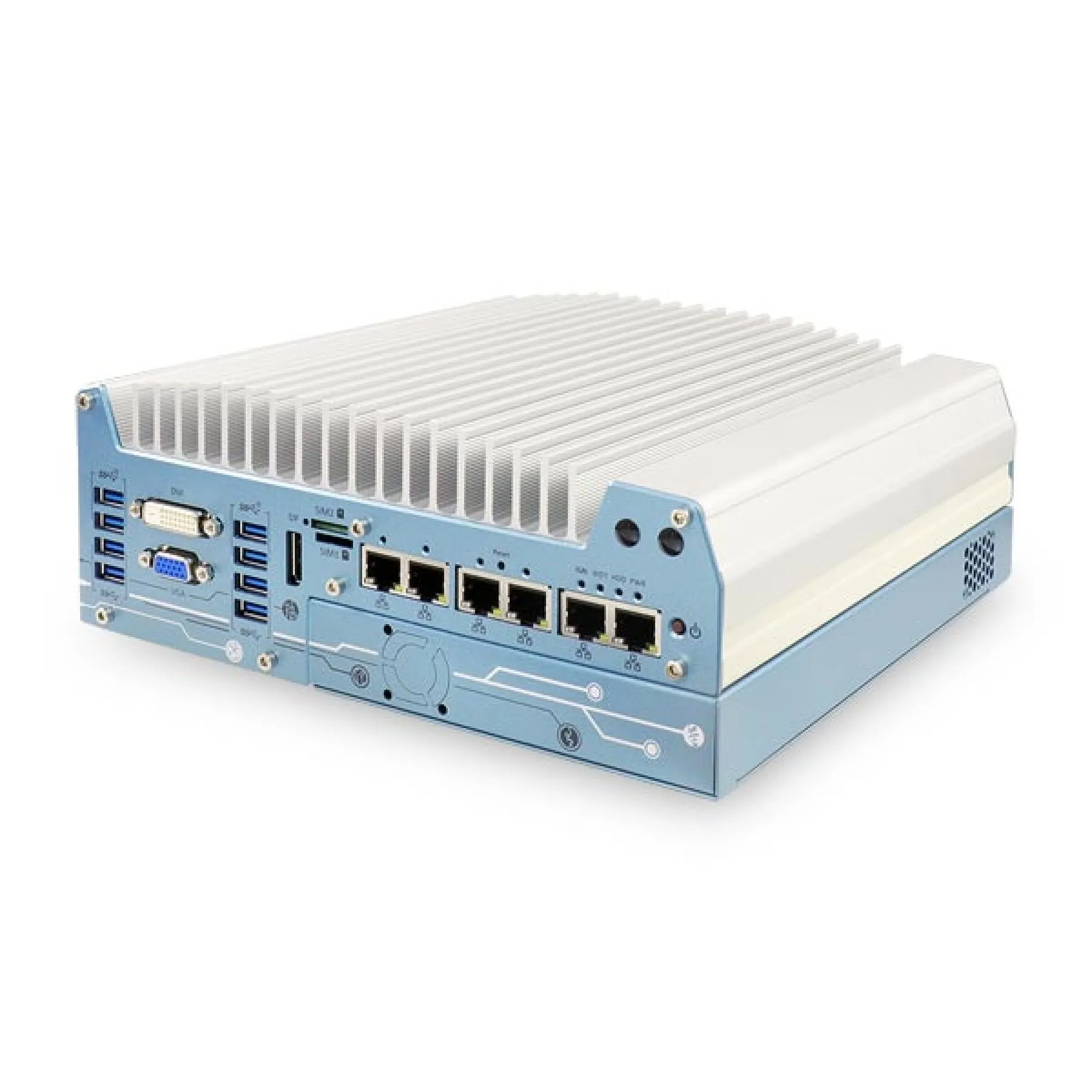

Name: Neousys Nuvo-7000 Intel 8th Gen Fanless PC, Wide Operating Temp, PCI Expansion
SKU: Nuvo-7000

Neousys

Neousys Nuvo-7000 Intel 8th Gen Fanless PC, Wide Operating Temp, PCI Expansion

Nuvo-7000

Brand: Neousys
Intel 8th Generation (Coffee Lake) i Core CPU options
Wide operating temperature -25°C to 70°C
Patented Cassette for PCI/PCIe expansion
Up to 6 x GigE ports, supporting 9.5 KB jumbo frame
Size: 240mm (W) x 225mm (D) x 90mm (H)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: Nuvo-7000

Categories: Embedded Box PCs, Expandable Computer Systems, Fanless Embedded PCs, Fanless Industrial PCs, Industrial Computing, Rugged Computers

Range: Neousys

Details

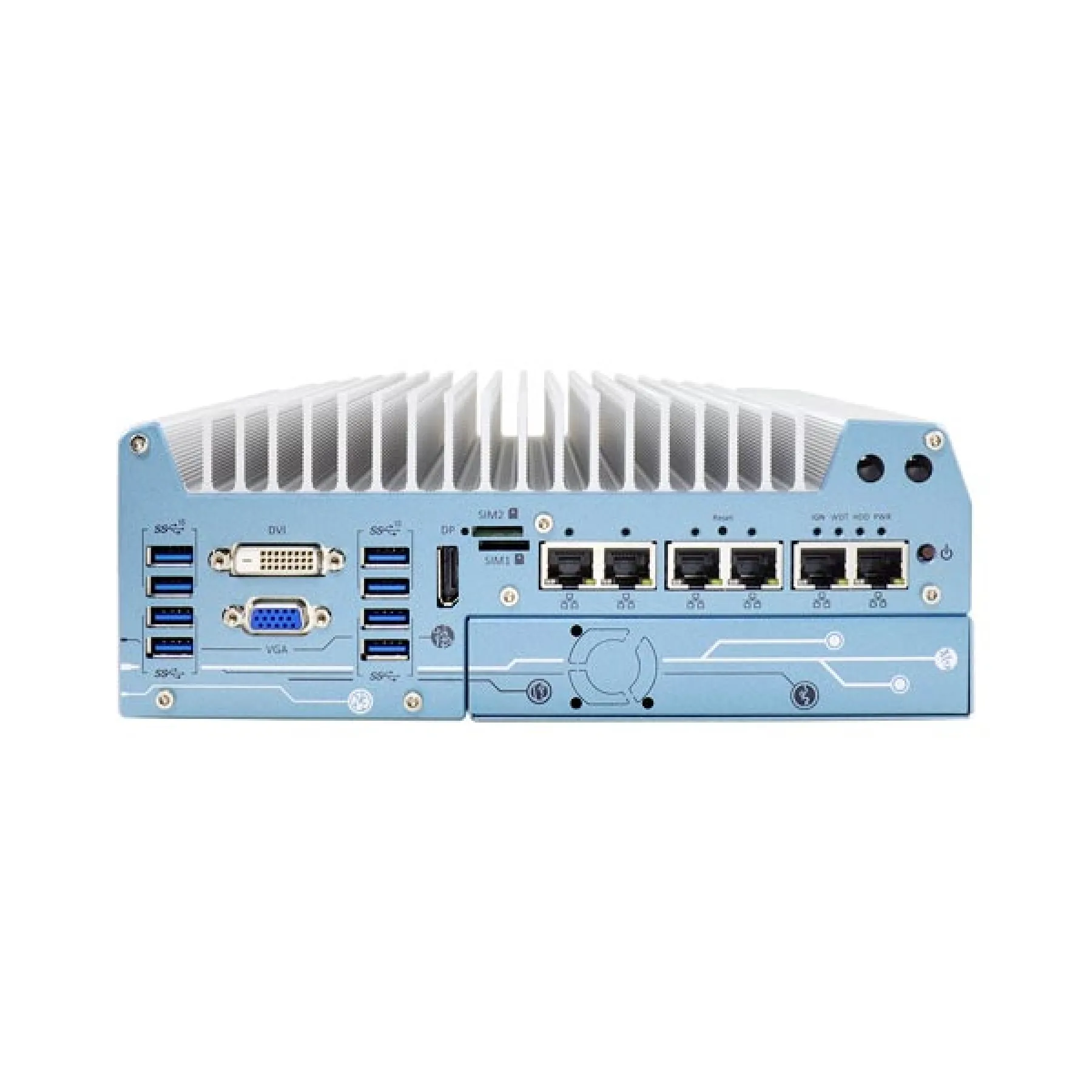

The Nuvo-7000 series is the flagship rugged fanless system range for Neousys in 2018. Powered by the new Intel 8th generation (Coffee Lake) Core i processors, with up to 6-core/12-thread architecture, these embedded systems will offer significant performance gains over 6th Gen or 7th Gen platform computers. Storage is via 2 x internal SATA ports for HDD/SSD, supporting RAID 0/1, plus 2 x full size mSATA ports. The comprehensive I/O includes 8 x LAN ports (optional PoE), 8 x USB, 1 x VGA, 1 x DVI-D, 1 x Display Port, 4 x COM ports and a 3.5mm jack for mic-in and speaker out. Nuvo-7000 variants will feature Neousys’ patented expansion cassette for PCI/PCIe expansion as well as their proprietary MezIO interface. The MezIO interface offers expansion for application-oriented I/Os such as RS-232/422/485, isolated DIO, CAN bus, ignition power control and storage expansion.

Ordering Info

Nuvo-7002E – Intel® 8th-Gen Core™ fanless controller with 2x GbE, single-slot PCI Express Cassette and MezIO™
Nuvo-7002DE – Intel® 8th-Gen Core™ fanless controller with 2x GbE, dual-slot PCI Express Cassette and MezIO™
Nuvo-7002P – Intel® 8th-Gen Core™ fanless controller with 2x GbE, single-slot PCI Cassette and MezIO™
Nuvo-7006E – Intel® 8th-Gen Core™ fanless controller with 6x GbE, single-slot PCI Express Cassette and MezIO™
Nuvo-7006DE – Intel® 8th-Gen Core™ fanless controller with 6x GbE, dual-slot PCI Express Cassette and MezIO™
Nuvo-7006P – Intel® 8th-Gen Core™ fanless controller with 6x GbE, single-slot PCI Cassette and MezIO™

Downloads

Neousys Nuvo-7000 Datasheet (PDF)

1.48MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Processor: Intel® 8th-Gen Coffee Lake 6-core CPU (LGA1151 socket, 35W/ 65W TDP)
Chipset: Intel® Q370 Platform Controller Hub
Graphics: Integrated Intel® UHD Graphics 630
Memory: Up to 32 GB DDR4 2666/2400 SDRAM (two SODIMM slots)
AMT: Supports AMT 12.0
TPM: Supports TPM 2.0
Ethernet Port: 2x Gigabit Ethernet ports by I219 and I210 (Nuvo-7002E/ P/ DE) 6x Gigabit Ethernet ports by I219 and 5x I210 (Nuvo-7006E/ P/ DE)
POE+: Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6, 80 W total power budget
USB: 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports via Intel native xHCI controller
Video Port: 1x VGA connector, supporting 1920 x 1200 resolution, 1x DVI-D connector, supporting 1920 x 1200 resolution, 1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port: 2x software-programmable RS-232/422/485 ports (COM1/ COM2), 2x RS-232 ports (COM3/ COM4)
Audio: 1x 3.5 mm jack for mic-in and speaker-out
PCI/PCI Express: 1x PCIe x16 slot@Gen3, 8-lanes PCIe signals in Cassette (Nuvo-7002E/ 7006E)
2x PCIe x8 slots@Gen3, 4-lanes PCIe signals in Cassette (Nuvo-7002DE/ 7006DE)
1x PCI slot in Cassette (Nuvo-7002P/7006P)
Mini PCI-E: 2x internal mini PCI Express socket with internal SIM socket (mux with mSATA)
Expandable I/O: 1x MezIO expansion port for Neousys MezIOTM modules
SATA HDD: 2x internal SATA port for 2.5″ HDD/SSD installation, supporting RAID 0/ 1
mSATA: 2x full-size mSATA port (mux with mini-PCIe)
DC Input: 1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl. & Status Output: 1x 3-pin pluggable terminal block for remote control and PWR LED output
Dimension: 240mm (W) x 225mm (D) x 90mm (H)
Weight: 4.4 kg
Mounting: Wall-mounting (standard) or DIN-Rail mounting (optional)
Operating temperature: with 35W CPU -25°C ~ 70°C **
with 65W CPU -25°C ~ 70°C */** (configured as 35W TDP)
-25°C ~ 50°C */** (configured as 65W TDP)
Storage temperature: -40°C ~ 85°C
Humidity: 10% ~ 90% , non-condensing
Vibration: Operating, MIL-STD-810G, Method 514.6, Category 4
Shock: Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC: CE/FCC Class A, according to EN 55022 & EN 55024

Processor Type	Intel Pentium, up to 2 Cores, Intel Celeron, up to 2 Cores, Intel Core, up to 6 Cores
Memory Capacity	Up to 64GB
Cooling Type	Fanless
Market Certifications	CE/FCC, MIL-STD
