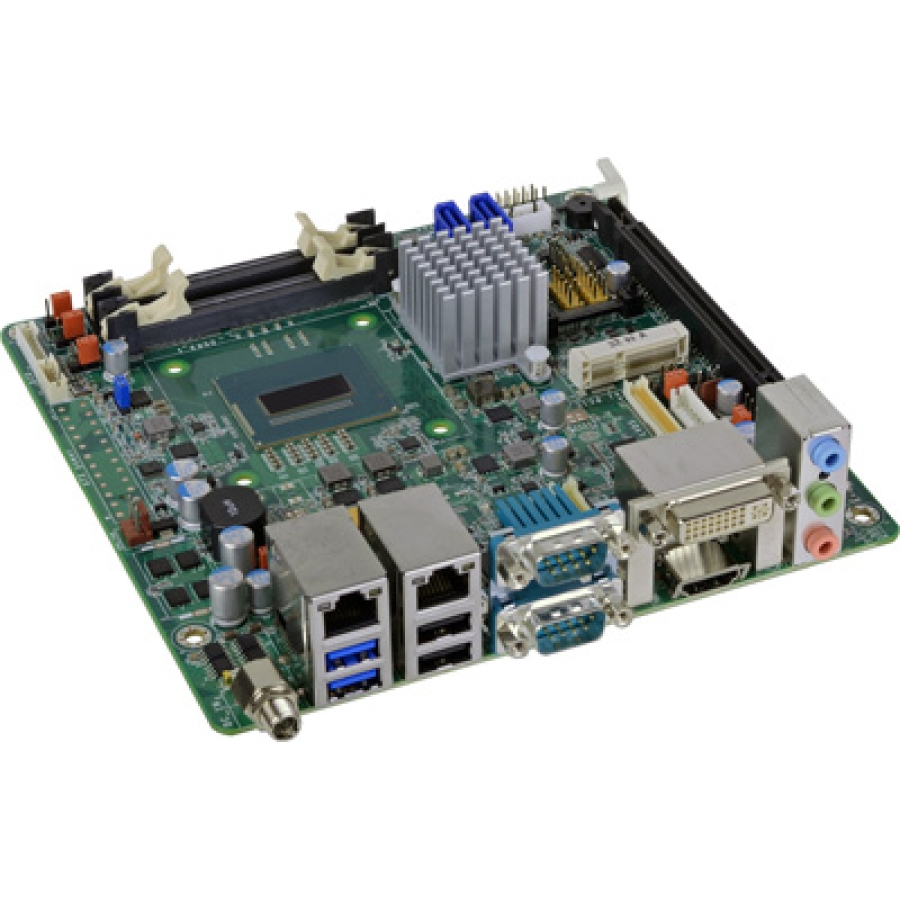

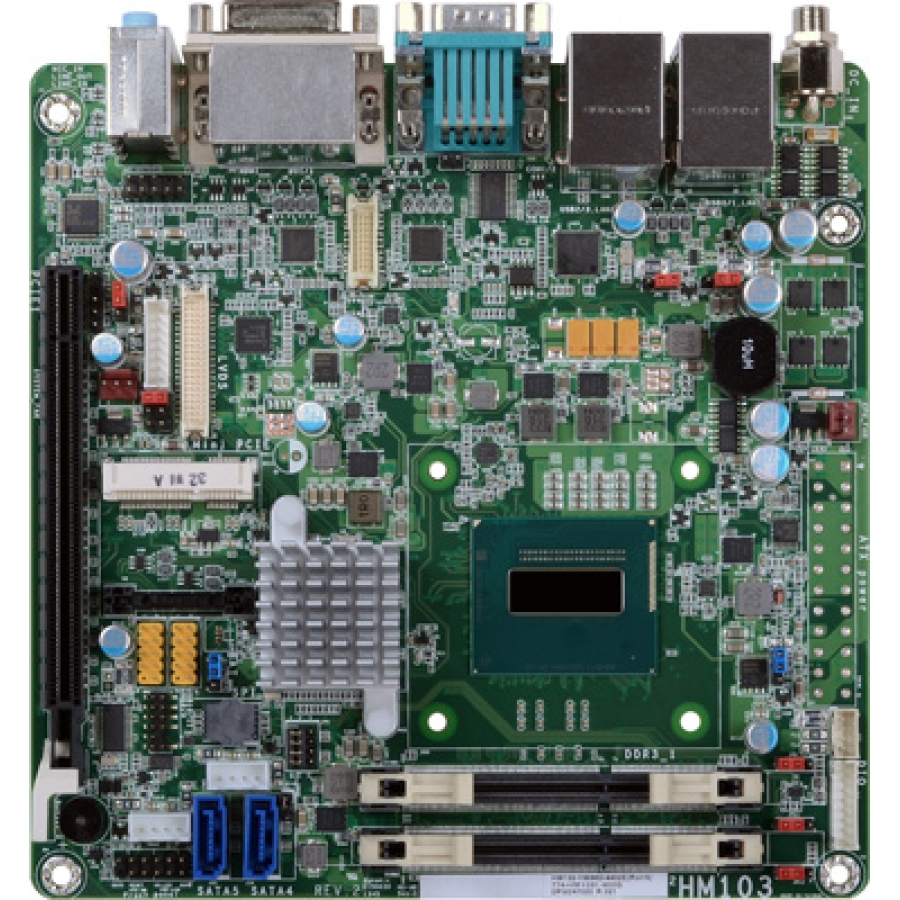

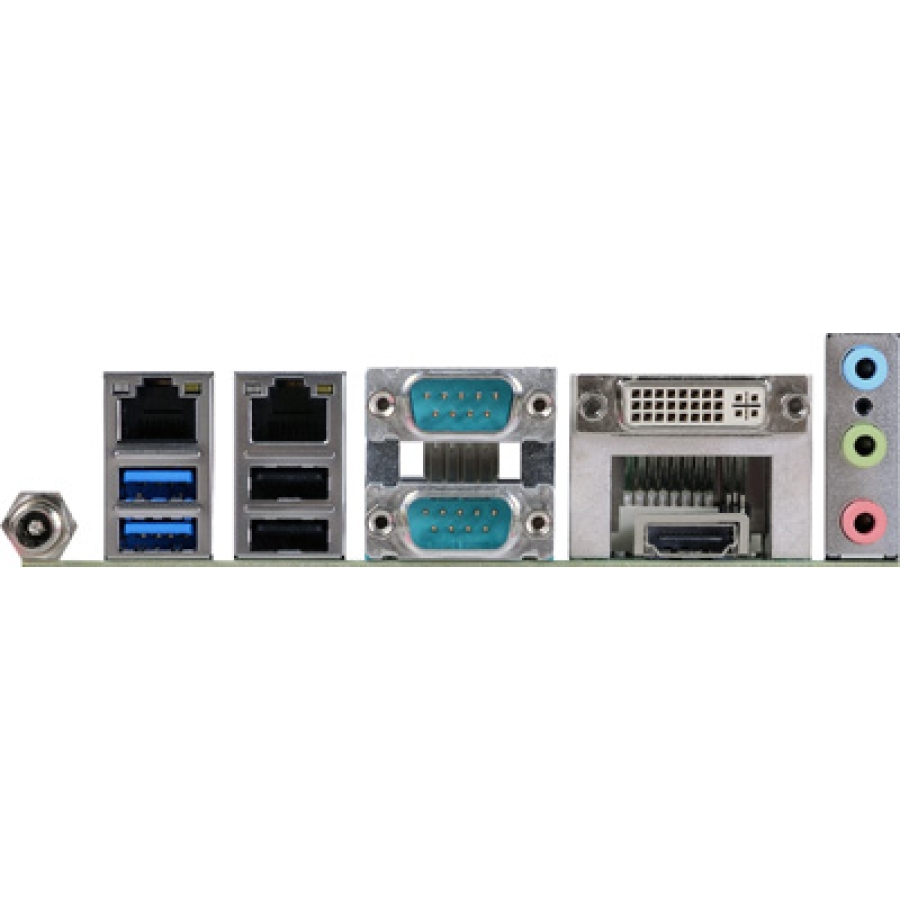

DFI HM103-QM87 Mini ITX with Intel 4th Gen Core CPU, QM87 Chipset, 13~24V DC
End of Life
The HM103-QM87 from DFI is a long life cycle Mini-ITX motherboard designed for use in industrial and embedded applications. The board is based around Intel's 4th generation of core processors with 22nm process technology, QM87 express chipset and BGA 1364 packaging technology. These 4th generation boards boast a 5~15% CPU performance increase over the previous generations. Main features on this board include support for 2 DDR3L SODIMM up to 16GB, Audio, 2 x SATA 3.0 ports with RAID 0/1, a useful 8 USB ports, 2 Gigabit LAN ports and 2 COM. Expansion comes as 1 x PCIe 3.0 and 1 x Mini PCIe. Power is supplied through 13~24V DC to support wide voltage. Intel HD graphics 4600 allows the HM103-HM86 to output HDMI resolution up to 4096×2304 @ 24Hz or 2560×1600 @ 60Hz, DVI-I resolution up to 1920×1200 @ 60Hz, LVDS 24-bit, dual channel, resolution up to 1920×1200 @ 60Hz and DP resolution up to 3840×2160 @ 60Hz. Together with Intel clear video technology and DirectX video acceleration. The HM100 is one of three QM87 chipset Mini-ITX industrial motherboards with expansive features that are ideal choices for a whole range of applications such as gaming machines, medical equipment, industrial control automation, security & surveillance, smart grid, ATM, and POS.
- Brand: DFI
- 4th Gen Intel Core i3/i5/i7 and Celeron CPU options
- Intel HD 4600 Graphics
- 8 x USB ports
- 1 x PCIe 3.0, 1 x Mini PCIe
- Size: 170mm x 170mm
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
The HM103-QM87 from DFI is a long life cycle Mini-ITX motherboard designed for use in industrial and embedded applications. The board is based around Intel's 4th generation of core processors with 22nm process technology, QM87 express chipset and BGA 1364 packaging technology. These 4th generation boards boast a 5~15% CPU performance increase over the previous generations. Main features on this board include support for 2 DDR3L SODIMM up to 16GB, Audio, 2 x SATA 3.0 ports with RAID 0/1, a useful 8 USB ports, 2 Gigabit LAN ports and 2 COM. Expansion comes as 1 x PCIe 3.0 and 1 x Mini PCIe. Power is supplied through 13~24V DC to support wide voltage. Intel HD graphics 4600 allows the HM103-HM86 to output HDMI resolution up to 4096x2304 @ 24Hz or 2560x1600 @ 60Hz, DVI-I resolution up to 1920x1200 @ 60Hz, LVDS 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz and DP resolution up to 3840x2160 @ 60Hz. Together with Intel clear video technology and DirectX video acceleration. The HM100 is one of three QM87 chipset Mini-ITX industrial motherboards with expansive features that are ideal choices for a whole range of applications such as gaming machines, medical equipment, industrial control automation, security & surveillance, smart grid, ATM, and POS.
Ordering Info
- HM103-QM87 4700EQ: Intel Core i7-4700EQ, 6M Cache, up to 3.4 GHz, 47W
- HM103-QM87 4400E: Intel Core i5-4400E, 3M Cache, up to 3.3 GHz, 37W
- HM103-QM87 4402E: Intel Core i5-4402E, 3M Cache, up to 2.7 GHz, 25W
- HM103-QM87 4100E: Intel Core i3-4100E, 3M Cache, up to 2.4 GHz, 37W
- HM103-QM87 4102E: Intel Core i3-4102E, 3M Cache, up to 1.6 GHz, 25W
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?

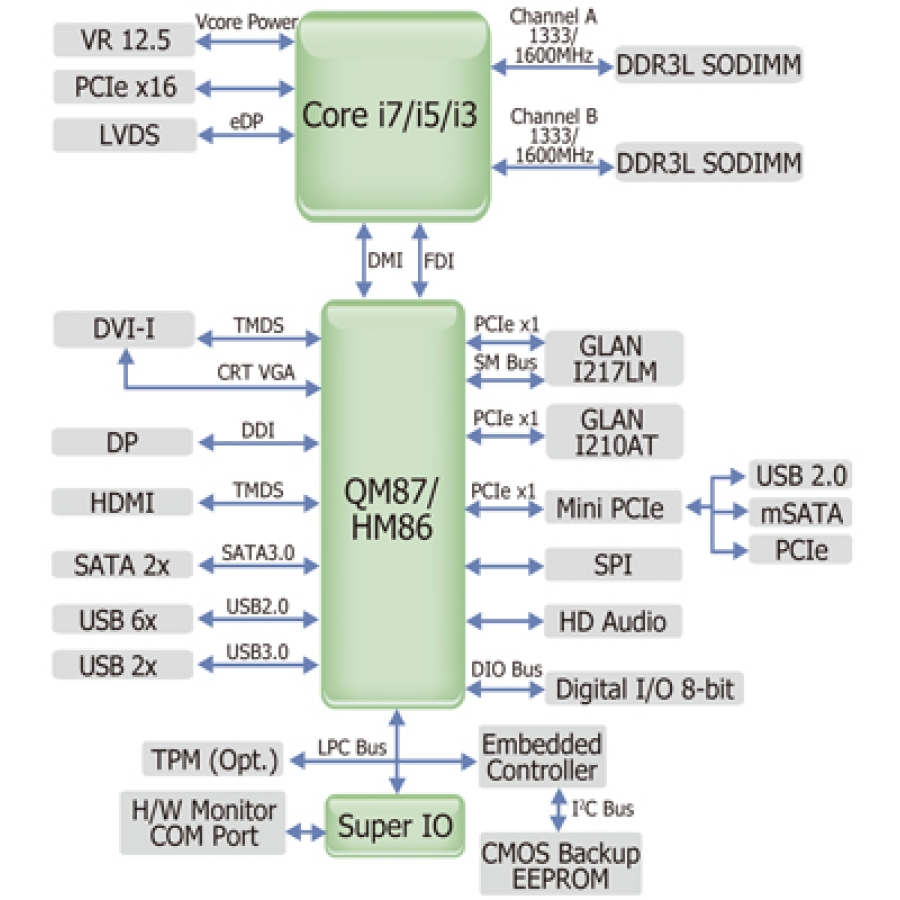

Specification
- CPU: Intel 4th Generation
- Chipset: Intel QM87 Express Chipset
- Memory: 2 x 204-pin DDR3L SODIMM up to 16GB
- Graphics: Intel HD 4600 Graphics
- Power: 13~24V DC
- Audio: Realtek ALC886 5.1-channel High Definition Audio
- Serial: 2 x RS-232
- USB: 2 x USB 3.0, 6 x USB 2.0
- Ethernet: 2 x 10/100/1000 LAN
- Digital I/O: 1 power connector
- Storage: 2 x SATA 3.0
- Expansion: 1 x PCIe 3.0, 1 x Mini PCIe
- Operating Temperature: 0-60 degrees centigrade
- Compliance: TBC
