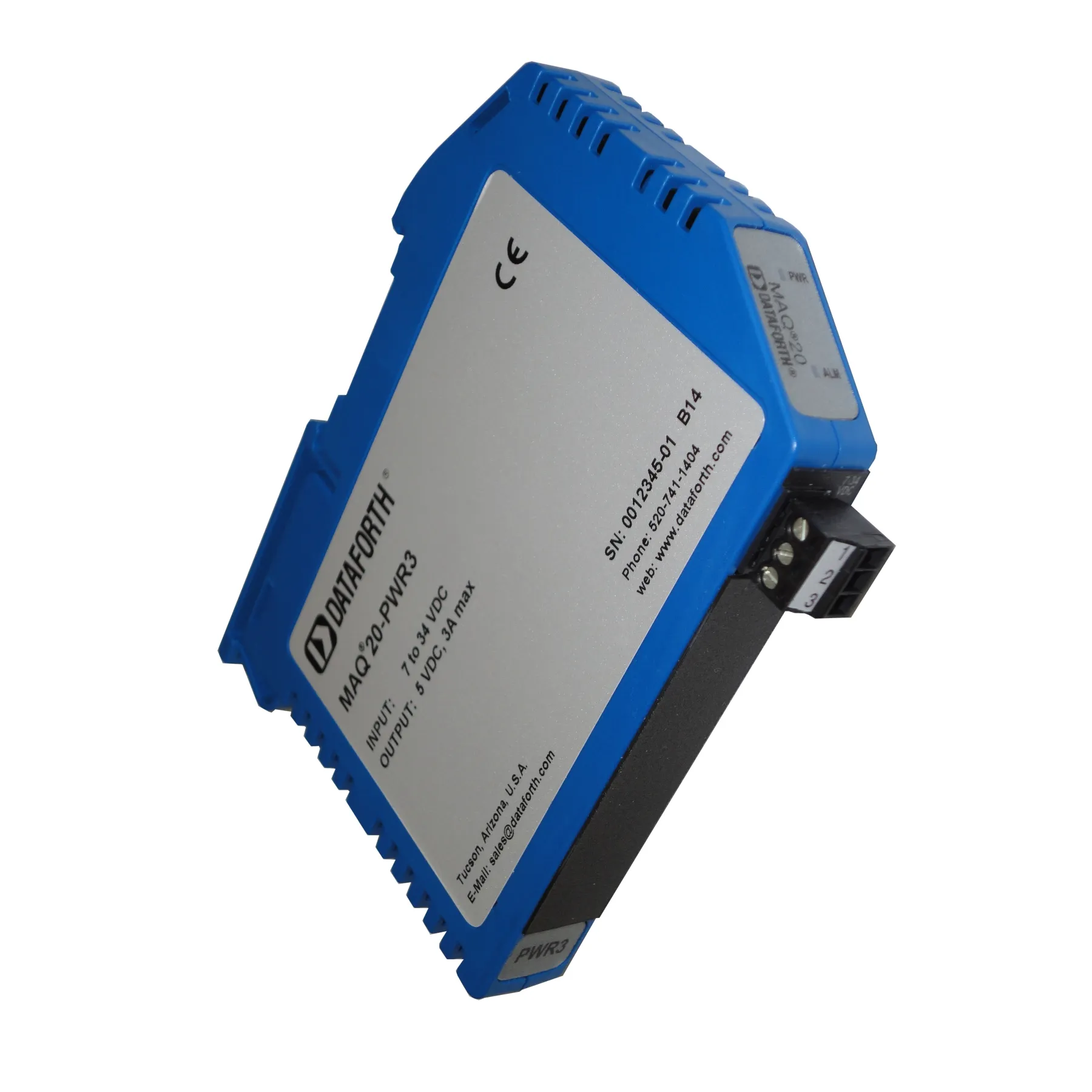

MAQ20-PWR3

Details

Dataforth's MAQ20 Industrial Data Acquisition & Control System offers an accessory Load Share Power Supply Module for expansion, standby and redundant power.

Ordering Info

Communication Modules:

• MAQ20-COM2 communcation module: RS-232, Ethernet & USB
• MAQ20-COM4 communication module: RS-485, Ethernet & USB

Analog Input Modules:

• MAQ20-VSN – 16 channel single ended voltage input module for MAQ20
• MAQ20-VDN – 8 channel differential voltage input module for MAQ20
• MAQ20-MVDN – 8 channel differential millivoltage input module for MAQ20
• MAQ20-ISN – 16 channel single ended current input module for MAQ20
• MAQ20-IDN – 8 channel differential current input module for MAQ20
• MAQ20-JTC – 8 channel type J thermocouple input module for MAQ20
• MAQ20-KTC – 8 channel type K thermocouple input module for MAQ20
• MAQ20-RSTC – 8 channel type R & S thermocouple input module for MAQ20
• MAQ20-RTD31 – 6 channel 2- or 3-wire RTD & potentiometer input module for MAQ20
• MAQ20-BRDG1 – 4 channel bridge / strain gauge module for MAQ20

Analog Output Modules:

• MAQ20-IO – 8 channel current output module for MAQ20
• MAQ20-VO – 8 channel voltage output module for MAQ20

Digital I/O Modules:

• MAQ20-DIOL – 5 channel digital I/O module w/ 90-280V AC/DC input for MAQ20
• MAQ20-DIOH – 5 channel digital I/O module w/ 3-60V AC/DC input for MAQ20

Backbones:

• MAQ20-BKPL4 – 4 I/O module & 1 communication module backbone for MAQ20
• MAQ20-BKPL8 – 8 I/O module & 1 communication module backbone for MAQ20
• MAQ20-BKPL16 – 16 I/O module & 1 communication module backbone for MAQ20
• MAQ20-BKPL24 – 24 I/O module & 1 communication module backbone for MAQ20
• MAQ20-XCA –  Backbone expansion cable for MAQ20

Power Supplies:

• PWR-PS5RA – 7.5W 24V DC power supply for MAQ20
• PWR-PS5RB – 15W 24V DC power supply for MAQ20
• PWR-PS5RC – 30W 24V DC power supply for MAQ20
• PWR-PS5RD – 50W 24V DC power supply for MAQ20
• PWR-PS5RE – 100W 24V DC power supply for MAQ20
• MAQ20-PWR3 – Load share power supply module w/ 5V DC at 3A for MAQ20

Software:

• MAQ20-940 – ReDAQ Shape
• MAQ20-951 – IPEmotion

Note: LabVIEW and any OPC client software is also supported via MAQ20
