Litemax SSF4220-Y 42.2″ Ultra High Bright 2500nits Stretched Bar LCD Display
SSF4220-Y
- Stretched LCD
- Ultra-Wide Screen (16 : 4)
- High Brightness 2500 nits
- LED Backlight
- LCD blacking defect free (Hi-Tni 110 ËšC)
- Low Power Consumption
- BL MTBF: 50,000 hours
SSF4220-Y
Commercial Monitors, Litemax, Specialist Displays, Stretch Displays, Stretched Bar LCD Display Monitors
Details

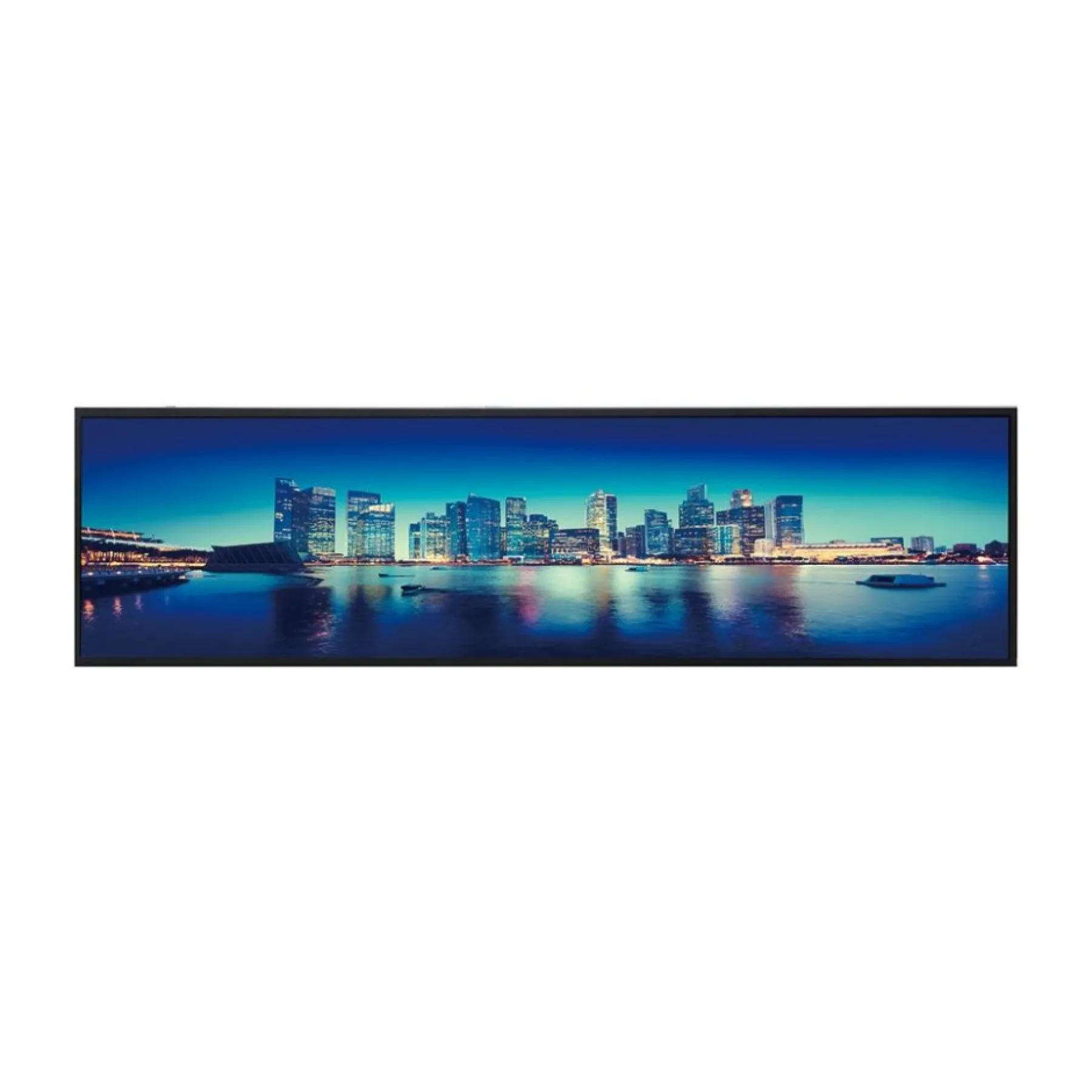

The Litemax SSF4220-Y is a 42.2" Stretched Bar LCD Display with a special aspect ratio of 16:4 alongside a wide resolution of 1920x480. This display is part of Litemax's Spanpixel series designed for sunlight readable application with 2500nit ultra high brightness whilst also incorporating a power efficiency LED backlight. The 4220-Y is suitable for digital signage applications including public transportation, exhibition halls, department stores and vending machines.
Ordering Info
- Please call our technical sales team on 01785 87 90 50 for advice.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Model Name | SSF4220-Y |
| Description | 42.2” TFT LCD, 2500 nits LED backlight, 1920×480 |
| Size | 42.2” |
| Display area (mm) | 1039.68(H) x 259.92(V) |
| Brightness | 2500 cd/m² |
| Resolution | 1920×480 |
| Aspect ratio | 16:4 |
| Contrast ratio | 7500:1 |
| Pixel pitch (mm) | 0.54(H) x 0.54(V) |
| Pixel per inch (PPI) | 47 |
| Viewing angle | 178° (H), 178° (V) |
| Color saturation (NTSC) | 70% |
| Display colors | 1073.7M |
| Response time (Typical) | 8ms |
| Video interface | LVDS |
| Input power | – |
| Power consumption | 102W |
| Dimensions (mm) | 1059.48(H) x 283.52(V) x 56.90 (T) |
| Bezel size (U/B/L/R) | 9.8/9.8/7.9/7.9 |
| Weight (Net) | 5.5 kg |
| Mounting | – |
| OSD key | – |
| OSD control | – |
| Operating temperature | 0°C ~ +50°C |
| Storage temperature | -20°C ~ +60°C |
| Product approval | CE, FCC |
| Screen Size | 41" to 50", 42.2" |
|---|---|
| Brightness | 2500nit, Ultra High |
