SSF1916-A
- 19″ Bar LCD Display w/ AD Board
- 1200 Nits Brightness
- 1920 x 388 Resolution
- 16:3.2 Aspect Ratio
- Size: 497.6mm (W) x 121.3mm (H) x 16.55mm (D)
SSF1916-A
Assured Systems, Commercial Monitors, Specialist Displays, Stretch Displays, Stretched Bar LCD Display Monitors
Details

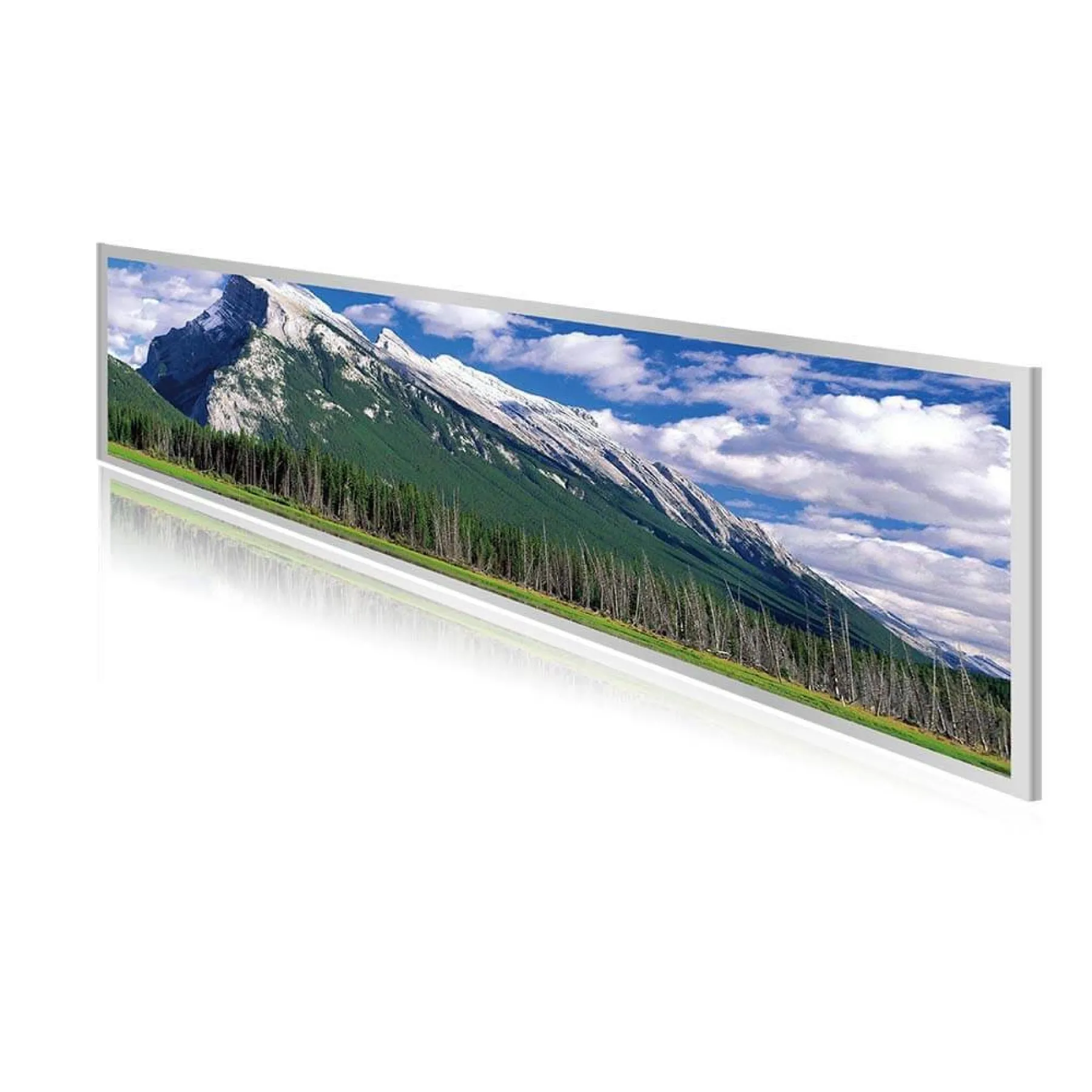

Litemax SSF1916-A Bar LCD Display have a 1920x388 resolution providing a 16:3.2 aspect ratio. The high bright LED backlit display provides over 1000 nits of brightness making the screen sunlight readable for outdoor applications.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Model name | SSF1916-A |
| Description | 19.1″ Resizing LCD, 1200 nits LED backlight, 1920×388 |
| Size | 19.1″ |
| Display area (mm) | 476.6(H) x 96.3(V) |
| Brightness | 1200 cd/m² |
| Resolution | 1920×388 |
| Aspect ratio | 16:03.2 |
| Contrast ratio | 3000:01:00 |
| Pixel pitch (mm) | 0.248 (H) x 0.248 (V) |
| Pixel per inch (PPI) | 102 |
| Viewing angle | 178° (H), 178° (V) |
| Color saturation (NTSC) | 84% |
| Display colors | 16.7M |
| Response time (Typical) | 25ms |
| Video interface | VGA, DVI-D, HDMI |
| Input power | DC12V |
| Power consumption | 23w |
| Dimensions (mm) | 497.6×121.3×16.55 |
| Bezel size (U/B/L/R) | 10.35/10.35/8.9/8.9 |
| Weight (Net) | 1kg |
| OSD key | 4 keys (Power switch, menu, +, -) |
| OSD control | Brightness, color, contrast, H/V position… etc |
| Screen Size | 11" to 20", 19.1" |
|---|---|
| Brightness | 1200nit, High |
