Litemax SSDS3705-Y 37″ Ultra Wide Sunlight Readable Stretched LCD Display
SSD3705-Y
- 37″ stretched LCD
- Stretched display (aspect ratio of 16 : 4.5)
- Sunlight readable, high brightness (1,000 nits)
- Resolutions: 1920 x 540
- High contrast ratio (4000:1)
- BL MTBF: 70,000 hours
SSD3705-Y
Commercial Monitors, Litemax, Specialist Displays, Stretch Displays, Stretched Bar LCD Display Monitors
Details

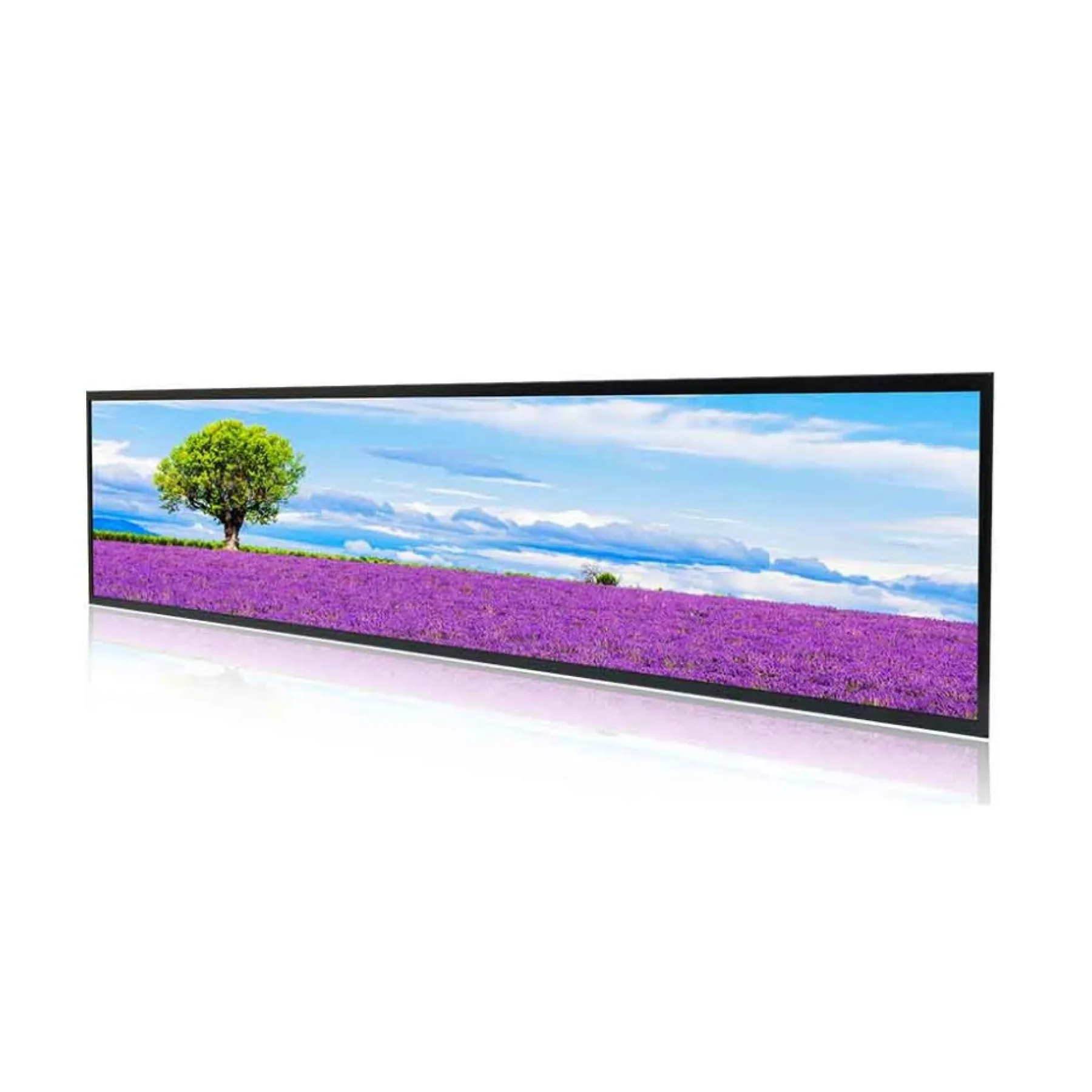

The Litemax SSD3705-Y is a 37" LCD display with a special aspect ratio of 16:4.5 alongside a wide resolution of 1920 x 540. This display is part of Litemax's Spanpixel series and is designed for sunlight readable application with 1000nits high brightness whilst also incorporating power efficiency LED backlight. The SSD3705-Y would suit digital signage applications including public transportation, exhibition halls, department stores and vending machines.
Ordering Info
- Please call our technical sales team on 01785 87 90 50 for advice.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Model Name | SSD3705-Y |
| Description | 37” LCD,1000 nits LED backlight, 1920 x 540 ultra-wide aspect ratio 16:4.5 |
| size | 37” |
| Display area (mm) | 904.32(H) x 254.34(V) |
| Brightness | 1000 cd/m² |
| Resolution | 1920×540 |
| Aspect ratio | 16 : 4.5 |
| Contrast ratio | 3300 : 1 |
| Pixel pitch (mm) | 0.47(H) x 0.47(V) |
| Pixel per inch (PPI) | 54 |
| Viewing angle | 178° (H), 178° (V) |
| Color saturation (NTSC) | 84% |
| Display colors | 16.7M |
| Response time (Typical) | 16ms |
| Video interface | VGA, DVI-D, DP |
| Input power | AC100~240V |
| Power consumption | 63W |
| Dimensions (mm) | 9917.9x 283.8 x 77.4 |
| Bezel size (U/B/L/R) | 13.3/13.3/9.7/9.7 |
| Weight (Net) | 9.3 kg |
| Mounting | VESA 300×75 |
| OSD key | 4 keys (Power switch, menu, +, -) |
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc |
| Operating temperature | 0°C ~ +50°C |
| Storage temperature | -20°C ~ +60°C |
| Product approval | CE, FCC |
| Screen Size | 31" to 40", 37" |
|---|---|
| Brightness | 1000nit, High |
