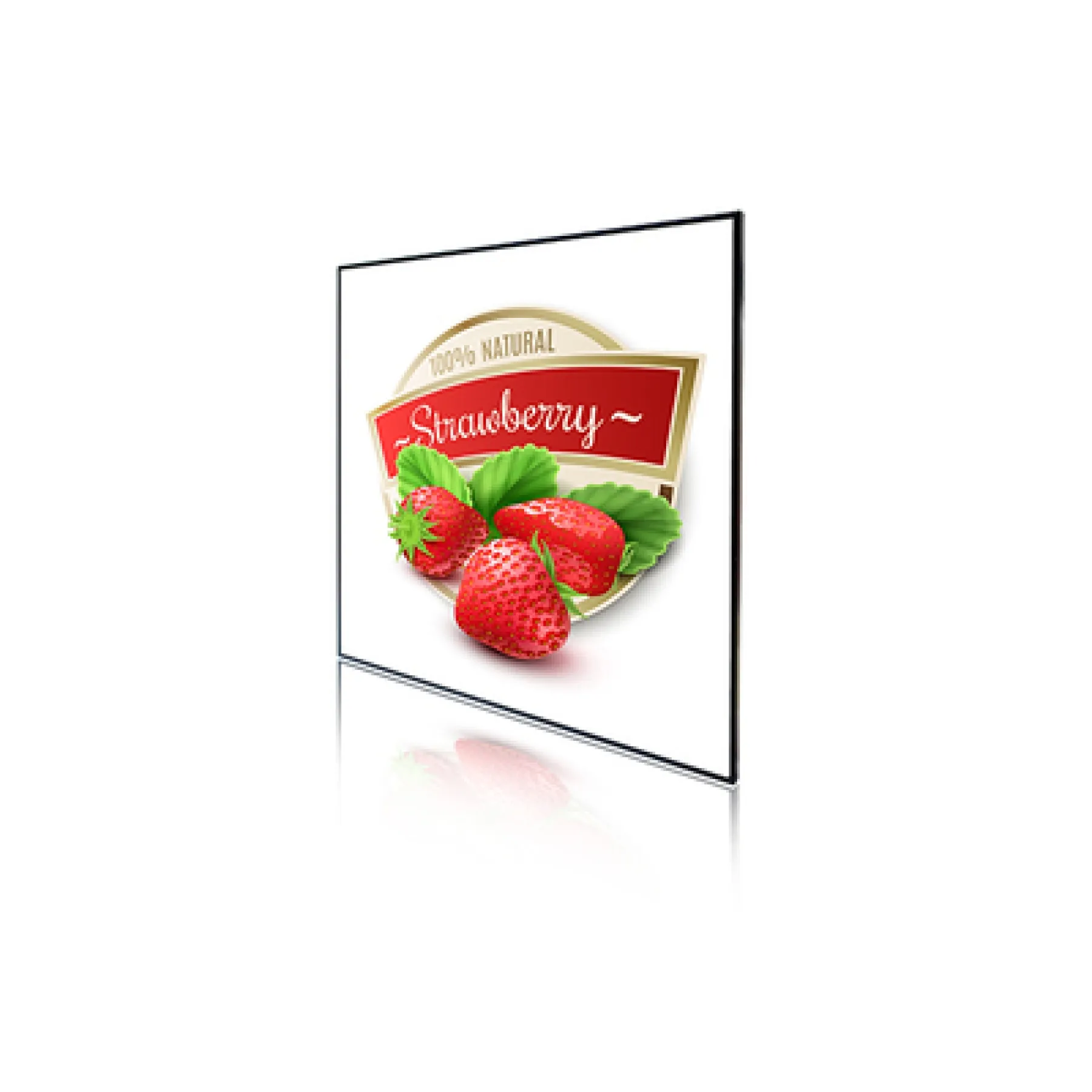

Litemax SSD3325-Y 33.2 ” Square LCD Display 1000 Nits
SSD3325-Y
- 33.2″ Square LCD Panel
- 1920 * 1920 Square Resolution
- High Brightness 1000 nits LED Backlight
- Sunlight Readable
- Low Power Consumption – 67W Approx.
- Industrial MTBF: 100,000 hours
Details
Litemax SSD3325-Y 33.2 inch square LCD displays have a special 1:1 aspect ratio and 1920 x 1920 resolution. Designed for high brightness with power efficiency LED backlight, the SSD 3323-Y square display have specific aspect ratios and sunlight readable for digital signage, public transportation, exhibition hall, department store, and vending machine. Upon request, the Litemax SSD3325-Y square LCD panel can be paired with touch technology and tempered, anti-reflective screen coatings.
Ordering Info
SSD3325-YNB-K01: 33.2″,1000nits,1920×1920 Square LCD Panel
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
Overview: 33.2” TFT LCD, 1000 nits LED Backlight, 1920×1920Screen Size: 33.2”Display Area (mm): 596.16(H) x 596.16(V)Brightness: 1000 cd/m2Resolution: 1920×1920Aspect Ratio: 1 : 1Contrast Ratio: 1000 : 1Pixel Pitch (mm): 0.3105(H) x 0.3105(V) Pixel Pre Inch (PPI) 82Viewing Angle: 178°(H),178°(V)Colour Saturation: (NTSC) 72%Display Colours: 16.7MResponse Time: 8ms (Typical)Panel Interface: LVDSAD Board Input Interface: DVI-D, HDMI, DPInput Power: AC 100~240VPower Consumption: 67 W (approx.)OSD Key: 4 Keys (Power Switch, Menu, +, -)OSD Control: Brightness, Colour, Contrast, Auto Turing, H/V Position…etcDimensions (mm): 615.8×615.8×62.9Bezel Size(U/B/L/R): 6.9/6.9/6.9/6.9 mmWeight (Net): 8kg (approx.) Mounting 400×200, 400×300Operating Temperature: 0 ˚C ~ 50 ˚CStorage Temperature: -20 ˚C ~ 60 ˚C
| Screen Size | 31" to 40", 33.2" |
|---|---|
| Brightness | 1000nit, High |
Delivery Information
Orders dispatched from Assured Systems USA will be delivered using FedEx.
Payment Methods & Options
Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.
Litemax: Warranty and Service Information
Assured Systems are proud partners of Litemax, offering a 2 year warranty with all Litemax products distributed in the EMEA. Extended warranty options are available upon request.
