FR IBOX-HSW1 E Type
Litemax IBOX-HSW1 E TYPE 4th Gen Intel Core Fanless Performance Box PC w/ 4x USB
End of Life
- Intel 4th Gen Core i5/i3 processor support
- Dual display: VGA/HDMI
- Two Intel Gigabit Ethernet ports

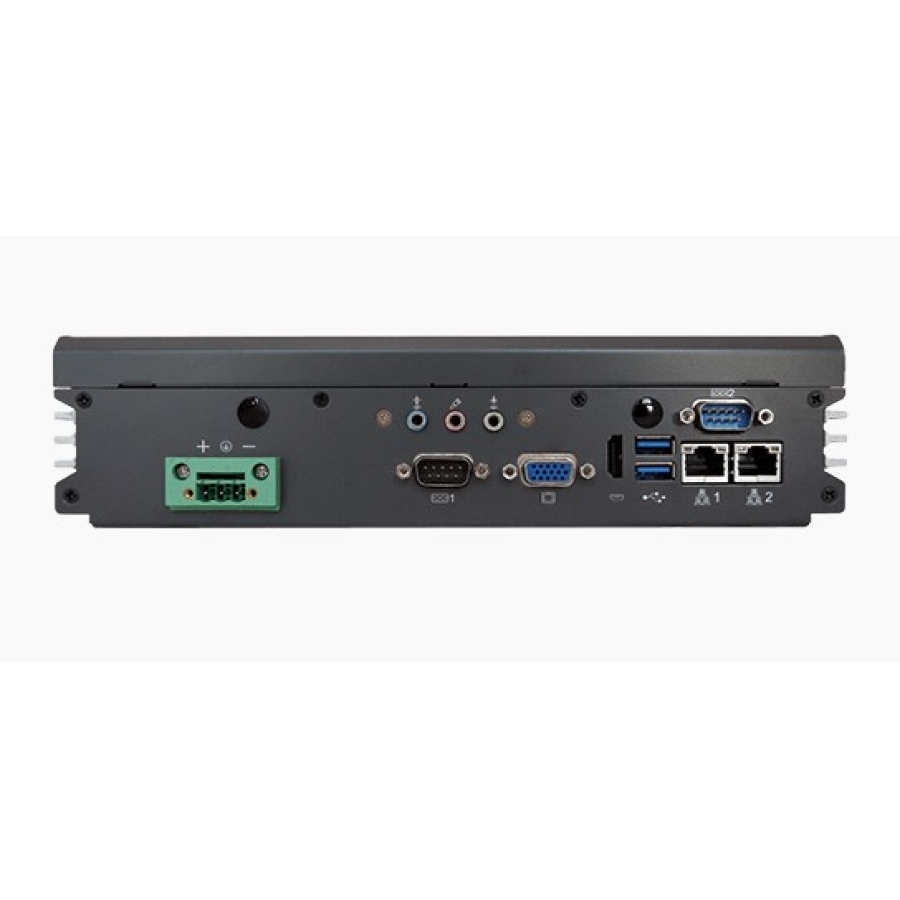

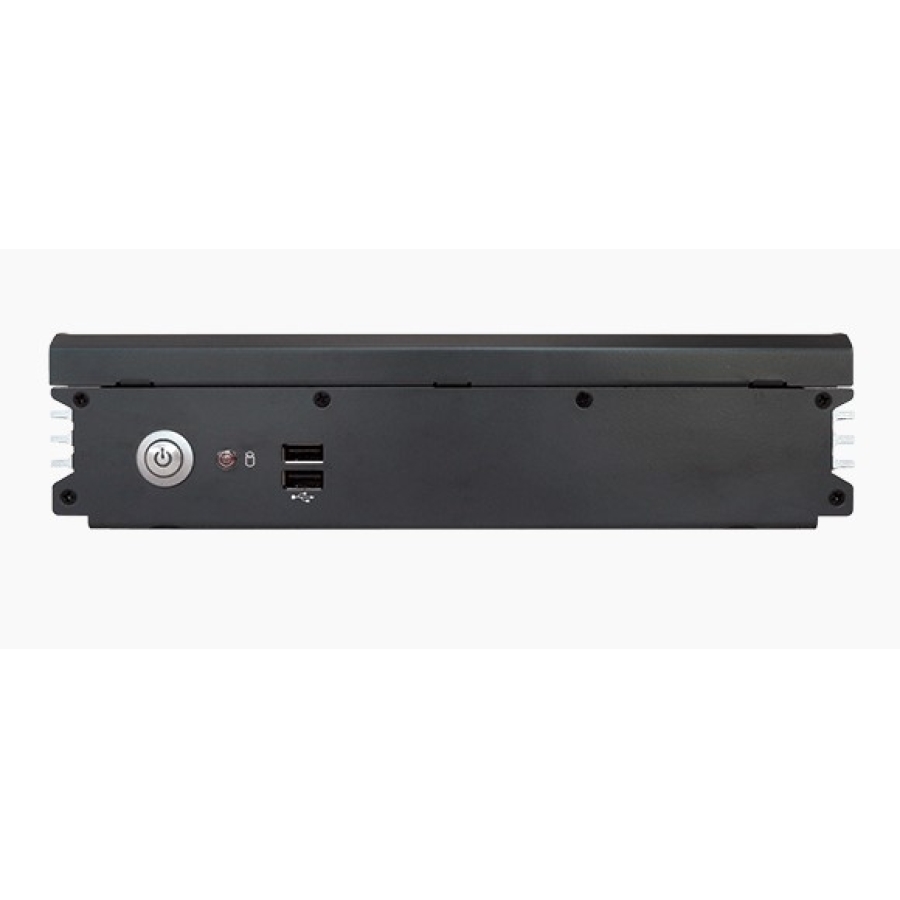

- 1 x VGA, 1 x HDMI, 4 x USB, 2 x COM, 2 x LAN, 1 x Audio
- DC 12V input with phoenix connector
- Watchdog timer
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
The Litemax IBOX-HSW1 E TYPE is a fanless embedded performance box PC powered by 4th Generation Intel Core i5/i3 processors alongside Intel HD graphics. This entry box PC contains rich I/O including 4x USB, 2x COM and 2x LAN port. The IBOX-HSW1 E TYPE works at a standard operating temperature of 0°C ~ 50°C with optional wide operating temperature of -20°C ~ -40°C.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Model name | IBOX-HSW1 E Type |
| CPU | Intel® Core™ i5-4402E 1.6GHz dual core processor(25W)Intel® Core™ i3-4102E 1.6GHz dual core processor(25W) |
| Chipset | Intel® QM87 PCH |
| BIOS | AMI SPI Flash ROM |
| System memory | 1 x 204-pin DDR3L 1333/1600MHz SDRAM max. up to 8GB |
| Graphic | Intel® HD Gen. 7.5 graphics |
| Watchdog timer | Yes |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| COM | 2 x COM (1x RS232, 1x RS232/ 422/485, RS485 with auto flow control) |
| LAN | 2 |
| Display | 1 x VGA, 1 x HDMI |
| Audio | Mic-in, Line-in, Line-out |
| PS/2 | N/A |
| Others | 2 x SMA hole |
| HDD | 1 x 2.5″ HDD |
| M.2 | N/A |
| mSATA | 1 (with Mini-PCIe) |
| Mini-PCIe | 1 (Full-size w/ mSATA) |
| M.2 | N/A |
| Power supply | DC 12V input, phoenix connector |
| Operating Temperature | 0°C ~ 50°C (Optional -20°C, -40°C) |
| Storage Temperature | -20°C ~ 80°C |
| Relative Humidity | 0% ~ 90% (non-condensing) |
| Construction | Aluminum extrusion and heavy-duty steel |
| Standard color | Silver |
| Mounting | Wall mount / VESA100 |
| Weight | 3.7 kg |
| Dimensions (W)x(D)x(H)mm | 260mm(W) x 146mm(D) x 63.9mm(H) |
