DLS5502-B

Litemax DLS5502-B 55″ LCD P-CAP Touch Intel SDM Display w/ HD Camera

DLS5502-B

  • Brightness: 400nits
  • LED Backlight
  • MaxRGB (NTSC 94%)
  • Low Power Consumption
  • P-Cap Touch Screen
  • 1080p HD Camera Available
  • Support Intel SDM-S/SDM-L

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

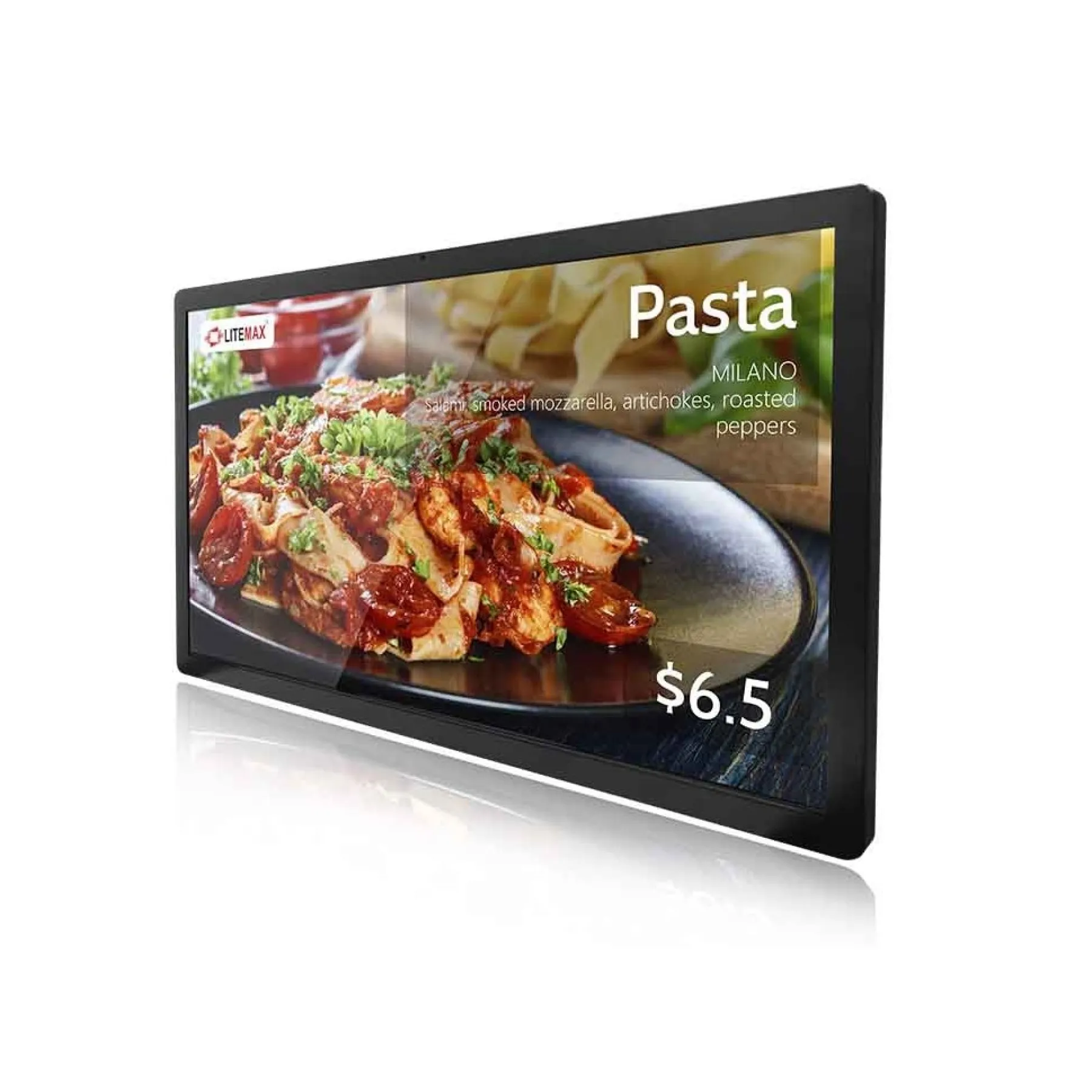

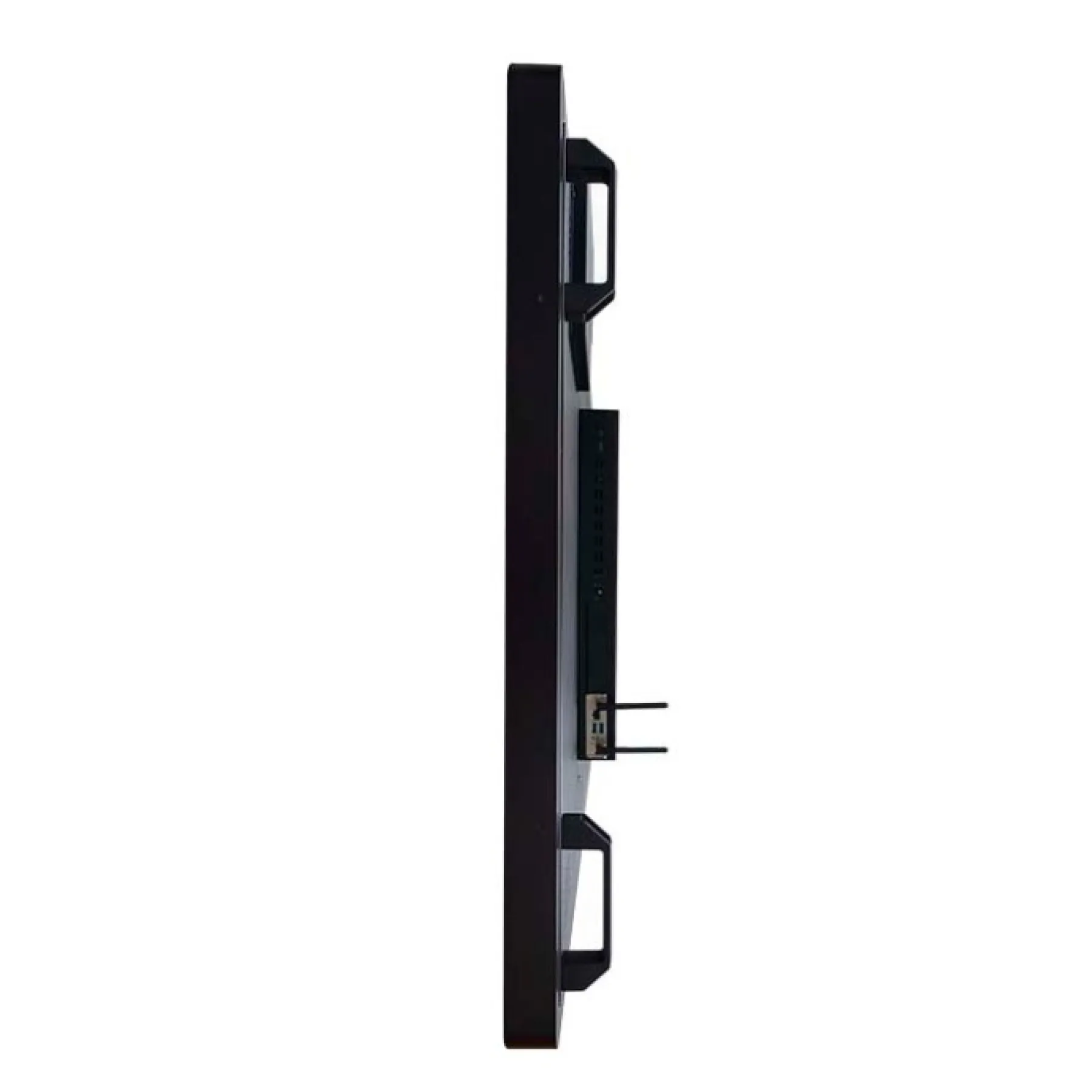

The Litemax DLS5502-B is a 55" TFT LCD, Intel Smart Display Module. This 55" display contains 400nits LED backlight perfect for indoor applications alongside a projective capacitive touch screen and a 1080p HD camera available. General features include a wide viewing angle and 16:9 aspect ratio.

Ordering Info

  • Please call our technical sales team on 01785 87 90 50 for advice.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Model Name DLS5502-B
Description 55” TFT LCD, 350 nits, FHD(1920×1080) SDM Solutions
Size 55”
Display Area (mm) 1209.6(H) x 680.4(V)
Brightness 350 cd/m²
Resolution 1920x 1080
Aspect Ratio 0.672916667
Contrast Ratio 66.66736111
Pixel Pitch (mm) 0.63(H) x 0.63(V)
Pixel Pre Inch (PPI) 40
Viewing Angle 178°(H),178°(V)
Color Saturation (NTSC) 0.95
Display Colors 16.7M
Response Time (Typical) 8ms
SDM Slot SDM-S/SDM-L
Input Power AC100~240V
Power Consumption 108W (Panel Model Only)
Dimensions (mm) 1233×709.4×71.6
Bezel Size(U/B/L/R) 10.2/16.8/10.7/10.7 mm
Weight (Net) 28 kg
Mounting VESA 400x 400
Operating Temperature 0 ˚C ~ 50 ˚C
Storage Temperature -20 ˚C ~ 60 ˚C

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

Litemax: Warranty and Service Information

Assured Systems are proud partners of Litemax, offering a 2 year warranty with all Litemax products distributed in the EMEA. Extended warranty options are available upon request.
