AMIX-BSW0

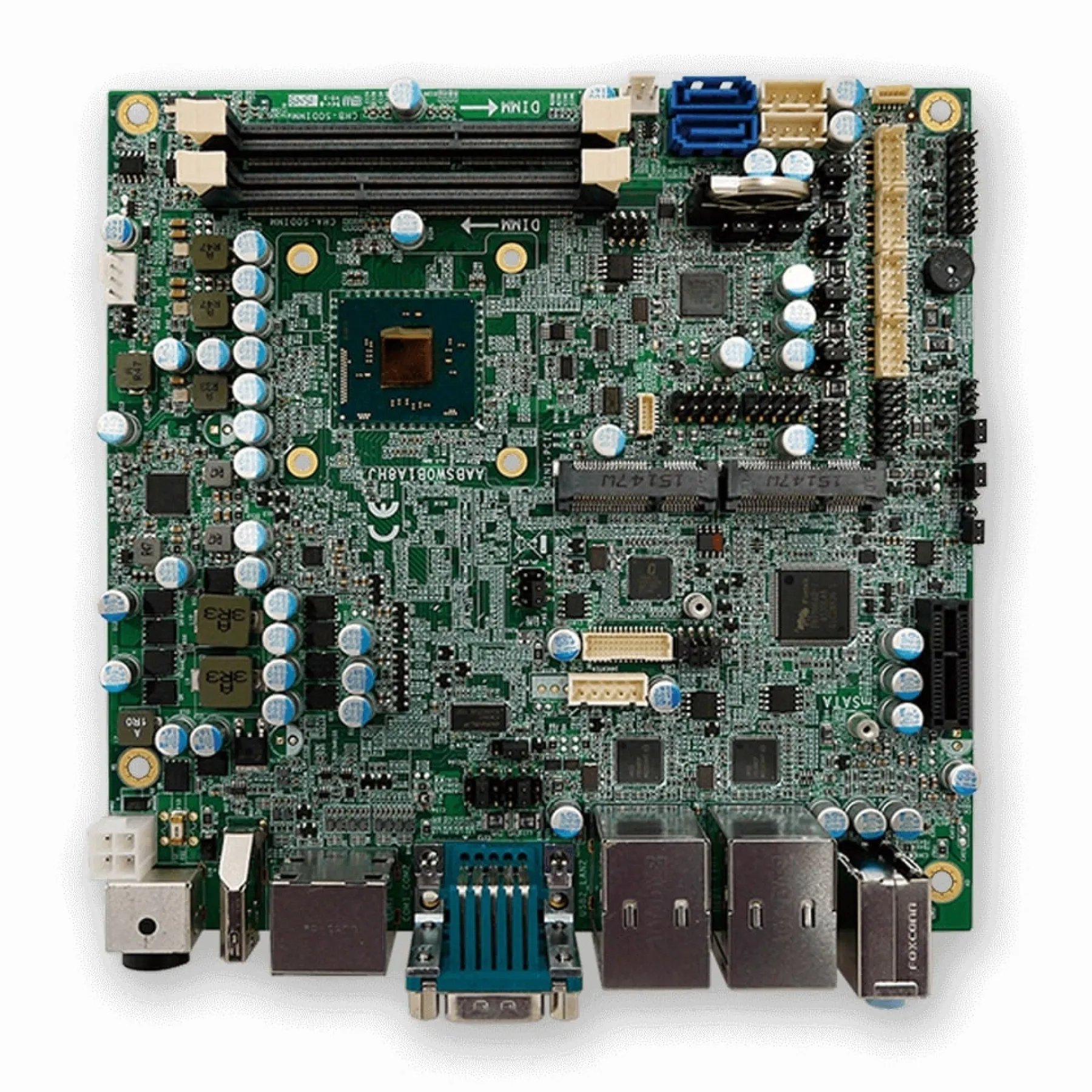

Litemax AMIX-BSW0 Intel Pentium/Celeron Mini-ITX Motherboard

AMIX-BSW0

  • Intel Pentium / Celeron N3000 processor (Braswell)
  • Two 204-pin SO-DIMM up to 8GB DDR3L 1600MHz SDRAM
  • Multi-Display: HDMI/2 DP/LVDS
  • Two Intel Gigabit Ethernet ports
  • 1 PCIe (x1), 1 Mini-PCIe and 1 mSATA expansion slots
  • 2 SATA III, 6 COM, 4 USB 3.0 and 5 USB 2.0
  • Supports 4K/2K resolution display
  • Supports TPM v1.2/v2.0 (optional)
  • EuP/ErP 2013 Ready

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The Litemax AMIX-BSW0 is a Mini-ITX Motherboard with Intel Pentium/ Celeron N3000 processor, alongside HDMI/2 DP/LVDS, 2x SATA III, 6x COM, 9x USB and Dual Intel GbE LAN.

Ordering Info

AMIX-BSW0-3710 (MOQ): Mini-ITX,Intel Pentium N3710 6W,HDMI/2DP/LVDS,SATA/6COM/9USB/2LAN,DC(12V)/DC-Jack(Lock)

AMIX-BSW0-3160: Mini-ITX,Intel Celeron N3160 6W,HDMI/2DP/LVDS,SATA/6COM/9USB/2LAN,DC(12V)/DC-Jack(Lock)

AMIX-BSW0-3060 (MOQ): Mini-ITX,Intel Celeron N3060 6W,HDMI/2DP/LVDS,SATA/6COM/9USB/2LAN,DC(12V)/DC-Jack(Lock)

AMIX-BSW0-3010 (MOQ): Mini-ITX,Intel Celeron N3010 4W,HDMI/2DP/LVDS, SATA/6COM/9USB/2LAN,DC(12V)/DC-Jack(Lock)

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type Intel Celeron: Up to 2 Cores, Intel Pentium: Up to 4 Cores
Memory Type DDR3L
COM Ports 1x RS-232/422/485, 5x RS-232
LAN Ports 2x 1GB
USB Ports 4x USB 3.0, 5x USB 2.0
Video Ports 1x HDMI, 1x LVDS, 1x DisplayPort
Storage 2x SATA
Operating Temperature -20°C to 70°C, -40°C to 70°C, 0°C to 60°C

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Orders placed by EMEA customers will be delivered by DHL from Assured Systems UK.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

Accepted payment options for EMEA customers include VISA, Mastercard or bank transfer in GBP.

Litemax: Warranty and Service Information

Assured Systems are proud partners of Litemax, offering a 2 year warranty with all Litemax products distributed in the US and EMEA (including the UK). Extended warranty options are available upon request.
